800mm Quatro Shower Cabin with Aqua White Back Panels-Cabin with Square Valve and Square Handset BeBa_10513-X-SQUARE

Quickfind: 1351347 SKU: BeBa_10513-X-SQUARE

Product Information

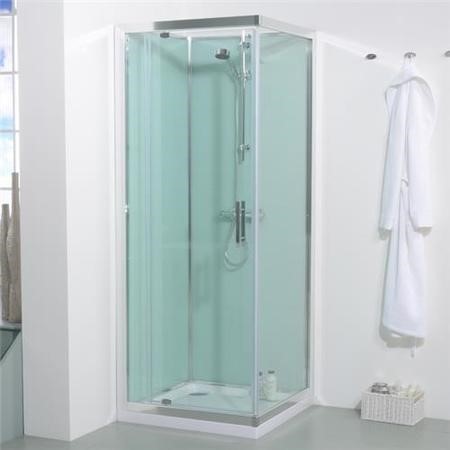

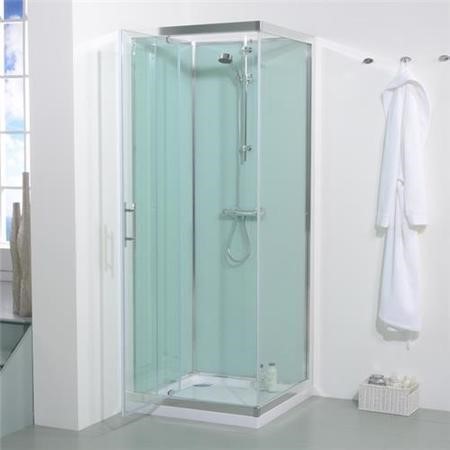

800mm Quatro Shower Cabin with Aqua White Back Panels-Cabin with Square Valve and Square Handset

Summary

The 800mm Quatro Shower Cabin is a beautifully designed and expertly crafted showering solution. 2 aqua white back panels eliminate the need for tiling and come pre-drilled for the ecobar shower valve and slide kit provided. Assembly and installation can be carried out with ease and the 800mm square tray provided is made from high quality acrylic. Other features include CE approved glass and easy clean quick release doors. Also available with black back panels.

Features

  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass

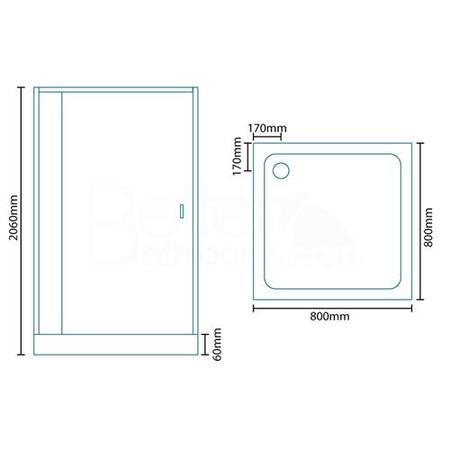

  • Height: 2060mm
  • Width: 800mm
  • Projection: 800mm
  • Door Opening Size: 500mm
  • Weight: 109.4kg
  • Fully contained shower cabin creating less chance of leaks
  • Toughened 6mm aqua white glass back panels - eliminate the need for tiling
  • Reduces the need for channeling of walls for pipes
  • Easy to assemble - Easy installation
  • Polished chrome profiles and modern chrome handles
  • Cushioned Seals
  • Easy clean quick release doors
  • CE approved
  • Reversible – Product is universal for left or right hand fitting
  • Includes 60mm high quality acrylic tray
  • Comes complete with slide rail kit and standard shower head
  • Minimum operating pressure 1.0bar
  • Includes: slide rail kit and a fast fit bracket for bar valves
  • Please Note: Slide rail cannot be changed for an alternative

Shower Kit Options:

The shower comes as standard with no shower valve, but you can also choose from the Ecobar Valve with Standard Handset, the Minimalist Valve with Space Handset, or the stylish Square Valve with Square Handset. PLEASE NOTE: The standard handset is also included Free of Charge with all optional upgrades.

All Valves

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps

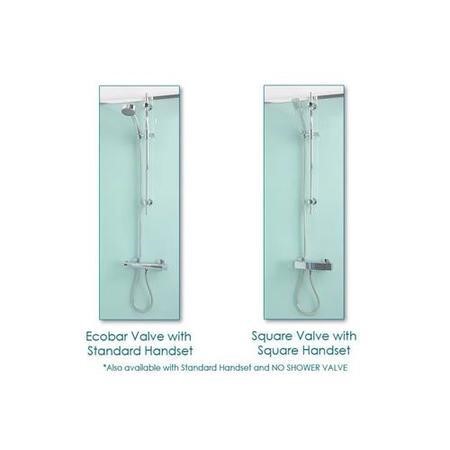

Ecobar Valve and Standard HandsetEcobar Shower

See image on the right.

  • Easy Clean Rubber Inserts on Handset
  • Number of functions on handset: 1
  • Chrome Finish



Square Valve and HandsetSquare Shower

See image on the right.

  • Valve suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Square Shower Head
  • Easy Clean Rubber Nozzles
  • Number of functions on handset: 1
  • Chrome Finish

Item Code:
BeBa_10513-X-SQUARE

Please Note: All sizes are approximate and should be used for guidance only.
