Aquafloe 6mm 900 x 900 Sliding Door Quadrant Enclosure BeBa_7609

Quickfind code: 1358743
  • bank holiday sale
Save £245.03
or £4.99 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Shower Quadrant

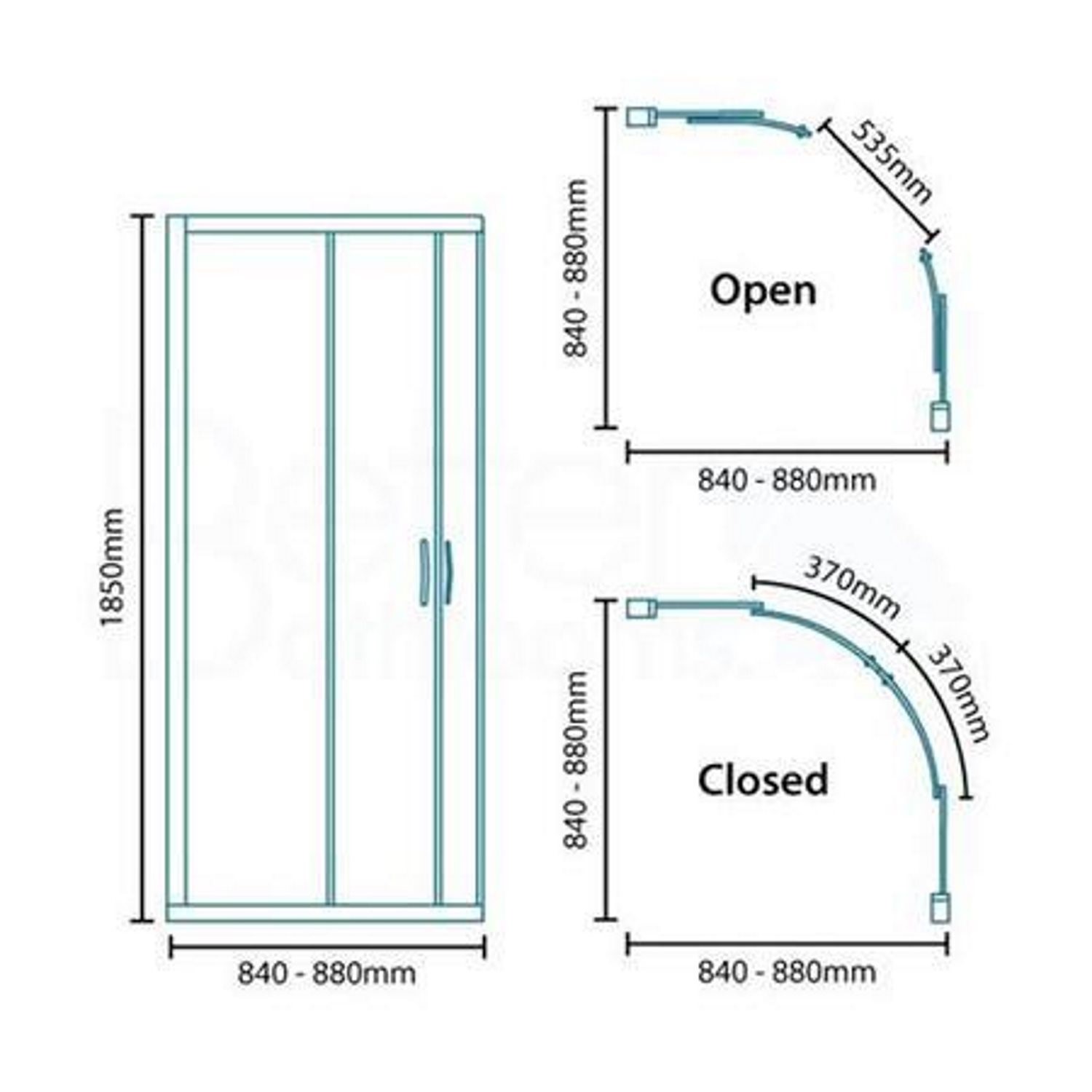

  • Width: Adjustable 840mm - 880mm
  • Height of the enclosure is 1850mm
  • Chrome Finish
  • Manufactured from 6mm thick toughened glass to conform to BS6202 safety standard
More Info »
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.


Popular Bundles

Product Information

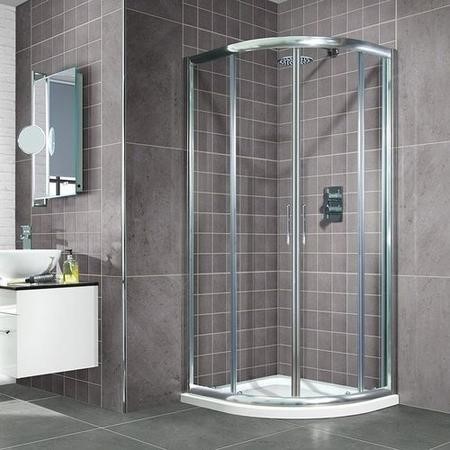

Aquafloe™ 6mm 900 x 900 Sliding Door Quadrant Enclosure


A 900 x 900 AquaFloe™ shower cubicle made from 6mm glass.

Download PDF View This Product's Installation Instructions


Aquafloe Logo

  • Shower Quadrant
  • Width: Adjustable 840mm - 880mm
  • Height of the enclosure is 1850mm
  • Chrome Finish
  • Manufactured from 6mm thick toughened glass to conform to BS6202 safety standard
  • 6mm Double Sliding Doors
  • 6mm side panels
  • Chrome plated metal handles
  • Full length chrome profile magnetic door closure
  • Independent door adjustment for accurate alignment of the door
  • Easy release roller wheels enabling quick installation and easy cleaning
  • Supplied with rust resistant, stainless steel screws and with chromed cap covers where required
  • Does not include shower tray but one can be purchased separately.
  • Accreditations & Testing:
    Sliding roller life test to 250,000 times opening
    - Fully waterproof tested with anti-leak test to conform to EN14428
    - Breakage test to conform to EN14428
    - ISO 9001: 2008 and ISO 14000: 2004 registered manufacturer

Item Code:

Please Note: All sizes are approximate and should be used for guidance only.


Questions & Answers

Question from Darren: Asked on 22/03/2017 I have a shower tray 850mm x 850mm will this cubicle fit
If it is adjustable how do you do that for a cubicle that's is 900mm x 900mm

Answer from chris thomas Hi,

Thank you for your question.

there is adjustment between the panel of glass and the wall brackets it just goes off how much you push the 2 together

If you need any more info or wish to place an order please contact me using the details below as i can check stock levels and allocate stock faster to you.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560

Question from g: Asked on 18/12/2015 The 3rd picture shows a single wheel per 'set', yet the video shows 2 wheels per set - which is correct ?

Answer from Benjamin Linnert Good afternoon,

Thank you for your question.

There are two wheels per set for this enclosure.

Kind regards.

Question from sheila. gavagan: Asked on 16/07/2015 Can I order legs with this cubicle, for installation on a solid asphelt floor?

Answer from Matt Clarke Hi,

Thank you for your question.

Yes you can. Please use code: 5453.

If you need any more info or would like to place an order, please contact me using the details below.

Kind Regards,

Matt Clarke
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560

Question from Nicolle Egan: Asked on 28/09/2014 Please could you clarify the diagonal measurement from the back corner to the front in the middle where the doors close? Thanks

Answer from Andrea Bullen Hi

Its 900mm

Question from manni: Asked on 28/06/2014 Hi

I have a shower tray which measures 900 x 900. will this shower enclosure be able to fit it?

Answer from Nathan McGregor Hello.

Yes this would fit you needs.


Question from sam: Asked on 18/03/2014 My incloser didnt have screws to fit the handles where would I be able to get some from thanks

Answer from Peter Hi,

Thank you for your question.

If you have any missing parts please contact the customer service team on 0844 484 7678 option 2 and they will be able to sort these for you.

Question from Linda: Asked on 03/03/2014 Installation instructions say 2 handles,
if they are on the outside as shown. How do you open doors from inside ?

Answer from Peter Hi,

There are two small handles on the inside of the shower to open the doors out.

Question from a shropshire lass: Asked on 15/02/2014 shower doors meet at top of unit but then start to part leaving a gap between.
How can I adjust them please.

Answer from Peter Hello.

I would advise speaking to customer support on this matter and the tech team will be able to advise further.


Question from Briony: Asked on 26/04/2013

Looking for a 900 quadrant enclosure to install on a concret floor. Would this shower unit along with the easy-fit tray be suitable for this purpose?

Answer from Anthony

Hi there

Yes, the easy plumb tray aids the installation on a concrete floor raising it above floor level for you to connect your waste, however we would always recommend consulting a qualified fitter on any installation querys.

Question from David Whiteley: Asked on 04/04/2013

We have an alcove 900mm wide and 690mm deep in which we wish to locate a shower. We favour a 1200 x 900 offset quadrant tray combined with a 900mm x 900mm shower cubicle, using part of the alcove as the remainder of the cubicle. Does the curvature of your 900 x 900 cubicle match the curvature of your 1200 x 900 tray?

Answer from Mike B


Thanks for your query. Yes the curviture is the same.

Question from ADESOJI REMI-ALAO: Asked on 04/03/2013

What is the weight of this product?

Answer from Mike B

Hi there,

The weight of this product is 45kgs.

Question from YASH AMIN: Asked on 02/12/2012

Shower tray measure 1000 cm from the corner to where two doors meet when closed. Is this the right product?

Answer from Mike B

Hi there

The measurement on this item from the corner to the doors is approximately 990mm so this appears to be very similiar.

Question from oscar adams: Asked on 26/09/2012


Are the wheels adjustable in case it is out of line?

Answer from Mike B



The shower enclosure is adjustable to allow for true walls. The wheels sit flush on the enclosure so they shouldn't be out of line from the enclosure. They can be lifted in order to clean.

Question from robert brown: Asked on 14/04/2012 will this quadrant cubicle stand on a wet room floor without a tray and still operate OK

Answer from Kirk Thompson Yes, you can use this enclosure on a wet room tray.

Question from Fatmata Bah: Asked on 02/01/2012 MY QUESTION IS:

Answer from probertshaw Yes it does. It comes with glass,handle, frames and side profiles. It does not include the tray or shower system or anything else featured in the picture.
