Black Thermostatic Mixer Shower with Square Overhead & Handset - Zana

SKU: ZANASQMB Quickfind Code: 1810871
Save £50

Why buy me

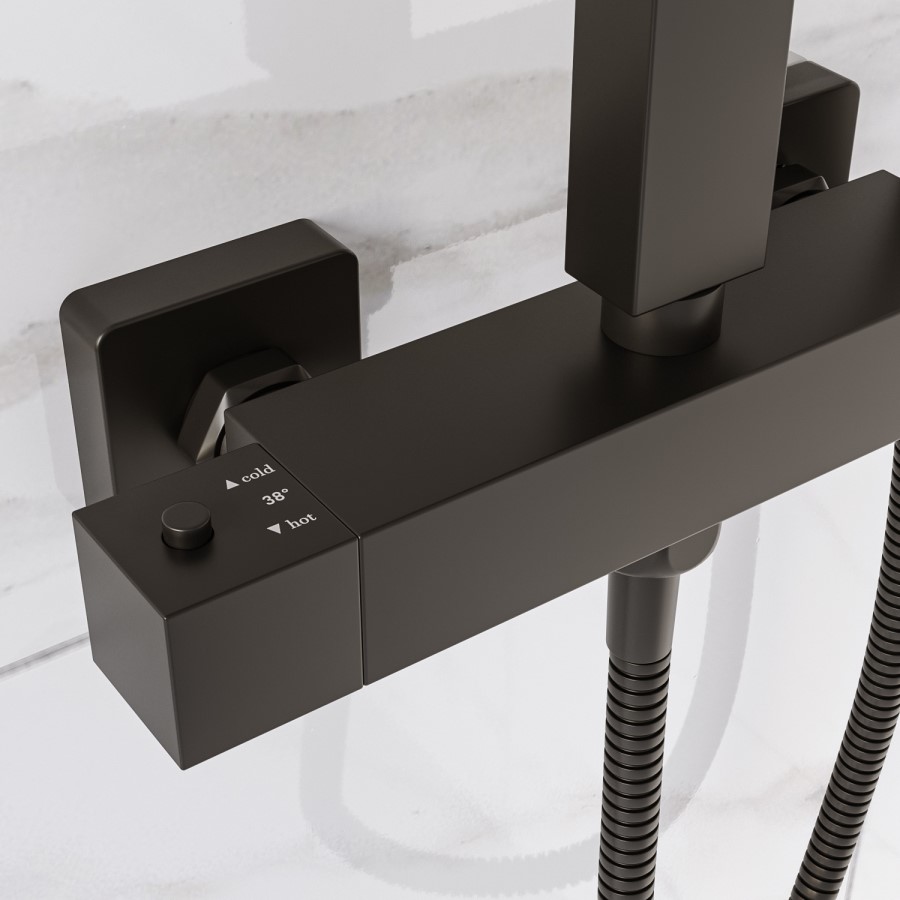

  • Dual Outlet Exposed Valve Mixer Shower with Thermostatic Temperature Control
  • Complete shower set with a square showerhead, square handsets, and an adjustable riser rail
  • Thermostatic Cool Touch valve for a safer shower for all the family
  • Made from solid brass and finished in matt black
  • Requires Minimum water pressure 0.5 bar

All about me

Our Zana shower kit makes a stylish addition to any bathroom. It includes a modern rainfall type showerhead, slide rail, easy-to-use bar valve, shower hose, and a detachable sleek handset, perfect for everyday use. It is height-adjustable upon installation, and the showerhead is tiltable while it's in use, making it perfect for all the family.

The square valve is easy to divert water between the overhead shower and the handset. The thermostatic valve cuts off if the cold-water supply fails, and has Cool Touch technology to preventing scalding, as the valve remains cool to touch. Thermostatic also means that your temperature will remain the same even if a tap is turned on or a toilet is flushed! It's super easy to clean, with the option of unscrewing the shower head to clean, and the rubber inserts on both outlets are easy-clean. Match the Zana shower with others in the Zana range to complete the look.

 What's in the box?

Overhead shower head, bar valve, shower hose, and detachable shower handset.

Need to know

  • Overall dimensions (installed): H830mm-1260mm x W269mm x D345mm (give or take -/+ 3mm per measurement)
  • Shower head size: Diameter 195mm
  • Style: Modern
  • Shower type: Square
  • Tap type: Thermostatic bar shower kit
  • Shower options: Overhead shower head or handset
  • Inlet size: G1/2mm
  • Outlet size: G3/4mm
  • Controls: Bar valve
  • Finish: Matt Black
  • Material: Solid brass, ABS and stainless steel
  • Minimum pressure & flow rate: 0.5 bar (flow rate of 4.6 litres per minute)
  • Maximum pressure & flow rate: 5.0 bar (flow rate of 16.1 litres per minute)
  • Weight: 4.35kg
  • Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems, Gravity Fed Systems (which may require a pump)
  • Assembly required: Yes (instructions included)
  • Warranty: 1 year

Please note: Subject to a minimum of 0.5 bar

Dimensions and Weight
Depth 345mm
Height 1260mm
Weight 4.35kg
Need To Know
Shower Type Mixer
Installation Type Exposed
Outlet 2 Outlet
Colour Black
Finish Matt
Material Brass
Style Modern
Shower Head shape Square
Adjustable height Slide Rail Kit
Flow Rates (Litres Per Minutes)
0.2 Bar Flow Rate 2.9
0.5 Bar Flow Rate 4.6
1.0 Bar Flow Rate 6.9
2.0 Bar Flow Rate 10
3.0 Bar Flow Rate 12.3
Water Pressure
Maximum Water Pressure (Bar) 5
Minimum Water Pressure (Bar) 0.5
