Bristan Complete Trinity Thermostatic Shower Pack
Summary

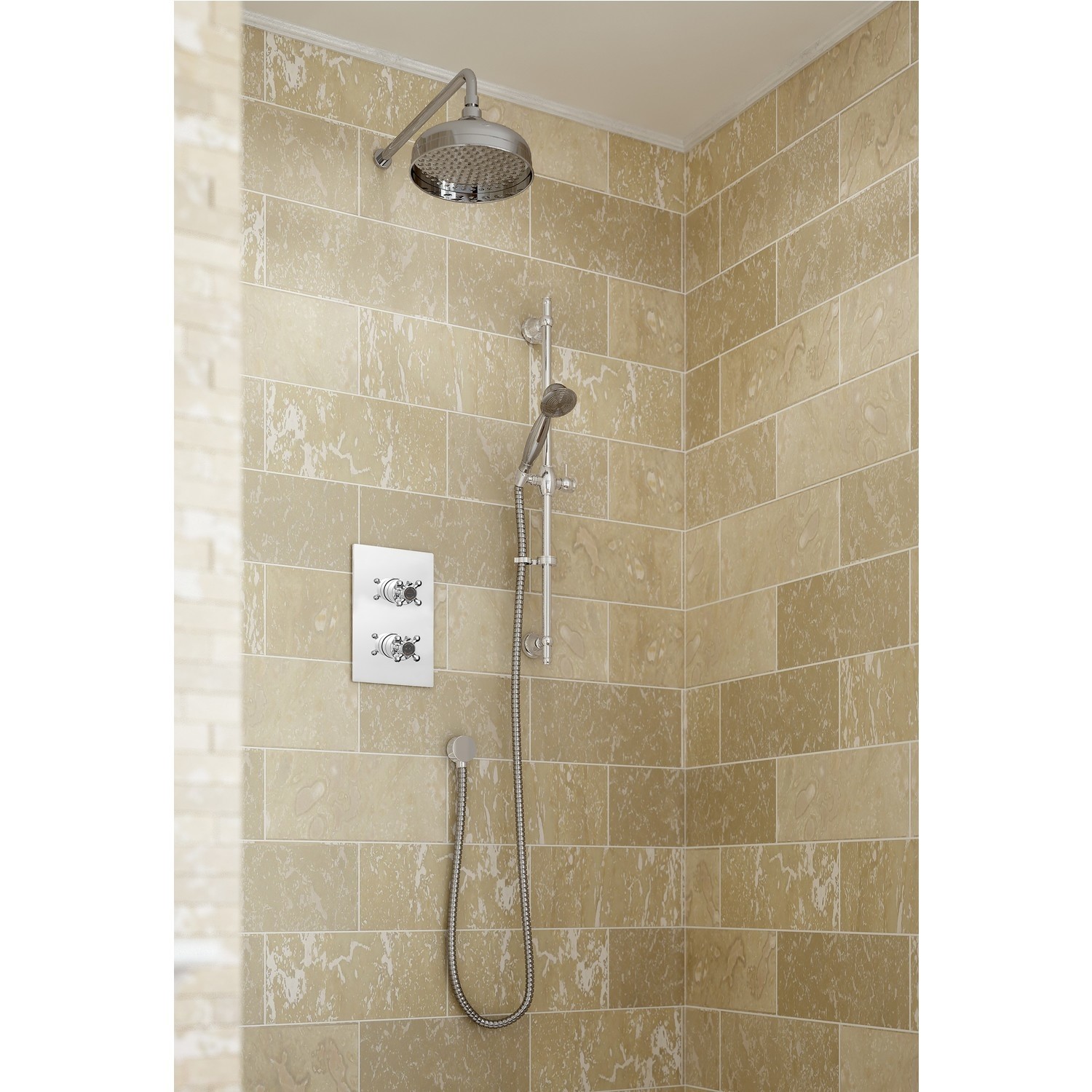

Glamorous in the detail, this shower pack contains a Trinity shower valve with integral two outlet diverter. It has a 200mm traditional round fixed head with shower arm; a traditional adjustable riser shower kit with a single function handset and hose.; The shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space; Dual control - flow and temperature are controlled separately; Fully serviceable from the front; 15mm inlet connections; Chrome plated to BS EN 248
Features

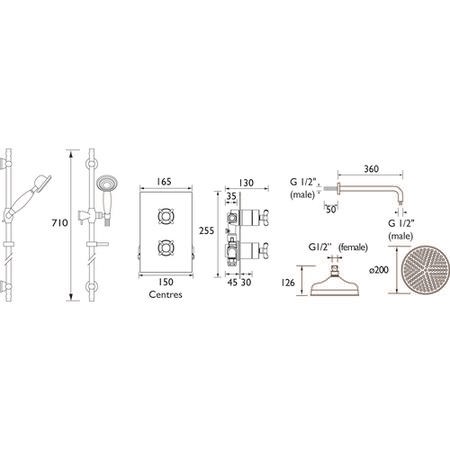

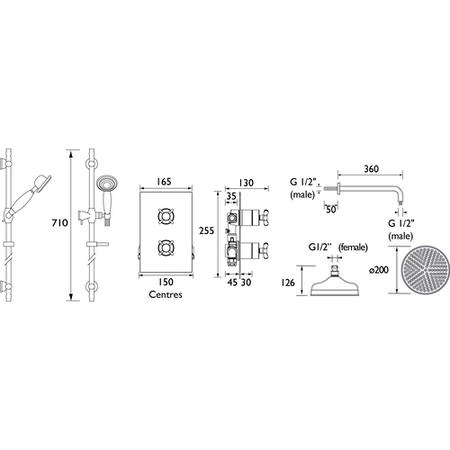

- Length of riser rail kit: 710mm
- Depth of riser rail kit: 360mm
- Overhead shower diameter: 200mm
- Minimum Pressure: 0.5 Bar (flow rate of 13 litres per minute)
- Maximum Pressure: 3.0 Bar (flow rate of 41 litres per minute)
- Materials Specification: Solid Brass
- Connection Outlet: G 1/2
- Warranty: 5 years
- Suitable for:
- Combination Boiler Systems
- Gravity Fed Systems (May need to be pumped)
- Unvented mains pressure systems
