Quadro Slide Shower Rail Kit with Cube Triple Valve, 175mm Square Head & Wall Arm BUN/BeBa_9625/71178

Quickfind code: 1363083
£269
or £12.91 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Thermostatically controlled
  • Built in anti-scald device
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Suitable for combi boilers
  • Suitable for unvented mains pressure systems
More Info »
1 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

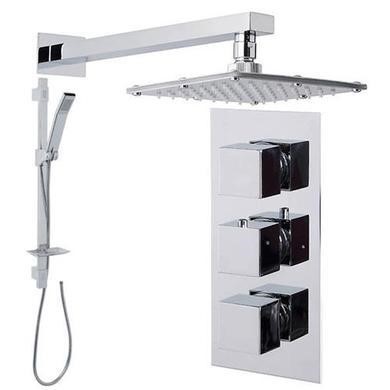

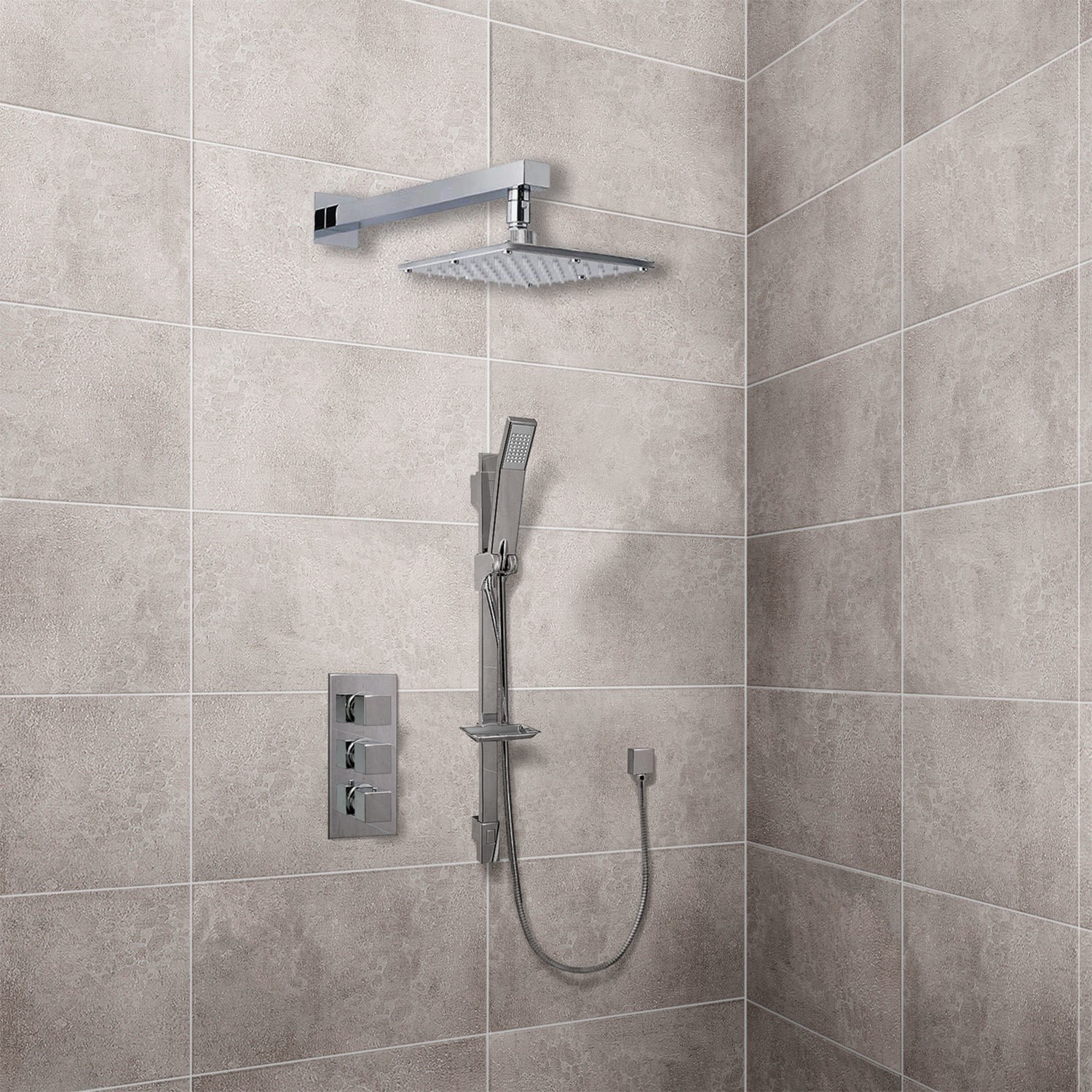

Quadro Slide Shower Rail Kit with Cube Triple Valve, 175mm Square Head & Wall Arm

Summary

The Quadrato fixed square shower head with triple Cube valve and Quadro Slide Rail and handset. The Cube thermostatic shower valve is used to control two outlets either individually or at the same time. The valve incorporates thermostatic control in the centre with 2 on off controls either side. If using both sides open at the same time you will require a minimum pressure of 1.5 Bar. Gravity fed systems are therefore unsuitable unless the pressure is boosted with the use of a shower pump. The Cube Triple Concealed Shower Valve allows total control and is perfectly complimented by the Quadrato Shower Head and Quadro Slide Rail Kit.

Features

Concealed 3/4" triple shower valve

  • Thermostatically controlled
  • Built in anti-scald device
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Suitable for combi boilers
  • Suitable for unvented mains pressure systems
  • Suitable for use with Shower Pumps
  • Manufactured from solid brass with a chrome finish
  • Can be used to operate two seperate outlets independently

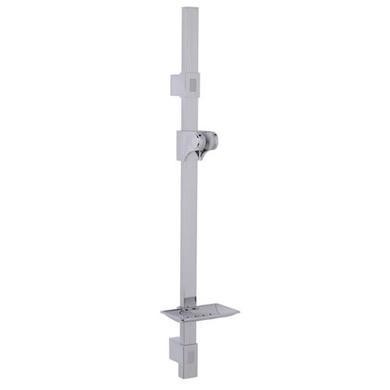

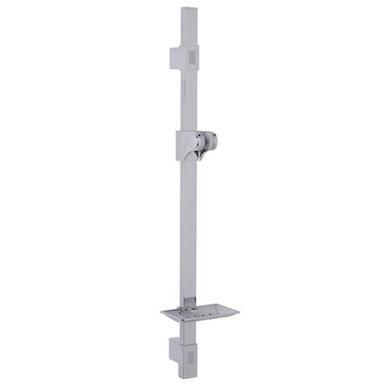

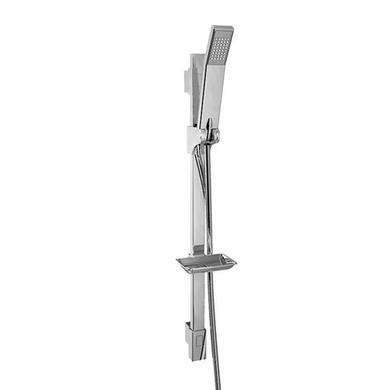

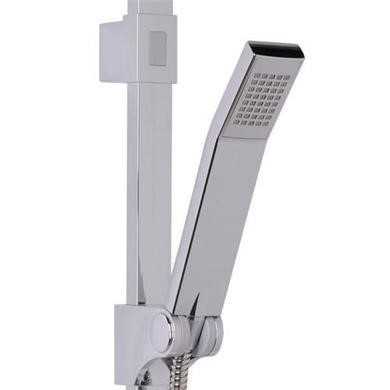

Quadro Slide Rail Kit

  • Length of shower hose: 1500mm
  • Length of slide rail kit: 750mm
  • Tube size: 30mm x 17.5mm
  • Adjustable wall fixing brackets (Ideal for replacing existing slide rail kit)
  • Auto lock sliding shower head holder
  • Square shower head
  • Easy clean rubber nozzles

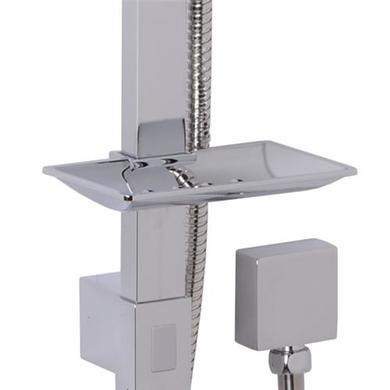

  • Square soap dish
  • Number of functions on handset: 1
  • Pressure requirements
    - Min 0.2 Bar
    - Max 5.0 Bar
    - Suitable for combi boiler systems
    - Suitable for gravity fed systems
    - Suitable for unvented mains pressure systems
  • Chrome Finish
  • Excludes: Square shower elbow, however this can be purchased seperately. See matching items.

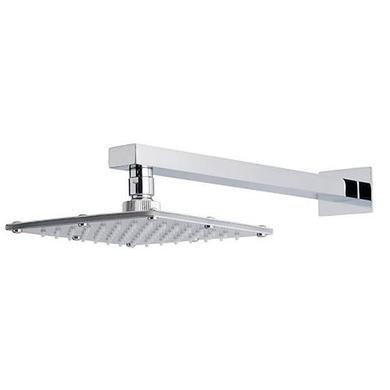

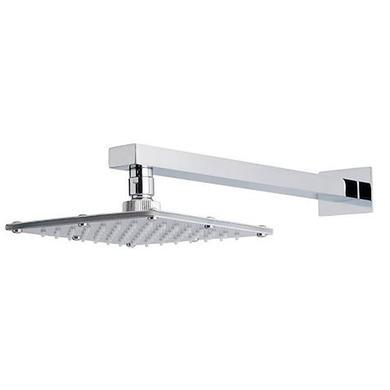

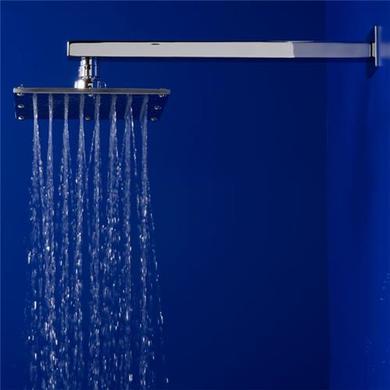

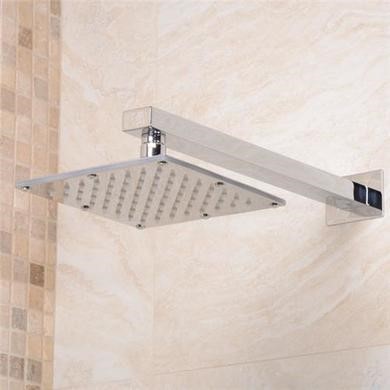

Quadrato Shower Rose

  • 175mm Square Shower head
  • Solid Brass Arm chrome plated
  • Comes complete with swivel to allow shower head adjustment

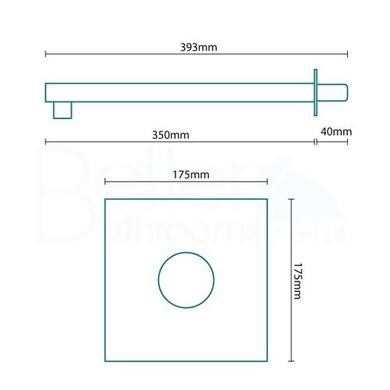

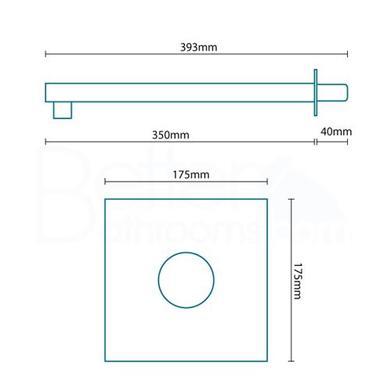

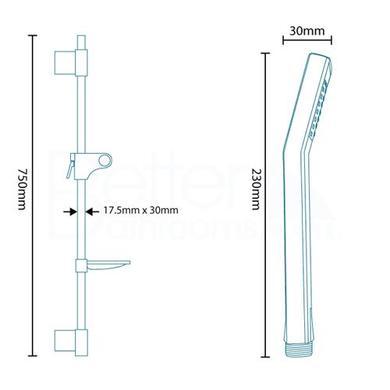

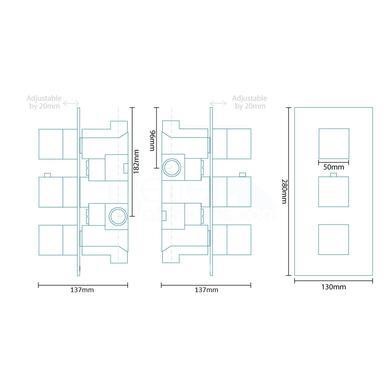

See diagram for dimensions - All sizes are APPROXIMATE and are intended as a guideline only.
We do not recommend installing or positioning any pipework prior to receipt of valve.


Item Code:
BUN/BeBa_9625/71178

Please Note: All sizes are approximate and should be used for guidance only.
