Dualex Riser Slide Shower Rail Kit with Ecobar Valve BUN/BeBa_7893/71162

Quickfind code: 1363067
£109
or £5.23 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • 1/2 exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

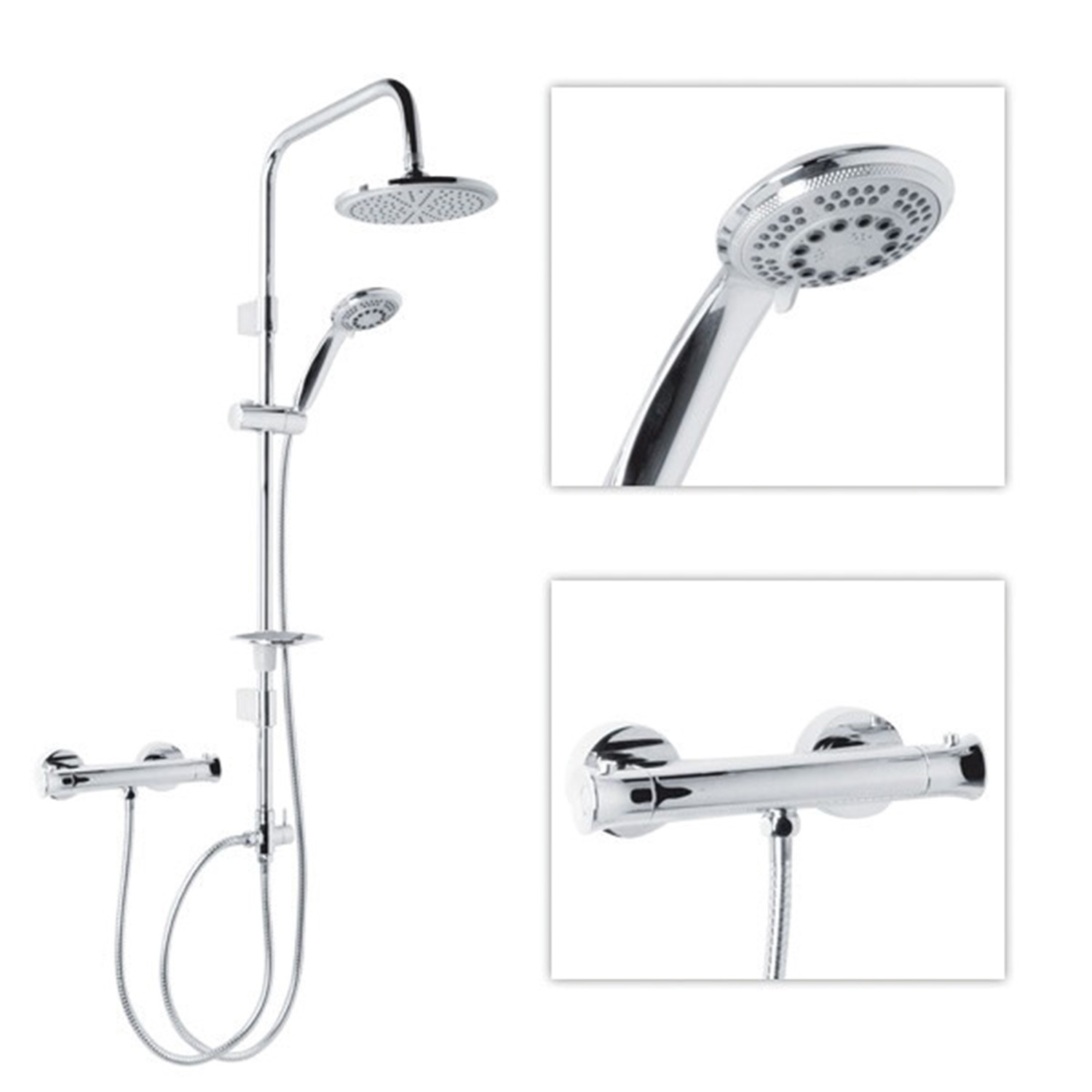

Dualex Riser Slide Shower Rail Kit with Ecobar Valve

Summary

The Dualex Riser Rail Kit is a modern design allowing two showering options - fixed head and removable handset shower head. This riser kit is perfect for use with a number of our bar and concealed valves and boasts features including easy clean shower heads soap dish 3 way diverter and auto lock shower head holder. The Eco bar shower valve offers thermostatic showering with two easy to operate controls. One handle operates the on and off flow control whilst the other allows temperature selection.

Download PDF View This Product's Installation Instructions

Features

Shower Valve

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps

Dualex Riser Rail Kit

  • Length of of riser rail kit: 1000mm
  • Depth of riser kit: 380mm
  • Tube Diameter: 22mm
  • Adjustable wall fixing brackets (Ideal for replacing existing slide rail kit)
  • 3 way diverter
  • Length of shower hose: 1500mm
  • Length of small hose: 800mm
  • Auto lock sliding shower head holder
  • Hand held shower head diameter 85mm
  • Easy clean shower head nozzles
  • Round soap dish
  • Number of functions on handset: 5
    • - Spray
    • - Bubble
    • - Massage
    • - ECO Spray
    • - Pause
  • Pressure Requirements:
    • - Min 1.0 Bar
    • - Max 5.0 Bar
    • - Suitable for combi boiler systems
    • - Suitable for gravity fed systems – shower pump required
    • - Suitable for unvented mains pressure systems
  • Materials Specification: Chrome Finish

Item Code:
BUN/BeBa_7893/71162

Please Note: All sizes are approximate and should be used for guidance only.



Questions & Answers

Question from Blake: Asked on 11/09/2018 Hi could I have a dimensioned drawing please

Thanks

Answer from Peter hi all are size information is on are web site. also should be scale of the picture you can download if you like to order please call 0161 667 6560

Question from Debbi: Asked on 10/05/2018 We have had this shower fitted by a plumber, however when running the ‘fixed head’ & everything attached slides down. It appears to be a design flaw as the brackets are not adjustable. Do you have a solution for this?

Answer from Peter HI,

you will need to call 0333 777 4777 .

they will be able to assist you .

many thanks

Question from Joe Morrison: Asked on 05/11/2016 Hi
I bought one of these showers from you and the water goes cold after a period, the boiler is one year old and is a combi boiler, is it possible there is a fault with the anti scald valve in the shower control?
Thanks Joe

Answer from Matt Clarke Hi,

Please contact our after sales team on 01925 544 861 opt 2.

regards

Question from david clark: Asked on 03/02/2016 Does it come with fast fixing kit.not one in box

Answer from Matt Clarke Hi,

Thank you for your question.

you will need to buy code: 9301 also

If you need any more info or would like to place an order, please contact me using the details below.

Kind Regards,

Matt Clarke
Manchester Showroom Assistant Manager
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: matt.clarke@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Alice: Asked on 26/01/2016 Is this able to be fixed off a tap with shower fixings instead of the bar? Cheers

Answer from Nathan McGregor Hello.

Thank you for your question.

It is not recommended due to there being no thermostat in a normal bath tap so your shower will be always fluctuating in temp.

Regards

Question from rob : Asked on 12/01/2016 Can this be connected to s normal electric shower. It the shower unit is on Wall and the feed comes out the bottom?

Answer from Anthony Hi there,

Thank you for your question.

I am afraid not as this shower requires a certain amount of pressure to function (1.0bar) which an electric shower will not supply.

Kind Regards

Question from fergus: Asked on 30/12/2015 does the attached shower head swivel not the hand held one on the hose

Answer from Benjamin Linnert Good Afternoon,

Thank you for your question.

This head is in fact on a ball pivot joint. Allowing you to swivel the head.

Kind regards.

Question from Michael Martin : Asked on 17/10/2015 Re The three way diverter. Is it down for hand held middle for both and up for top.
As when we move it straight up it just goes off and no water comes out.

Answer from Nathan Dunstan Hi,
Thank you for the question ,
as far as i know you can only have one on at a time and not both you have left side to control temperature and the other dail controls flow.

if you need more information please contact us on 0161 6676560 we also have a technical team who can answer any more technical questions

Many thanks
Nathan Dunstan

Question from Sarah Edwards: Asked on 01/06/2015 Can this shower head unit be used with an electric shower?

Answer from Nathan McGregor Hello.

Thank you for your question.

I am afraid this is not suitable for an electric shower.

If you have any more questions please call our sales team on 0161 667 6560.

Regards.

Question from Jen: Asked on 03/09/2014 Does this shower kit come with everything to get started?

Answer from Jamie H Hi,

The only thing we would recommend in addition is the easy plumb round valve kit to make it easier to install.
Code 8199 £12.95

Question from Eugene: Asked on 08/06/2014 We have a gravity fed system and will be moving to a combi boiler soon but need a shower now. Will this work with a gravity fed system without a pump for a couple months before then being fed by a combi boiler? I don't know the pressure of existing but we run a shower, which this would replace, without a pump at present and it works fine.

Answer from Darren Stevens Yes this should be fine on a gravity fed system as it only requires 0.5 bar pressure and on a combi boiler this would be fine

Question from Clare Chaudhry: Asked on 29/12/2013 Does this actually include the large shower head at the top?

Answer from Peter Hi,

Thanks for your enquiry. Yes it does include that.

Question from Georgie: Asked on 25/12/2013 We had this shower and values fitted last week, but am a little disappointed that the pressure is low. The temperature also fluctuates. We had a plumber fit it, it is fed from a combi boiler - would it be worth investing in a pump? Just a shame to have a nice new shower fitted and be just a little bit disappointing.
