Product Information

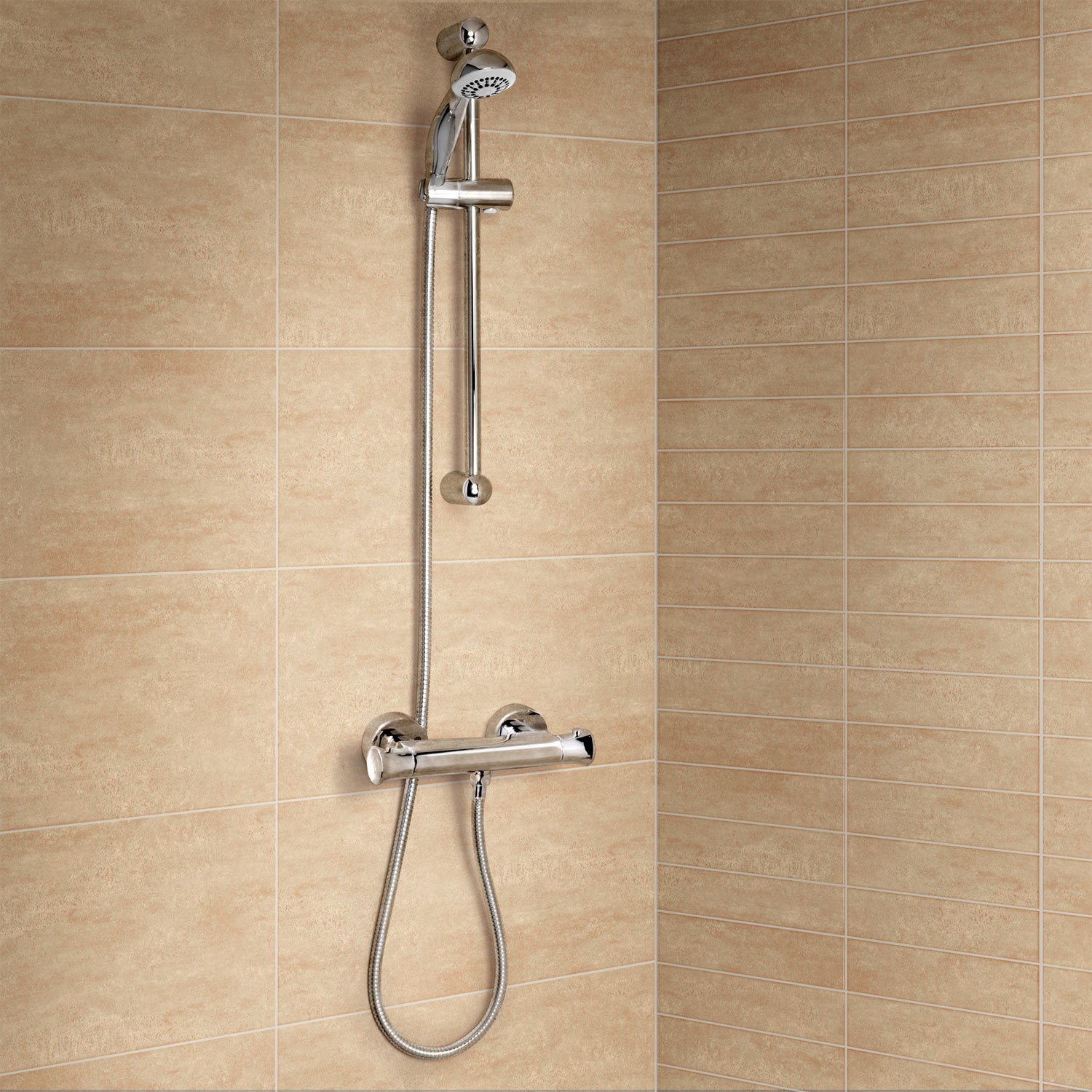

Ecobar Thermostatic Valve with Rina Slide Rail Kit
Summary
Better Bathrooms are proud to present this Rina Slide Rail Kit with Valve. This combination consists of a shower kit and a bar valve. This rail kit is simple but effective, and when combined with the bar valve, it’s of fantastic value.
Features
Thermostatic Bar Shower Valve
- 1/2" exposed thermostatically controlled shower valve
- Mixed water bottom outlet
- Pipe fixing centres at 150mm +/- 20mm
- Hot water feed inlet on the left when water outlet on the bottom of the valve
- Suitable for water systems between 0.5 and 4 bar pressure
- Cold water supply temperature 4 - 20°C
- Hot water supply temperature 55 - 85°C
- Built in anti-scald device
- Suitable for combi boiler systems
- Suitable for unvented mains pressures systems
- Suitable for shower pumps
Shower Rail Kit
- Length of riser rail kit: 554mm
- Depth of riser rail kit: 73mm
- Shower head diameter: 70mm
- Pressure Requirements:Min: 0.8 Bar / Max 3.0 bar
- Finish: Chrome
- Suitable for:
Combination Boiler Systems
Gravity Fed Systems (May need to be pumped)
Unvented mains pressure systems
Item Code:
BUN/BeBa_8923/72620
Back to top
Question from Alison Venner Jones: Asked on 16/10/2017 Is the rail to which the shower head is attached adjustable? I want to replace my existing shower and have pre-prepared holes for the screws.
