Concealed Dual Control Shower Valve - EcoCube Range BeBa_12523

Quickfind code: 1357558
  • Clearance sale
Save £40.01
£59.98

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Shower Valve
  • Product Style: Square
  • Min Pressure Flow Rate: 0.5 bar (flow rate of 7.4 litres per minute)
  • Max Pressure Flow Rate: 3.0 bar (flow rate of 20.2 litres per minute)
  • Height: 200mm
More Info »
5 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

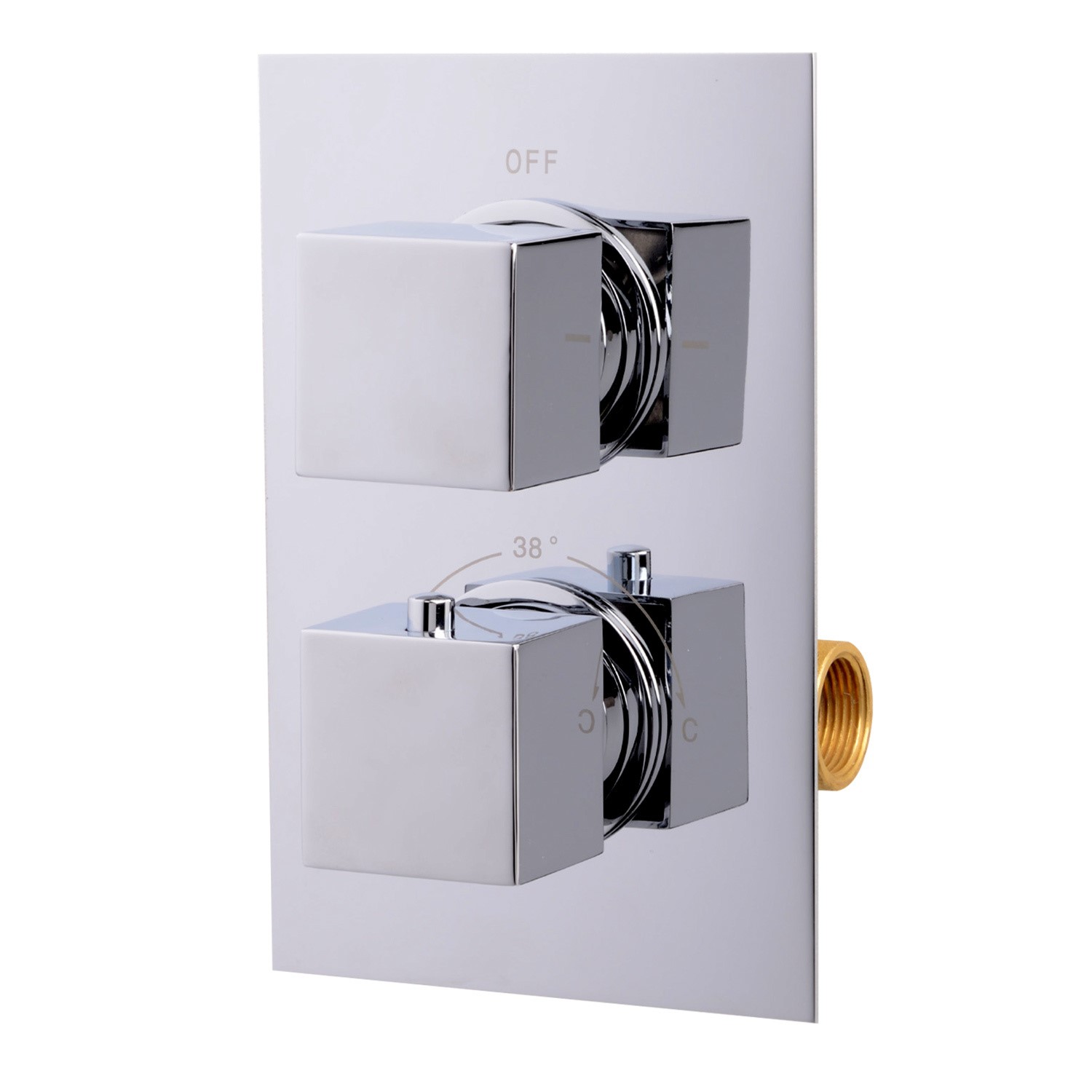

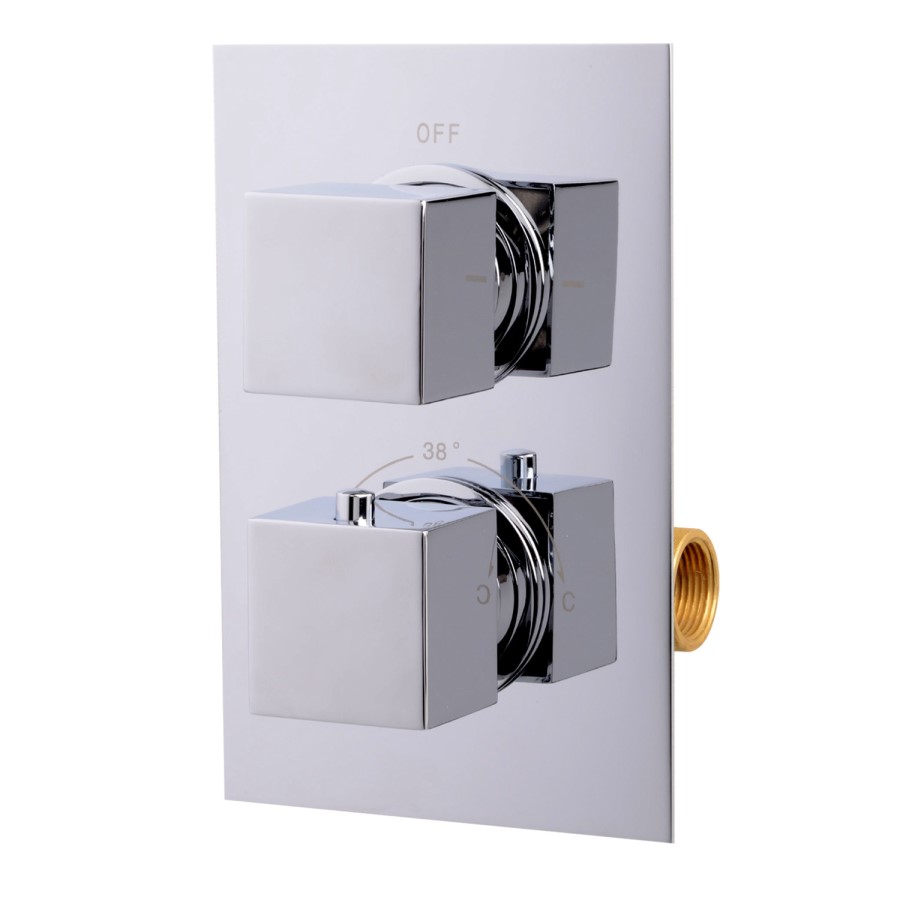

EcoCube Concealed Dual Control Shower Valve

Summary

The EcoCube is a fantastic new addition to the range which is designed to be lighter, smoother and more economically efficient. Manufactured with strong brass bodies and adorned with a chrome finish this valve will compliment most shower layouts. With a slimmer back plate than the original Cube design, the EcoCube allows Better Bathrooms to present a more affordable valve without compromising on quality.

Download PDF View This Product's Installation Instructions

Features

  • Valve Type: Concealed Shower Valve
  • Product Style: Square
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 7.4 litres per minute)
  • Max Pressure & Flow Rate: 3.0 bar (flow rate of 20.2 litres per minute)

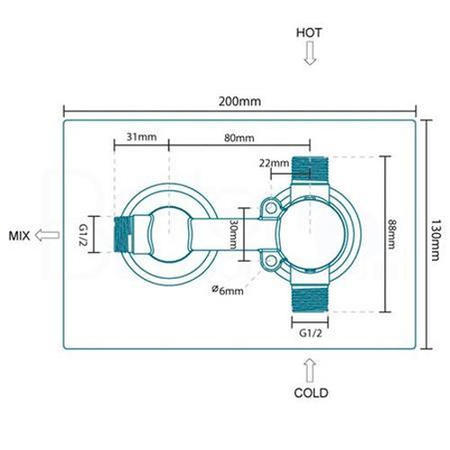

  • Height: 200mm
  • Width: 130mm
  • Depth: 117mm
  • Net Weight: 2.112kg
  • Controls: Dual Control, one for flow rate, one for temperature
  • Safety Features: Built in anti-scald device

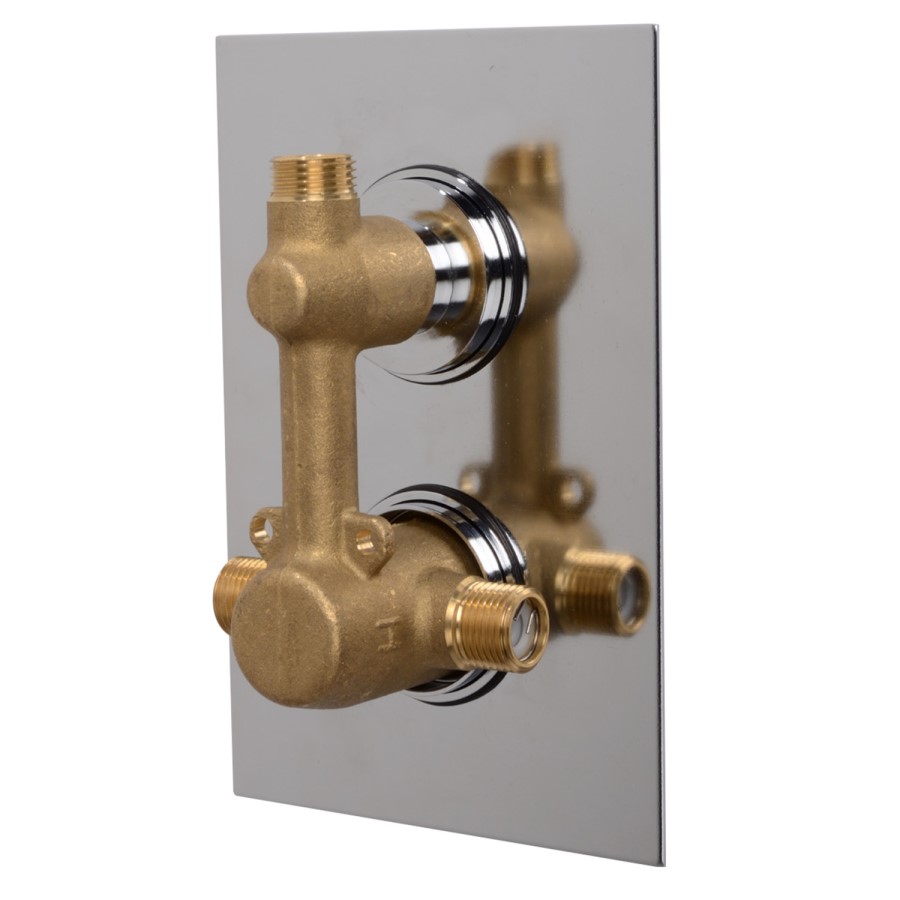

  • Materials Specification: Solid Brass
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    - Subject to a minimum pressure of 0.5 bar
Please Note: When installing with our bath filler overflow, a minimum of 1.0 bar pressure is required.

Item Code:
BeBa_12523


Questions & Answers

Question from daniel james SNEDDON: Asked on 14/06/2018 hi I have a mixer exactly like this but not sure if it is this exact model. my shower and bath both leak badly and cant find replacement parts for it. can you tell me how to buy replacement parts for this model please

Question from Amy: Asked on 03/08/2017 Is this valve thermostatic?

Answer from Nathan Hi Amy, yes it is. Thanks, Nathan.

Question from Keith Forward : Asked on 16/11/2016 Could you please clarify is this valve thermostatic Thanks

Answer from chris thomas Hi,

Thank you for your question.

the one you need is product code 12526 that is thermostatic

If you need any more info or wish to place an order please contact me using the details below.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Martyn: Asked on 20/05/2016 I've just got round to fitting this, the hot and cold pipe feeds only go in a couple of MM before they touch the little plastic non return valves inside, because of this I can't get a good seal which results in leaks, surely this shouldn't be happening and the pipes should go in further than a couple of mm

Answer from Anthony Hi,

Thank you for your question.

Please contact our Customer Care/technical Team regarding this query and they will be able to advise further.

Their number is 01925 544 861 option 2

Kind Regards

Question from stella: Asked on 23/11/2014 please could you tell me what depth of wall is needed to fit this item ? many thanks

Answer from Anthony Hi there,

Thank you for your question.

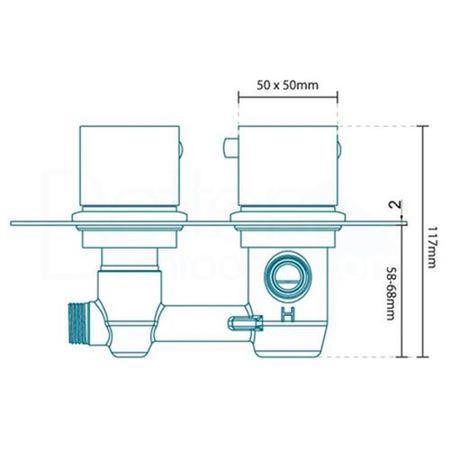

You will need a wall depth of 58mm-68mm for this particular shower valve.

Kind Regards
