Concealed Dual Control Thermostatic Shower Valve with Diverter - EcoCube Range BeBa_12526

Quickfind code: 1355862
  • Clearance sale
Save £49.02
£59.98

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Thermostatic Shower Mixer
  • Product Style: Square
  • Min Pressure Flow Rate: 0.5 bar (flow rate of 7.7 litres per minute)
  • Max Pressure Flow Rate: 3.0 bar (flow rate of 23.7 litres per minute)
  • Recommended Pressure: 1 bar
More Info »
5 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

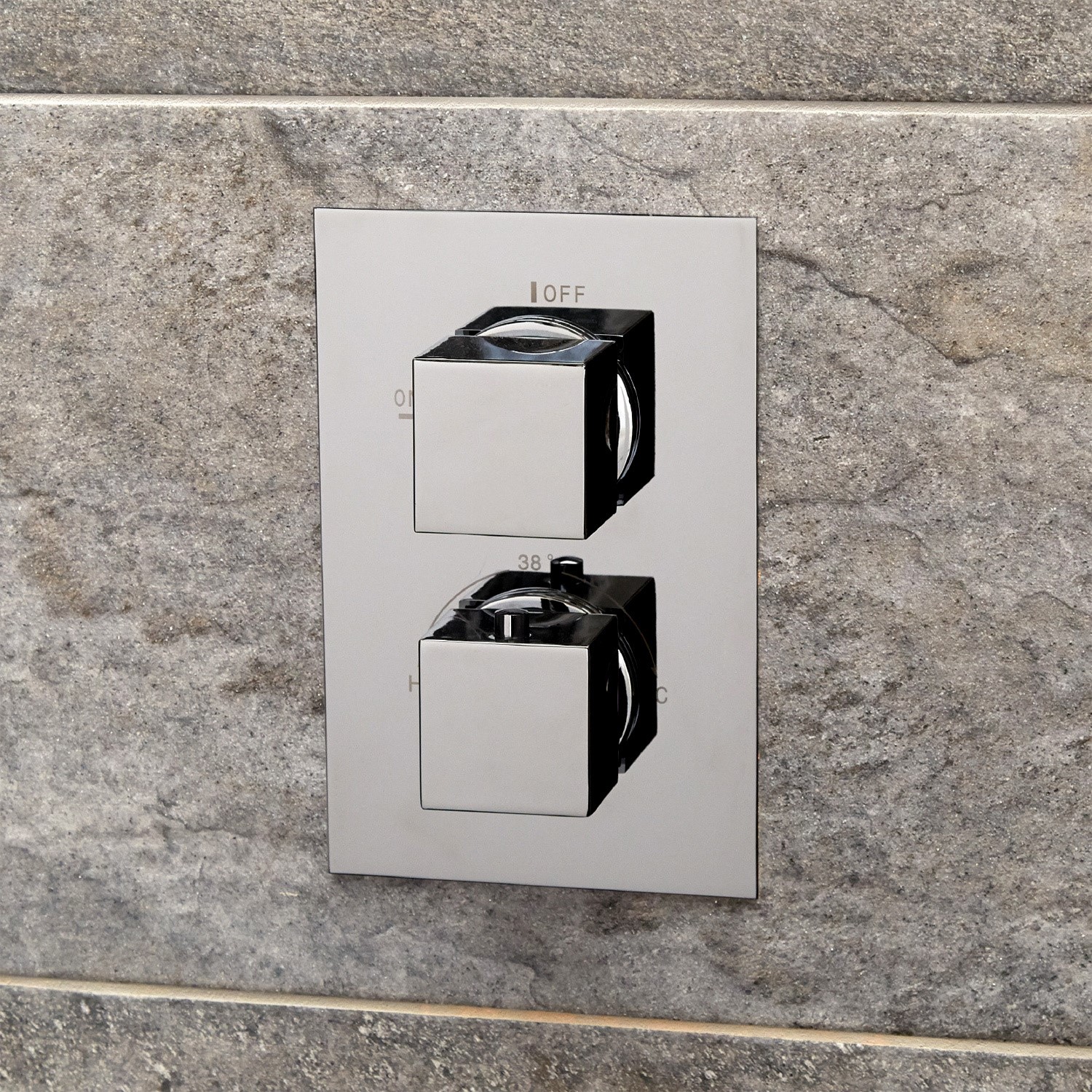

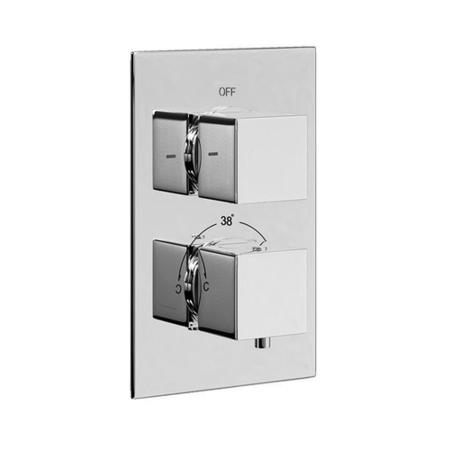

EcoCube Concealed Dual Control Thermostatic Shower Valve with Diverter

Summary

Our fantastic new addition to the Cube design we introduce the EcoCube Dual Control Thermostatic Shower Valve with Diverter which is simply lighter but just as durable and kind on the eye. Manufactured with strong brass bodies and adorned with a chrome finish this valve will compliment most shower types. With a slimmer backplate than the original design Better Bathrooms presents a more affordable valve without compromising on quality.

Download PDF View This Product's Installation Instructions

Features

  • Valve Type: Concealed Thermostatic Shower Mixer
  • Product Style: Square
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 7.7 litres per minute)
  • Max Pressure & Flow Rate: 3.0 bar (flow rate of 23.7 litres per minute)
  • Recommended Pressure: 1 bar

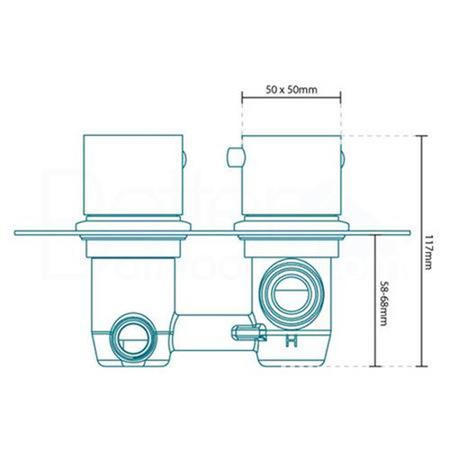

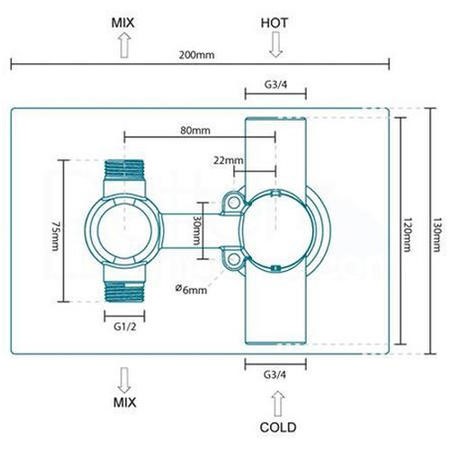

  • Height: 200mm
  • Width: 130mm
  • Depth: 117mm
  • Net Weight: 2.112kg
  • Controls: Dual Control, One for flow and diverter and one for temperature control
  • Safety Features: Built in anti-scald device
  • Materials Specification: Solid Brass with Copper
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    Subject to a minimum pressure of 0.5 bar
Please Note: When installing with our bath filler overflow, a minimum of 1.0 bar pressure is required.


Item Code:
BeBa_12526


Questions & Answers

Question from R Newport: Asked on 04/12/2015 Is 10645 a thermostatic control valve?
Regards

Rex

Answer from Simon Hi,

Thanks for your query, this valve is fully thermostatically controlled.

If you need any more information just contact me directly on 0161 667 6560 and ask for Simon and I will be happy to help.

Question from Kim: Asked on 11/10/2015 Hi is it suitable for gravity fed?

Answer from Matt Clarke Hi,

Thank you for your question.

Yes this is suitable as long as you have 5 metres from the tank to the valve of fall.

If you need any more info or would like to place an order, please contact me using the details below.

Kind Regards,

Matt Clarke
Manchester Showroom Assistant Manager
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: matt.clarke@betterbathrooms.com
Website: www.betterbathrooms.com

Question from nick: Asked on 18/08/2014 Is there an extension kit for the valve controls? At the moment they dont stick out far enough from the wall to fit the knobs on the end.

Answer from Shaun F Hi,

You need to speak directly with our technical team. They can be reached by calling our customer service team on 0844 484 7678

Many thanks.

Question from Brian Sloan: Asked on 30/03/2014 Should the temperature dial keep on turning as mines doesn't stop and has little effect on regulating the temperature.

Answer from Peter Hi there,

I would contact our Customer Care/Technical Team on 0844 484 7678 option 2 and they will be able to advise further on this query.

Kind Regards
