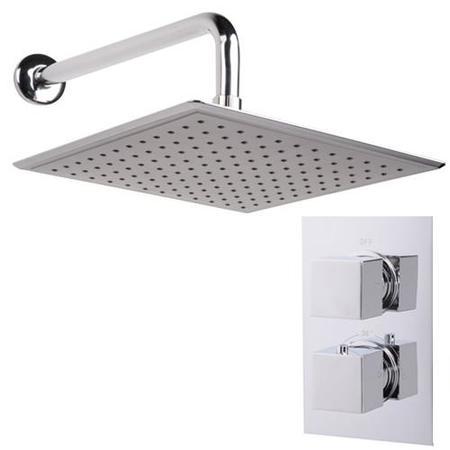

Concealed Dual Control Shower Valve - EcoCube Range
1 x Square 250mm Rain Shower Head & Wall Arm
EcoCube Concealed Dual Control Shower Valve
Summary
The EcoCube is a fantastic new addition to the range which is designed to be lighter, smoother and more economically efficient. Manufactured with strong brass bodies and adorned with a chrome finish this valve will compliment most shower layouts. With a slimmer back plate than the original Cube design, the EcoCube allows Better Bathrooms to present a more affordable valve without compromising on quality.
View This Product's Installation Instructions
Features
- Valve Type: Concealed Shower Valve
- Product Style: Square
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 7.4 litres per minute)
- Max Pressure & Flow Rate: 3.0 bar (flow rate of 20.2 litres per minute)
- Height: 200mm
- Width: 130mm
- Depth: 117mm
- Net Weight: 2.112kg
- Controls: Dual Control, one for flow rate, one for temperature
- Safety Features: Built in anti-scald device
- Materials Specification: Solid Brass
- Finish: Chrome
- Suitable for:
- Combination Boilers
- Pressurised Systems
- Pumped Systems
- Gravity Fed Systems (which may require a pump)
- Subject to a minimum pressure of 0.5 bar
