Quadro Slide Shower Rail Kit with EcoCube Dual Valve, 250mm Square Head & Wall Outlet BUN/BeBa_12526/72777

Quickfind code: 1364682
  • 20% off this weekend
Save £25.51
£149.97
or £7.20 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Thermostatic Shower Mixer
  • Product Style: Square
  • Min Pressure Flow Rate: 0.5 bar (flow rate of 7.7 litres per minute)
  • Max Pressure Flow Rate: 3.0 bar (flow rate of 23.7 litres per minute)
  • Recommended Pressure: 1 bar
More Info »
1 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

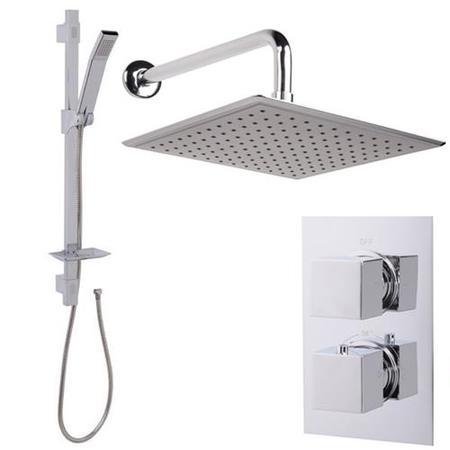

This bundle includes :

Concealed Dual Control Thermostatic Shower Valve Diverter - EcoCube Range


1 x Square 250mm Rain Shower Head & Wall Arm
1 x Quadro Square Slide Shower Rail Kit
1 x Rina Square Shower Wall Outlet

EcoCube Concealed Dual Control Thermostatic Shower Valve with Diverter

Summary

Our fantastic new addition to the Cube design we introduce the EcoCube Dual Control Thermostatic Shower Valve with Diverter which is simply lighter but just as durable and kind on the eye. Manufactured with strong brass bodies and adorned with a chrome finish this valve will compliment most shower types. With a slimmer backplate than the original design Better Bathrooms presents a more affordable valve without compromising on quality.

Download PDF View This Product's Installation Instructions

Features

  • Valve Type: Concealed Thermostatic Shower Mixer
  • Product Style: Square
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 7.7 litres per minute)
  • Max Pressure & Flow Rate: 3.0 bar (flow rate of 23.7 litres per minute)
  • Recommended Pressure: 1 bar
  • Height: 200mm
  • Width: 130mm
  • Depth: 117mm
  • Net Weight: 2.112kg
  • Controls: Dual Control, One for flow and diverter and one for temperature control
  • Safety Features: Built in anti-scald device
  • Materials Specification: Solid Brass with Copper
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    Subject to a minimum pressure of 0.5 bar
Please Note: When installing with our bath filler overflow, a minimum of 1.0 bar pressure is required.


Item Code:
BUN/BeBa_12526/72777


Finance Options

Spread your payments

We offer flexible payment solutions to help you pay for your new drone over up to 48 months. To see which options are available to you please use our calculator.

Enter your order total:
£
Calculate

Representative Example

Order value (cash price) £400, total amount of credit £400 with no deposit to pay, 19.9% representative APR, annual rate of interest 10.17% fixed, 12 monthly payments of £36.72, total amount payable £440.64.

For more information on our finance please visit our finance page by clicking here, or proceed to checkout and select either the "PayPal Credit" option or the "Pay Monthly with V12 Finance" option in the checkout.

Questions & Answers

Question from AG Bawdon: Asked on 31/10/2017 1. Can the valve be sited at the entry end of a walk in shower, with the wall arm and wall slider at the other end?
2. Will the valve fit into a studwork wall?

Answer from Nathan Donley-McGregor Hello.

thank you for your question.

I am sorry to hear that your basin is damaged.

Yes that would be suitable to do that, it would fit in stud work but depends on how deep your wall is.

If you would like to order one please call our sales team on 0161 667 6560.

Regards.

Question from emily: Asked on 06/09/2015 Hi, does the main head tilt at all ?

Answer from Jamie Hi,

Thank you for your question yes the shower head does tilt as it is fitted on a ball joint if you have any further questions please feel free to give us a call on 0161 667 6560.

Question from Rob calladine: Asked on 07/02/2015 Hi.
My daughter and her BF have just bought the pack 13130.
How do I attach the shower arm to the wall?....it only comes with a plastic cover.
Also are there any fitting instructions with any of the items as I'm struggling a bit with this.

Thanks

Answer from Matt Clarke Hi,

The best thing we could recommend to do is call our technical team on 0844 484 7678 option 2. They are in Monday to Friday 9-5.

Regards

Question from Sarah: Asked on 08/10/2014 Is there any way you could email me the fitting instructions please? The plumber thinks he knows but doesn't want to do it wrong, we only want to tile once! Thanks

Answer from jonathan hi thank you for your question, you would need to contact our customer care team to arrange fitting instructions sent out on 01925544961 I hope this information helps but if you do require any further help please contact Better Bathrooms on 0844 484 7678

Question from Daryl: Asked on 05/09/2014 Can i have just the head working or do they both work at the same time thanks

Answer from Andrea Bullen Hi, You can either have the main head on or the riser rail head on.

Question from steven hall: Asked on 23/07/2014 hi can you tell me what depth would this require going into a solid wall thanks

Answer from Peter Hi,

Thank you for your question,

The internal measurement of the valve adjusts between 56-68mm so you will need approx. an other 20mm of space so it is not touching the back of the opposite wall, if you need anymore dimensions there is a link on the product page just under the main picture.

I Hope this information helps but if you do have any further question please contact the sales team on 0844 484 7678 option 1 and they will be happy to help.

Question from N Eagle: Asked on 15/05/2014 I would like to order this item, but can you send me a tech drawing of it to allow the plumber to prepare connections

Answer from Peter Hi and thank you for your question,

You would need to log that with customer service on 0844 484 7678 option 2.

Regards

Question from N Eagle: Asked on 15/05/2014 I would like to order this item, but can you send me a tech drawing of it to allow the plumber to prepare connections

Answer from Peter Hi and thank you for your question,

You would need to log that with customer service on 0844 484 7678 option 2.

Regards

Question from Chris: Asked on 01/01/2014 I just want to confirm that the double valve option allows control over diverting flow to both shower heads, ie why would I need a triple valve? Thanks
