EcoS9 Concealed Triple Control Thermostatic Shower Valve with Diverter BeBa_12528

Quickfind code: 1355863
£109
or £5.23 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Thermostatic Shower Mixer
  • Product Style: Round
  • Min Pressure Flow Rate: 0.5 bar (flow rate of 6.4 litres per minute)
  • Max Pressure Flow Rate: 3.0 bar (flow rate of 18.6 litres per minute)
  • Height: 280mm
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

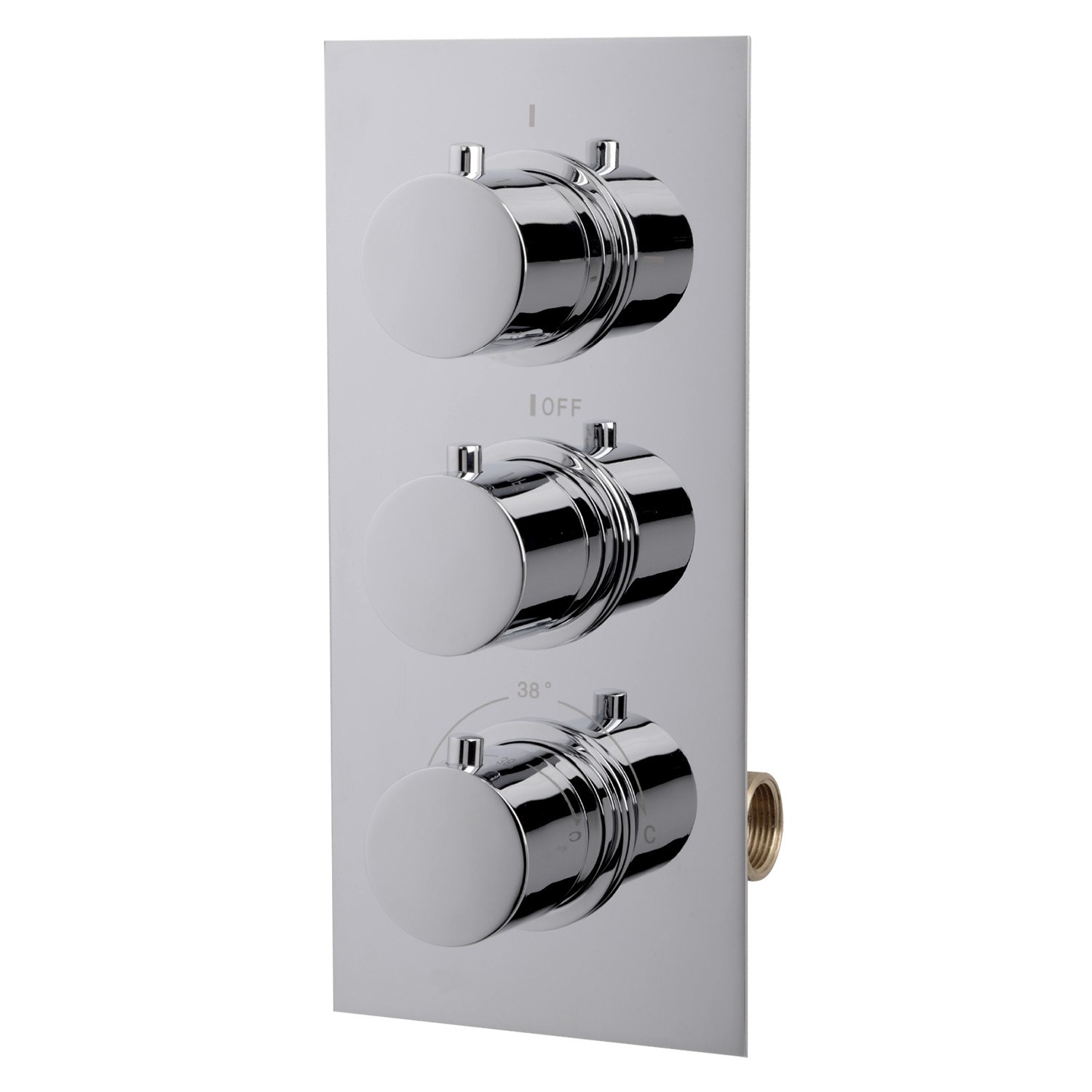

EcoS9 Concealed Triple Control Thermostatic Shower Valve with Diverter

Summary

Our fantastic new addition to the S9 range we introduce the EcoS9 Triple Thermostatic Valve with Diverter which is simply lighter but just as durable and kind on the eye. Greater amount of valves allow for optimised use and user control. Manufactured with strong brass bodies and adorned with a chrome finish this valve will compliment most shower types. A slimmer backplate than the original S9 design, allows Better Bathrooms to present a more affordable valve without compromising on quality.

Download PDF View This Product's Installation Instructions

Features

  • Valve Type: Concealed Thermostatic Shower Mixer
  • Product Style: Round
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 6.4 litres per minute)
  • Max Pressure & Flow Rate: 3.0 bar (flow rate of 18.6 litres per minute)

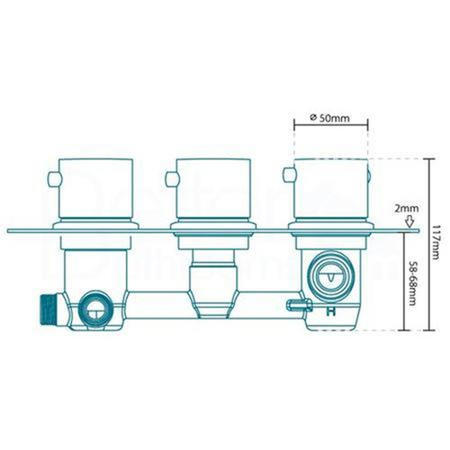

  • Height: 280mm
  • Width: 130mm
  • Total Depth: 117mm
  • Net Weight: 4.7kg
  • Controls: Triple Control temperature control, pressure and diverter.
  • Safety Features: Built in anti-scald device

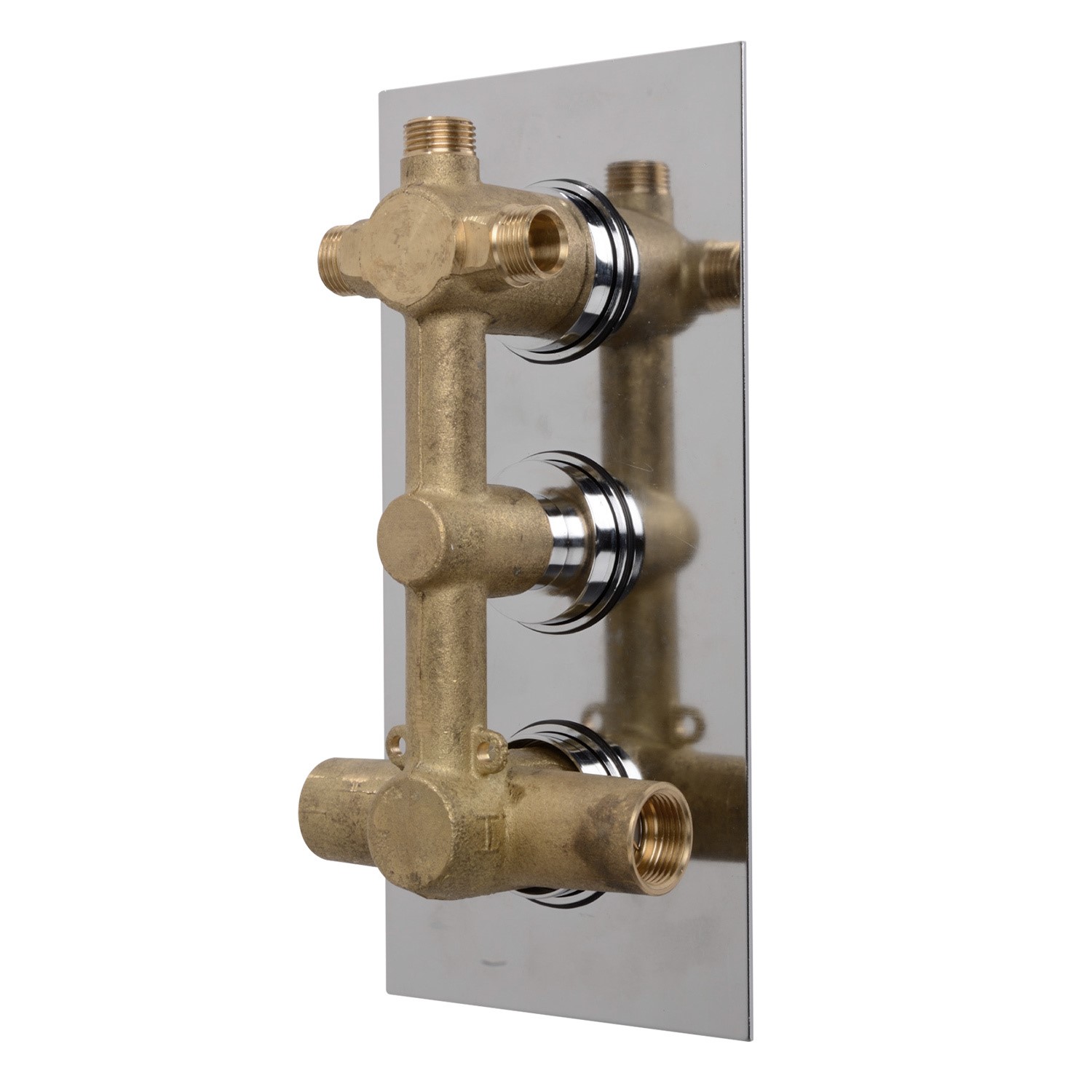

  • Materials Specification: Solid Brass with Copper
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    Subject to a minimum pressure of 1 bar

Download PDF View This Product's Installation Instructions


Item Code:
BeBa_12528

Please Note: All sizes are approximate and should be used for guidance only.



Questions & Answers

Question from Stephanie Gregory: Asked on 29/05/2018 Would this work with the Freeflow Bath Filler/Overflow and Vision Multi Function Riser Slide Shower Rail Kit? Thanks

Answer from glenn hello yes that would work just fine . is there anything else I can do to help you ? if you do want to place order my contact details is Glenn in Manchester 01616676560

Question from James: Asked on 18/03/2018 How do I buy replacement mixer cartridges for this shower? It has seized up after only 1 year of use and I cannot adjust the temperature.

Answer from Colin Hi,

Thank you for emailing Better Bathrooms but unfortunately you have contacted the sales team and we do not have the correct systems to be able to help with your enquiry.

You will need to contact the customer service department either by calling 01925 544 861 or by using the link at the bottom of the email as there is no way of me forwarding you email to them.

https://help.betterbathrooms.com/hc/en-us

Again thank you for contact Better Bathrooms and sorry I couldn’t help further.

Question from Paul Hargis: Asked on 07/07/2017 does this product supply three outlets?

Answer from Nathan McGregor Hello.

Thank you for your question.

Yes this has three outlets on it.

If you would like to order this please call our sales team on 0161 667 6560.

Regards.

Question from Steve cooper: Asked on 01/04/2016 What are the 3 MIX ports for? I need one for the ceiling mounted head and one for the head on a rail. Do I just blank the third one off? Or can I run two positions to one place?

Answer from Anthony Hi,

Thank you for your question.

We supply a dual valve with a diverter which will function a ceiling mounted head and rail kit which will be better for you rather than blanking one of the inlets off.

The top dial is a diverter so turning left for example will function the main head and right the rail kit.

http://www.betterbathrooms.com/showers/shower-valves/ecos9-concealed-dual-control-shower-valve-with-diverter/

Please see the below link for this option.



Kind Regards
