Features we love
- Perfect for a wide range of wall types wall hung
- Compatible with all our wall hung pans, pans sold separately
- Adjustable frame up to 200mm
- Non slip leg support and rotatable foot plates
All about me

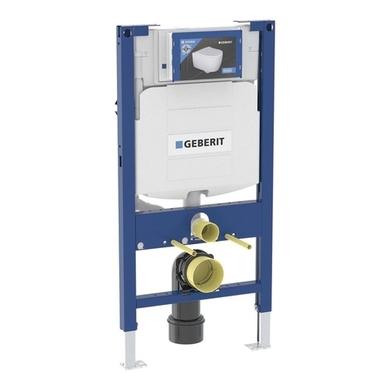

Add a touch of durability to your bathroom with the self supporting Geberit 980mm Duofix Frame and Sigma Concealed Cistern. Perfect for half wall installation of wall hung toilets. This frame has galvanized feet, non-slip leg supports and rotatable footplates 0-20cm, meaning it is very adaptable to small spaces in your bathroom, such as under a window or sloping ceiling.
This lower height 980mmH Geberit Sigma Concealed Cistern is perfect for fitting under that bathroom window or in a lower part height pre-wall or partition wall installation, suited for quick and easy installation and for use with wall hung toilet pans with a projection up to 620mm.
The sigma concealed cistern is fully insulated against condensation. This comes with a protection box for service opening, protecting against moisture and dirt. It is tool-free installation and maintenance.
This includes the flush plate, which has this well-known and recognised branding in the top corner. It is made from durable material and has sound-absorbing actuator rods for quiet flushing. It operates a water saving flush valve and a dual flush so you can choose which flush you need, saving water!
This product comes with WRAS approval from the supplier. What is WRAS? WRAS is an acronym for Water Regulations Advisory Scheme and this product complies with byelaws and water fitting regulations. Commercial properties often require this certification, so if you need it then this product is for you!
Need to know
- Flush Type: Dual Flush
- Flush Volume: 6/4L, 4/2 litres
- Flush Plate Warranty: 5 years
- Cistern Depth: 120mm
- Inlet Position: Rear

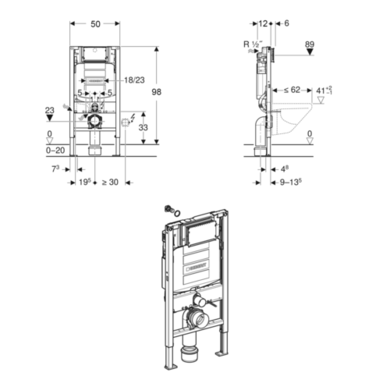

- Frame Dimensions: H980mm x W500mm
- Frame Adjustment: 0-200mm
- Rotatable Foot Plates: 0-200mm
- Weight Limit: 400kg
- Frame Material: Steel
- Suitable for: Wall Hung Toilets
- Toilet Included: No
- Fittings Included: Yes
- Frame Warranty: 10 years
- WRAS Approved: Yes
