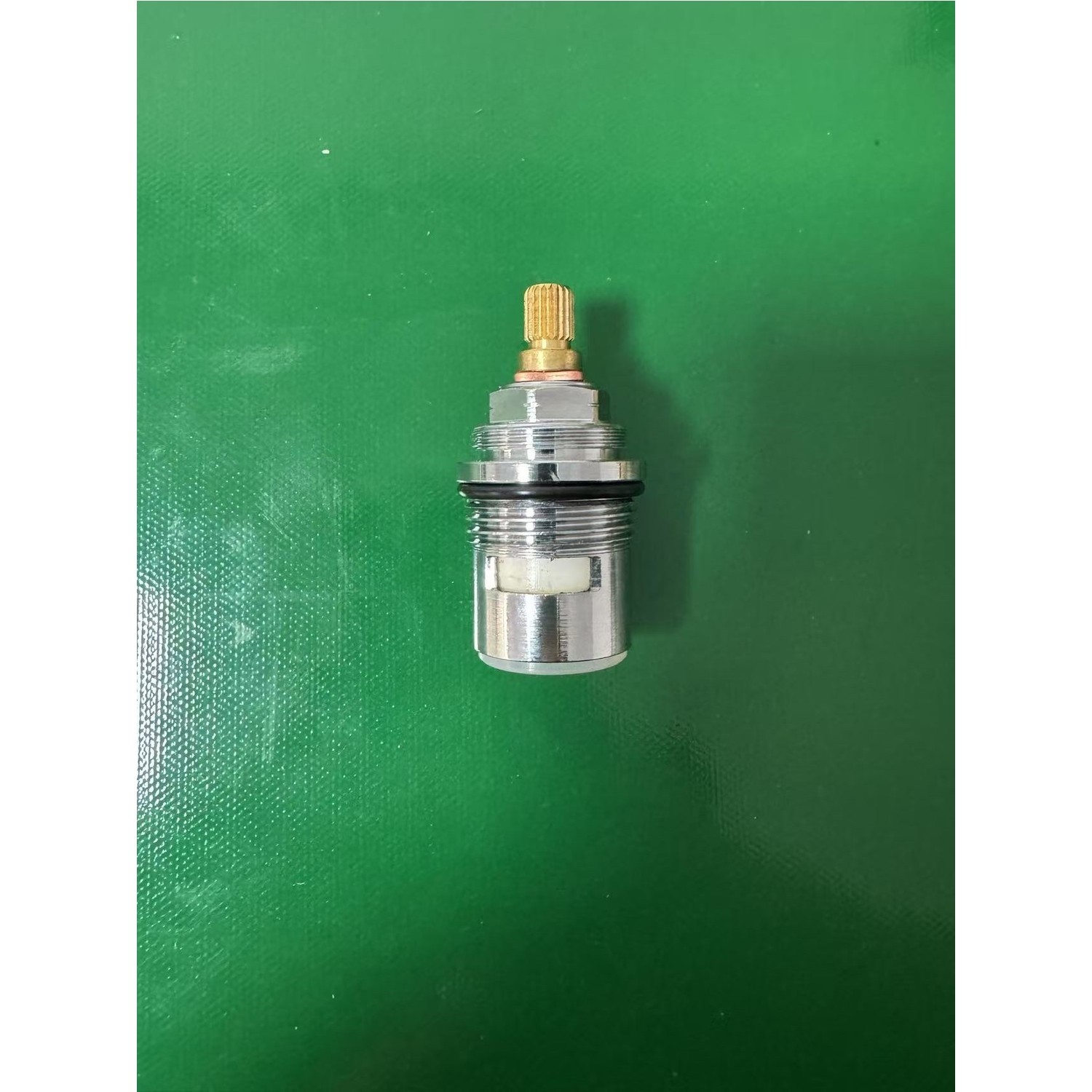

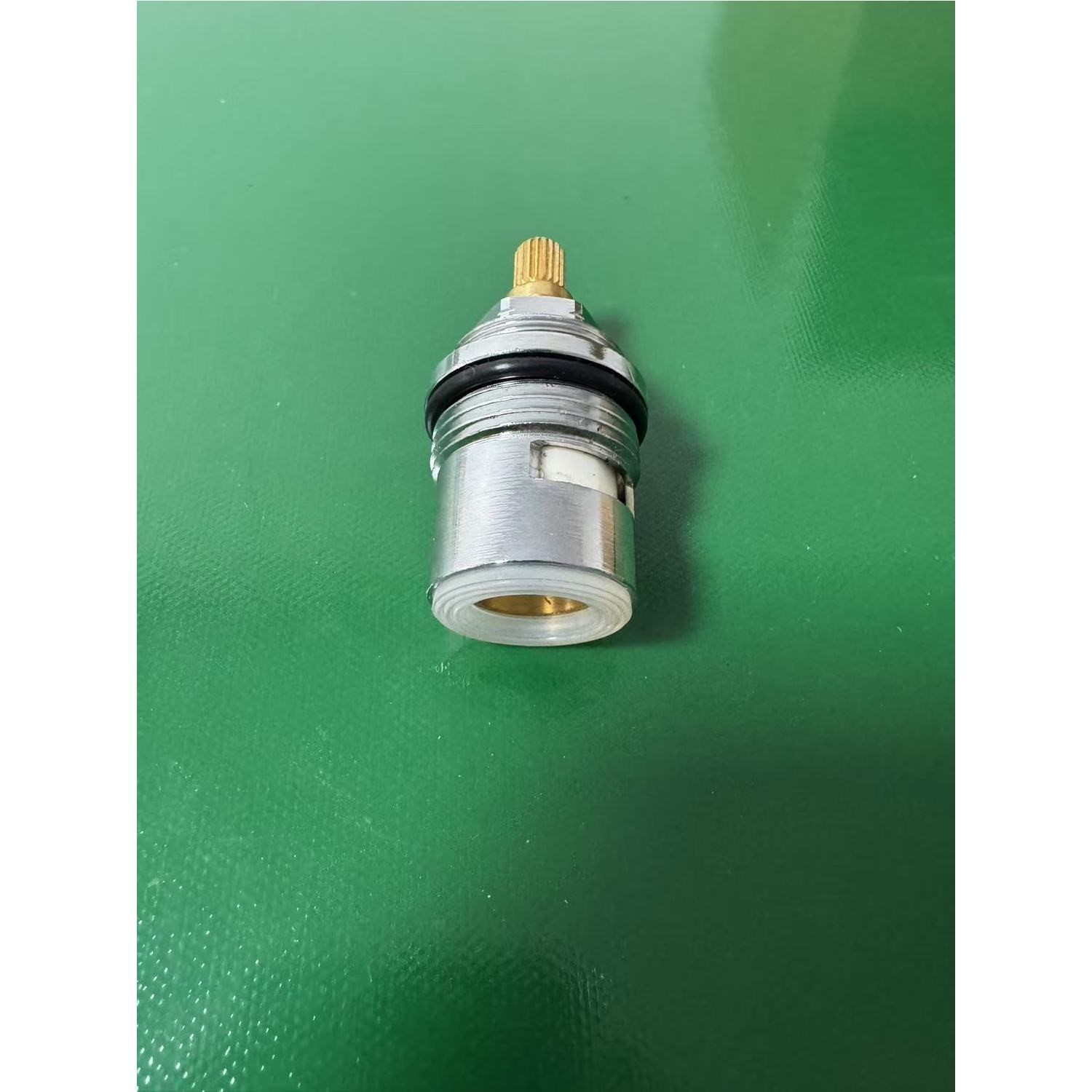

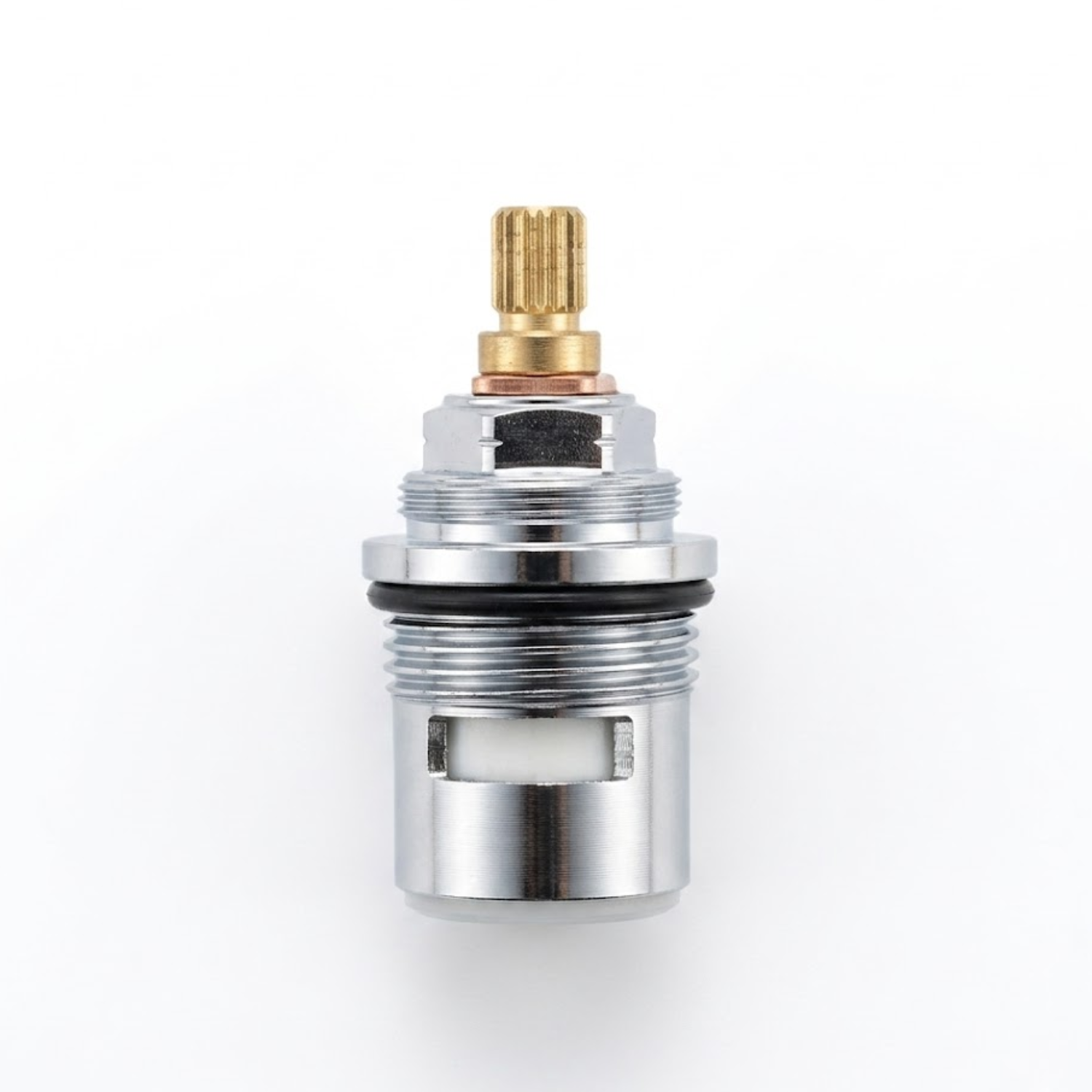

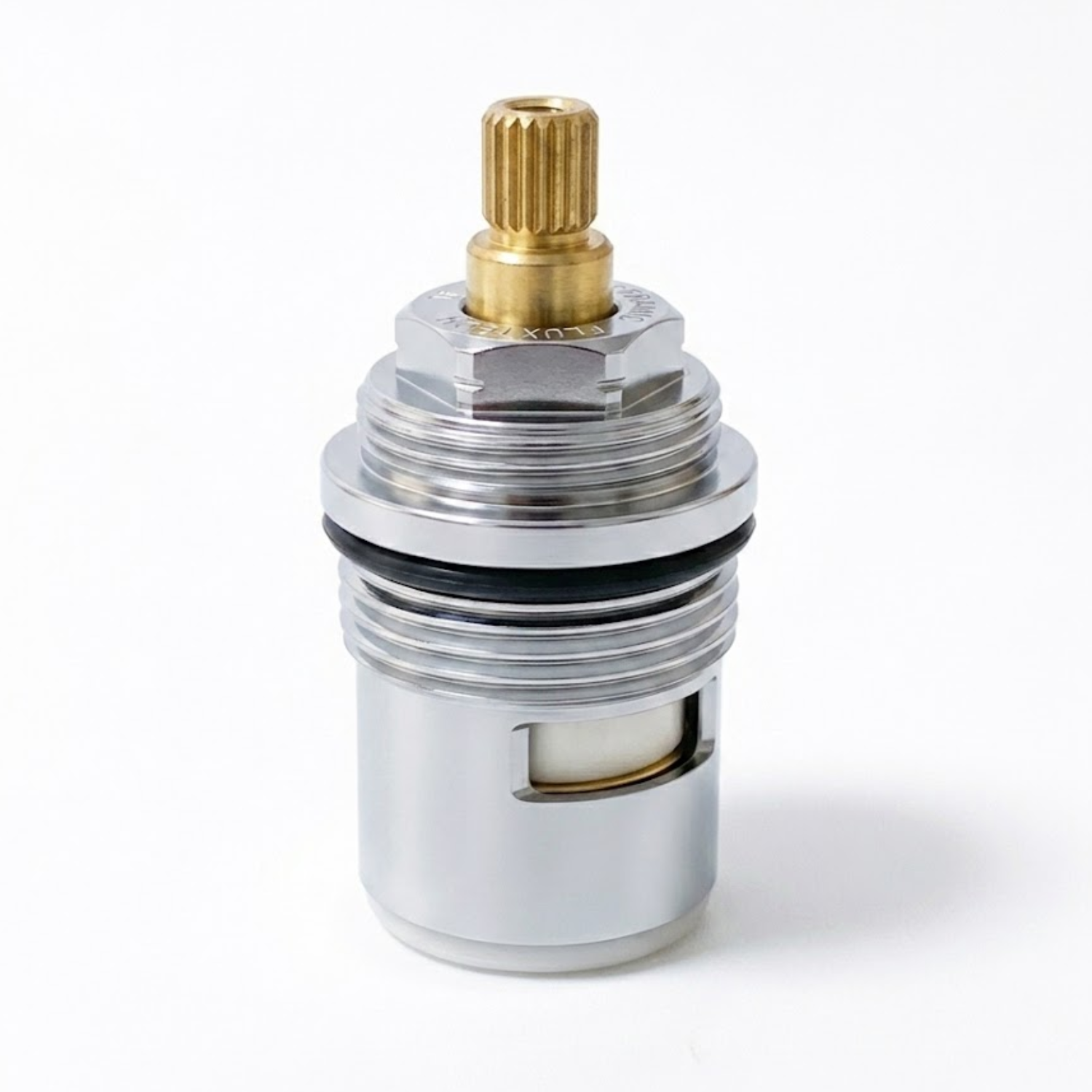

Hot Flow control valve to Suit Arissa
Compatible with: ARIMB005,ARIBB005,ARICH005,ARIMB006,ARIBB006
Always check the spare part size to ensure it fits your product.

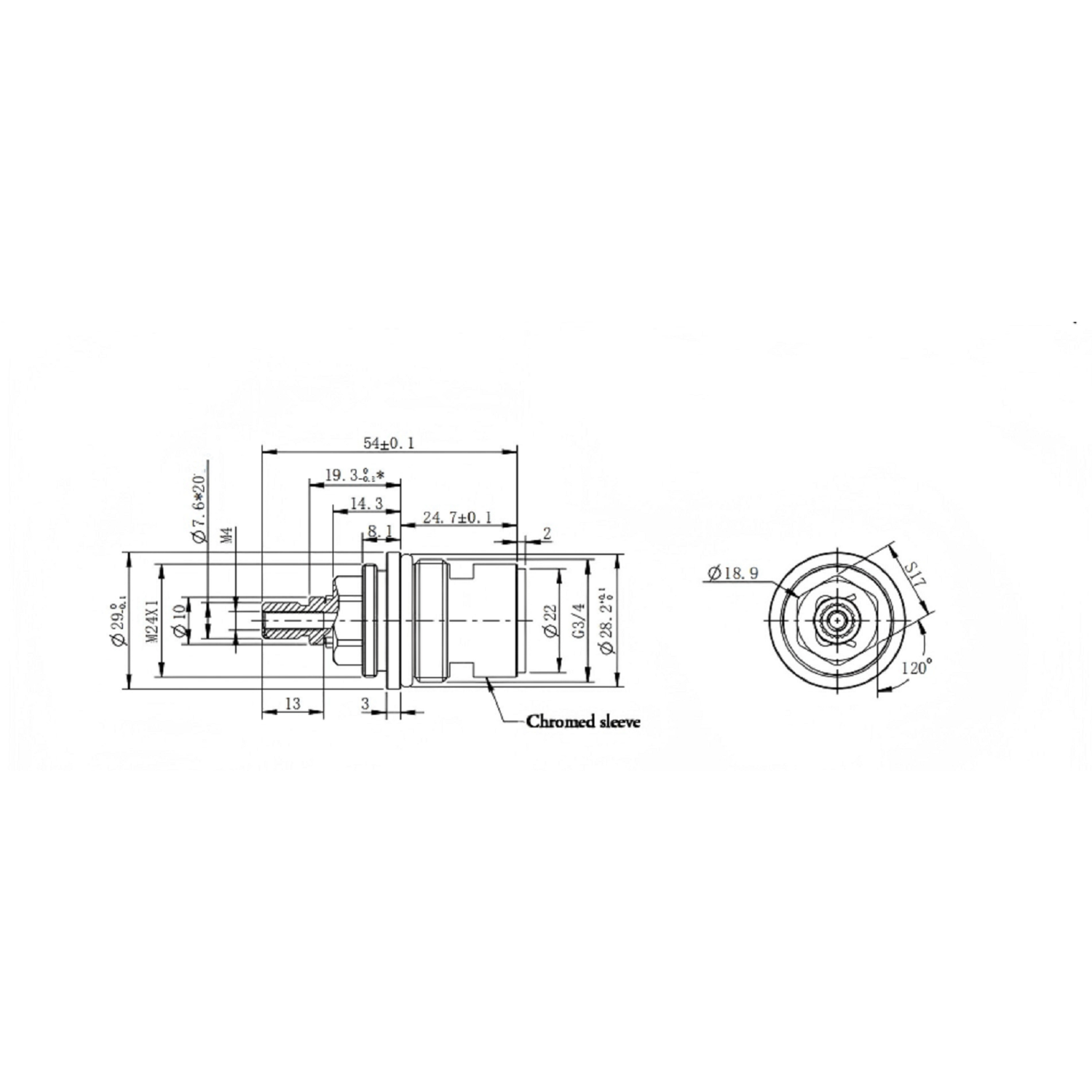

Need to know
- Overall length: 54 ± 0.1 mm
- Diameter (largest section): Ø 29 mm
- Chrome sleeve diameter: Ø 22 mm
- Thread diameter: Ø 23.2 mm
- Thread pitch: G3/4
- Pin diameter: Ø 7.6 ± 0.2 mm
- Body diameter near front: Ø 12.2 mm
- Rear diameter (front section): Ø 10.1 mm
- Internal section (grooved part): Ø 18.9 mm
- Hex head: S17 (17 mm)
- Front end (hex to groove length): 13 mm
- Threaded section length: 19.3 mm
- Mid-section (chromed sleeve): 24.7 ± 0.1 mm
- Smaller mid-section: 14.3 mm and 8.1 mm
- Groove width: 3 mm
- Angle (3-prong layout): 120° between each
