Product Information

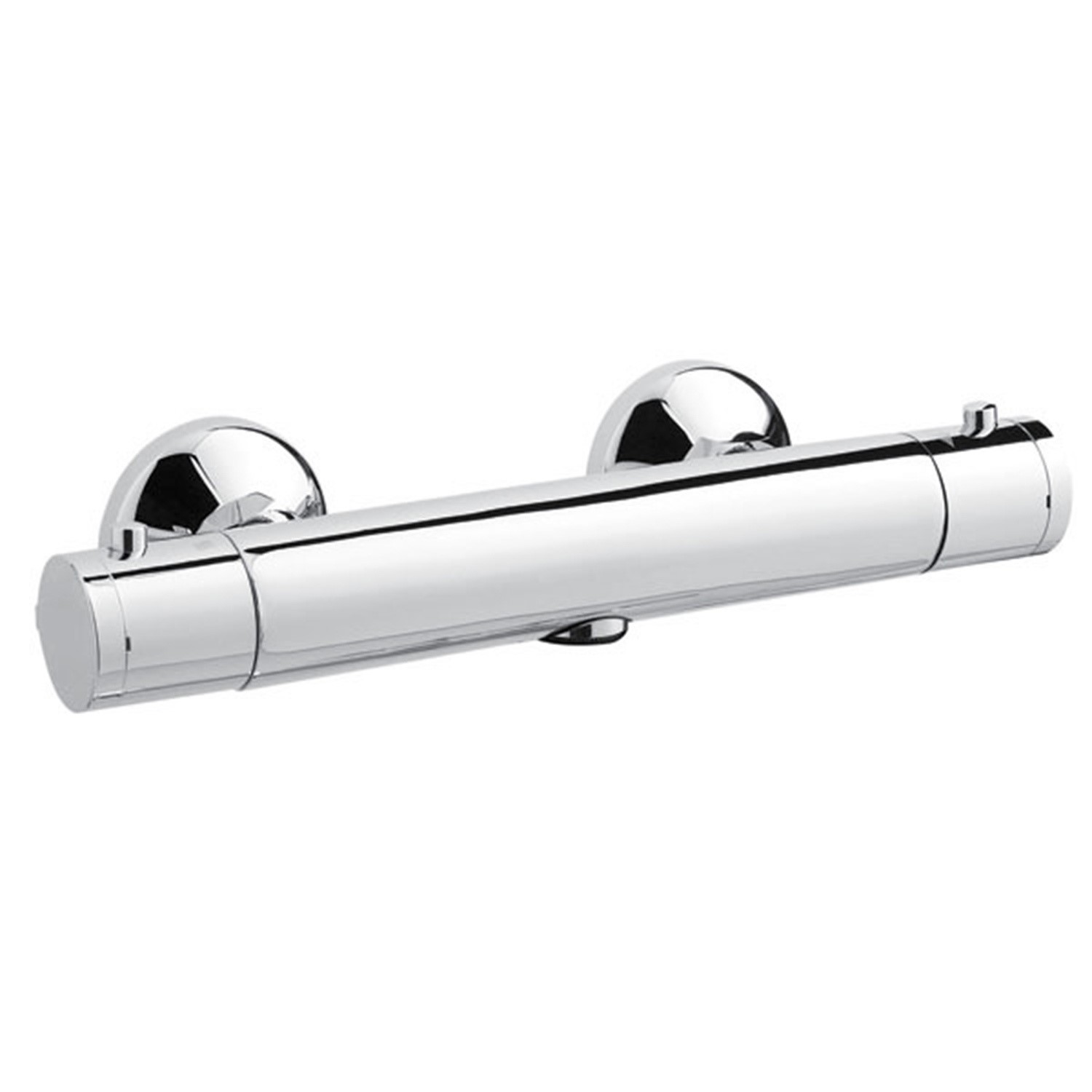

Minimalist Deluxe Thermostatic Bar Shower Valve
Summary
The Minimalist bar shower valve offers thermostatic showering with two easy to operate controls, one handle operates the on and off flow control whilst the other allows temperature selection.
View This Product's Installation Instructions
Features
- 1/2" exposed thermostatically controlled shower valve

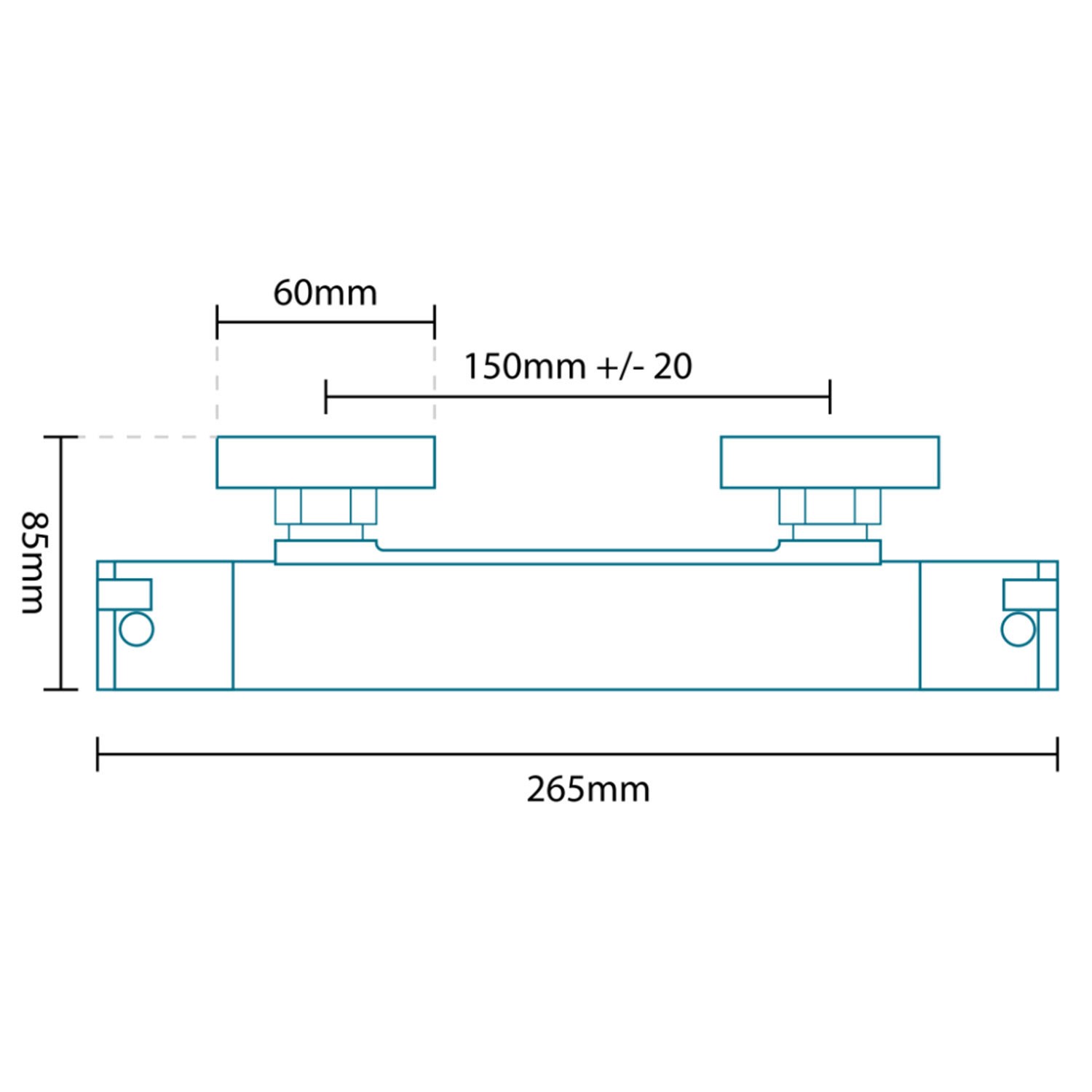

- Pipe fixing centres at 150mm +/- 20mm
- Mixed water bottom outlet
- Hot water feed inlet on the left when water outlet on the bottom of the valve
- Cold water supply temperature 4 - 20°C
- Suitable for water systems between 0.5 and 4 bar pressure
- Hot water supply temperature 55 - 85°C
- Suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
- Built in anti-scald device
- Suitable for combi boiler systems
- Suitable for unvented mains pressures systems
- Suitable for shower pumps
Item Code:
BeBa_6689
Please Note: All sizes are approximate and should be used for guidance only.
Question from Wayne: Asked on 02/02/2018 Hi
can the insides be swapped about?
reversed pipework @ rear
Thanks
Answer from chris Hi,
You would need to speak with our technical team about this please see link - https://help.betterbathrooms.com/hc/en-us/articles/115001858725-My-Product-Is-Faulty-How-Do-I-Get-A-Replacement-Part-
Kind regards.
Question from Dawn: Asked on 04/02/2016 Hello can the anti scald device/ring be removed or adjusted?
Answer from Benjamin Linnert Good afternoon,
Thank you for your question.
Please resubmit your questions with specifics on how you would like to adjust the antiscold device?
Kind regards.
Question from Mark: Asked on 30/08/2015 Could you confirm that this bar mixer is compatible with Backplate Elbow Unions, as I wish to install the bar mixer shower with exposed chrome pipes.
Thanks
Answer from Nathan McGregor Hello.
Thank you for your question.
Yes this is compatible for using it with backplate elbows.
Regards.
Question from Martin Aldred: Asked on 27/04/2015 is it ok to use the 6689 shower valve with a twin shower pump? Currently it seems to be either cold or very very hot.
Many thanks.
Answer from Nathan McGregor Hello.
Thank you for your question.
Yes it should be fine.
It may be an issue with the internal thermostat. I would advise speaking to our technical team on 01925 544 861 and they will be able to diagnose the fault you are having.
Regards.
Question from chris. woods: Asked on 03/02/2014 does the shower valve have ceramic workings.
Question from chris. woods: Asked on 03/02/2014 does the shower valve have ceramic workings.
Question from Alex Griffiths: Asked on 05/03/2012 What is this product made of please?
Answer from Rob Molloy Solid brass with a crome finish
