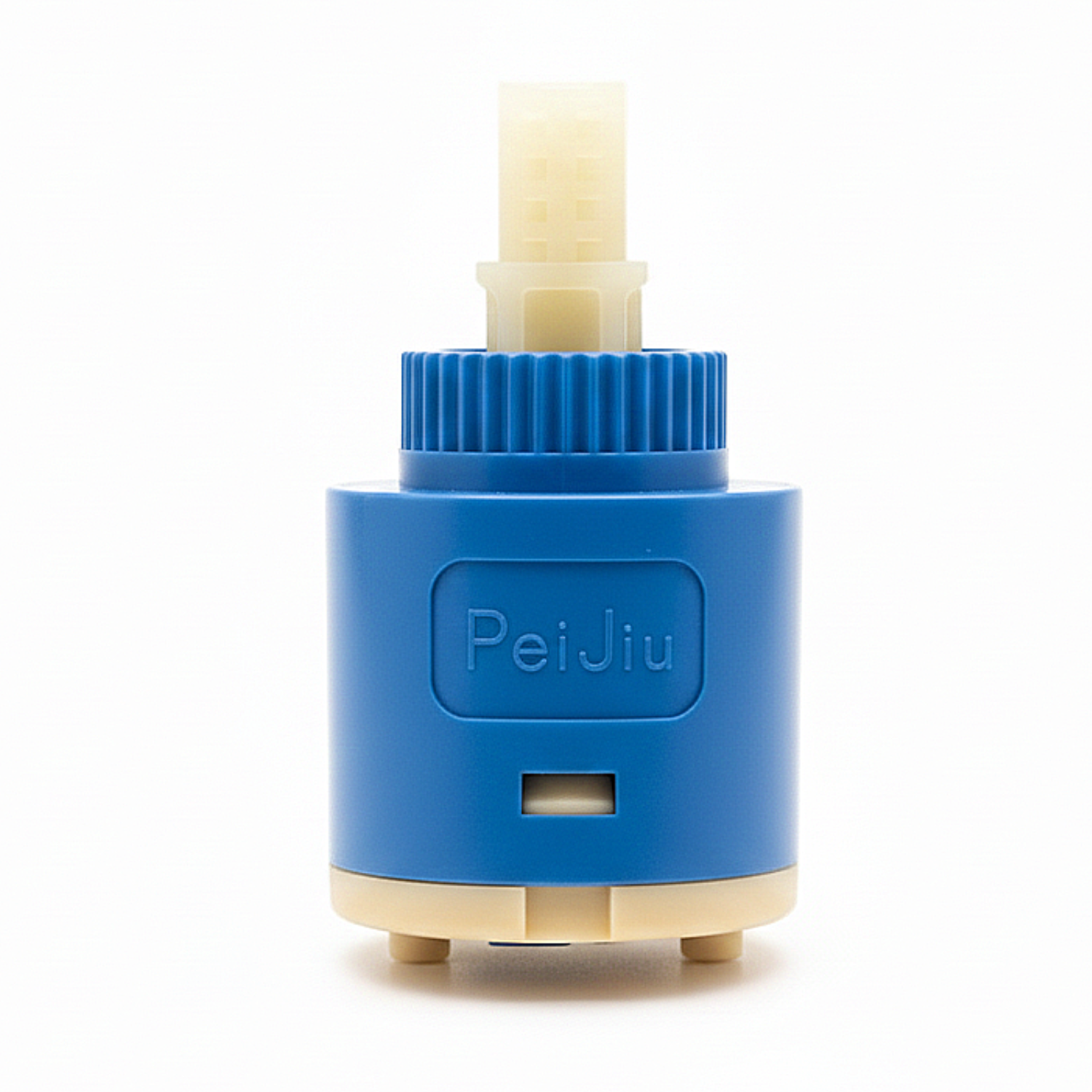

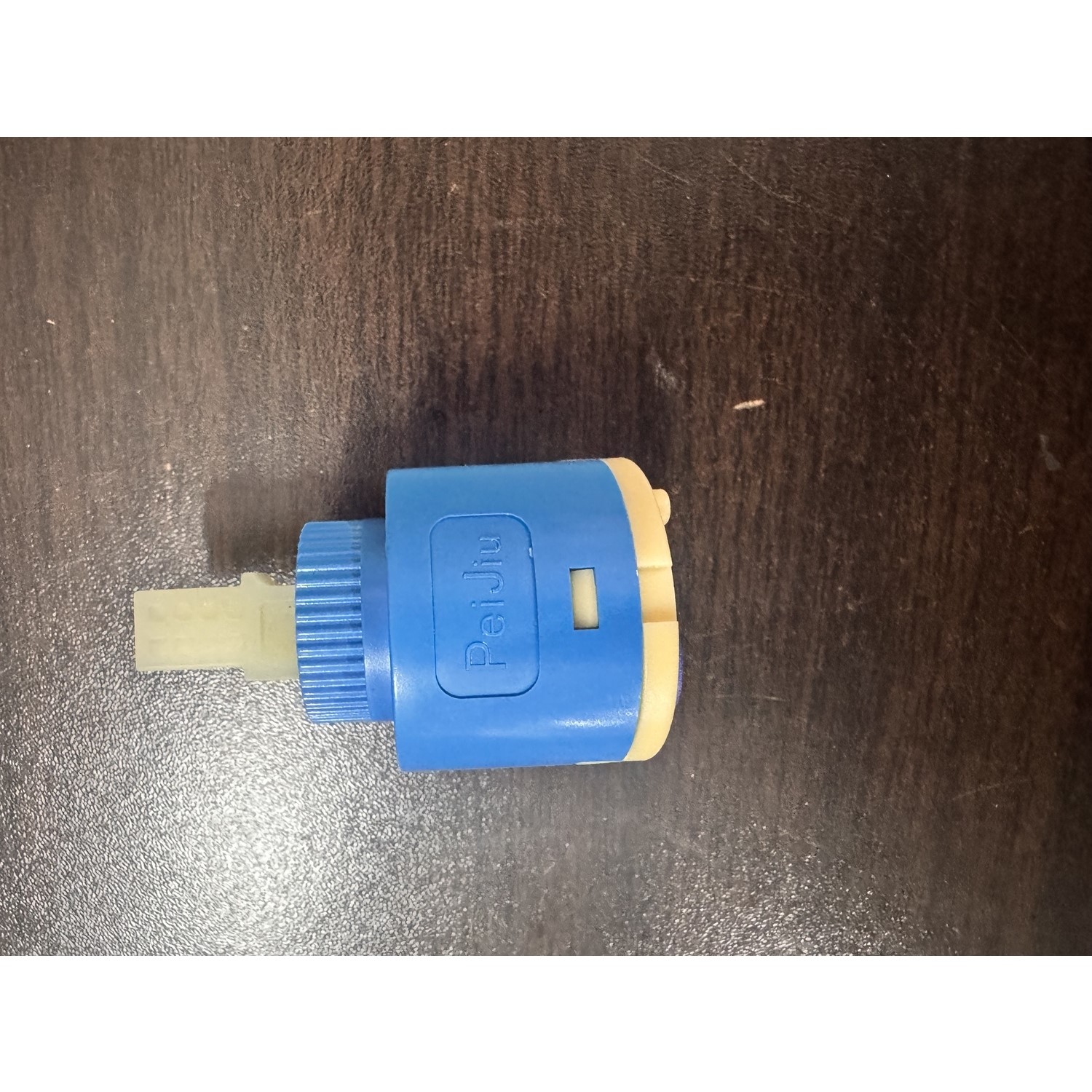

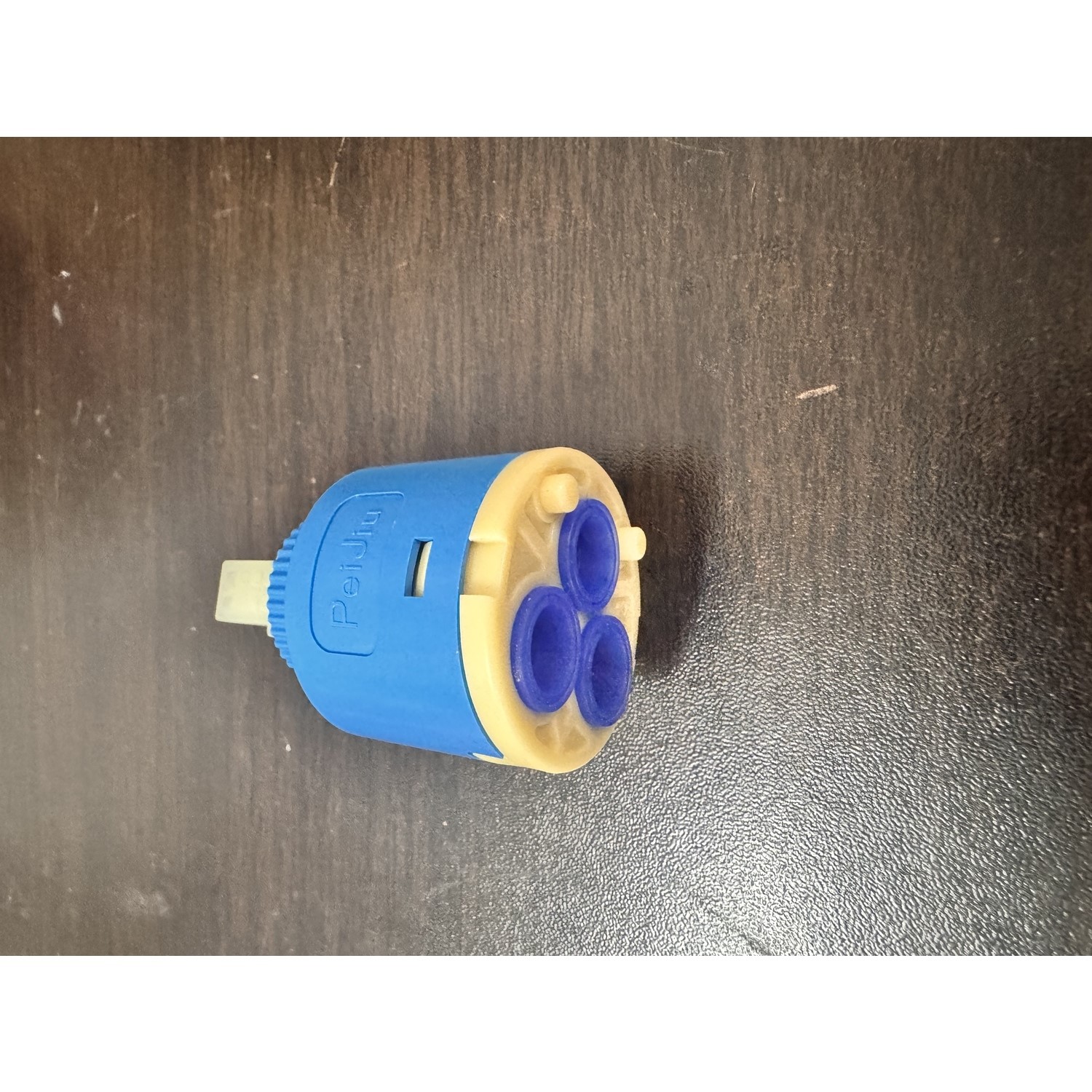

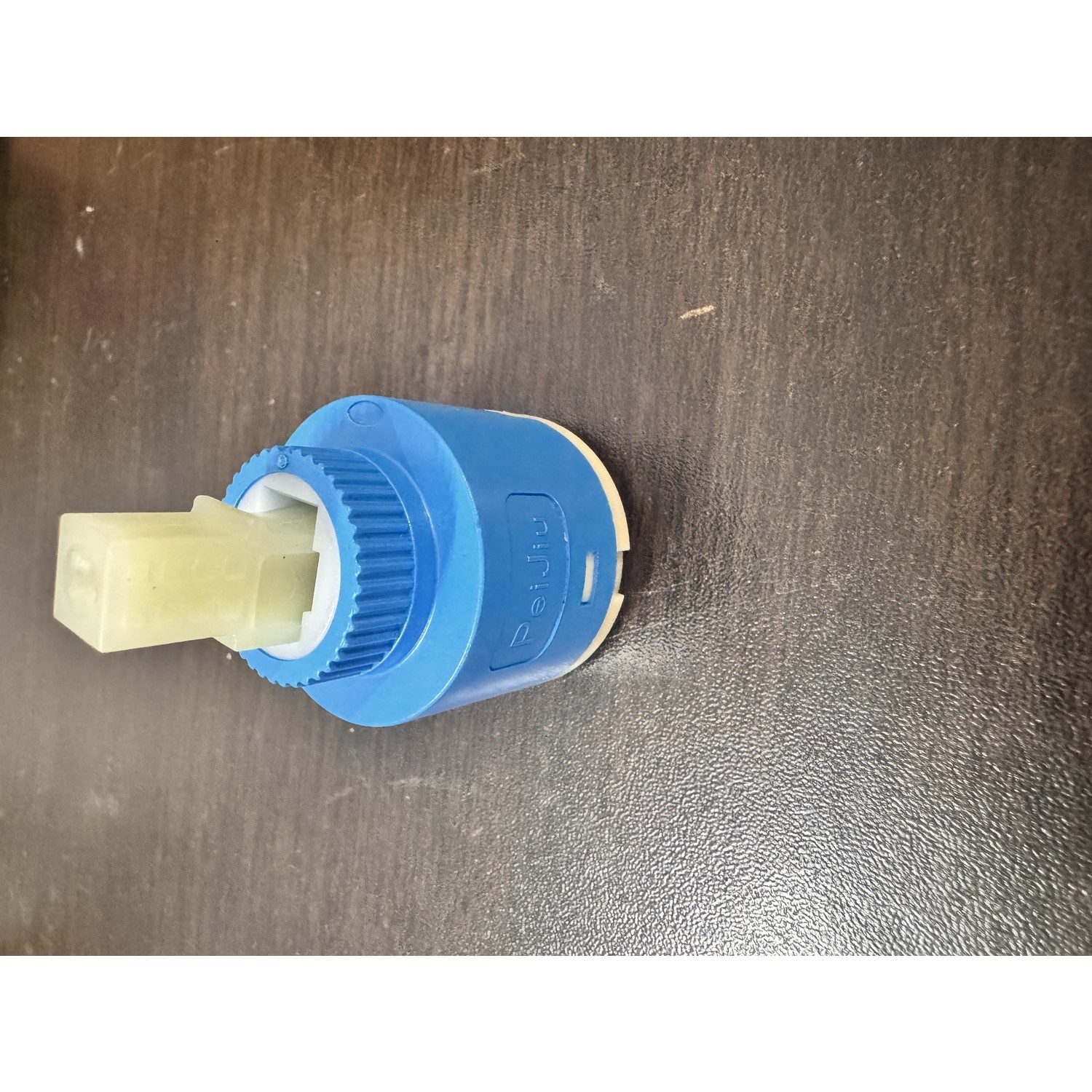

Mixer cartridge to suit Arissa Taps 44.6mm
Compatible with: ARIMB002, ARIBB002, ARICH002,ARIMW001,ARIVRG002,ARIMB003, ARIBB003, ARICH003,AR2TMBM,AR2TTALLBM
Always check the spare part size to ensure it fits your product.
Need to know

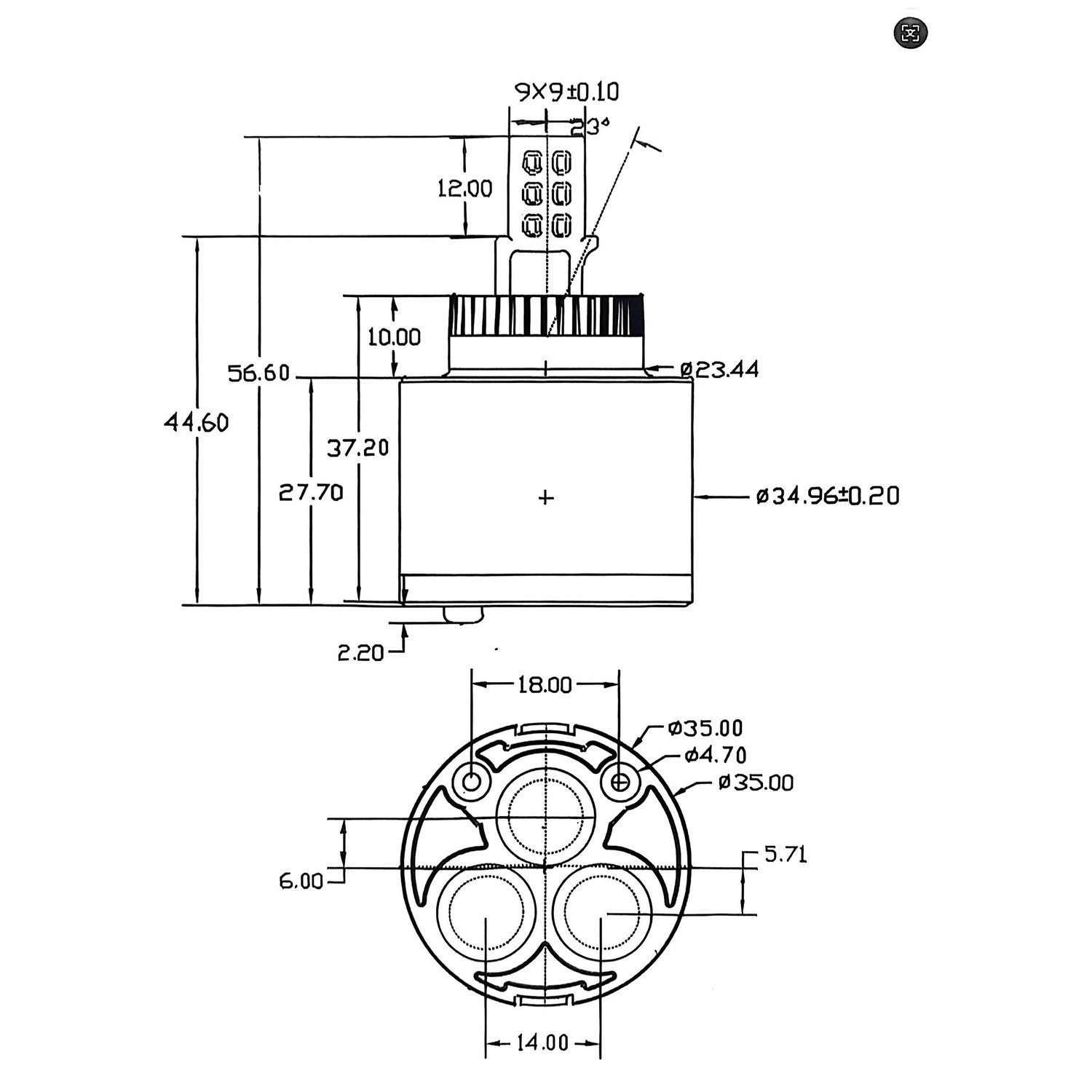

- Overall height: 56.60 mm
- Body height: 37.20 mm
- Base thickness: 2.20 mm
- Connector height: 10.00 mm
- Connector tilt angle: 3°
- Connector block size: 9 × 9 mm (±0.10 mm)
- Vertical connector spacing: 12.00 mm
- Main body diameter: Ø34.96 mm (±0.20 mm)
- Top section diameter: Ø23.44 mm
- Bottom flange diameter: Ø35.00 mm
- Small hole diameter: Ø4.70 mm
- Distance between main holes: 18.00 mm
- Distance between lower holes: 14.00 mm
- Edge distance (side): 6.00 mm
- Edge distance (bottom): 5.71 mm
