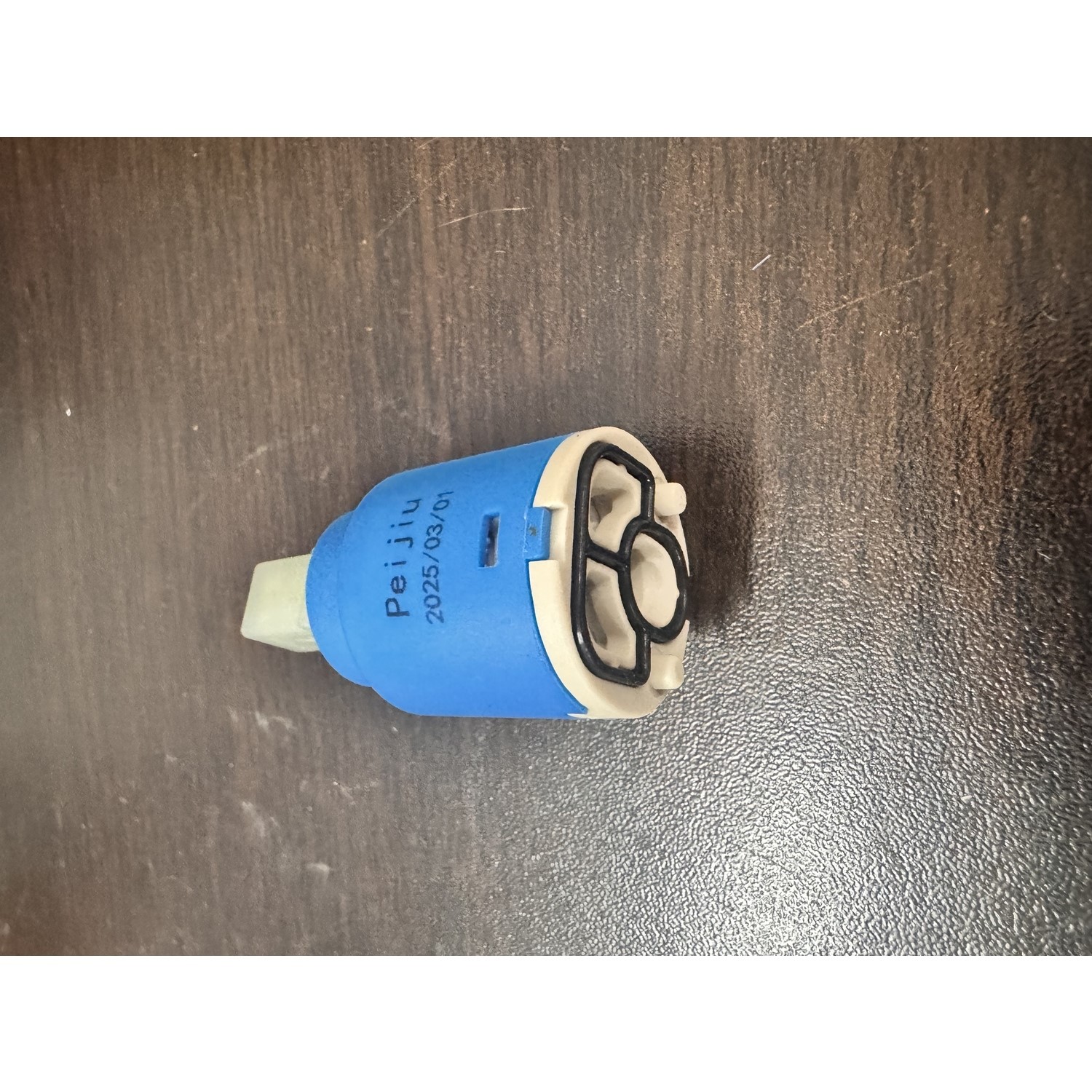

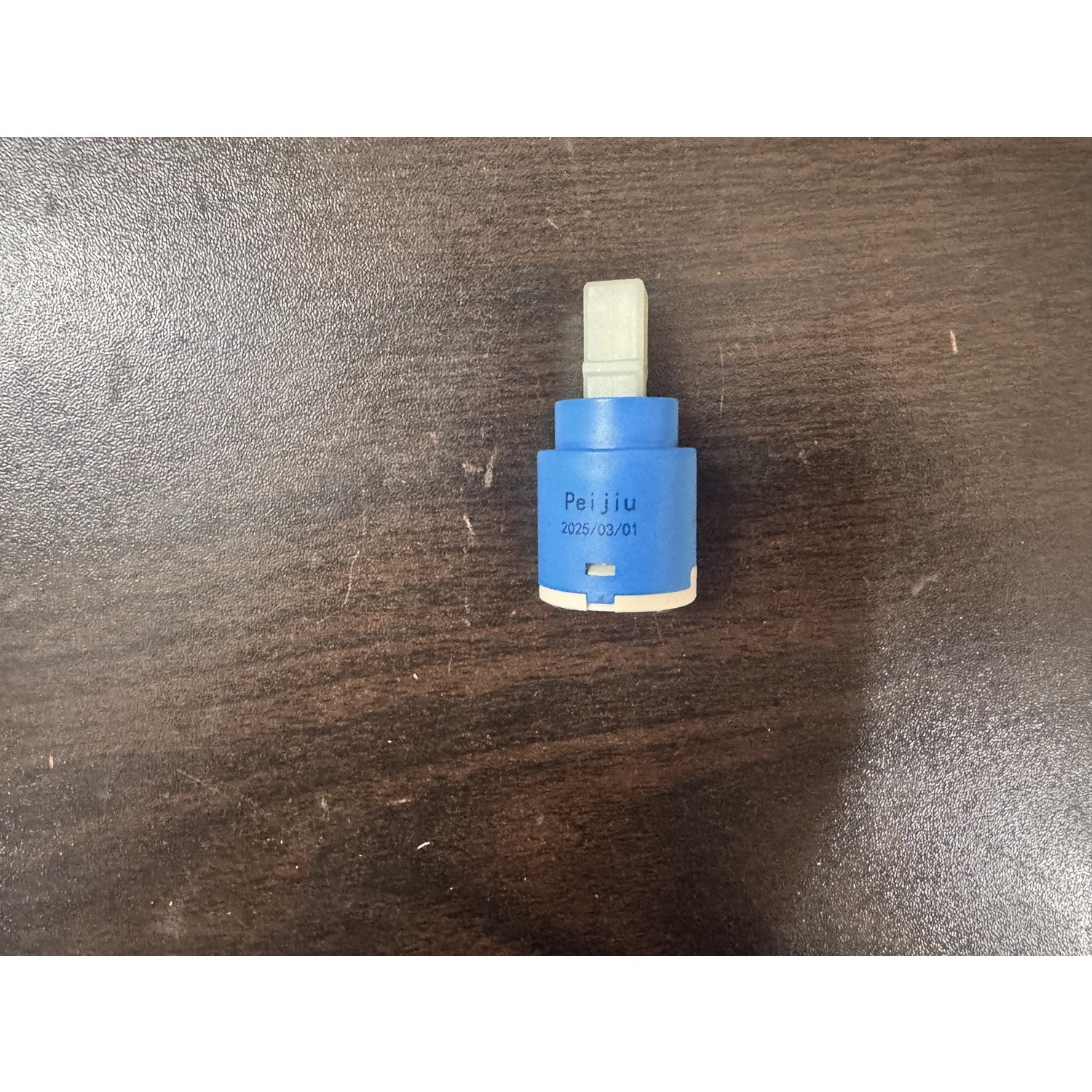

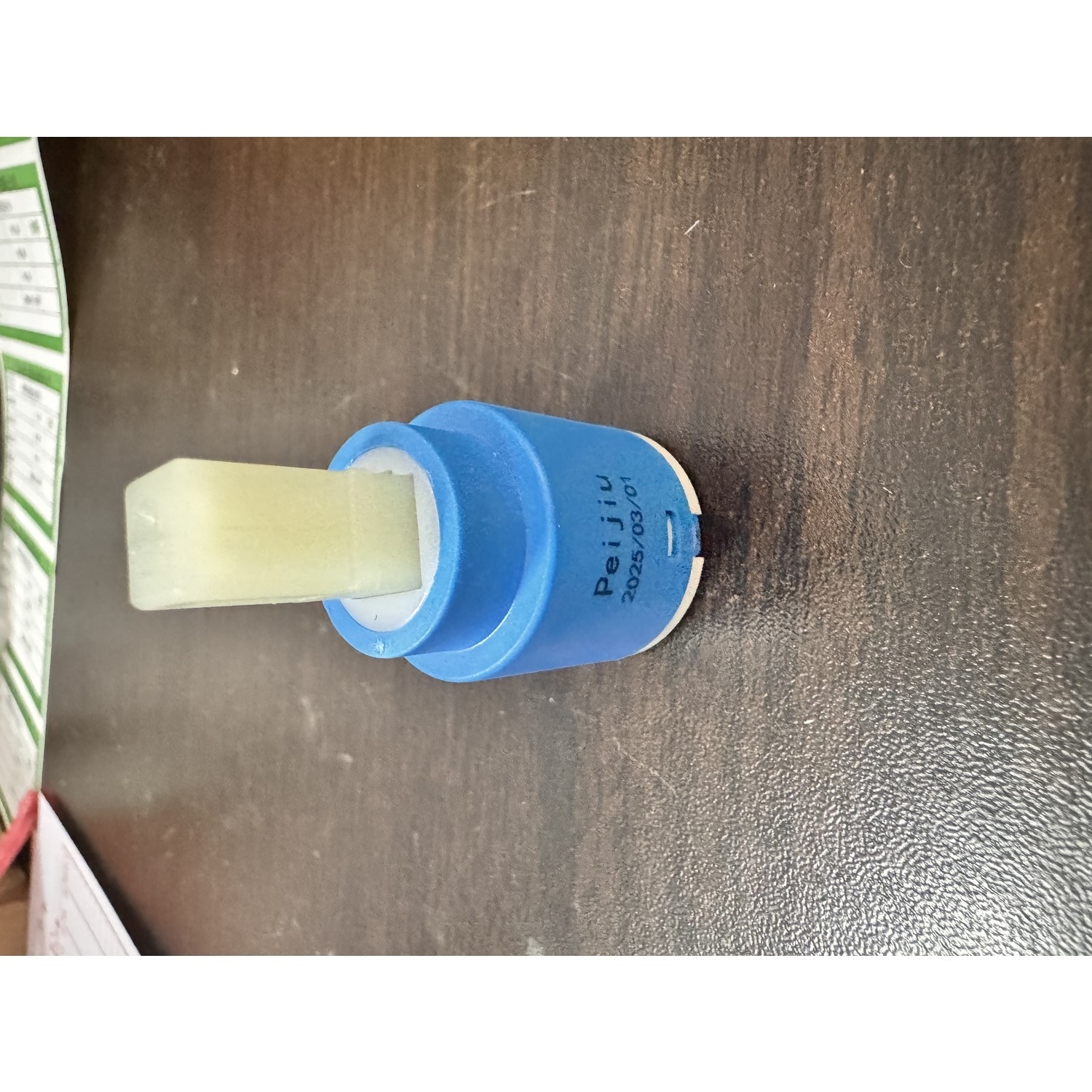

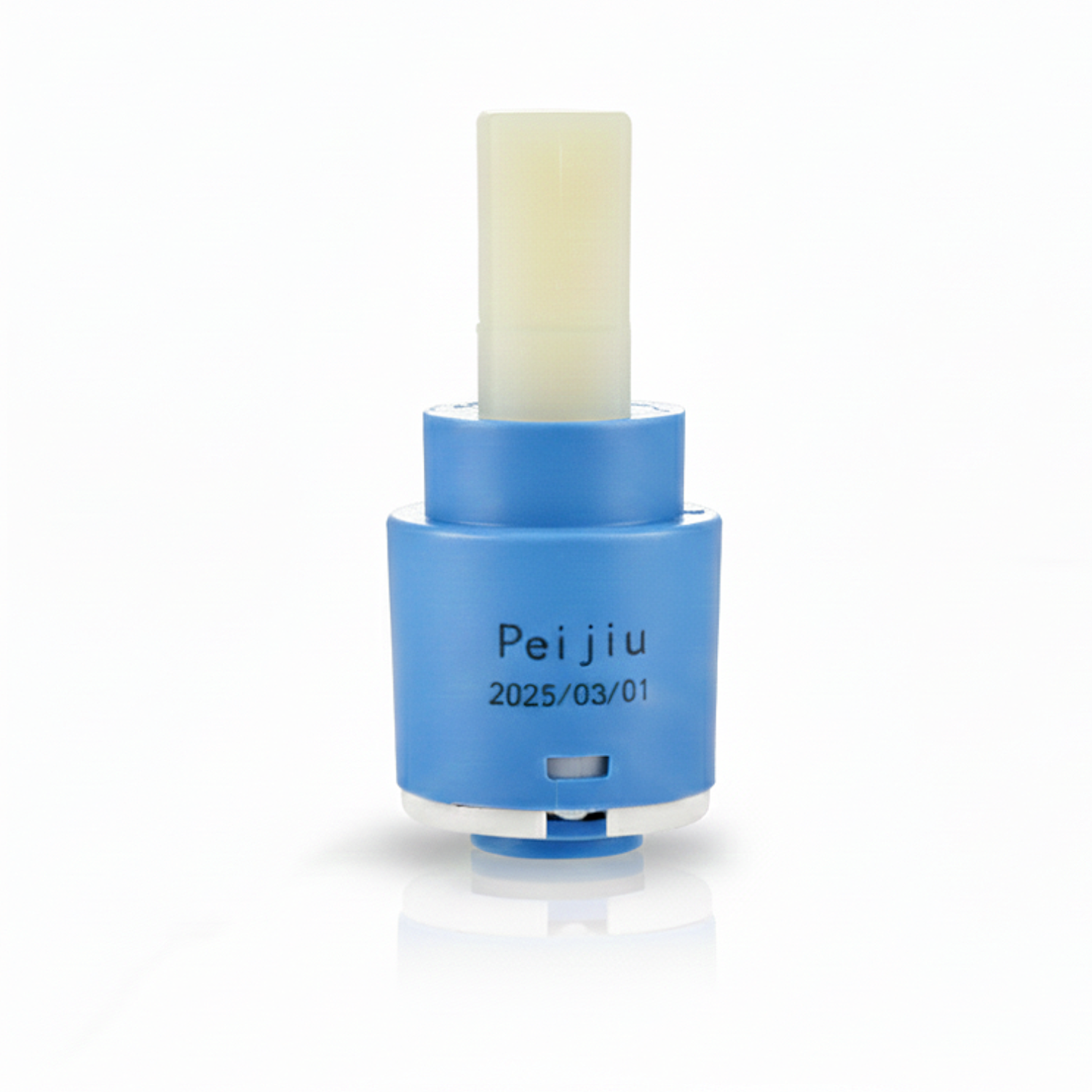

Mixer cartridge to suit Arissa Taps 49.45mm.
Compatible with: ARIMB001,ARIBB001,ARICH001,ARIMW009, ARIVRG001,AR2TCBM
Always check the spare part size to ensure it fits your product.
Need to know

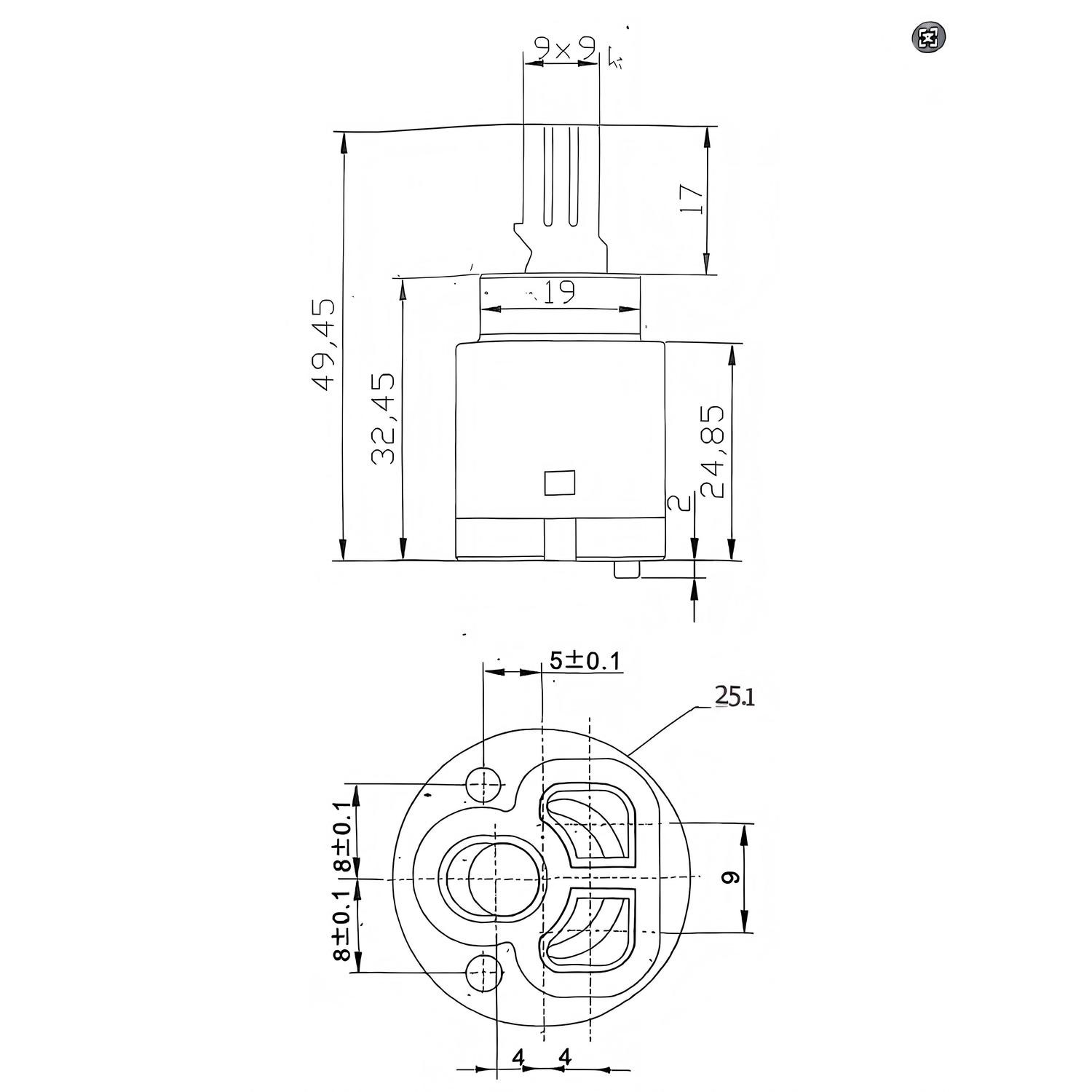

- Total height: 49.45mm
- Cartridge body height: 32.45mm
- Connector (splined section) height: 17mm
- Base thickness (bottom flange): 2mm
- Side body section height (not including connector): 24.85mm
- Top connector block size: 9mm × 9mm
- Upper body width (above cartridge body): 19mm
- Bottom circular diameter: 25.1mm
- Main hole spacing (vertical): 8mm ± 0.1mm
- Side hole spacing (horizontal): 4mm each (between main holes and small holes)
- Outer edge spacing (from centre hole to top): 5mm ± 0.1mm
- Inner port height (oval cut-outs): 6mm
