Nuovo Premium Concealed Lever Shower Valve
Summary
The Nuovo Range presents to you a smart and stylish set of shower mixers which will leave your bathroom with a clean and pristine finish. The Nuovo products have been specifically articulated to add deluxe designs to adorn your bathroom whilst being manufactured from the highest quality materials and increasing durability. The Nuovo Concealed Shower Mixer allows the user to adjust water flow easily with the Ceramic Disc Technology Lever. The shower mixer gives out to one water outlet source, therefore is ideal for any bathroom and can be paired with either a handset kit or shower head. Paired with one of our carefully chosen rail kits, the Nuovo Shower Mixer will leave you with the ultimate showering experience.
Features

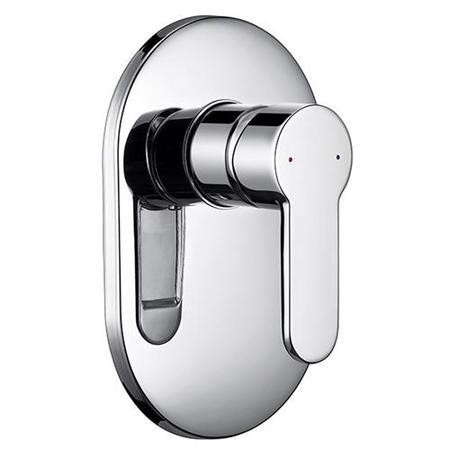

Nuovo Concealed Shower Mixer
- Tap Type: Shower Mixer
- Style: Modern[com] Wall Mounted
- Min Pressure & Flow Rate: 0.5 bar (flow rate of 9.5 litres per minute)
- Max Pressure & Flow Rate: 5.0 bar (flow rate of 23.8 litres per minute)

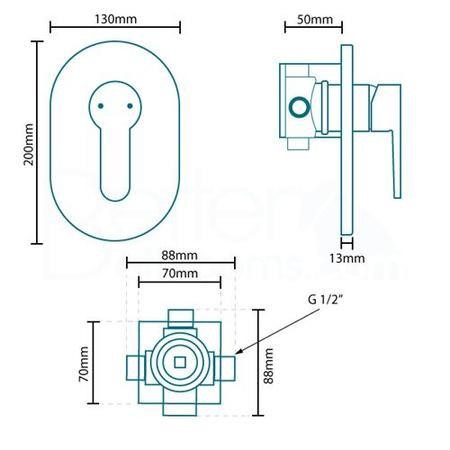

- Height: 200mm
- Depth: 13mm
- Width: 130mm
- Weight: 1.6kg
- Materials Specification: Solid Brass
- Finish: Chrome
- Features: Ceramic Disc Technology
- Excludes: Pop Up Waste
- Suitable for:
- Combination Boilers
- Pressurised Systems
- Pumped Systems
- Gravity Fed Systems (which may require a pump)
- Subject to a minimum pressure of 0.5 bar - Also Available: Matching Basin Mixer and BSM Available
- Accreditations: Kerox 35mm Cartridge
Round 20cm Rain Shower Head and Wall Arm (OPTIONAL)
- Wall Mounted
- Diameter of Head: 20cm
- Projection of Head: 30cm
- Weight Of Head: 0.635kg
- Material of Arm: Stainless Steel
- Chrome Finish
- Materials Specification: Chromed Morgen shower head with chromed plastic ball[com] and chromed Stainless Steel shower arm.
Cima Slide Rail Kit (OPTIONAL)
- Length of slide rail kit: 898mm
- Projection: 70.5mm
- Width: TBA
- Hose Length: 1.5m
- Number of functions on handset: 3
- Includes: Wall outlet water bracket
- Total Weight: 1.2kg
- Materials Specification: Solid Brass[com] Chrome[com] Stainless Steel Shower Hose
- Accreditations: Meets EN1112 European Standards
