Product Information

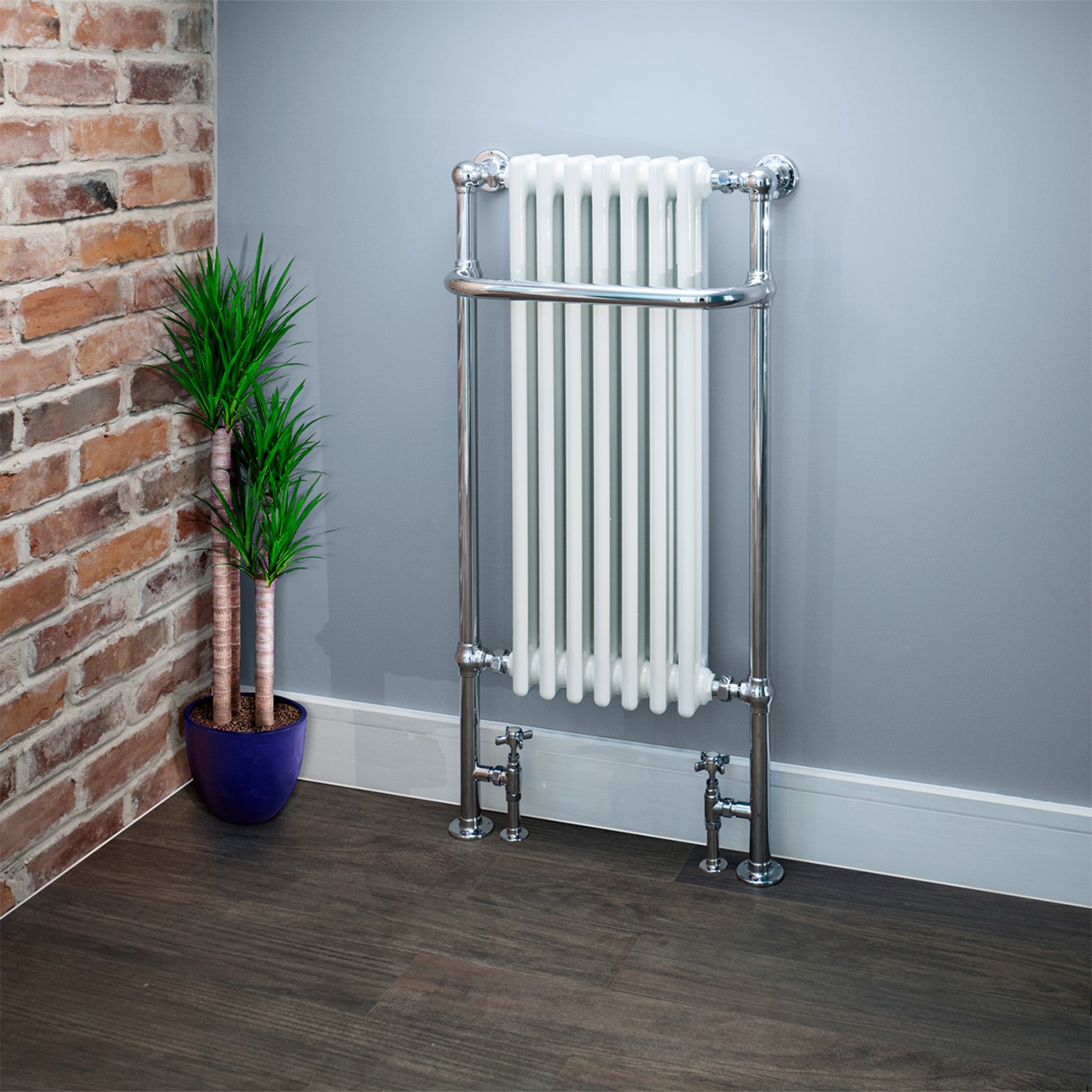

Oxford Beta Heat Traditional Radiator
Summary
The Oxford Beta Heat traditional radiator is a fantastically traditional bathroom radiator that would compliment a whole variety of period styled bathrooms. It comes with the appropriate fixings and offers a heat output of 3265 BTUs.
Features
- Style: Traditional
- Materials Specification: High grade, low carbon steel

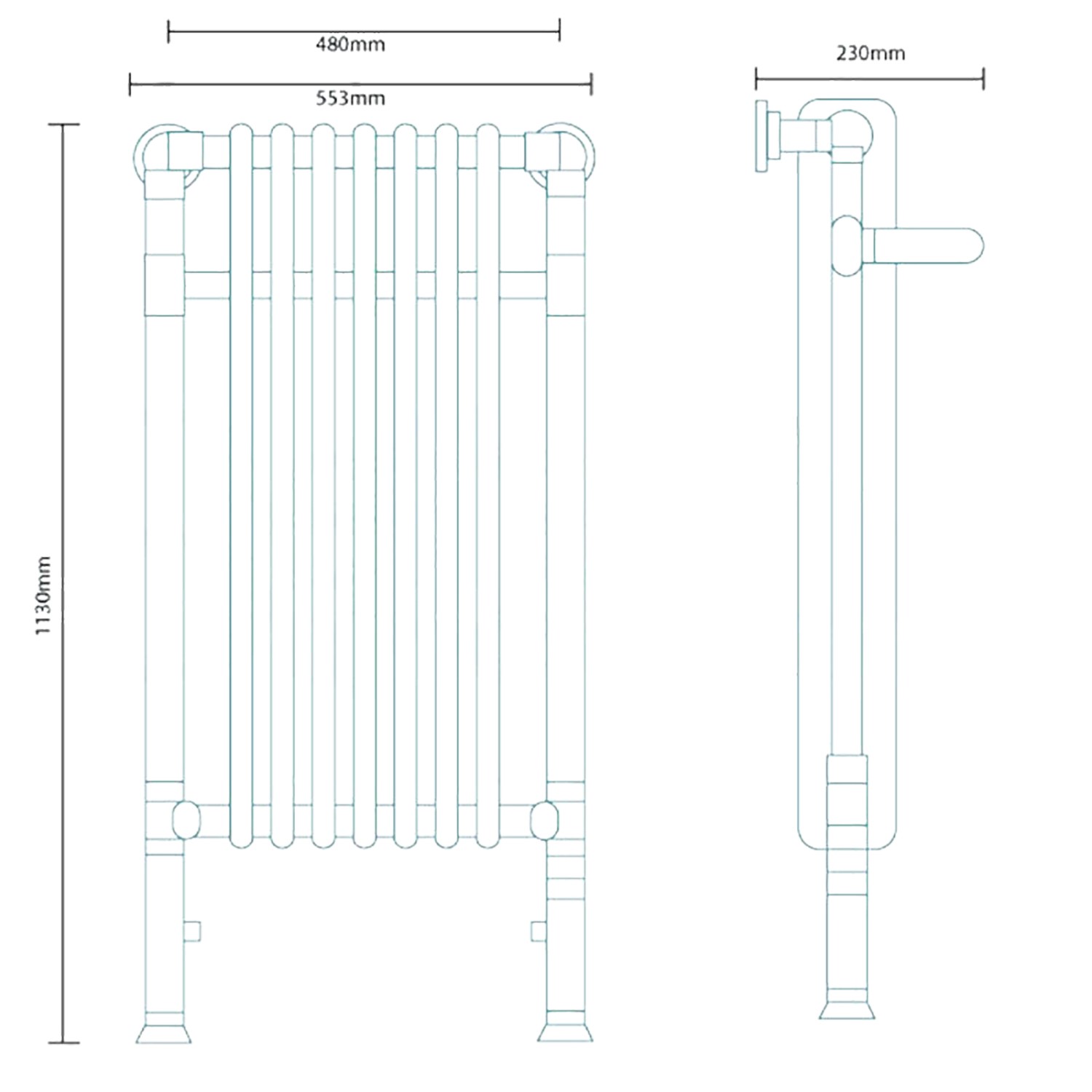

- Height: 1130mm +/-2
- Width: 553mm +/-2
- Projection: 230mm +/-2
- Pipe Centres: 480mm +/-1
- Gross Weight: 24.97Kg
- Net Weight: 21.97Kg
- Finish: Chrome/high quality porcelain glaze
- Output: 3265 BTUs
- Number of Rails: 1
- Tube Thickness: 1.5mm
- Includes: Fixings
- Excludes: Radiator Valves
- Accreditations and Testing:
- Low carbon steel is used for all our towel rails
- 5 layered European Standard plating process
- Chrome plated to exceed 200 hours of neutral salt spray testing.
- Factory ISO9001:2008 compliant quality management system
- Tested to and manufactured in accordance with BS EN 442 standards
- Safety tested at 15 bar pressure
- Compatible for use on all UK heating systems that are tank fed or combination systems
Item Code:
BeBa_10418
Please Note: All sizes are approximate and should be used for guidance only.
How much heat will I need?
All radiators have a BTU rating, which essentially tells you how much heat they can generate. But how do you know how many BTUs you'll need to effectively heat your room? Easy! Simply click here to use our BTU calculator and find out in seconds.
What is a BTU?
BTU stands for British Thermal Units and represents the level of heat a radiator provides. The required BTU level to heat your room will influence the size of your radiators. Fortunately, we offer numerous options in all shapes, styles and sizes for you to find one that's right for you.
How is it calculated?
This figure is calculated by taking into consideration the dimensions of your room (width, length, height) and the type of windows (such as single or double glazing). You can either use one radiator to reach the total BTU level required, or a number of radiators which reaches the required BTU level when added together - let's get to it!
Why do I need to work out my BTU?
It's important that you get to grips with what BTU you will need in your room as you want to achieve the goldilocks effect – not hot, not cold but just right! If you're overheating your room, you'll probably see your bills increase too. It definitely helps to consider the space that you have before making a final decision.
Still unsure?
If you are still unsure of how much heat you may need please use our BTU Calculator below.
Click here to calculate.
Step 1
Please select your desired room:
Step 2
Please select the correct measurement type, and input the height, width and length.
Step 3
Please check the following questions and answer correctly, as this will affect your quote.
Total: 0 Watts
Question from Michael: Asked on 27/04/2018 Hi. I wold like to buy this product, but i think dimensions are wrong. Specification says that pipe centres are 480mm, but it looks like someone give dimensions for outside frame pipes when we need spacing for two pipes inside that connect to pipework. Looking at the pisture i thing spacing for PIPES, NOT FRAME is around ~380mm.
Can you please condirm that ?
Question from Qas: Asked on 27/07/2016 1) Can a heating element be fitted to this radiator
2) I have a tank fed Open Central Heating System that doesn't have a corrosion inhibitor solution added but does have a Spirotech Spirotrap dirt separator fitted. Can this radiator be used on this system?
Question from Maurizio La Ferla: Asked on 18/02/2014 I'ld like to buy these product, could you tell me shipping cost to Italy, 50122 Firenze, many thanks
