Product Information
Quadro Square Slide Shower Rail Kit
Summary

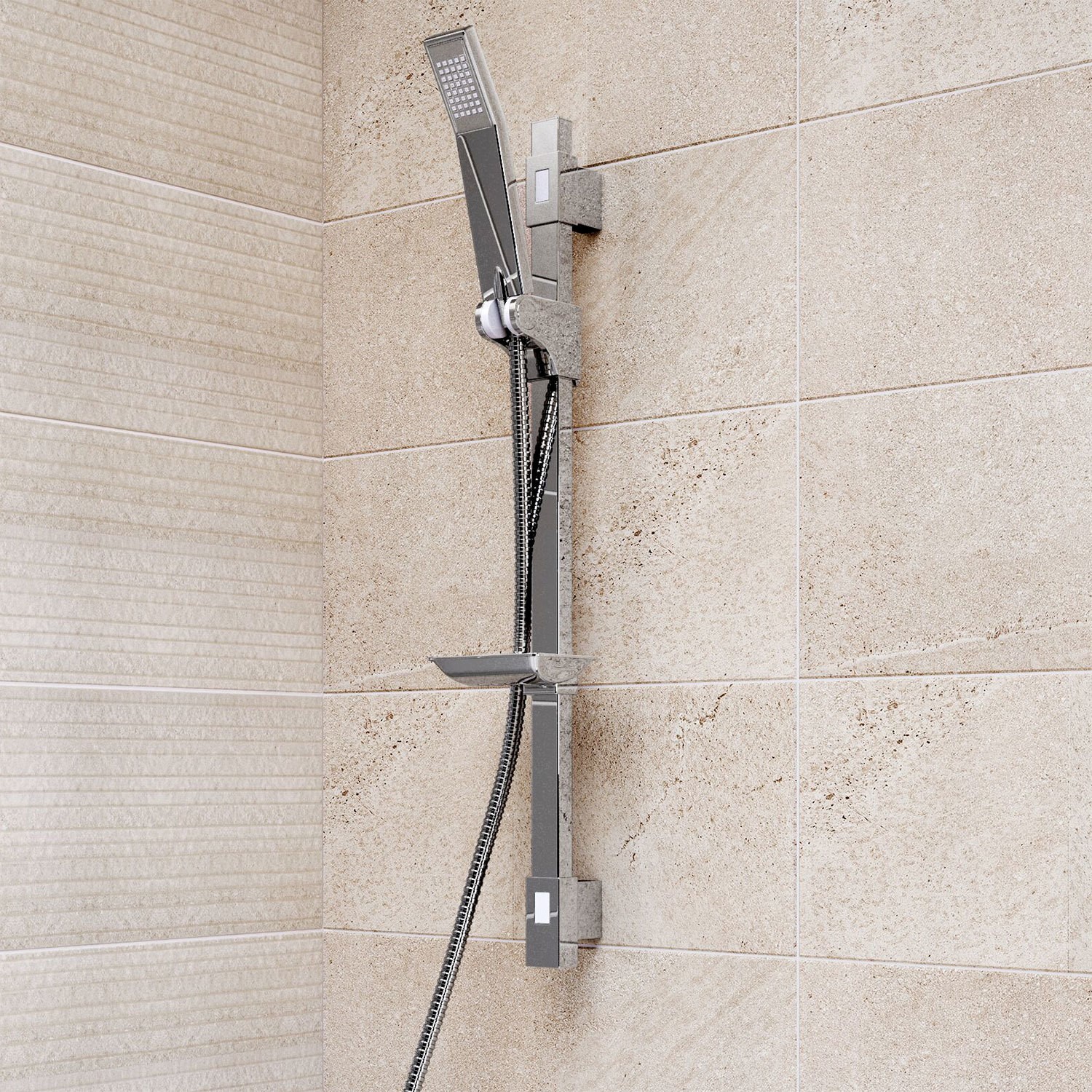

The Quadro slide rail kit is a modern showering solution at an unbelievably low price. Perfect with our range of square bar and concealed shower valves it also boasts a soap dish auto lock shower head holder and adjustable fixing brackets.
View This Product's Installation Instructions
Features

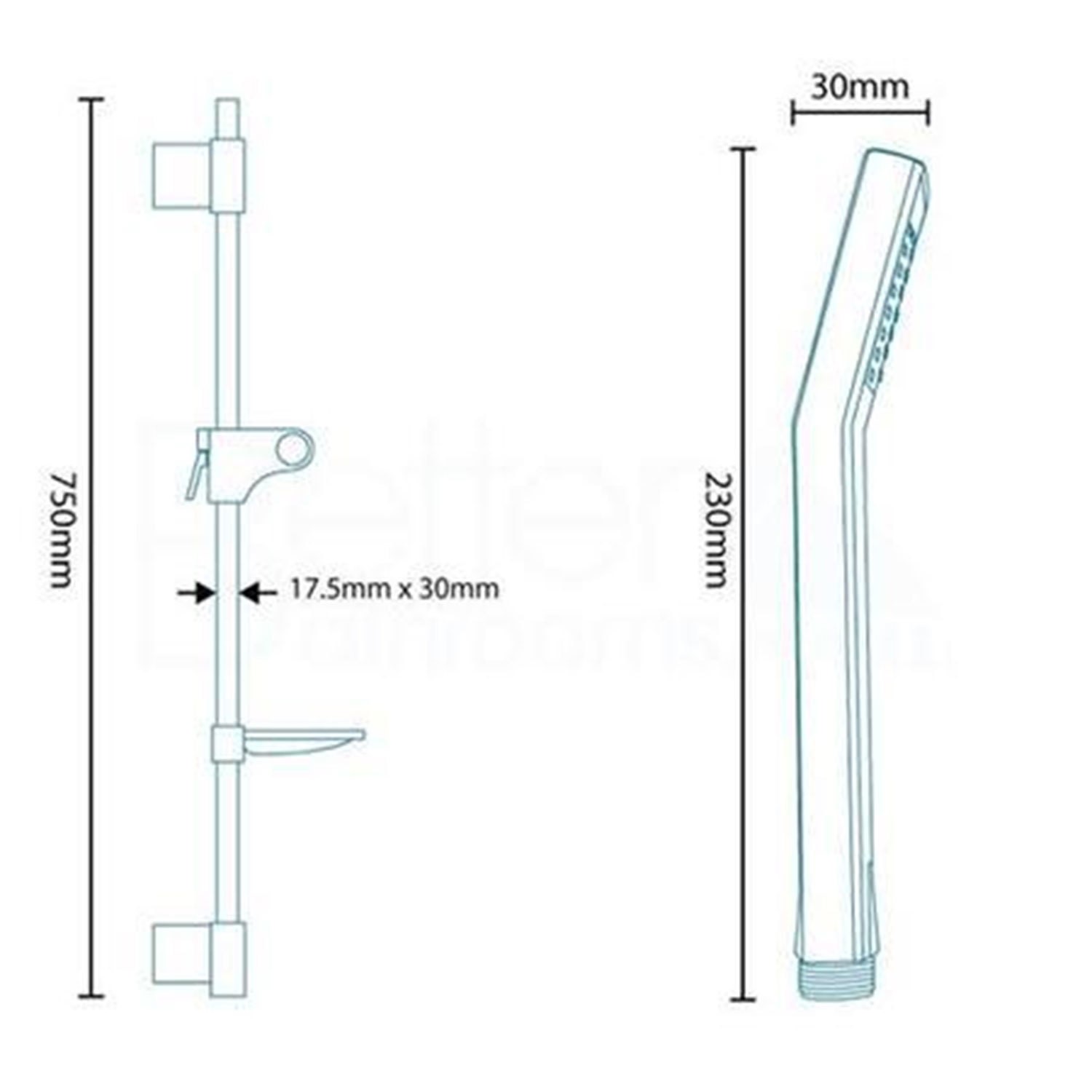

- Length of shower hose: 1500mm
- Length of slide rail kit: 750mm
- Tube size: 30mm x 17.5mm
- Adjustable wall fixing brackets (Ideal for replacing existing slide rail kit)
- Auto lock sliding shower head holder
- Square shower head
- Easy clean rubber nozzles
- Square soap dish
- Number of functions on handset: 1
- Pressure requirements
- Min 0.2 Bar
- Max 3.0 Bar
- Suitable for combi boiler systems
- Suitable for gravity fed systems
- Suitable for unvented mains pressure systems - Chrome Finish
- Excludes: Square shower elbow, however this can be purchased seperately. See matching items.
Item Code:
BeBa_9625
Please Note: All sizes are approximate and should be used for guidance only.
Question from Carl Halsall: Asked on 19/03/2017 Is this ok to fit to an electric shower?
My Triton T80 works at 1bar @ 8 l/min
Answer from Colin Frain Hello,
Thank you for your question, yes that will be fine with an electric shower.
Question from Will Baker: Asked on 13/04/2016 Can this be used on an electric shower?
Many thanks.
Answer from Simon Kiby Hi,
No I am afraid this type of shower cant be used as an electric shower this would always need to be connected to a hot and cold feed off the boiler
Question from Richard Penlington: Asked on 07/04/2016 does the square shower outlet shown in the picture of the soap tray come with this product
Answer from Anthony Hi,
Thank you for your question.
The square shower outlet is not included with this product, however we can supply it.
Please see the below link to our website for the square outlet and the current price.
http://www.betterbathrooms.com/shower-enclosures/shower-accessories/square-shower-outlet/
Kind Regards
Question from Rachel: Asked on 03/02/2016 Hi, I have gravity fed system with no shower pump, please can you confirm if the pressure will be suitable for this shower?
Also, please can you confirm what the following means, which was found on the shower instructions:
Minimum Working Pressure
0.2 bar (Kit only)
Answer from Matt Clarke Hi,
Thank you for your question.
you will need to find out what water pressure your system is running on first.
If you need any more info or would like to place an order, please contact me using the details below.
Kind Regards,
Matt Clarke
Manchester Showroom Assistant Manager
Better Bathrooms Manchester
Telephone: 0161 667 6560
Email: matt.clarke@betterbathrooms.com
Website: www.betterbathrooms.com
Question from Debbie Riordan: Asked on 20/04/2015 is this brass or plastic?
Answer from Benjamin Linnert Good Afternoon,
Thank you for your question.
The product in question is a plastic rail kit.
Regards.
