Product Information
Rina Slide Shower Rail Kit with Ecobar Valve
Summary

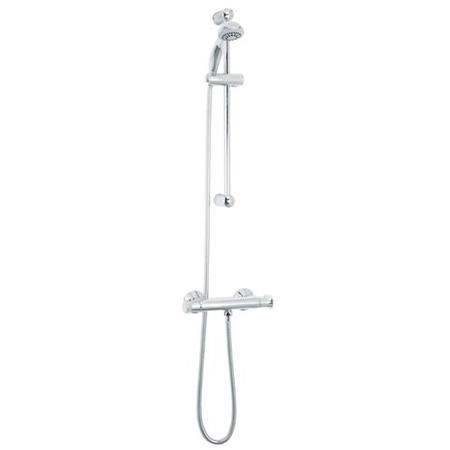

The Rina Slide Rail Kit combined with the Ecobar Bar Valve is a stunning shower solution for any modern bathroom.
Features

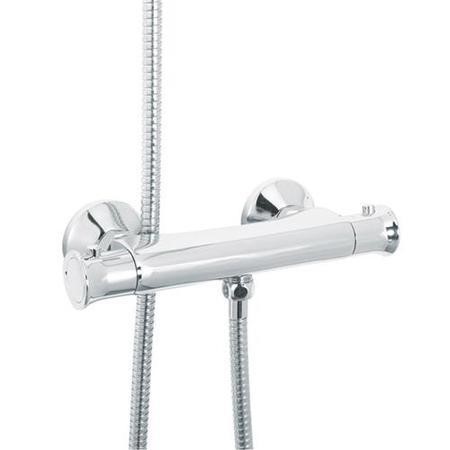

- 1/2" exposed thermostatically controlled shower valve
- Mixed water bottom outlet
- Pipe fixing centres at 150mm +/- 20mm
- Hot water feed inlet on the left when water outlet on the bottom of the valve
- Suitable for water systems between 0.5 and 4 bar pressure
- Cold water supply temperature 4 - 20°C
- Hot water supply temperature 55 - 85°C
- Built in anti-scald device
- Suitable for combi boiler systems
- Suitable for unvented mains pressures systems
- Suitable for shower pumps
Shower Valve
- Length of riser rail kit: 554mm
- Depth of riser rail kit: 73mm

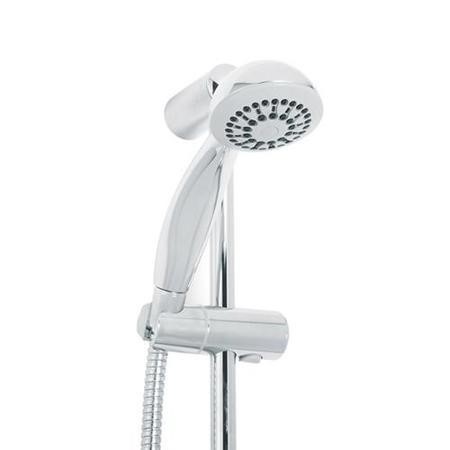

- Shower head diameter: 70mm
- Pressure Requirements: Min: 0.8 Bar / Max 3.0 bar
- Finish: Chrome
- Suitable for:
- Combination Boiler Systems
- Gravity Fed Systems (May need to be pumped)
- Unvented mains pressure systems
Riser Rail Kit
Item Code:
BUN/BeBa_8923/73123
Please Note: All sizes are approximate and should be used for guidance only.
