Square Thermostatic Bar Shower Valve BeBa_6690

Quickfind code: 1361689
Save £15.01
£44.98

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • 1/2 exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 3 bar pressure
More Info »
5 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

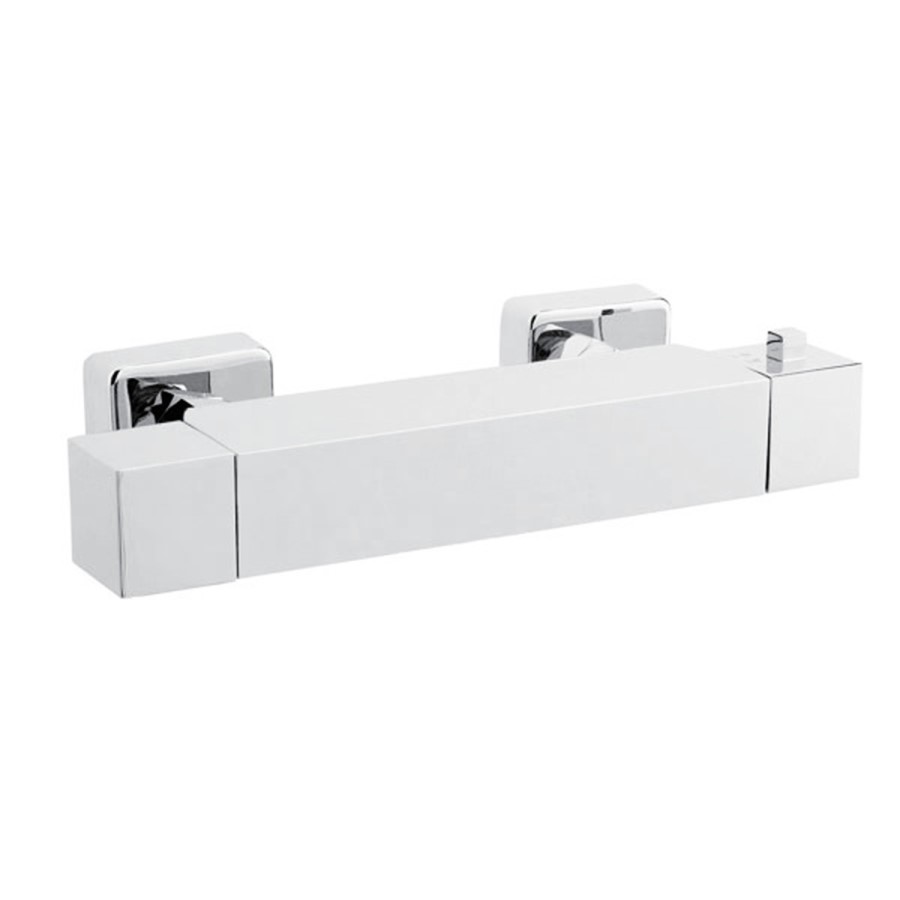

Square Thermostatic Bar Shower Valve

Summary

The Square bar shower valve offers thermostatic showering with two easy to operate controls. One handle operates the on and off flow control whilst the other allows temperature selection.

Download PDF View This Product's Installation Instructions

Features

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet

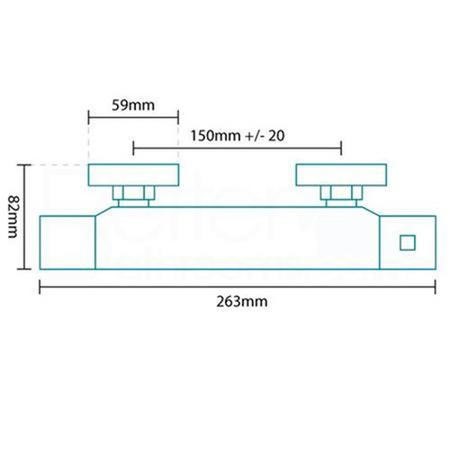

  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 3 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps

Item Code:
BeBa_6690


Questions & Answers

Question from Glenn : Asked on 31/05/2017 Trying to adjust the water to my comfort but it's either boiling or cold?

Answer from chris thomas Hi,

you will need to speak with our customer services on 01925 544 861

Question from Keith: Asked on 01/03/2017 My inlet pipes are standard 15mm. Will this shower bar be a straight fit?

Answer from wiki Hi,

yes this will be fine .

many thanks

Question from Lisa: Asked on 21/02/2014 Hi are the valves inside the bar.?,, i ordered the conceled valves but they are too deep to fit into my wall.

Answer from Peter Thank you for your question

The bar valve is exposed so you only have to run 15mm pipes inside the wall so will make installation easier and solve the problem you have had with the concealed valve.

Question from katrina austin: Asked on 28/05/2012 hi just wondering if we need to buy the square valve easy plumb kit to go with this shower valve ?thanks

Answer from Lee Hi there,
You do not need to buy the easy plumb kit but we do recommend it because it makes fitting the valve a lot easier.

Question from Chris: Asked on 24/05/2012 Hi,

Does this shower bar have a polished chrome finish - not clear from the photo.

Chris

Answer from Lee Hi there,

The finish is a polished chrome.

Question from Lee: Asked on 30/01/2012 Would this unit be ok to use with the water supply at the top. i.e. turn it over ?

Answer from Martin Clare Hi
No, this is not recommended for these shower systems.
