Deluxe Square Riser Slide Shower Rail Kit with Valve BUN/BeBa_S1000A/71011

Quickfind code: 1362916
Save £70

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Exposed thermostatic dual bar valve
  • Min Pressure: 0.5 bar - Flow Rate - 8.6L
  • Max Pressure: 4.0 bar
  • Height: 70mm outlet to outlet
  • Width: 260mm
More Info »
1 Year Warranty
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.


Popular Bundles

Product Information

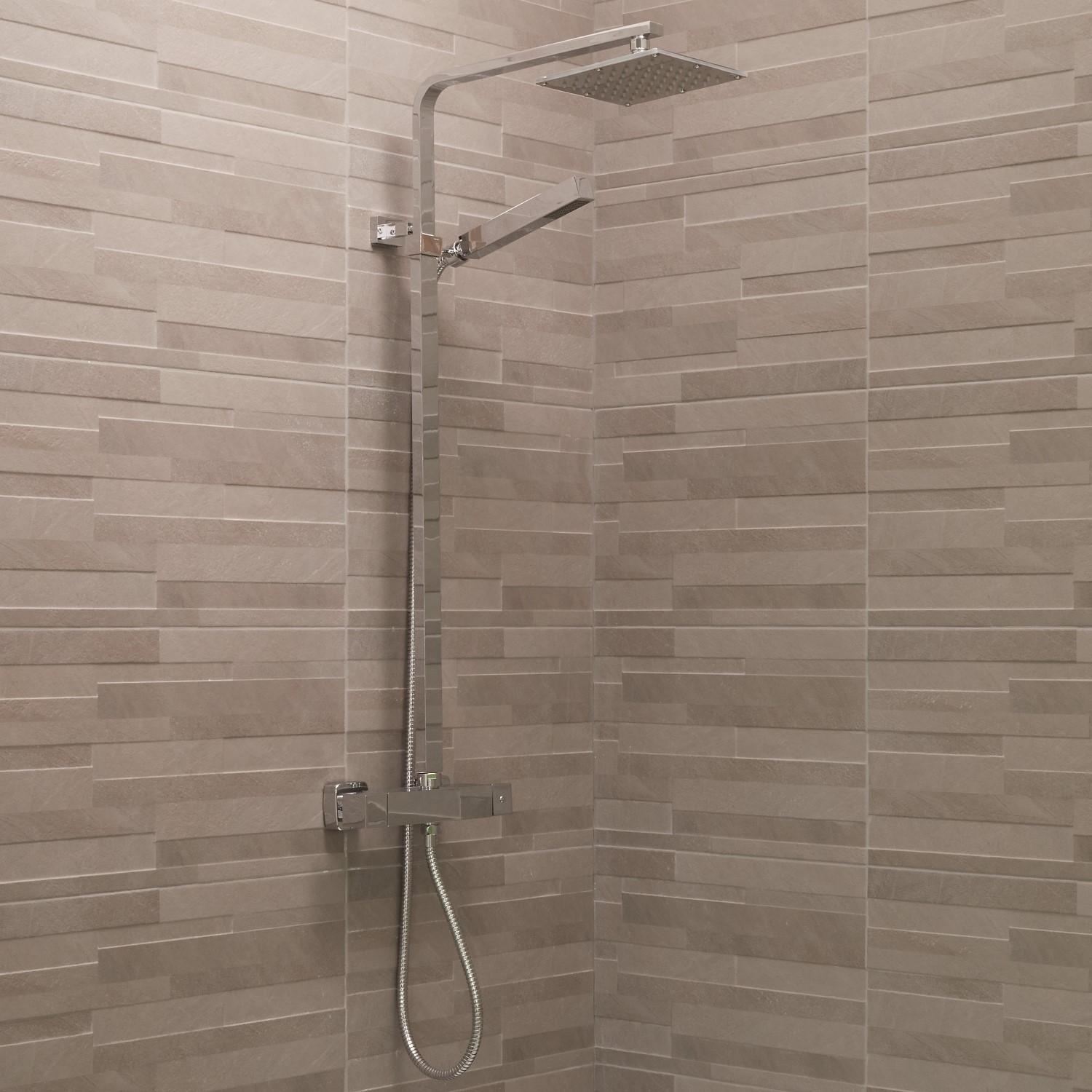

Deluxe Square Riser Slide Shower Rail Kit with Valve


The square quadrato dual kit riser pack is a luxury yet affordable showering option that would look great in any modern bathroom the dual function shower valve allows the use of both the quadrato shower head and riser rail handset.

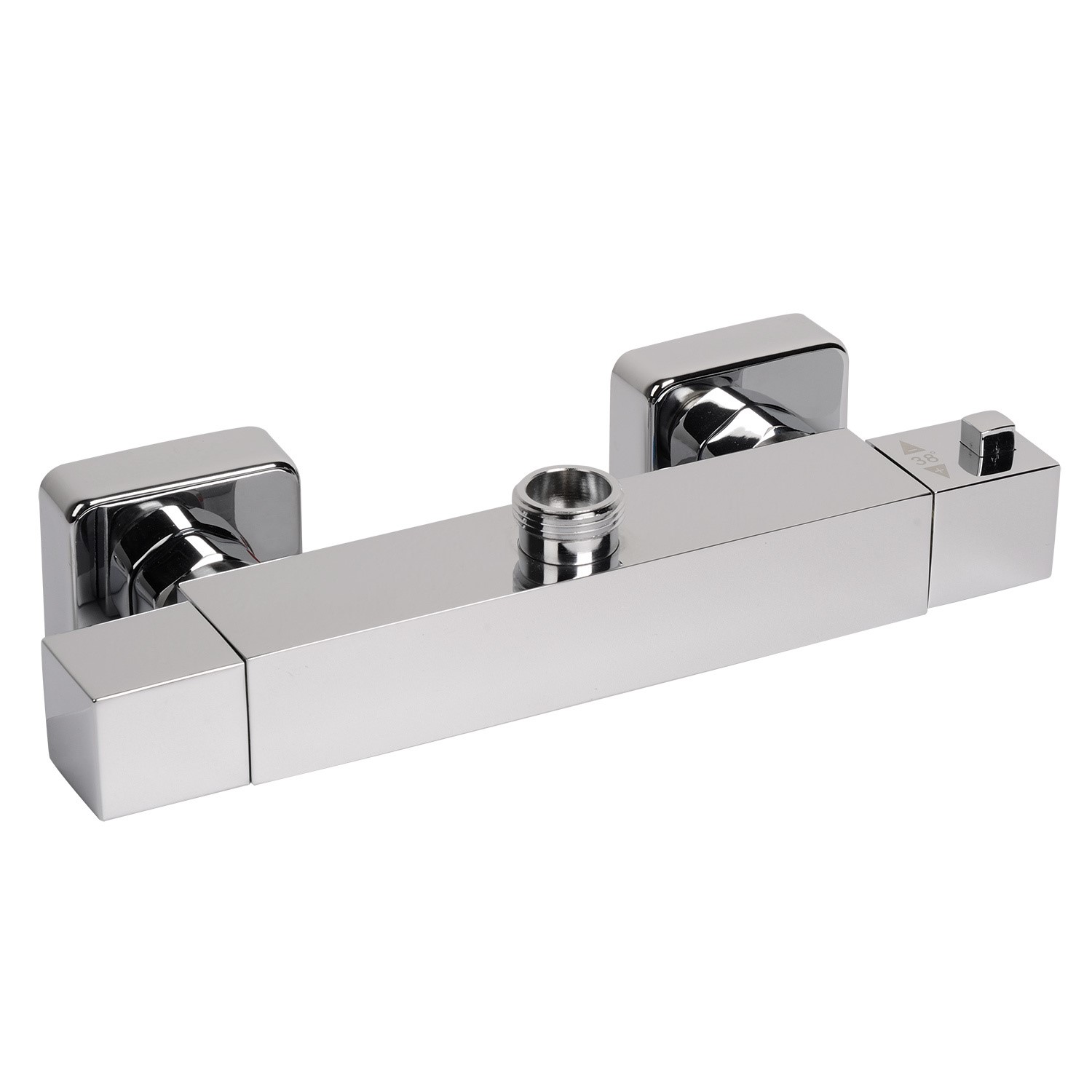

Shower Valve

  • Valve Type: Exposed thermostatic dual bar valve
  • Min Pressure:  0.5 bar - Flow Rate - 8.6L
  • Max Pressure:   4.0 bar
  • Height:  70mm outlet to outlet
  • Width:  260mm
  • Depth: nbsp;75mm
  • Controls:  Dual Control
  • Safety Features:  Built in anti-scald device
  • Materials Specification: Solid Brass
  • Finish:  Chrome
  • Suitable for:
    • - Combination Boilers
    • - Pressurised Systems
    • - Pumped Systems
    • - Gravity Fed Systems (which may require a pump)
    • - Subject to a minimum pressure of 1.0 bar

Slide Rail/Riser Kit

  • Length of shower hose: 1.5 metres

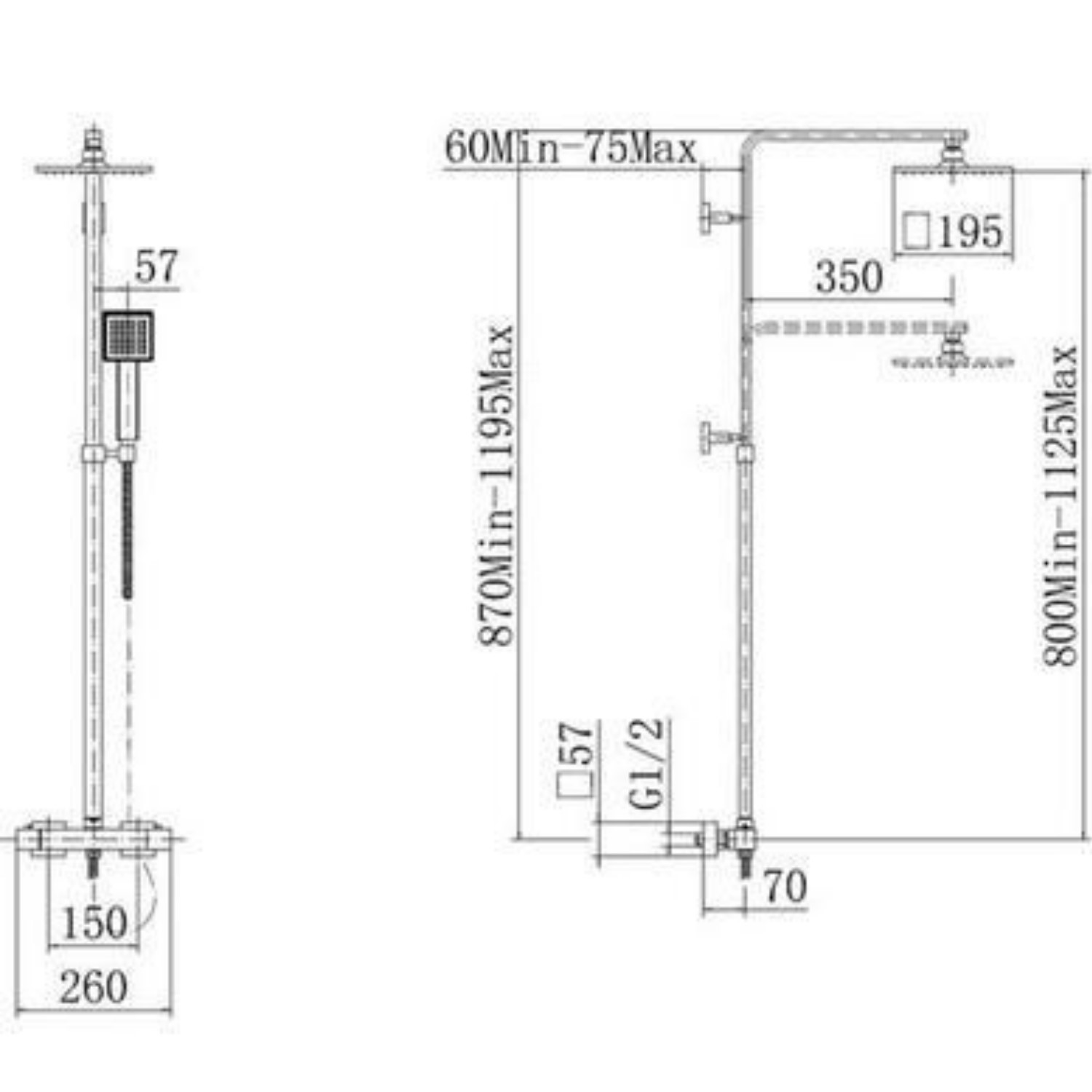

  • Length of slide rail kit:  1220mm Max - 870mm Min
  • Easy clean rubber nozzles on shower handset
  • Number of functions on handset: 1
  • Pressure Requirements:  minimum 1.0 bar
  • Materials Specification: Steel with a chrome finish

Shower Head:

  • 200mm ultra slim designer square head
  • Easy clean rubber inserts on head
  • Chrome finish
  • Minimum pressure 0.5 bar

Item Code:

Questions & Answers

Question from angela: Asked on 08/08/2016 Hi
Can the separate handset be moved up and down depending on peoples height or is the bracket fixed to the one height were it sits in?

Answer from Nathan McGregor Hi.

Thank you for your question.

The bracket is fixed on the shower pole so can't be moved I am afraid.

If you have any more questions please call our sales team on 0161 667 6560.


Question from Suzi: Asked on 18/01/2016 Do I need to buy anything else alongside this to use as a shower unit?

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

You would also need a fixing kit to connect your valve to the wall.

If you give me a call on 0161 667 6560 - Ben, I can make sure one of these is sourced for the shower and we can discuss delivery.

Kind regards.

Question from Linds: Asked on 05/01/2016 We have just installed this mixer shower, which we love! however the adjustable shower bracket does not move up and down the bar or rotate how we would like it to be. Its almost as tho it is stuck at the top. Any suggestions to fix this please?

Answer from Anthony Hi there,

Thank you for your question.

Please contact our customer care/technical team on 01925 544 861 and they will be able to advise further on this issue.

Kind Regards

Question from Gary Foulstone: Asked on 10/12/2015 Hi,
I have purchased this from you.
The installation instructions aren't clear on how far the pipe fittings need to protrude from the wall after the tiles are fitted.
Is there a recommended distance.
This is the section of pipe that the offset connecter needs to connect to.
Many thanks

Answer from Nathan McGregor Hello.

Thank you for your question.

I would recommend speak to our technical team on 01925 544 861.


Question from Joe: Asked on 24/08/2015 Hi, will this fit ok in a aqualine 700 pivot door enclosure shower unit? Thanks

Answer from Matt Clarke Hi,

Thank you for your question.

this would be fine.

If you need any more info or would like to place an order, please contact me using the details below.

Kind Regards,

Matt Clarke
Manchester Showroom Assistant Manager
Better Bathrooms Manchester

Telephone: 0161 667 6560

Question from phil: Asked on 17/08/2015 it says the length of the slide rail is 1220mm. Is that the measurement from the top of the mixer valve to the head

Answer from Simon Kirby Hi yes that would be correct, this is adjustable between 870mm - 1220mm though.

Question from Helen: Asked on 13/07/2015 Does the handheld shower move up and down the riser or is it fixed in position please? Thanks

Answer from Nathan McGregor Hello.

Thank you for your question.

This is static on this one.

If you have any more questions please call our sales team on 0161 667 6560.


Question from Tim needham: Asked on 27/01/2015 How far does the centre of the shower head protrude from the wall

Answer from Peter Hi,

Thank you for your question.

The centre of the shower head protrudes 420mm.

I hope this information helps but if you need any further assistants please contact the sales team on 0161 667 6560.

Question from John: Asked on 11/12/2014 Would this product be ok for a bath / shower mixer tap?

Answer from Matt Clarke Hi,

If you mean could you use this above a bath as a shower then the answer is yes.

However if you mean could this be used as a mixer shower running from bath tap the answer is no.

If I have not answered your question please call us or resubmit your question more specifically.

Kind Regards.

Question from Jonny: Asked on 04/11/2014 How tall is the shower from the top to the bottom of the mixer bar?

Answer from Jamie H Hi,

Thank you for your question the shower is 990mm from the mixer bar if you have any further questions please feel free to give us a call on 0161 667 6560.

Question from Mr S Burbidge: Asked on 29/06/2014 Hi I am looking to purchase the square Quadrato dual riser pack kit, I hope to put it on an external wall can you tell me how much of a space is required for the pipework behind the shower as the wall has plasterboard which has been dab and plastered on to the wall.

Answer from Peter Hi there,

Thank you for your question.

To install this shower you will need to run 15mm pipes up the wall and put elbows on the end to bring the pipe out of the wall so approx. 25mm will allow you to do this.

I hope this information helps.

Question from Kathy: Asked on 30/05/2014 Is the main shower head metal or plastic. What is the projection from the wall
of the arm for the shower head?

Answer from Anthony Hi there,

The main shower head is brass with chrome plating.

The projection of the main arm from the wall is approximately 440mm.

Kind Regards

Question from Amelia : Asked on 15/05/2014 Is the smaller shower head adjustable? Does it move up and down?

Answer from Peter Hi there,

I am afraid the handset is not adjustable and is fixed at one position.

Kind Regards

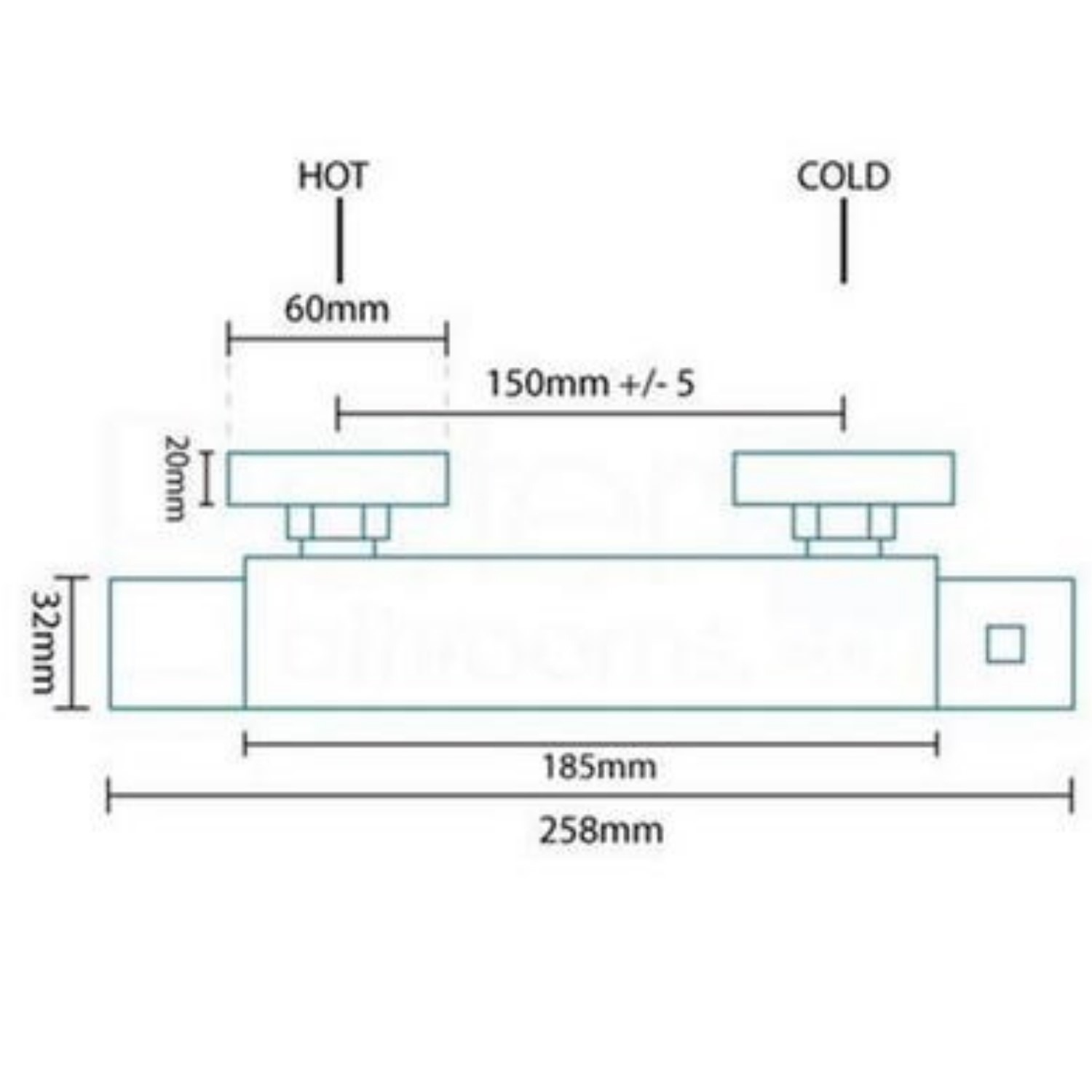

Question from Sally Underdown: Asked on 02/03/2014 Please advise inlet valve dimensions (need 150mm centres )

Answer from Nathan McGregor Hello.

The pipe centres are 150mm.


Question from Fred: Asked on 22/01/2014 How does the water divert from the shower head to the hand held shower

Answer from Peter Hi,

Thanks for your question. As you look at the picture you have a square knob either side of the valve. Turn up for the head, turn down for the shower.

Question from Eric Kennedy: Asked on 25/10/2013

Can you adjust the angle of the shower head on this model?

Answer from John Smith

Hi, thanks for your question. Yes the head on this shower does tilt all directions.

Question from Andrew Simpson: Asked on 13/05/2013

Are the hot and cold inlets reversible or a set order. Is cold feed on lefat or right.

Answer from Anthony

Hi there

The hot water feed on this shower valve system is on the left if looking at the picture on the website.

Question from Cailin Dudley: Asked on 08/05/2013

What is the hole centres for the thermostatic bar so that my plumber can get the pipes in the correct place?

Answer from Anthony

Hi there

The centres for hot and cold pipes for this shower are 150mm.
