Quadro Slide Shower Rail Kit with Square Valve BeBa_9746

Quickfind: 1352223 SKU: BeBa_9746

Product Information

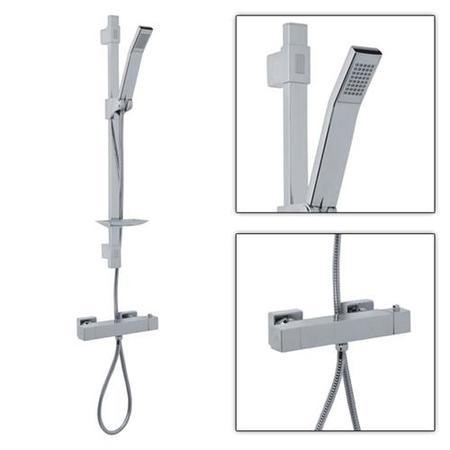

Quadro Slide Shower Rail Kit with Square Valve


The Quad slide rail kit is a modern showering solution at an unbelievably low price. Perfect with our range of square bar and concealed shower valves it also boasts a soap dish, auto lock shower head holder and adjustable fixing brackets. The Square bar shower valve offers thermostatic showering with two easy to operate controls. One handle operates the on and off flow control whilst the other allows temperature selection. The Square Bar Valve operates the desirable Quadro Slide Rail Kit.


Shower Valve

  • Width (mm): 257
  • Pipe Centres (mm): 150
  • Manufactured from solid brass with a chrome finish
  • Operating Pressure: 0.5bar
  • Flow rate at 0.1bar: 4 l/min
  • Flow rate at 0.5bar: 13 l/min
  • Flow rate at 1bar: 17 l/min
  • Flow rate at 2bar: 24 l/min
  • Flow rate at 3bar: 27 l/min

Quad Slide Rail Kit

  • Length of shower hose: 1500mm
  • Length of slide: 750mm
  • Tube Diameter: 30mm x 17.5mm
  • Adjustable wall fixing brackets (Ideal for replacing existing slide rail kit)
  • Auto lock sliding shower head holder
  • Square shower head
  • Easy clean rubber nossles
  • Square soap dish
  • Number of functions on handset: 1
  • Pressure Requirements:
    • Min 0.2 Bar
    • Max 5.0 Bar
    • Suitable for combi boiler systems
    • Suitable for gravity fed systems
    • Suitable for unvented mains pressure systems
  • Materials Specification: Chrome Finish

Item Code:

Please Note: All sizes are approximate and should be used for guidance only.
