Curved Hinged Bath Shower Screen H1435 x W1000mm with Towel Rail BeBa_10015

Quickfind code: 1352011
  • Clearance sale
Save £49.02

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Screen Type: Straight Double Screen
  • Style: Hinged
  • Materials Specification: 6mm thick toughened glass
  • Height: 1435mm
  • Width: 1000mm
More Info »
5 Year Warranty
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.


Popular Bundles

Product Information

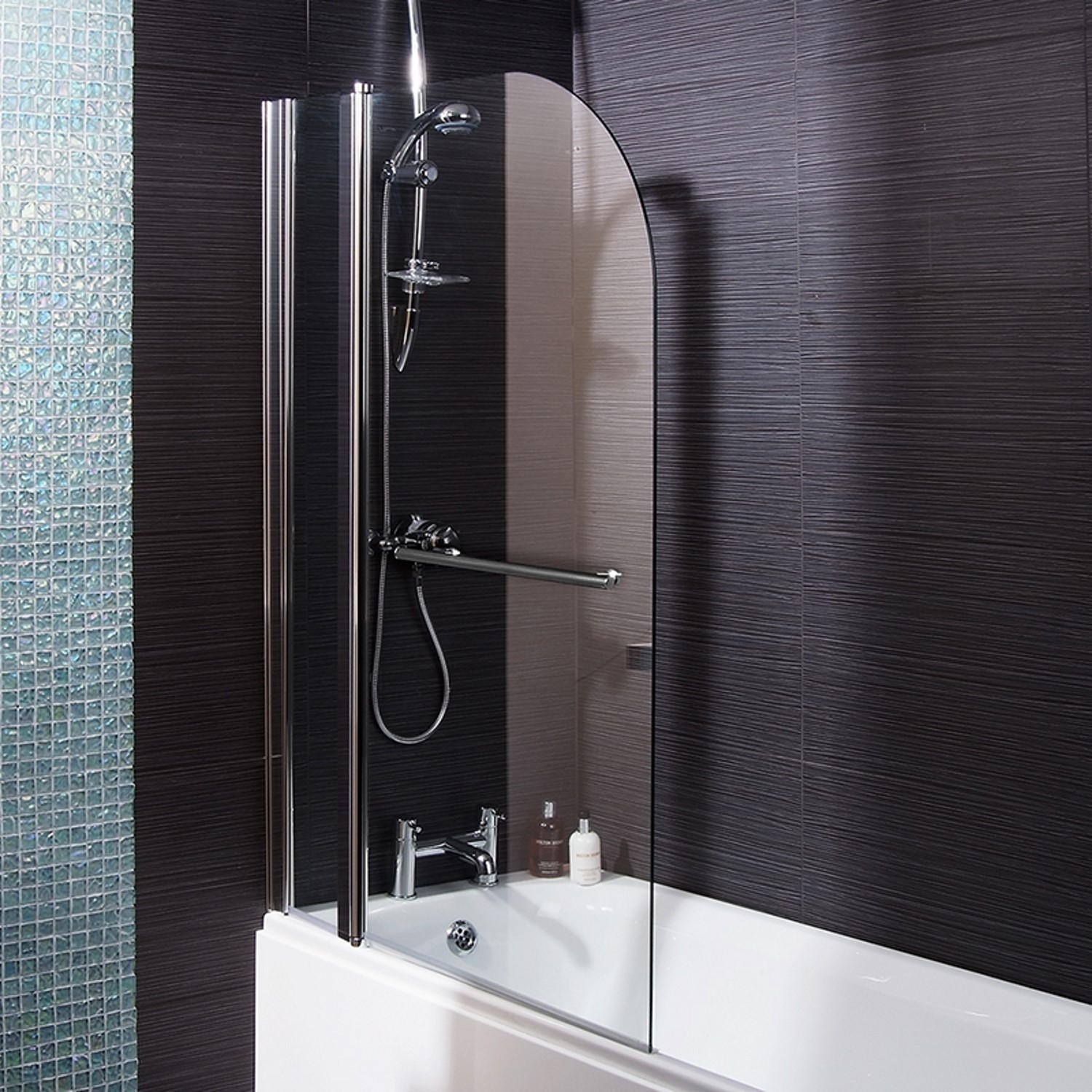

Curved Top Hinged Straight Double Bath Shower Screen with Towel Rail


Straight double bath screen with towel rail. Manufactured from 6mm toughened glass this bath screen is both practical and stylish. Complete with adjustable wall profile and chrome finish towel rail.

Download PDF View This Product's Installation Instructions

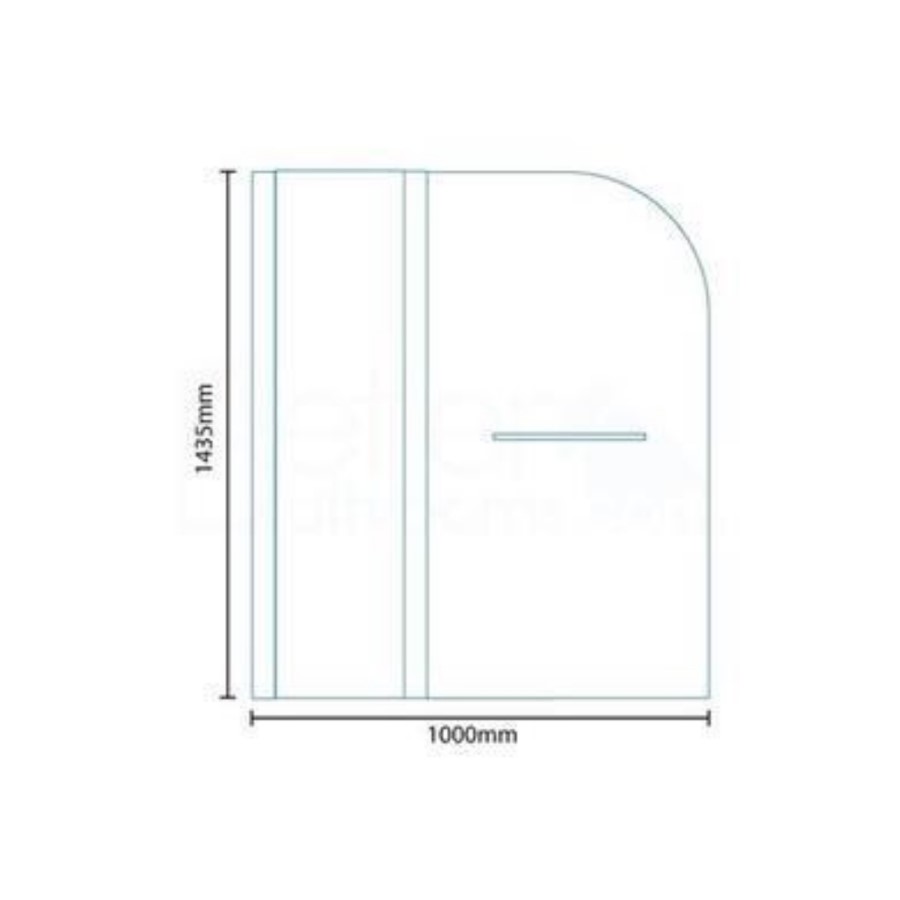

  • Screen Type: Straight Double Screen
  • Style: Hinged
  • Materials Specification: 6mm thick toughened glass
  • Height: 1435mm
  • Width: 1000mm
  • Adjustment: range from 980mm to 1000mm
  • Hand: Universal (Left or Right Hand)
  • Profiles: High quality polished chrome finish
  • Features: Complete with Towel Rail
  • Includes: Rubber seal to help prevent water leakage

Item Code:

Questions & Answers

Question from Aliyah: Asked on 02/09/2018 Is this only attached to the wall at 1 place? Is there an additional arm or anything holding it in place?

Answer from Colin There is just the one wall profile that attaches to the wall

Question from Faye: Asked on 06/06/2018 I have this shower screen, it was purchased around November/December 2015. The smaller section that shouldn't move from the metal bit attached to the length of the wall keeps slipping out of the metal holder. This has been happening for quite a while, the top half has been slipping out like it's drooping for some reason and we keep having to push the glass back up and into the fixed structure. However recently the whole length of the shower screen has been coming out and could be extremely dangerous if the wall bracket can't hold the weight and it falls over. Is this a manufacturing fault and is there a solution?


Answer from chris Hi,

You will need to forward this to our technical team please see link -

Question from John Lloyd : Asked on 07/05/2018 Do you have to drill a hole in the bath to fox the small screen to the top edge

Answer from Peter Hi,

no you don't need to drill the bath to fit the screen .

if you wish to order send me a email or
call 0161 667 6560
many thanks

Question from Sally Smith: Asked on 28/02/2018 We currently have one similar to this (not from yourselves) and are looking to replace it because it leaks everywhere but also, the seal at the bottom of the fixed part of it has gone all mouldy where water has got in over time. Is there a way this part of the seal can be cleaned on your model (which we're planning to buy)? Thanks

Answer from colin hello,

you can take them out clean them and put them back on but we also sell parts for our own screens and they are about £9 so personally I would do that every few years.

Question from David charman: Asked on 19/02/2018 does the screen open inwards or outwards or both as I have bath handles that would be in the way if inwards thanks

Answer from Colin Hello,

all the hinged screens open both ways.

Question from Peter: Asked on 31/01/2018 I have just purchased this screen - I have a question can the side screen be raised or lowered ?
The bottom of the pivot is very low compared to the fixed panel so I need to adjust the height. Otherwise the gap between the fixed panel and the bath top is too high - please advise

Answer from chris Hi,

You would need to speak with our technical team about this please see link -

Kind regards.

Question from Dawn: Asked on 28/11/2017 Hi, can you confirm that the screen comes with seals for both the bottom of the moveable door panel and for the side between the fixed panel and moveable panel please?

Answer from chris Hi,

All seals are provided with the product you may need to silicon the part that fits to the wall just to make it extra water tight.

Question from Jane : Asked on 26/11/2017 Is the screen easy clean

Answer from chris Hi,

As long as you clean it regularly then it will remain easy to clean and prevent any build up.

Question from Nik: Asked on 20/10/2017 When our plumber fitted the screen, the drainage slots were on the outside of the screen and so I need to turn them around. Does the hinged screen detach from the fixed screen easily for me to be able to do this? I have a curved screen and so can't just turn the entire thing upside down and refit.

Question from Mrs Walker: Asked on 15/09/2017 Can it be fixed on either side of the bath ? Or do you purchase one for the right side and different left side ?

Answer from Ryan Hi, the screen can go on either side. Thanks, Ryan.

Question from Mrs ball: Asked on 12/09/2017 How far does the towel rail stick out from the screen, in inches please

Answer from Colin Frain Hi,

Thank you for your question.

At eh maximum it is 650MM

If you need any more info or would like to place an order best thing to do is send me over the items you are looking along with a contact number to my email address and i can check that everything is compatible and that you are not missing any vital parts. My email address is

Kind Regards,

Colin Frain
Sales Advisor
Manchester Showroom
Telephone: 0161 667 6560

Question from Alison: Asked on 30/07/2017 Is the towel rail already fixed or do you attach it yourself? Our shower faces the opposite direction to the one in the photo, so we would need the towel rail to be fixed to the other side of the glass if that makes sense?

Answer from Colin Hi Alison, no you screw the rail on yourself, so it can be fitted either way. Thanks, Colin.

Question from Andrew Welsby: Asked on 17/03/2017 Hi there is the screen reversible? may be a daft question but my taps are at the other end to the picture shows! thanks

Answer from Colin Frain Hello,

Thank you for your question yes these screens can be fitted either way.

Question from Glyn: Asked on 23/02/2017 Does the cut out section of the hinge go on the side inside of the bath?

Answer from chris thomas it is mounted on the side of the bath

Question from Paul: Asked on 24/11/2016 Have fitted the straight double bath screen have sealed the bottom but it is leaking from the pivot point and at the bottom of wall channel

Answer from Simon Hi,

Sorry to hear this, if you contact our aftersales team on 01925 544 861 they will be able to assist you with this.


Question from Amy Hamilton: Asked on 10/10/2016 Hello.
Can we use this screen with your steel bath 11670? We need a screen like this with first part fixed, but can the steel bath be drilled?

Answer from nathan dunstan Hi,

no you need a straight screen not curved also i wouldn't advise drilling the steel .
if you wish to order or need any more information call 0161 667 6560 ask for ( nathan D ) or email me on .

many thanks

Question from john clark: Asked on 04/10/2016 The instructions say "fit the rubber seal to the bottom of the screen" but there are two seals provided. Please explain.

Answer from simon Hi,

If you contact our aftersales/technical team on 01925 544 861 they will be able to advise.



Question from Gary Moore: Asked on 15/06/2016 Does the larger of the two panels pivot inwards to the bath?

Answer from Nathan McGregor Hi,

Thank you for your question.

The bath screen is universal so will hinge both ways.


Question from Sean: Asked on 29/05/2016 What is the width of the fixed smaller panel?

Answer from Simon Hi,

The fixed panel for this screen is 300mm.



Question from Geoff Clark: Asked on 26/03/2016 how do I change the screen form left to right handed?

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

Simple rotate the screen 180 degrees so that the towel rail is still facing you but the glass edge is in the appropriate place.

In regards to the item, it has seen quite a loss in stock due to us approaching the end of our Easter sale. If you want to order yours to ensure the stock for yourself please feel free to call me on 0161 667 6560 and ask for Ben and we will get that sorted for you.

Kind regards.

Question from Ross: Asked on 09/02/2016 How large is the smaller fixed part of the screen?

Answer from Anthony Hi there,

Thank you for your question.

The fixed panel is approximately 300mm wide.

Kind Regards

Question from C kay: Asked on 18/01/2016 Hi

I am struggling with the rubber seal on the bath shower screen.

I have the following questions:
1. There are two rubber seals, one much thinner than the other. The manual does not refer to 2 rubber seals. What do I do with the thinner rubber seal?2. The seals are both longer than the main door. The manual refers to it going round the axis. How to I get the rubber seal around the axis when I can't even get it to stick on the bottom of the longest section of the door.


Answer from Simon Kirby Hi,

If you contact our aftersales team/technical team on 01925 544 861 they will be able to assist you with this.

Question from Ed: Asked on 08/01/2016 What is the size of the small fixed screen?
I see you said the large screen is is approximately 680-700mm depending on the adjustment. So am I right in think the small section will be 300mm?

Answer from Nathan McGregor Hello.

Thank you for your question.

Yes that is correct it is approx 300mm.


Question from Angela Kinnear: Asked on 27/10/2015 at the pivot points does the chamfered side face inside or outside the bath?
having problems with water coming out of this area. screen just been installed.

Answer from Nathan Dunstan HI,

If you are refereeing to the sealant at the bottom of the screen, Then it has 2 strips of sealant that can but manipulated into left or right to prevent water escape .

If you have any more questions please call me on 0161 667 6560

Many thanks

Question from S Bowles: Asked on 16/08/2015 How long is the extra securing bar that fits at an angle to top of the fixed section of screen. When fixed in position how far from the screen is the securing bar along the wall from the fixed screen? How many screws are there to attach screen to wall?

Answer from Benjamin Linnert Good Afternoon,

Thank you for your question.

The securing arm is attached approximately 20cm centre to centre from the screen to the wall, and the bar itself is a total length of 38cm from end to end.

It is also attached to the wall by 4 screws.

Kind regards.

Question from Alison: Asked on 31/01/2015 What is the width of the fixed panel please?

Answer from Peter Hi,

Thank you for your question.

The screen is fixed for 300mm till it can hinge.

I hope this information helps but if you need any further assistants please contact the sales team on 0161 667 6560.

Question from JOhn goult: Asked on 11/08/2014 How does the small screen fasten to the bath and what is the swivel angle? Thanks.

Answer from Rob Hi

it will be drilled into the bath and then tightened it will then swivel inwards and outwards

Question from Steve: Asked on 04/04/2014 Hello , can I just come to your warehouse and pay & pick it up there , if so what are the opening times

Answer from Nathan McGregor Hello.

Yes you can go straight there and pay for the item. Monday to Friday 7am-10pm Saturday 8am-6pm and Sunday 10am-4pm. (Last collection half an hour before closing)


Question from Simon Cosh: Asked on 18/03/2014 I have just purchased and had this item fitted. I have an issue the water leaking at the bottom of the hinged chrome pole can you advise on a solution?

Answer from Peter Hi,

Thank you for your question.

I would recommend contacting the customer service team and they will be able to help the number for them is 0844 484 7678 option 2.

Question from Glyn: Asked on 02/02/2014 Does the screen pivot 180°

Is it classed as small or large for delivery charge

Question from Allan: Asked on 10/10/2013

What type of seal is on the bottom and side of the moving section and can you buy a new one when worn?

Answer from Nathan McGregor

Hello, it is rubber and yes you can purchase these seperate.

Question from SUE: Asked on 03/02/2013

What is the size of the pivoting panel.

Answer from Mike B

Hi there

The size of the screen that pivots is approximately 680-700mm depending on the adjustment.

Question from Annette Day: Asked on 28/01/2013

Is the smaller panel fixed to the wall and the larger one hinged to it? I have a single panel at the moment and have trouble with water leaking out! I am hoping that I can get a good watertight seal to the wall if the small panel is fixed?

Answer from John Smith


Thank you for your question. Yes the small portion of the screen is fixed to the wall and the bath then the large screen is hinged from it and cant be moved both ways.

Question from Pauline Fields: Asked on 01/01/2013

Doe the small screen rotate or is it fixed?

Answer from Anthony

Hi there

The smaller section of this bath screen is fixed. It does not move or pivot.
