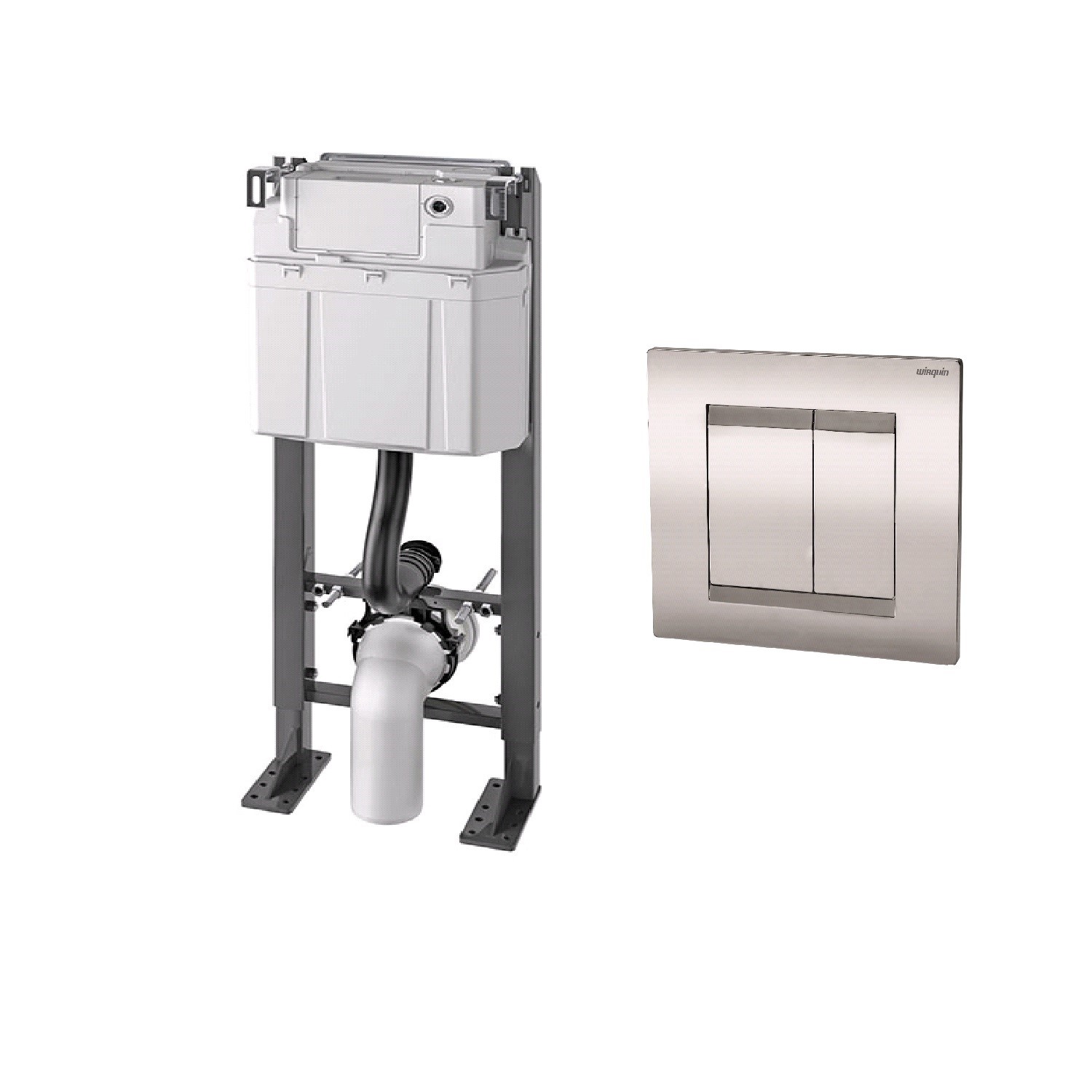

Wirquin Chrono WC Frame with Chrome Flush Plate
All about me

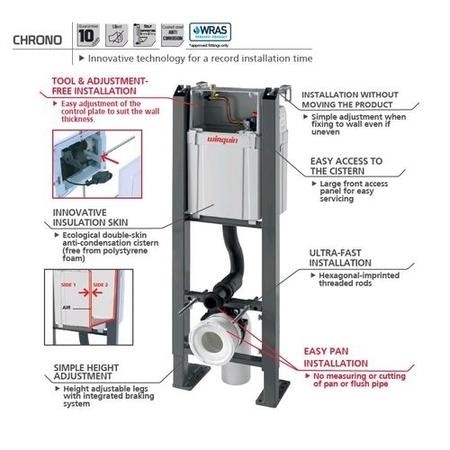

- A universal WC frame suitable for most installations
- Simple installation can save up to 50% of time
- Installation without moving the product - simple adjustments even if the wall is uneven
- Complete with a chrome flush plate for a neat and stylish finish
- Uses less water with its Jollyflush and delayed action Jollyfill inlet valve
- Innovative insulated skin ensures the cistern is free from condensation
- The adjustable connection means there is no cutting or measuring required
- Simple height adjustment features an integrated braking system
- Large front panel offer easy access to the cistern
- Also available with a chrome flush plate

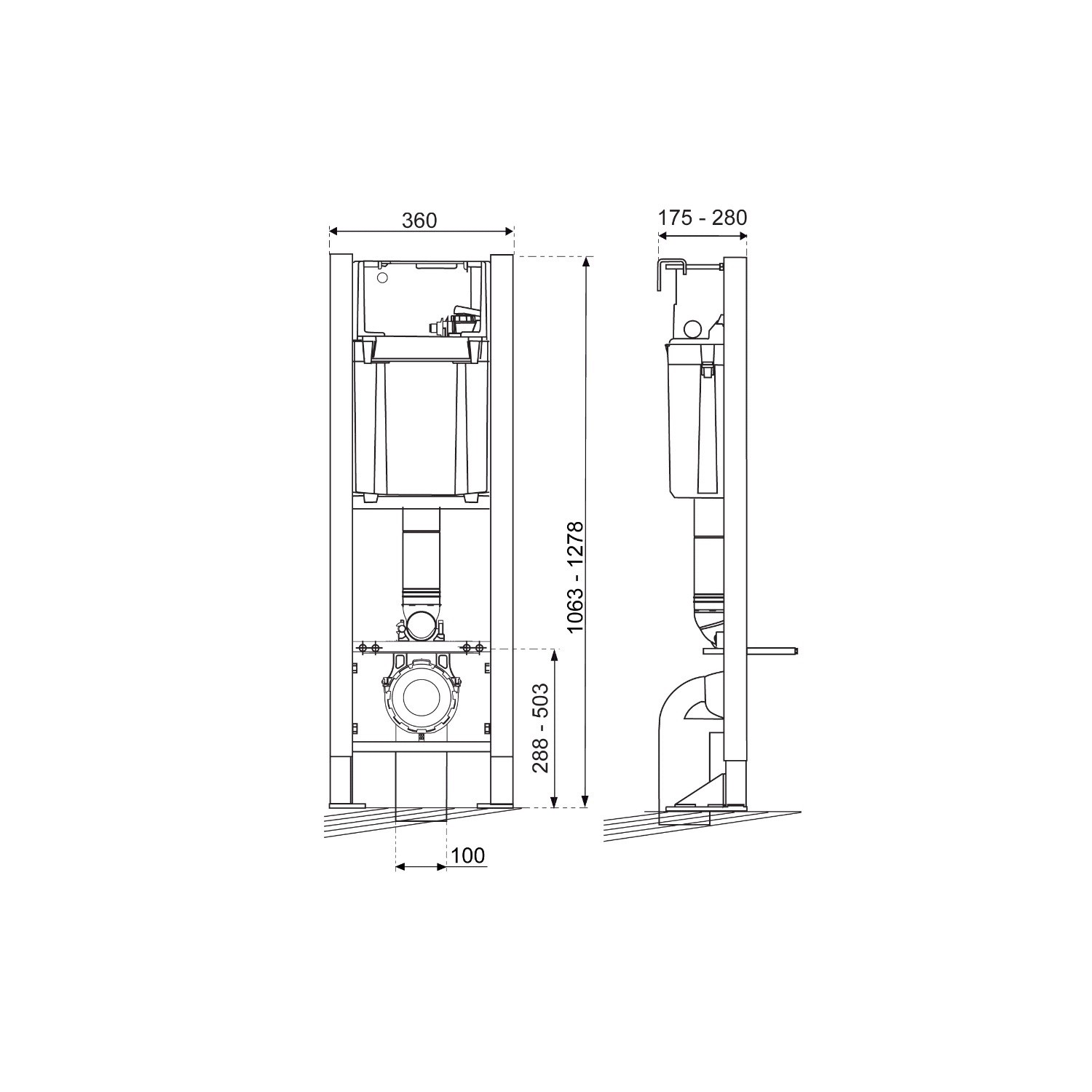

- Dimensions: W360 x H1063-1278 x D175-208mm
- Pan height adjustment: 370-580mm
- Pan centres: 180 or 230mm
- Required wall thickness: 13-50mm
- Working pressure: 0.1-16 bar (resistant to peaks up to 20 bar)
- Flushing operation: Cable
- Capacity: 7L
- Water supply: ½" (male) end fitting to top or back
- Inlet valve: Joyfill side entry ½" brass
- Flush valve: 2" Jollyflush
- Dual flush: 6/4L
- WRAS approved fitting
