Features we love
- Dual outlet concealed shower set with thermostatic temperature control
- Made from brass finished in matt black for a modern bathroom look
- Pressure requirements min 0.5 bar, max 3.0 bar
- Quick and simple installation
- Shower set includes: a square rainfall shower head, concealed valve, square Hand Shower, square wall outlet elbow, and ceiling arm
All about me

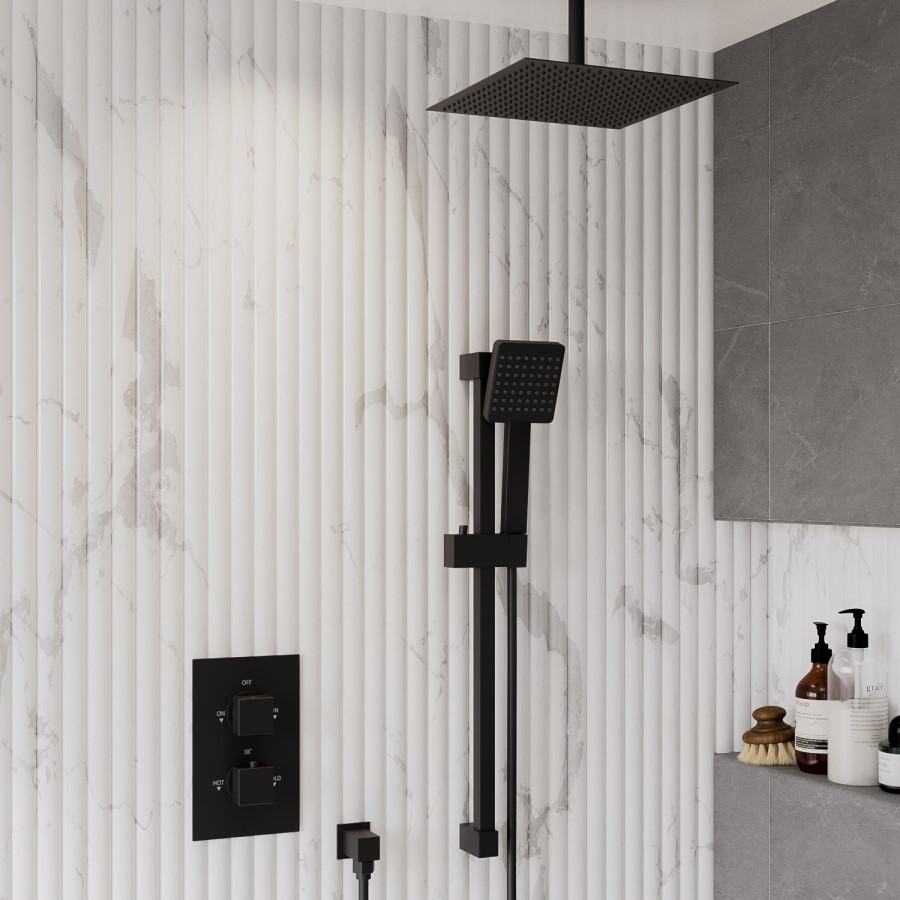

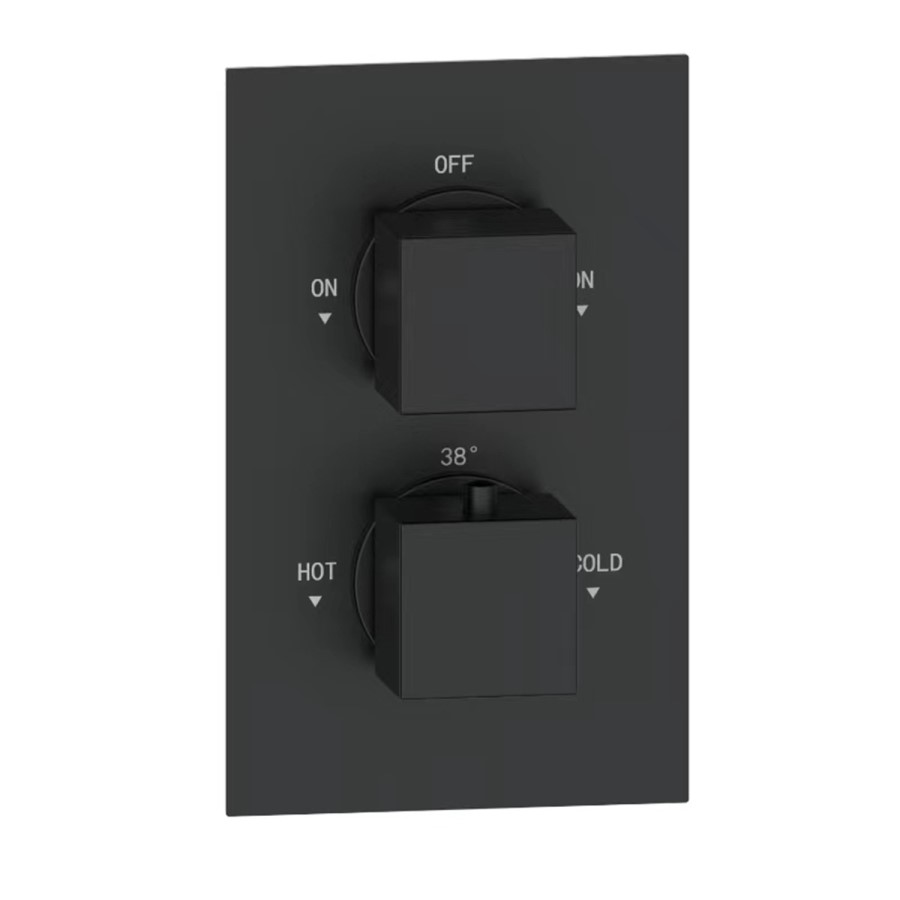

This Zana Matt Black Dual Control Shower Valve adds a sleek minimalistic touch to any shower. With a modern matt black finish, this valve will suit most of our shower sets to help you build your ideal suite. It has an automatic shut-off in the event of either hot or cold water supply failure. The pre-set temperature is 38 degrees, with a push-button override to 48 degrees. This valve is also suitable for combination boilers, pressurized systems, pumped systems, and gravity-fed systems (which may require a pump. The dual controls allow for an adjustable Hand Shower for easy cleaning and a luxury spa feel with a rainfall shower head.
The electroplated finish strengthens the tap's resistance to rust and corrosion, boosting longevity and endurance.
Need to know - valve

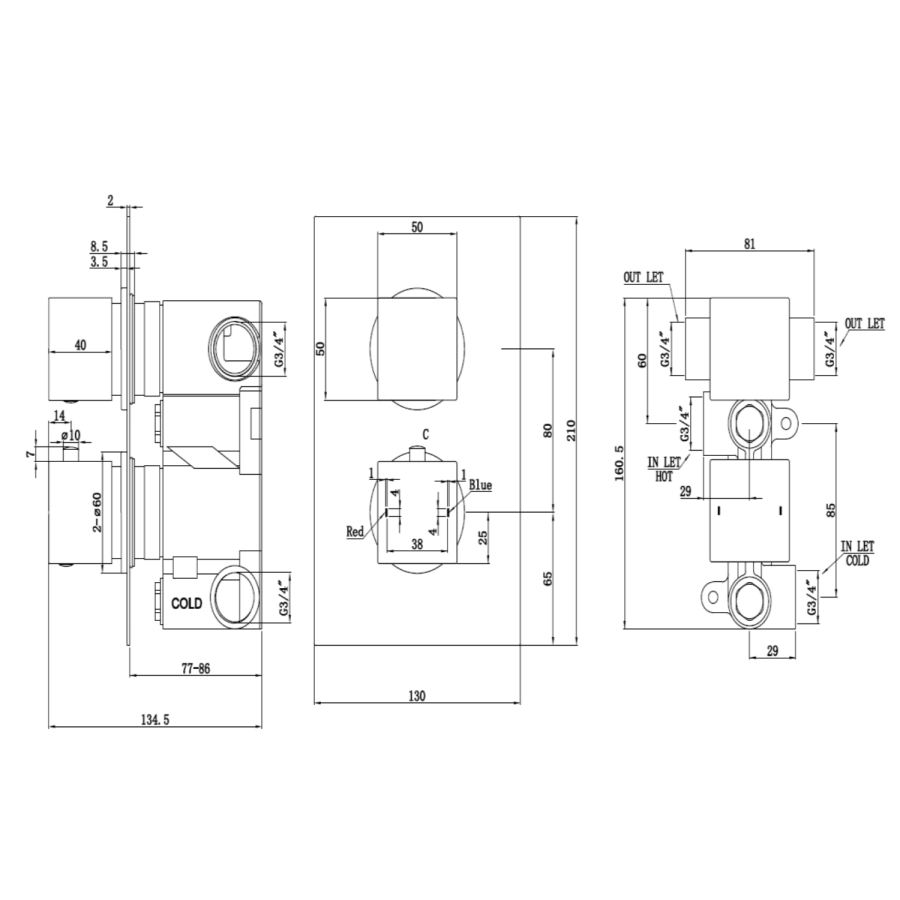

- Dimensions: H160.5 x W130 x D134.5 mm
- Number Of Outlets: 2
- Style: Modern
- Valve Accessibility: Easily accessible check valve
- Temperature: Pre-set 38°C, with push button override to 48°C
- Function: Automatic shut-off in the event of hot or cold water supply failure
- Material: Brass, zinc, stainless steel
- Weight: 2.369kg
- Valve Type: Concealed
- Outlet Size: G 3/4"
- Inlet Size: G 3/4"
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Features: Thermostatic Cartridge
- Recommended minimum pressure: 0.5 bar (flow rate of 9.9 litres per minute)
- Recommended maximum pressure:3.0 bar (flow rate of 24.6 litres per minute)
- Warranty: 3 years

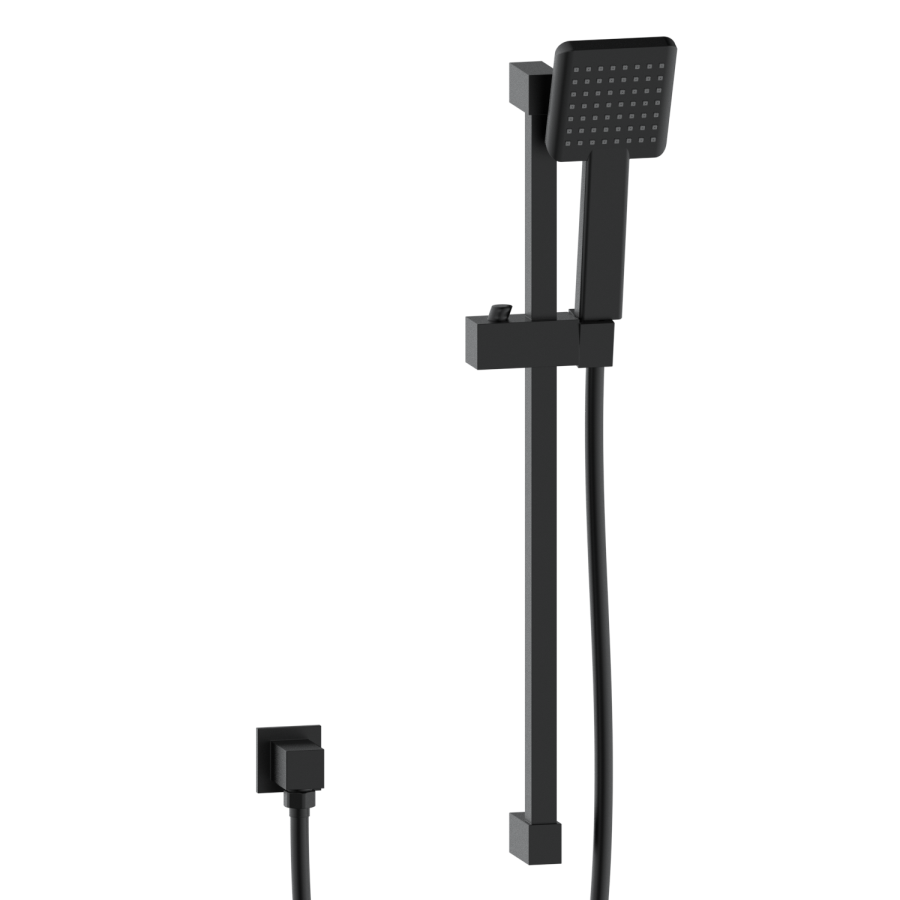

Need to know - slide rail kit

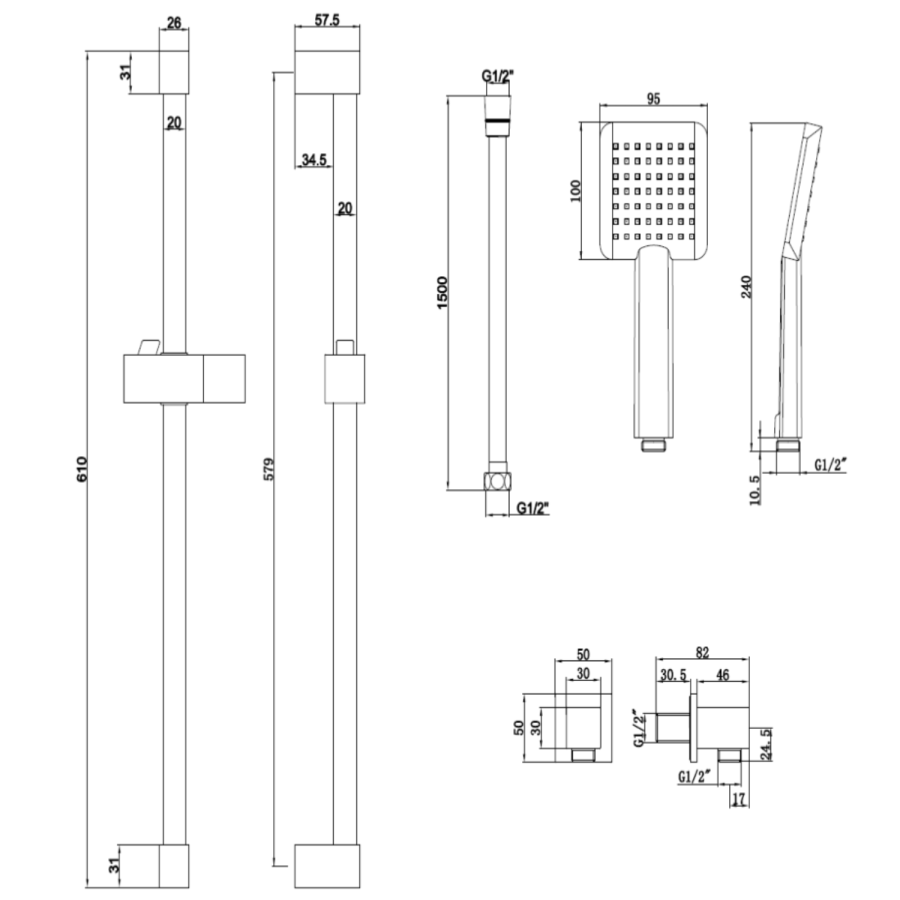

- Length of riser rail kit: 610mm
- Depth of riser rail kit: 57.5mm
- Shower head dimensions: H100 x W95mm
- Length of shower hose: 1500mm, pvc smooth hose
- Elbow size: H30 x W30 x D30mm
- Material: Brass, stainless steel, ABS
- Weight: 0.949kg
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Inlet size: G1/2"
- Recommended minimum pressure: 0.3 bar (flow rate of 3.9 litres per minute)
- Recommended maximum pressure: 3.0 bar (flow rate of 11.5 litres per minute)
- Warranty: 3 years
Need to know - head & arm
- Style: Modern

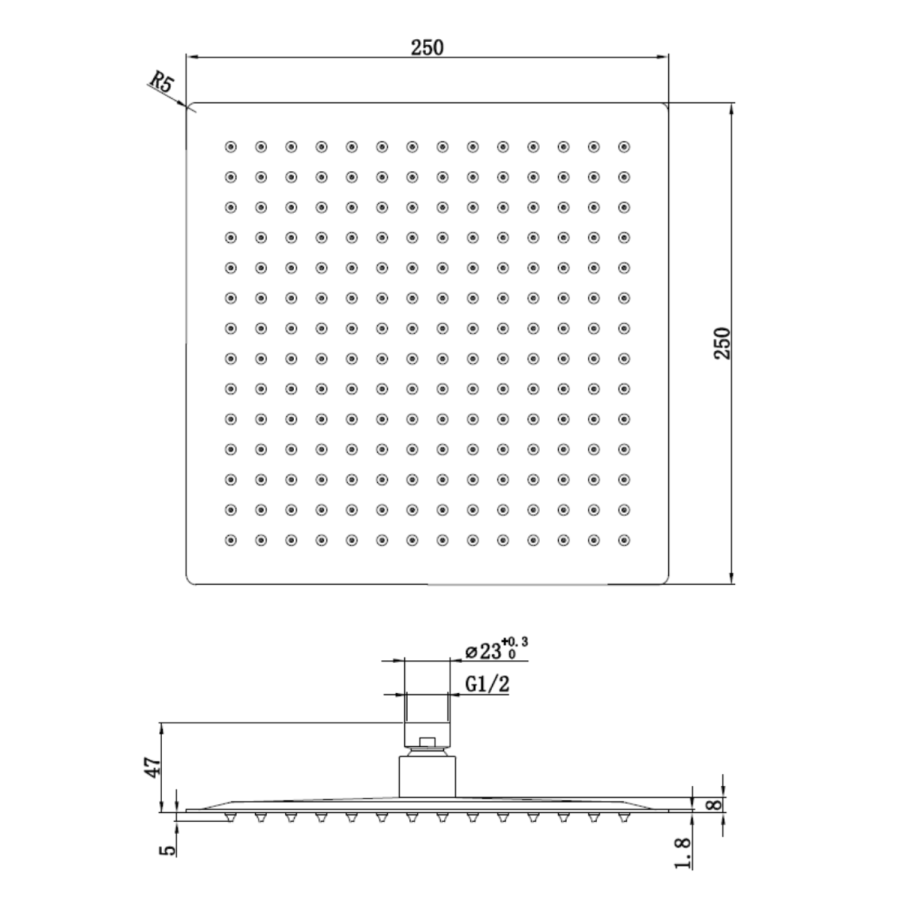

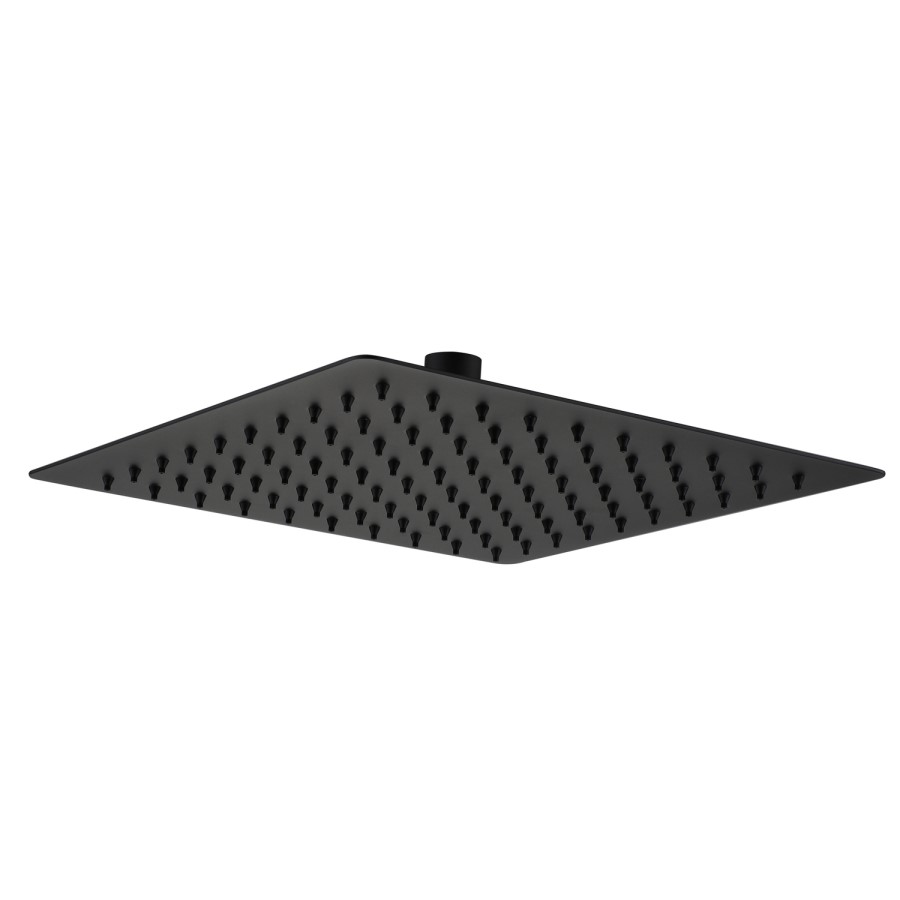

- Head Dimensions: H250 x W250 x D47 mm

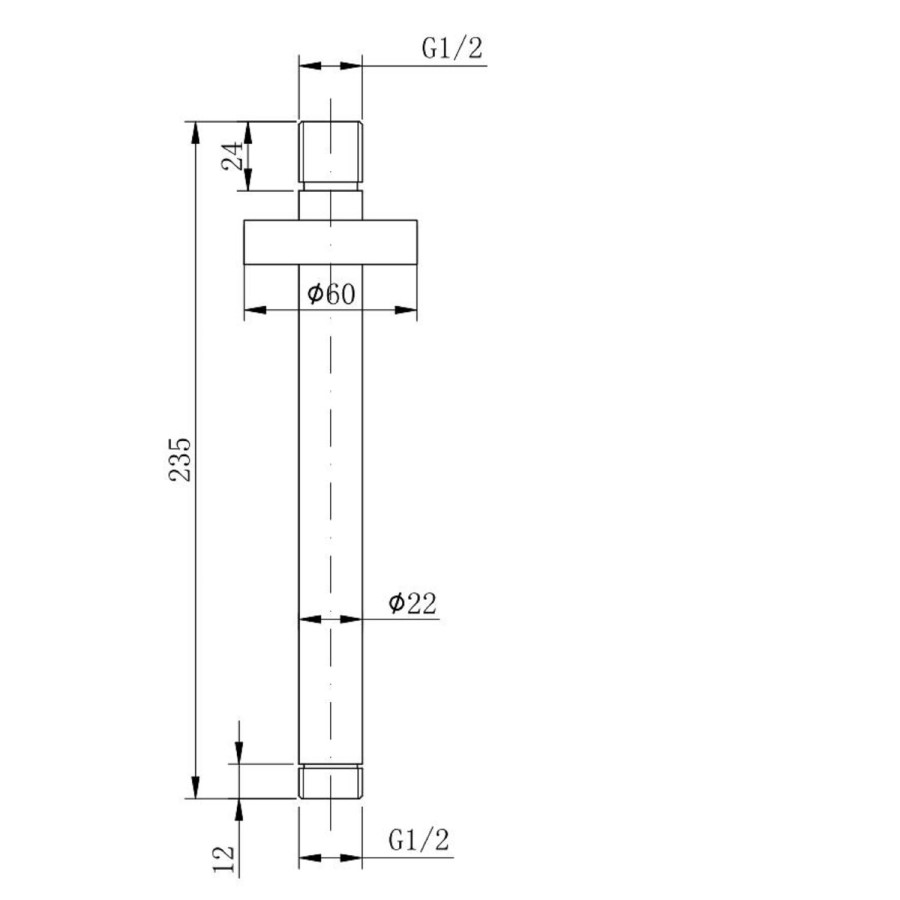

- Arm Dimensions: L235 x W22 x D60 mm
- Material: Brass, stainless steel, ABS
- Head Weight: 0.817kg
- Arm Weight: 0.13kg
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Recommended minimum pressure: 0.5 bar (flow rate of 12.8 litres per minute)
- Recommended maximum pressure: 3.0 bar (flow rate of 29.8 litres per minute)
- Warranty: 3 years
Back to top
Question from Liam: Asked on 21/11/2023 What length is the ceiling arm?
Hello Liam,
Thank you for your question. The length of the ceiling arm is 120mm
Hello Liam,
Thank you for your question. The length of the ceiling arm is 120mm
