Quatro Square Shower Cabin with Black Back Panels - 800 x 800mm BUN/BeBa_S8453-800-GLASS/73784

Quickfind code: 1367158
30% off showers with any enclosure
£378.39
or £10.05 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass

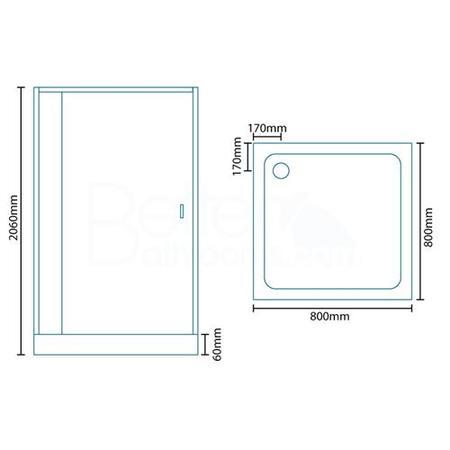

  • Height: 2060mm
  • Width: 800mm
  • Projection: 800mm
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

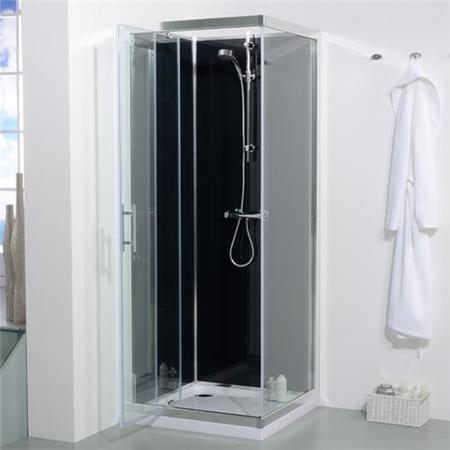

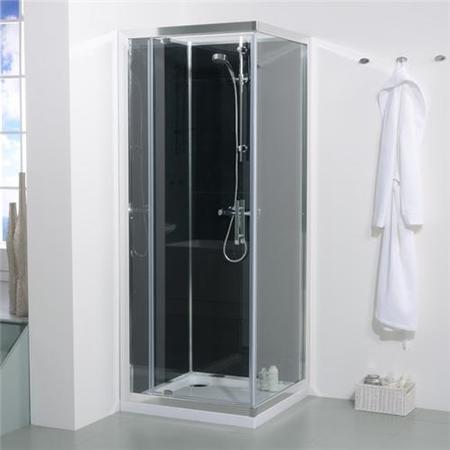

800 x 800 Quatro Shower Cabin with Black Back Panels

Summary

The 800mm Quatro Shower Cabin is a beautifully designed and expertly crafted showering solution. 2 black glass back panels eliminate the need for tiling and comes pre-drilled for a shower valve standard slide kit provided. Assembly and installation can be carried out with ease and the 800mm square tray provided is made from high quality acrylic. Other features includes CE approval; also available with aqua white back panels.

Download PDF View This Product's Installation Instructions

Features

  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 800mm
  • Projection: 800mm
  • Door Opening Size: 500mm
  • Weight: 109.4kg
  • Fully contained shower cabin creating less chance of leaks
  • Toughened 6mm aqua white glass back panels - eliminate the need for tiling
  • Reduces the need for channeling of walls for pipes
  • Easy to assemble - Easy installation
  • Polished chrome profiles and modern chrome handles
  • Cushioned Seals
  • Easy clean quick release doors
  • CE approved
  • Reversible – Product is universal for left or right hand fitting

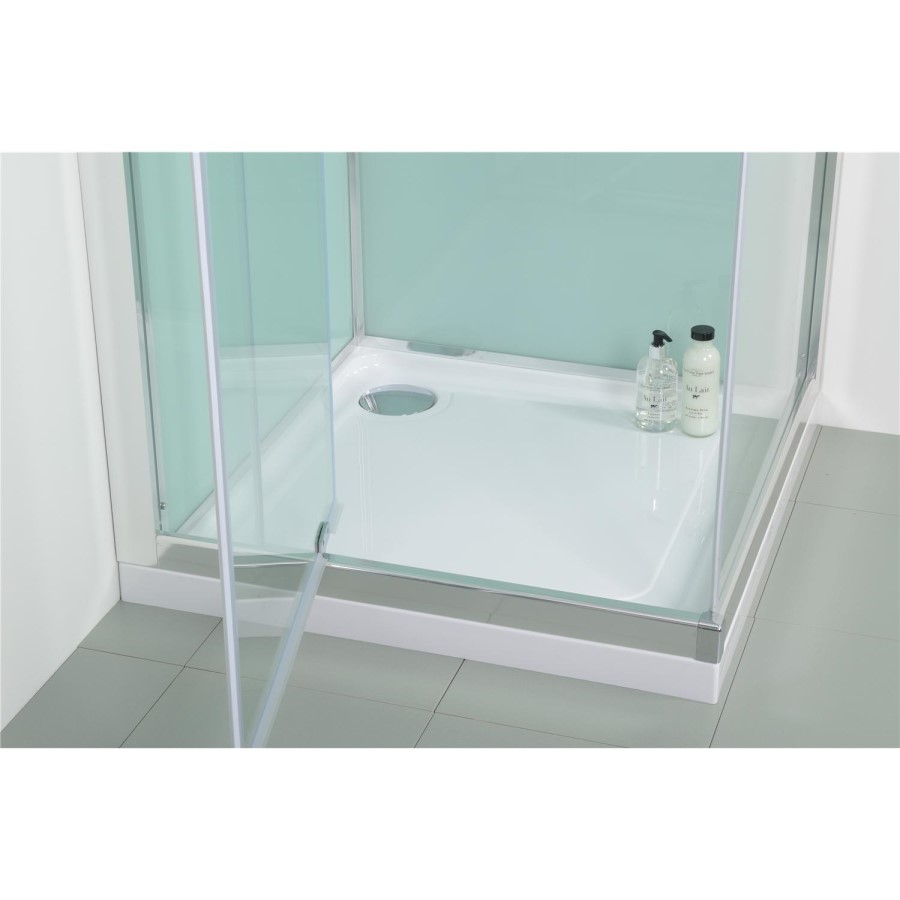

  • Includes 60mm high quality acrylic tray
  • Comes complete with slide rail kit and standard shower head
  • Minimum operating pressure 1.0bar
  • Includes: slide rail kit and a fast fit bracket for bar valves
  • Please Note: Slide rail cannot be changed for an alternative

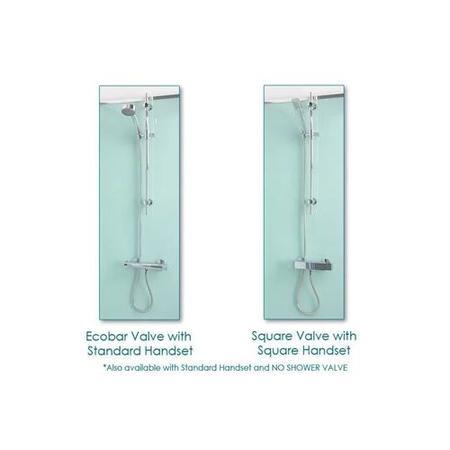

Shower Kit Options:

The shower comes as standard with no shower valve[com] but you can also choose from the Ecobar Valve with Standard Handset or the stylish Square Valve with Square Handset. PLEASE NOTE: The standard handset is also included Free of Charge with all optional upgrades.

All Valves

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps

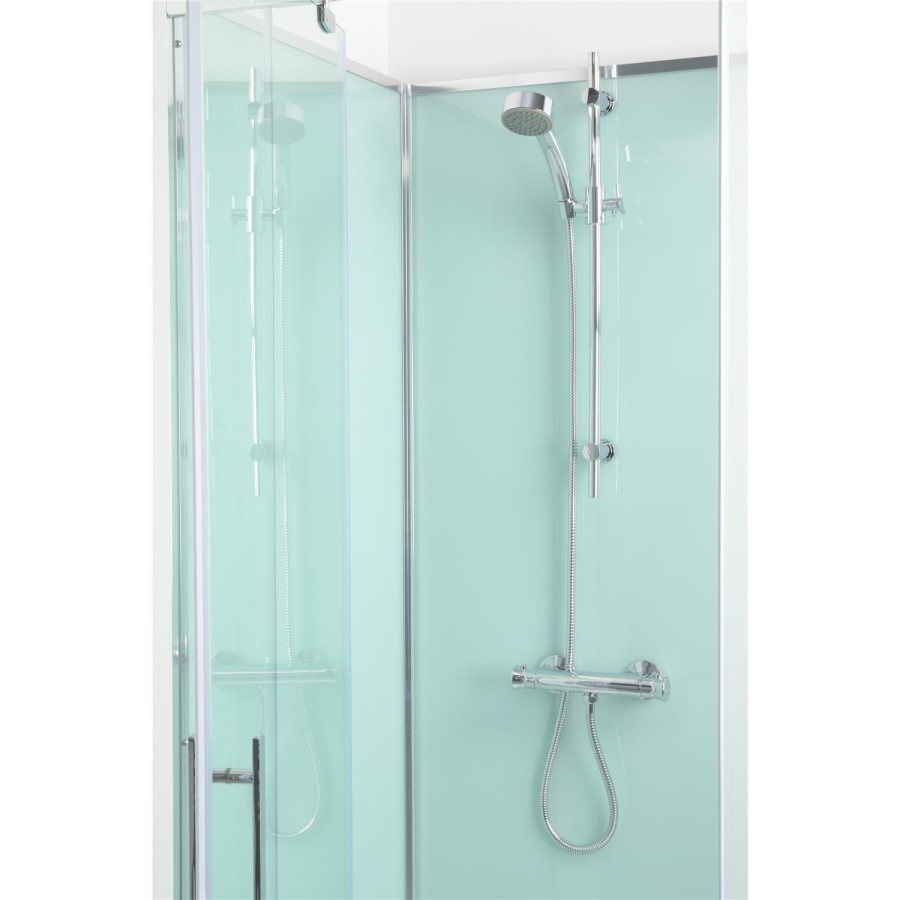

Ecobar Valve and Standard HandsetEcobar Shower

See image on the right.

  • Easy Clean Rubber Inserts on Handset
  • Number of functions on handset: 1
  • Chrome Finish



Square Valve and HandsetSquare Shower

See image on the right.

  • Valve suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Square Shower Head
  • Easy Clean Rubber Nozzles
  • Number of functions on handset: 1
  • Chrome Finish

Item Code:
BUN/BeBa_S8453-800-GLASS/73784


Finance Options

Enter your order total:
£
Calculate

Questions & Answers

Question from Jamie cowan: Asked on 12/06/2017 Screen won't fit 15mm out. Your technical team have advised from photos that glass panels do not fit inside lip of tray but in fact on top? That is not what your brochure photo shows??

Answer from nathan dunstan Hi ,

please call 0333 777 4777

they will help you
many thanks

Question from John Bennett: Asked on 28/01/2017 I am interested in the white back panel version of this product. Is this unit delivered as a complete unit or is it delivered in parts to be assembled in situ? Regards.

Answer from Colin Hi John, it is delivered in parts for ease of transport. Thanks, Colin.

Question from Robin: Asked on 26/12/2016 We like this product but need to install an electric shower unit so do you supply this without the shower-hose etc and is it possible for us to affix a electric shower to the (black) sides?

Answer from Colin Frain Hi,

Thank you for your question.

Yes we sell it without the hose shower or anything, however still comes with the cut outs for the valve and the shower rail.

If you need any more info or would like to place an order, please contact me using the details below.


Kind Regards,

Colin Frain
Sales Advisor
Manchester Showroom
Telephone: 0161 667 6560
Visit: www.betterbathrooms.com

Question from Steve: Asked on 18/05/2016 Can this cabin also be used as a peninsular unit ?

Answer from Anthony Hi,

Thank you for your question.

I am afraid not, the cabin needs to be installed in a corner against two walls for stability purposes.

Kind Regards

Question from Mike: Asked on 08/11/2015 Can this shower cubicle be used with an electrical shower?

Answer from Nathan Dunstan Hi,

The panels are glass and already cut so you couldn't put an electric shower on as there is no room for the piping sorry .

you would need something with two walls on like product code 7608 .

Many thanks

Question from Jane shears: Asked on 18/09/2015 I do not understand the different valve options. Please explain the pros and cons of each. Thank you

Answer from Nathan Dunstan Hi,

Thank you for your question the different options are the shower head type if you go onto our website and select the picture if you then go threw the pictures there is one that shows the 3 different shower heads .

If you have any questions please call us on 0161 667 6560

many thanks
Nathan Dunstan

Question from Paul Grimoldby: Asked on 12/09/2015 Can I use this enclosure with an electric shower?

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

These showers come pre-drilled for the set showers that we give you the options for on the website. As it is only suitable for these showers, I would have to advise that an electric shower would not be suitable for use with an electric shower.

Kind regards.

Question from mark poole: Asked on 28/01/2015 Can you please e-mail fitting instructions for purchased unit as none with unit delivered , many thanks for your help, mark

Answer from Peter Hi,

Thank you for your question.

Apologise that no instructions were delivery if you contact the customer service team they will be able to send you the instructions via email.

Their number is 0844 484 7678 option 2.

Question from Andy : Asked on 08/11/2014 Can a electric shower be fitted inside cubicle

Answer from Nathan McGregor Hello.

Thank you for your question.

I am afraid that is not possible as the holes for a bar shower are already drilled into the glass.

Regards.

Question from j morris: Asked on 19/08/2014 is it possible to use the quattro 800mm corner shower with a deeper shower tray than the one supplied?

Answer from Anthony Hi there,

We do not supply an easy plumb raised tray I am afraid, however your installer may be able to build up a frame/plinth for this.

Kind Regards

Question from Thomas Rigley: Asked on 23/04/2014 Does this product have to sit in the corner of room or is it free standing in the sense of it can be fitted againt just the wall the shower itself is on.

Answer from Nathan McGregor Hello.

This unit will have to be corner mounted as the pipe work for the shower will have to go through the glass panel.

Regards.
