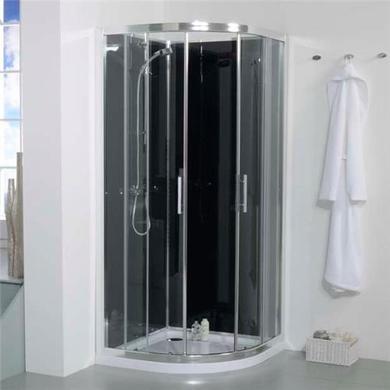

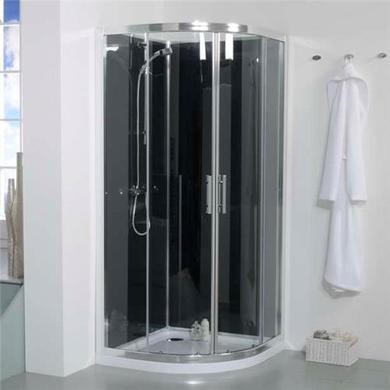

900 Quadrant Shower Cabin with Black Panels-Cabin with Ecobar Valve and Standard Handset
Summary
The 900mm Quadrant Shower Cabin is a beautifully designed and expertly crafted showering solution. 2 black glass back panels eliminate the need for tiling and come pre-drilled for the Fast Fit Bracket and slide kit provided. Assembly and installation can be carried out with ease and the 900mm quadrant tray provided is made from high quality acrylic. Other features include CE approved glass, FIRA testing and easy clean quick release doors. Also available with aqua white back panels.
Features
- Cabin Type: Shower Cabin
- Materials Specification: 6mm thick toughened glass

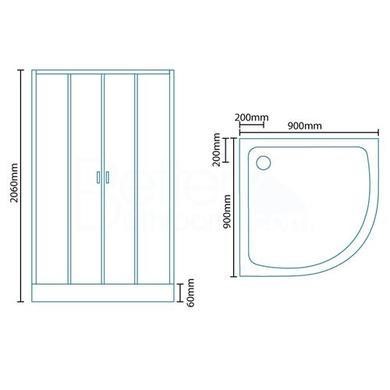

- Height: 2060mm
- Width: 900mm
- Projection: 900mm
- Door Opening Size: 470mm
- Weight: 109.4kg
- Fully contained shower cabin creating less chance of leaks
- Toughened 6mm aqua white glass back panels - eliminate the need for tiling
- Eliminates the need for channelling of walls for pipes
- Easy to assemble - Easy installation
- Polished chrome profiles and modern chrome handles
- Cushioned Seals
- Easy clean quick release doors
- CE approved

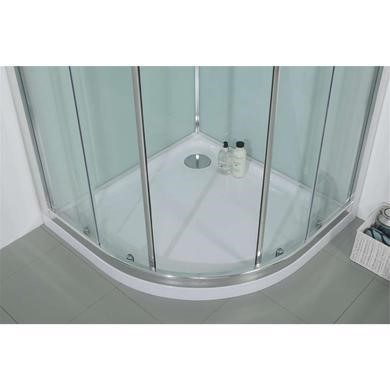

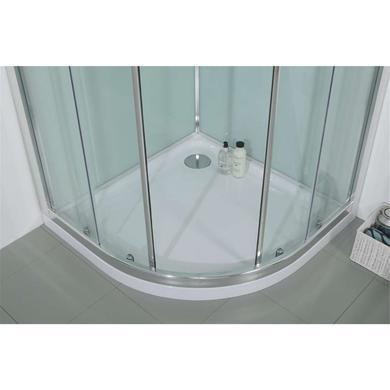

- Includes 60mm high quality acrylic tray
- Comes complete with slide rail kit and standard shower head
- Minimum operating pressure 1.0bar
- Includes: slide rail kit and a fast fit bracket for bar valves
Shower Kit Options:
The shower comes as standard with no shower valve, but you can also choose from the Ecobar Valve with Standard Handset or the stylish Square Valve with Square Handset. PLEASE NOTE: The standard handset is also included Free of Charge with all optional upgrades.
All Valves
- 1/2" exposed thermostatically controlled shower valve
- Mixed water bottom outlet
- Hot water feed inlet on the left when water outlet on the bottom of the valve
- Suitable for water systems between 0.5 and 4 bar pressure
- Cold water supply temperature 4 - 20°C
- Hot water supply temperature 55 - 85°C
- Built in anti-scald device
- Suitable for combi boiler systems
- Suitable for unvented mains pressures systems
- Suitable for shower pumps

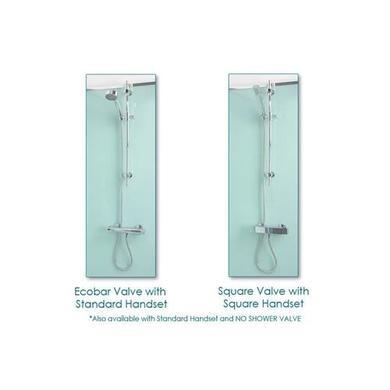

Ecobar Valve and Standard Handset
See image on the right.
- Easy Clean Rubber Inserts on Handset
- Number of functions on handset: 1
- Chrome Finish
Square Valve and Handset
See image on the right.
- Valve suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
- Square Shower Head
- Easy Clean Rubber Nozzles
- Number of functions on handset: 1
- Chrome Finish
