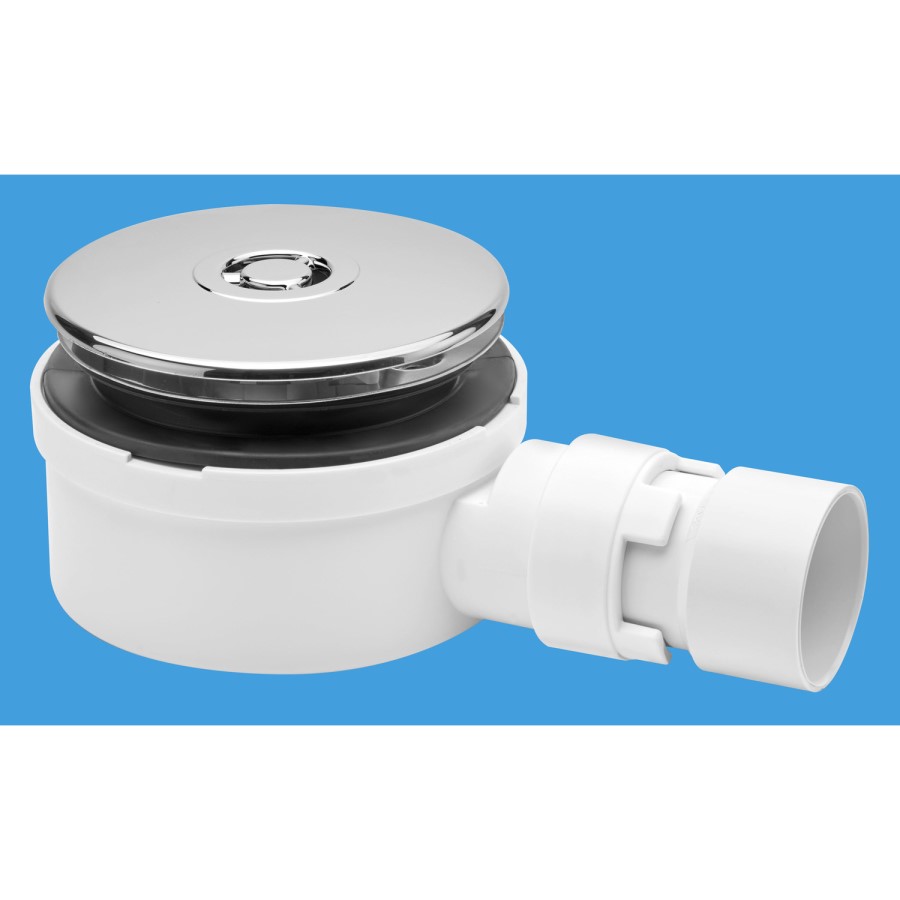

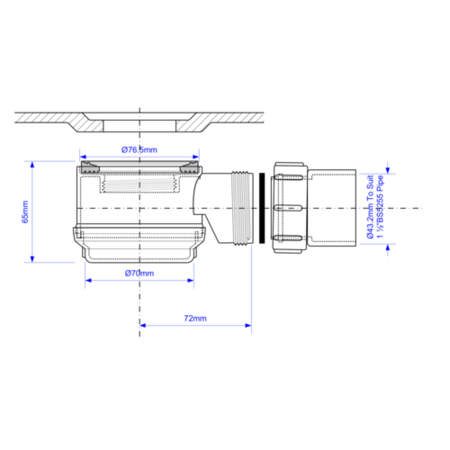

90mm x 25mm Water Seal Slim Shower Trap with 1½" Solvent Weld Outlet
Features:
- Suitable for shower trays with a 90mm waste hole
- Overall height is only 53mm
- Fixed with Stainless Steel Clamping Ring and 3 securing screws for tight connection to the shower tray
- 25mm Water Seal
- Supplied with 1½" solvent weld socket
- Removable 110mm flange facilitates easy cleaning
- Flow rate 24 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
