Product Information
Cube Concealed Dual Control Thermostatic Shower Valve
Summary

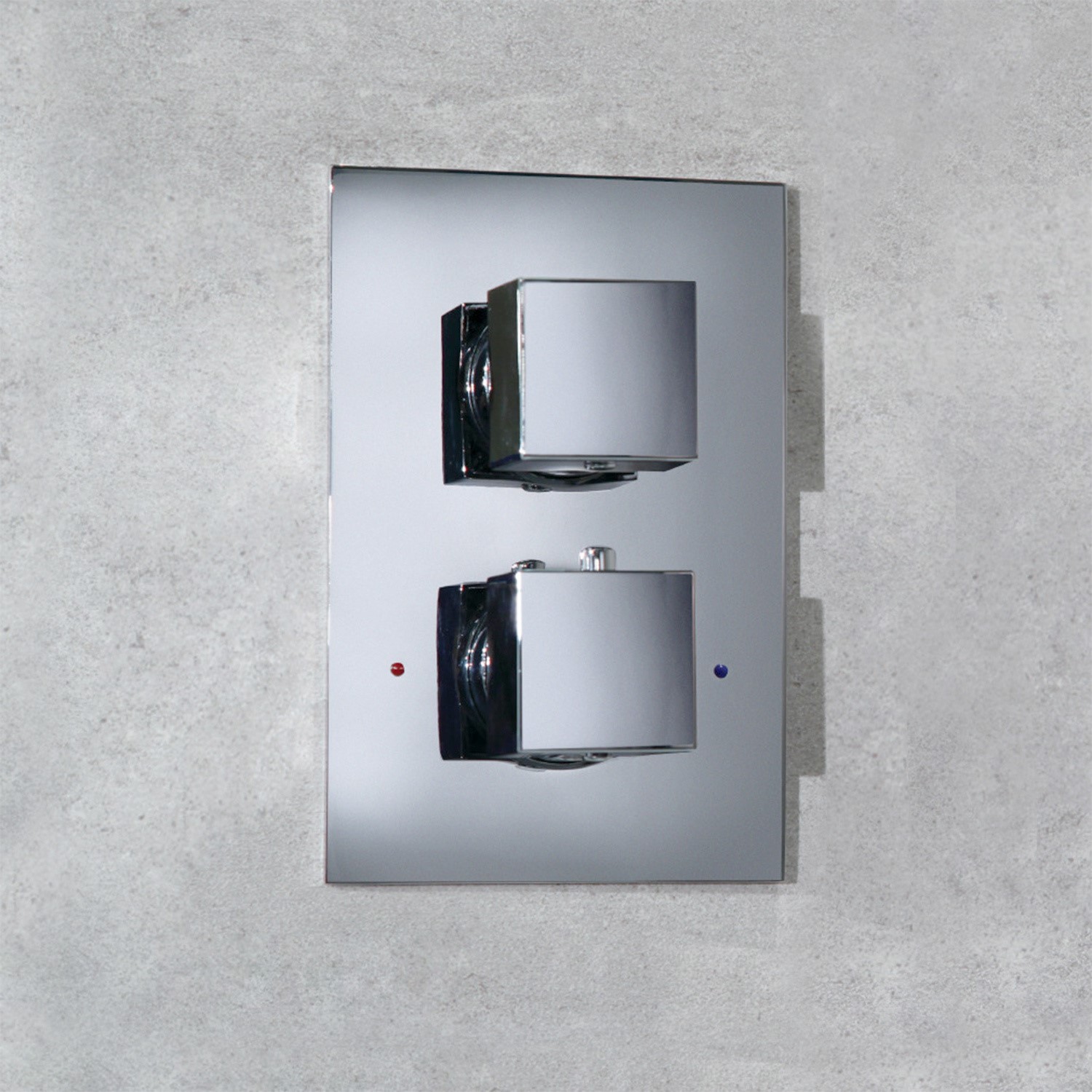

Cube Dual Shower Valve. Three-quarter inch twin shower valve with minimalist cube handles constructed from Zinc Alloy with a chrome finish.
View This Product's Installation Instructions
Features
- Concealed Shower Valve
- 3/4 inch inlets
- Dual controlled thermostatic valve
- Cube Handles
- Built in anti-scald
- Chrome finish
- Suitable for water pressures between 0.2 and 4.0 bar
- Suitable for gravity fed, pumped, combination or pressurised systems

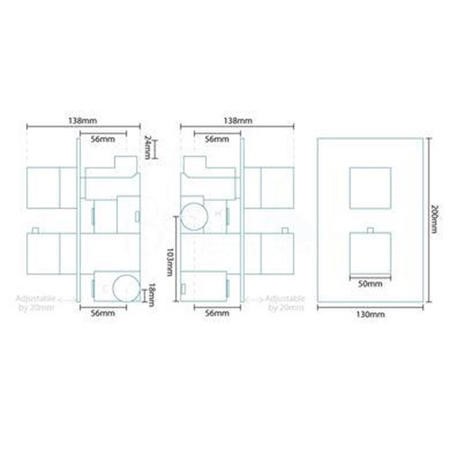

See diagram for dimensions - All sizes are APPROXIMATE and are intended as a guideline only.
We do not recommend installing or positioning any pipework prior to receipt of valve.
Item Code:
BeBa_7730
Please Note: All sizes are approximate and should be used for guidance only.
Question from Martin: Asked on 29/08/2018 Hi,
I have one of these and four years later the temperature valve is stiff. My plumber suggests I get a replacement gasket (I think) as I don't need to replace the whole unit. Can you advise how to go about achieving this as I assume you hold spares / can get hold of spare parts.
Answer from Peter Hi,
please call 0333 777 4777 and we can order the part required .
many thanks
Question from J.Evans: Asked on 29/08/2017 I have replaced the temperature control knob as the button had seized. Although the replacement appears to be fitted correctly, the button will depress and turn anti clockwise but when turned clockwise it falls off. The brass spindle it attaches to does not seem to move in either direction.
Answer from Nathan Donley-McGregor Hi.
Thank you for your question.
I am sorry to hear that, please contact the tech support team who would be able to assist with this on 01925 544 861.
Regards
Question from dave: Asked on 06/10/2016 I need a new valve for the tap that controls the flow. My shower drips constantly. Where can a get spares? My local plumbers merchant believes he can get them but he needs to know who the manufacturer is and preferably a model number. Please can you help.
Answer from Peter Hi,
if you contact our aftersales team on 01925 544 861 they will be able to assist you with this.
regards
Simon
Question from Anita: Asked on 03/04/2016 What is the difference between this product and the Eco Cube valve. code 10642?
Many thanks
Answer from Benjamin Linnert Good Morning,
Thank you for your question.
The difference between the two is the build quality the item in question is a solid brass and then chrome plated unit, while the ecocube variation is a combination of brass and copper. Being solid brass makes it a much more durable unit, performing at a higher rating.
In regards to the item itself, due to us running our April Showers promotion we are currently running low on stock. To secure the yours and the other items your looking at purchasing today, please feel free to give me a call on 0161 667 6560 - Ben, and we will get it sorted for you.
Kind regards.
Question from Brian Watson: Asked on 12/11/2015 Temperature valve is now hard to turn, installed 1 year ago .Any remedies ,also started to run OK for 5mins then cold for a few seconds ?
Answer from Matt Clarke Hi,
Please report this to our customer service team on 01925 544 861 option 2.
Regards
Question from R Nightingale: Asked on 13/02/2015 What is the advantage in this valve having 3/4 inch outlets over 1/2 inch. Could a 15mm supply be conected?
Thanks
Answer from jonathan hi, thank you for your question, we have a technical department in monday to friday 9-5 if you give them a call they will explain the advantages of this their number is 01925544861 and press option 2.
kind regards
Question from Mick Ferrington: Asked on 14/01/2015 As the inlet fittings are 3/4 what is the size of pipe required 22mm or 15mm.
Answer from Anthony Hi there,
Thank you for your question.
The pipe required is 15mm
Kind Regards
Question from Chris Ham: Asked on 14/03/2014 Hi,
I am looking to purchase the cap that hides the screw holes on this unit. One fell off and was lost. Is this something you can help with please?
Thanks
Chris
Answer from Rob Molloy Hi
If you ring our after sales on 0844 484 7678 option 2 they will be happy to help.
Question from Adam: Asked on 05/11/2012
What fittings do I need to use for the water inlets?
Answer from Mike B
Hi there,
The inlets would be 3/4inch.
Question from Chris Crump: Asked on 20/02/2012 Can you please advise actual size of the valve head ?
Many Thanks !
Answer from Mike B Hi there,
The controls on the shower valve are approximaely 5cm x 5cm. The back plate is approximately 13cm x 20cm.
Question from paul hunter: Asked on 06/01/2012 have fitted this unit and can only get what is best described as tepid water out when fully turned to hot can you forward the maual or am i missing somthing simple
Answer from probertshaw Please contact our technical customer support team on Monday 0844 4847678 to discuss your installation. I would suggest you have an imbalance in water pressure, for a shower valve to work correctly you must have equal pressures on hot and cold otherwise the cold will constantly override the hot.
Question from paul hunter: Asked on 06/01/2012 have fitted this unit and can only get what is best described as tepid water out when fully turned to hot can you forward the maual or am i missing somthing simple
Answer from probertshaw I would suggest you have an imbalance in water pressure, your cold water is over riding your hot. A shower valve does not heat water, it merely opens and closes to mix the correct temperature. I would advise you to get your plumber back to equal out the pressure. If you need any further help or advice please call our technical team on 0844 4847678.
