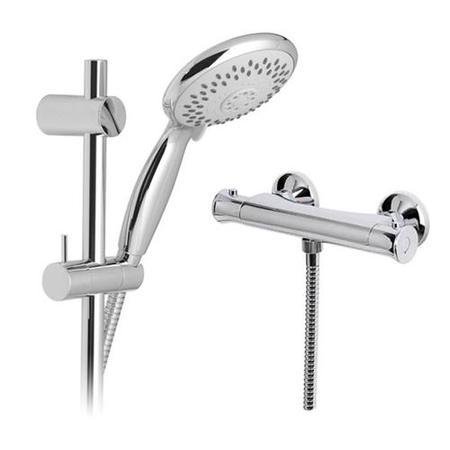

Space Slide Shower Rail Kit with Ecobar Valve
Summary
The Eco bar shower valve offers thermostatic showering with two easy to operate controls. One handle operates the on and off flow control whilst the other allows temperature selection. Comes complete with Space Multi mode shower slide rail kit A contemporary design with clean cut lines and gentle edges working to create a modern style. Complete with a multi mode detachable handset on an adjustable slide rail. The rail kit has the added feature of movable wall brackets ideal for replacement fixing.
Features
Ecobar Shower Valve
- 1/2" exposed thermostatically controlled shower valve
- Mixed water bottom outlet
- Pipe fixing centres at 150mm +/- 20mm
- Hot water feed inlet on the left when water outlet on the bottom of the valve
- Suitable for water systems between 0.5 and 4 bar pressure
- Cold water supply temperature 4 - 20°C
- Hot water supply temperature 55 - 85°C
- Built in anti-scald device
- Suitable for combi boiler systems
- Suitable for unvented mains pressures systems
- Suitable for shower pumps
Space Multi Mode Slide Rail kit
- Space low pressure 5 function handset
- Operates from 0.5 to 4.0 bar pressure
- Large bore 1500mm long shower hose and wall outlet
- 680mm long slide rail with adjustable multi-position wall brackets
- Chrome finish
- Easy clean rubber inserts on handset
