Vision Riser Slide Shower Rail Kit with Ecobar Valve BUN/BeBa_15645/72985

Quickfind code: 1364890
Save £26.2
£79.99

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • 1/2 exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
More Info »
1 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

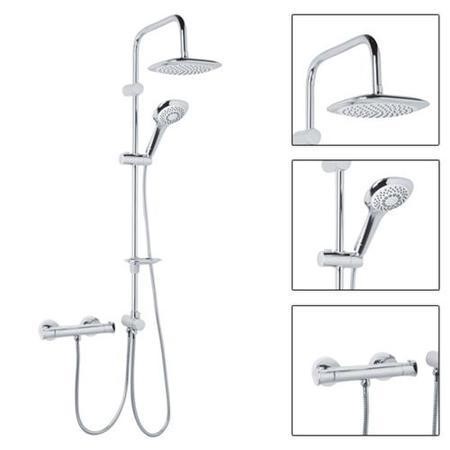

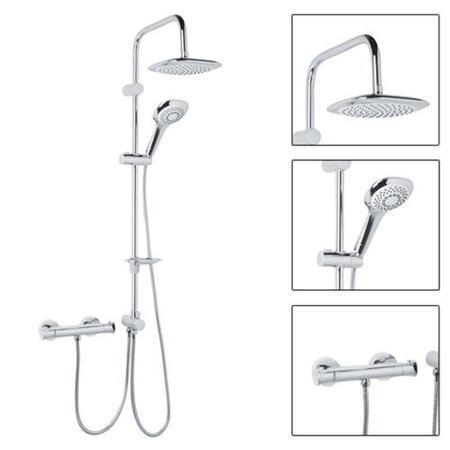

Vision Riser Slide Shower Rail Kit with Ecobar Valve

Summary

The Vision riser rail kit with Ecobar Valve is a stunning shower solution for any modern bathroom. A 200mm shower rose and a 5 function handset offer a range of showering options and it can be used in conjunction with both bar valves and concealed valves

Features

Shower Valve

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressure systems
  • Suitable for shower pumps

Vision Riser Rail Kit

  • Length of riser rail kit: 1000mm
  • Depth of riser kit: 380mm
  • Tube diameter: 22mm
  • Overhead shower rose dimensions: 200mm x 200mm
  • Adjustable wall fixing brackets (Ideal for replacing existing slide rail kit)
  • 3 way diverter
  • Length of shower hose: 1500mm
  • Length of small hose: 800mm
  • Auto Lock sliding shower head holder
  • Hand held shower head diameter: 100mm
  • Easy clean shower head nozzles
  • Round soap dish
  • Number of functions on heandset: 5
    - Spray
    - Massage
    - Mist
    - ECO Spray
    - Pause
  • Pressure requrements
    - Min 1.0 Bar
    - Max 5.0 Bar
    - Suitable for combi boiler systems
    - Suitable for gravity fed systems
    - Suitable for unvented mains pressure systems
  • Materials specification: Chrome Finish
  • Excludes: Outleft Elbow - See additional items

View installation fact sheet. (PDF 565KB)


Item Code:
BUN/BeBa_15645/72985

Please Note: All sizes are approximate and should be used for guidance only.



Questions & Answers

Question from Johanne : Asked on 18/10/2015 Hi am I able to buy the 3 way diverter in the riser rail for this shower separately? Many thanks

Answer from Benjamin Linnert Good afternoon,

Thank you for your question.

I'm afraid I don't fully understand what you are asking. You can buy a three way diverter seperatley as well as the riser kit seperatley:

http://www.betterbathrooms.com/vision-riser-rail-kit

If this hasnt answered your question, please resubmit

Kind regards.

Question from Gemma: Asked on 27/09/2015 Hello,
Our plumber has told us to purchase a thermostatic shower, can you confirm that this particular one is thermostatic?
Thanks,

Answer from Simon Kirby Hi, yes this is a thermostatic bar valve on this shower.

Question from nasira: Asked on 30/04/2015 Do these showers all exclude the shower head or do you have to buy them separately?

Answer from Simon Kirby Hi thanks for your question, the product in question would come complete with the shower heads.

If you need anything else or wish to place an order just give me a call on 0161 667 6560 and ask for Simon

Question from Rebecca Wilkinson: Asked on 31/01/2014 How do you switch from overhead shower to hand held shower ?

Question from haider: Asked on 01/01/2014 this is not plastic right
