Concealed Triple Control Shower Valve with Diverter - EcoCube Range BeBa_12529

Quickfind code: 1355621
  • Clearance sale
Save £67.12
£84.97

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Shower Mixer
  • Product Style: Square
  • Min Pressure Flow Rate: 0.5 bar (flow rate of 6.6 litres per minute)
  • Max Pressure Flow Rate: 3.0 bar (flow rate of 18.5 litres per minute)
  • Height: 280mm
More Info »
5 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

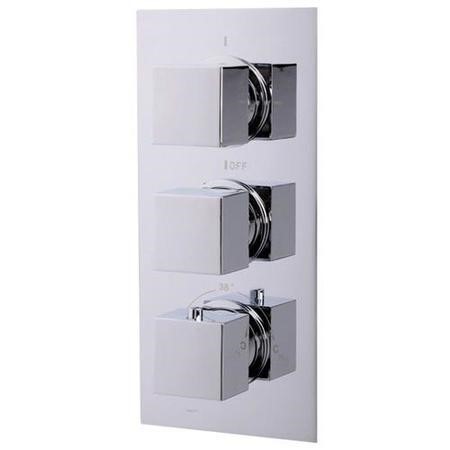

EcoCube Concealed Triple Control Shower Valve with Diverter

Summary

Our fantastic new addition to the Cube design we introduce the EcoCube Triple Valve with Diverter. Greater amount of valves allow for optimised use and user control, manufactured with strong brass bodies and adorned with a chrome finish this shower valve will compliment most shower types. A slimmer backplate than the original Cube design allows Better Bathrooms to present a more affordable valve without compromising on quality.

Download PDF View This Product's Installation Instructions

Features

  • Valve Type: Concealed Shower Mixer
  • Product Style: Square
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 6.6 litres per minute)
  • Max Pressure & Flow Rate: 3.0 bar (flow rate of 18.5 litres per minute)
  • Height: 280mm
  • Width: 130mm
  • Total Depth: 117mm
  • Net Weight: 4.7kg
  • Controls: Triple Control temperature control, pressure and diverter.
  • Safety Features: Built in anti-scald device
  • Materials Specification: Solid Brass with Copper
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    Subject to a minimum pressure of 1 bar

Item Code:
BeBa_12529


Questions & Answers

Question from Darren : Asked on 15/01/2017 Are the feeds into the valve 15 or 22mm

Answer from chris thomas Hi,

Thank you for your question.

they are 22mm

If you need any more info or wish to place an order please contact me using the details below as i can check stock levels and allocate stock faster to you.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Tony Austin: Asked on 09/04/2016 I'm between Eco Cube triple 10648 & Cube Triple 7809. Is there any difference in flow rates between them ? Can they be installed horizontally instead of vertically ? Which is the better valve ?

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

The flow rates are the same, the difference between them lies majoritively in the products used to produce them, the cube is completely solid brass while the ecocube uses brass and copper and has a weaker build structure. They are however only able to be stored vertically and are not intended to be installed horizontally, although theoretically speaking there is no reason why you cannot install them that way from a fitting perspective, you would just have to be more creative with your pipe work. The cube is deffinatley the better valve due to its construction and value for money.

In regards to the item itself, due to us running our April Showers promotion we are currently running low on stock. To secure the yours and the other items your looking at purchasing today, please feel free to give me a call on 0161 667 6560 - Ben, and we will get it sorted for you.

Kind regards.

Question from Gavin: Asked on 14/10/2014 Hi, can this be used with a fixed shower head and a hand held shower head? Thanks

Answer from Anthony Hi there,

Thank you for your question.

No, as this will function 3 separate units not the 2 you require.

Please take a look at product code 10645, EcoCube Concealed Dual Control Shower Valve with Diverter. This will function the fixed shower head and hand held shower head you are looking at.

If you need any further information, please contact the sales line on 0844 484 7678 option 1

Kind Regards

Question from Mr Lee: Asked on 12/07/2014 What type of inlet connections do you suggest for a supply from below?
Thanks

Answer from John Smith Hi,

Thanks for your question. The same connections (Standard 15mm) can still be used. You'll just be fitting them a different way.

Question from Rich L: Asked on 27/06/2014 Hi, I have just purchased one of these and it feels great to hold, a solid quality piece of kit.

However there are no instrctions suppied with this valve. Can you please advise.
Thanks

Answer from Nathan McGregor Hello.

Sorry to hear you didn't receive the instructions. if you contact customer support on 08444847678 (option 2) they will be able to email you some.

Regards.

Question from Marc: Asked on 30/03/2014 can this valve be positioned horizontal as well as vertical?

Answer from Peter Hi there,

No, we would we advise only installing the concealed valves vertically as pictured on the website.

Kind Regards

Question from Seb: Asked on 09/02/2014 Is this valve thermostatic?
