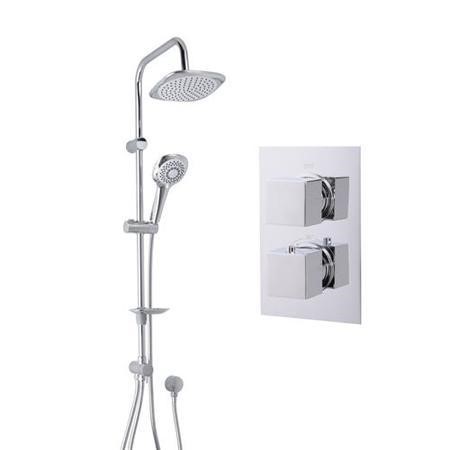

Vision Riser Slide Shower Rail Kit with EcoCube Dual Valve & Wall Outlet BUN/BeBa_12523/72774

Quickfind code: 1364679
Save £13.89
£149
or £7.15 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Shower
  • Mixer Min Pressure Flow Rate: 0.5 bar (flow rate of 8.1 litres per minute)
  • Max Pressure Flow Rate: 3.0 bar (flow rate of 11 litresper minute)
  • Height: 200mm
  • Width: 130mm
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

Vision Riser Slide Shower Rail Kit with EcoCube Dual Valve & Wall Outlet

Summary

The EcoCube Dual Valve is a fantastic new addition designed to be lighter, smoother and more economically efficient. The definitional valves allow dual control for maximum user efficiency as you can control both temperature and waterflow. Manufactured with strong brass bodies and a slimmer back plate to its counterparts it brings you optimum use and maximum efficiency. This is coupled with the Vision Riser Rail Kit, a modern showering solution at an unbelievably low price. The vision riser shower provides two showering options, both hand held and overhead. It is well designed with clean cut edges and chrome finish, enough to bring a modern twist in any bathroom. The bundle is complete with a chrome finish brass wall outlet elbow. Better Bathrooms presents a spectacularly affordable combination without compromising on quality which will have everyone praising your bathroom.
Minimum Pressure for whole unit : 1 bar

Features

Shower Valve

  • Valve Type: Concealed Shower
  • Mixer Min Pressure & Flow Rate: 0.5 bar (flow rate of 8.1 litres per minute)
  • Max Pressure & Flow Rate: 3.0 bar (flow rate of 11 litres per minute)
  • Height: 200mm
  • Width: 130mm
  • Depth: 137.5mm
  • Controls: Dual Control- Flow Rate and Temperature
  • Safety Features: Built in anti-scald device
  • Materials Specification: Solid Brass
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    Subject to a recommended pressure of 0.5 bar

Slide Rail/Riser Kit

  • Length of shower hose: 1500mm
  • Length of small hose: 800mm
  • Length of slide rail kit: 1000mm
  • Adjustable brackets
  • Easy clean features: Easy clean rubber nozzles
  • Includes wall outlet water bracket
  • Number of functions on handset: 3
  • Pressure Requirements: 1.0 - 3.0 bar
  • Hand Held Shower head diameter: 100mm
  • Overhead head diameter: 200mm
  • Materials Specification: Chrome Finish
  • Features:
    - Adjustable wall fixing brackets (ideal for replacing existing slide rail kit)
    - 3 way diverter
    - Auto lock sliding shower head holder
    - Easy clean shower head nozzles
    - Round soap dish
  • Finish:  Chrome
  • Excludes:  Outlet elbow – see additional items, required for use with a concealed valve.
  • Number of functions on handset: 5
    - Spray
    - Mist
    - Massage
    - ECO spray
    - Pause
  • Pressure Requirements
    - Min 1.0 Bar
    - Max 3.0 Bar
    - Suitable for combi boiler systems
    - Suitable for gravity fed systems - shower pump required
    - Suitable for unvented mains pressure systems
Minimum Pressure for whole unit : 1 bar

Download PDF View This Product's Installation Instructions


Item Code:
BUN/BeBa_12523/72774

Please Note: All sizes are approximate and should be used for guidance only.
