Quadro Slide Shower Rail Kit with EcoCube Triple Valve, 250mm Square Head, Wall Outlet, Filler & Overflow BUN/BeBa_12529/72783

Quickfind code: 1364688
Save £53.48
£239
or £11.47 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Concealed Shower Mixer
  • Mixer Min Pressure Flow Rate: 1.0 bar (flow rate of 9.4 litres per minute)
  • Max Pressure Flow Rate: 5.0 bar (flow rate of 36 litresper minute)
  • Height: 280mm
  • Width: 130mm
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

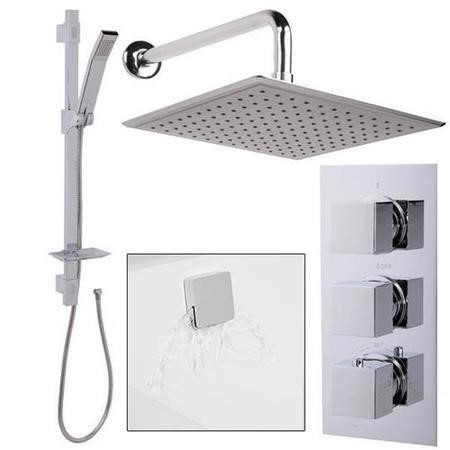

Quadro Slide Shower Rail Kit with EcoCube Triple Valve, 250mm Square Head, Wall Outlet, Filler & Overflow

Summary

The EcoCube Triple valve with Diverter is a fanstastic new addition designed to be lighter, smoother and more economically efficient. The definitional valves allow dual control for maximum user efficiency as you can control both temperature and waterflow alongside the Diverter. The Chromed Morgen rain square shower head is intricately designed with its light grey face and dark grey jets. The wall mounted shower head has a large flat diameter for maximum efficiency and is finished with a chrome plated plastic ball and shower arm of good length. This has been collaborated with the Quadro Slide Rail Kit, a modern showering solution at an unbelievably low price. The package also comes alongside a chrome finish bath overflow filler and Wall Outlet Elbow. Manufactured with strong brass bodies and a slimmer back plate than its counterparts, Better Bathrooms presents a spectacularly affordable combination without compromising on quality which will have everyone praising your bathroom.
PLEASE NOTE: This pack requires a minimum pressure of 1 bar.

Download PDF View This Product's Installation Instructions

Features

Shower Valve

  • Valve Type: Concealed Shower Mixer
  • Mixer Min Pressure & Flow Rate: 1.0 bar (flow rate of 9.4 litres per minute)
  • Max Pressure & Flow Rate: 5.0 bar (flow rate of 36 litres per minute)
  • Height: 280mm
  • Width: 130mm
  • Depth: 117mm
  • Controls: Triple Control - Flow Rate, Temperature and Diverter
  • Safety Features: Built in anti-scald device
  • Materials Specification: Solid Brass
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    Subject to a recommended pressure of 1.0 bar

Slide Rail/Riser Kit

  • Length of shower hose: 1500mm
  • Length of slide rail kit: 750mm
  • Adjustable brackets
  • Easy clean features: Easy clean rubber nozzles
  • Includes wall outlet water bracket
  • Number of functions on handset: 1
  • Pressure Requirements: 0.2 - 3.0 bar
  • Materials Specification: Chrome plated

Shower Head

  • Wall Mounted
  • Diameter of Head: 25cm x 25cm (Square)
  • Projection of Head: 30cm
  • Weight Of Head: 1.01kg
  • Material of Arm: Chromed S/S
  • Chrome Finish
  • Materials Specification: Chromed Morgen shower head with chromed plastic ball, and chromed S/S shower arm.

Freeflow Square Bath Filler With Push Button Waste and Overflow

  • Combined bath filler
  • Includes push button waste & overflow
  • Chrome finish
  • Trap not supplied with item
Please Note: When installing this shower with our bath filler overflow, a minimum of 1.0 bar pressure is required.

Item Code:
BUN/BeBa_12529/72783

Please Note: All sizes are approximate and should be used for guidance only.



Questions & Answers

Question from Rod Shakespeare: Asked on 28/10/2015 fitting instructions

Answer from Nathan Dunstan HI,

Thank you for the question this will needed to be installed by a plumber as it needs to be plumbed into the wall .

WE have a technical team who are available mon-fri if you wish to call and speak to them.

many thanks

Question from GP: Asked on 07/10/2015 Can you use both the fixed shower head and side bar shower at the same time - or filler and shower head and so on? or is it just one at a time?

Answer from Simon These are operated one at a time via the top dial, the middle dial is just the on/off and the bottom one is just the temperature

Question from Karol Karbownik: Asked on 07/07/2014 Hi

I am interested in bying this set. I do have a question regarding operating of this unit: on the description you are saying that valvue have 3 controls: flow, temperature and diverter. I am confused how to operate the bath filler. Do I need a second valvue just for the bath filler or bath filler can be operated directly from the shower valvue?
many thanks for the reply

Answer from Darren Hi there is a diverter on one of the valves to switch between the two shower heads there is a second valve to control the bath filler and the third valve is the temperature.

Question from olivia: Asked on 02/07/2014 Hi is this item thermostatically controlled.
thank u

Answer from Darren Stevens Yes this is a thermostatic shower valve
