Dualex Riser Slide Shower Rail Kit with Faro Valve BUN/BeBa_15799/73591

Quickfind: 1365496 SKU: BUN/BeBa_15799/73591

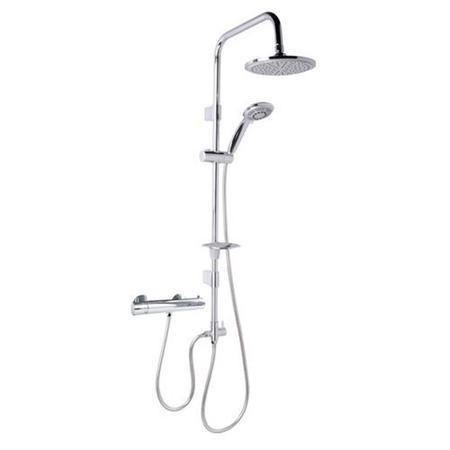

Dualex Riser Slide Shower Rail Kit with Faro Valve
Dualex Riser Slide Shower Rail Kit with Faro Valve

Product Information

Dualex Riser Slide Shower Rail Kit with Faro Valve

Summary

Faro thermostatic bar valve and the Dualex riser rail kit. The rail kit is a modern design allowing two showering options which include a fixed shower rose and a removable handset shower head. features include easy clean shower heads soap dish and auto lock shower head holder. The shower valve is a beautifully crafted chrome plated bar valve manufactured from solid brass. Manufactured to TMV2 standards the Faro valve is also WRAS approved. It has separate water flow and temperature controls and a thermostatic anti scald device set at 38°C.

Features

Shower Valve
  • Valve Type: Bar Shower Valve
  • Min Pressure: 0.2 bar
  • Max Pressure: 5.0 bar
  • Pipe fixing centres: 150mm +/- 21
  • Width: 261mm
  • Depth: 103mm
  • Controls: Temperature control and Waterflow control (on/off function)
  • Safety Features: Built in anti-scald device (set at 38°C) with manual override button (20-50°C)
  • Materials Specification: Solid Brass
  • Weight: 1.36Kg
  • Features: 1/2" thermostatic cartridge
  • Includes: Wall elbows for installation
  • Finish: Chrome
  • Please note: Fitting with the Dualex riser rail kit will mean that the minimum pressure required for the valve to work will be 1.0 bar
  • Suitable for:
    • Combination Boiler Systems
    • Pressurised Systems
    • Pumped Systems
    • Gravity Fed Systems from 0.2 bar

Slide Rail/Riser Kit
  • Length of riser rail kit: 1000mm
  • Depth of riser kit: 380mm
  • Tube Diameter: 22mm
  • Overhead shower rose diameter: 200mm
  • Adjustable wall fixing brackets: Ideal for replacing existing slide rail kit
  • 3 way diverter
  • Length of shower hose: 1500mm
  • Length of small hose: 800mm
  • Auto lock sliding shower head holder
  • Hand held shower head diameter: 85mm
  • Easy clean shower head nozzles
  • Round Soap Dish
  • Finish: Chrome
  • Number of functions on handset: 5
    • Spray
    • Bubble
    • Massage
    • ECO Spray
    • Pause
  • Pressure Requirements:
    • Min 1.0 Bar
    • Max 5.0 Bar
    • Suitable for combi boiler systems
    • Suitable for gravity fed systems - shower pump required
    • Suitable for unvented mains pressure systems

Item Code:
BUN/BeBa_15799/73591

Please Note: All sizes are approximate and should be used for guidance only.
