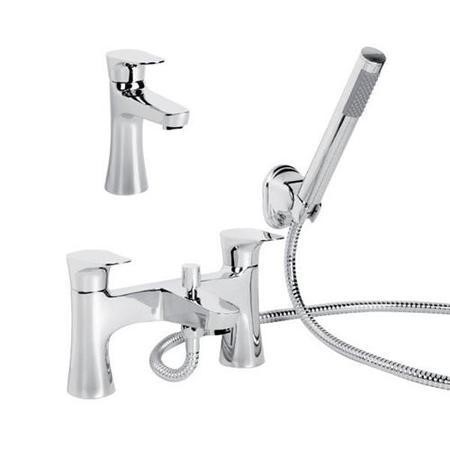

1 x Liberty Bath Shower Mixer
Liberty Basin Mono Tap
Summary
The Liberty basin mono is a state of the art design with a high quality chrome finish. Manufactured from solid brass with ceramic disc technology. Also available are matching bath filler and bath shower mixer.
View This Product's Installation Instructions
Features
- Single lever for ease of operation controlling on/off and temperature
- Comes complete with a contemporary chrome finish
- Manufactured from Solid Brass
- Built with Ceramic Disc technology
Specifications
- Height: 165mm
- Width: 54mm
- Depth: 140mm
- Weight: 0.92Kg
- Minimum Pressure: 0.5bar
- Maximum Pressure: 3bar
- Flow Rate (0.2bar) 6.8 litres/min
- Flow Rate (1.0bar) 11 litres/min
- Flow Rate (3.0bar) 18.3 litres/min
- Excludes: Waste (see additional items)
- Suitable for:
- Combination Boilers
- Pressurised Systems
- Pumped Systems
- Gravity Fed Systems (which may require a pump)
- Subject to a minimum pressure of 0.5 bar - Also Available: Matching bath filler and bath shower mixer
