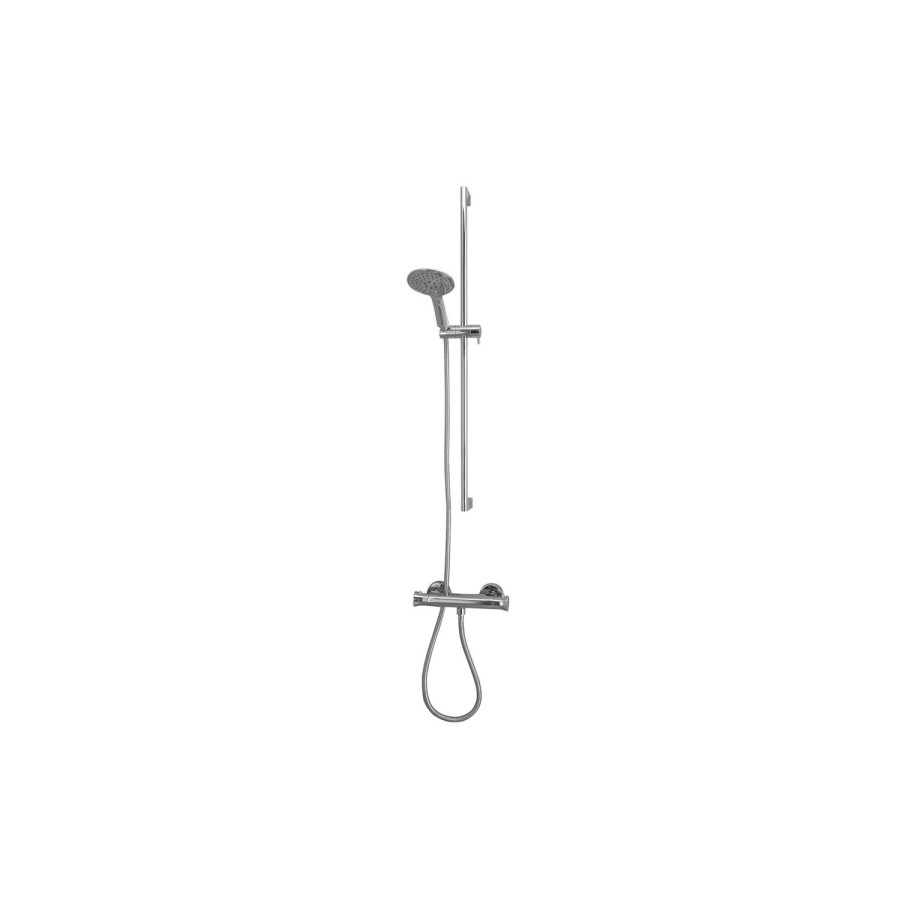

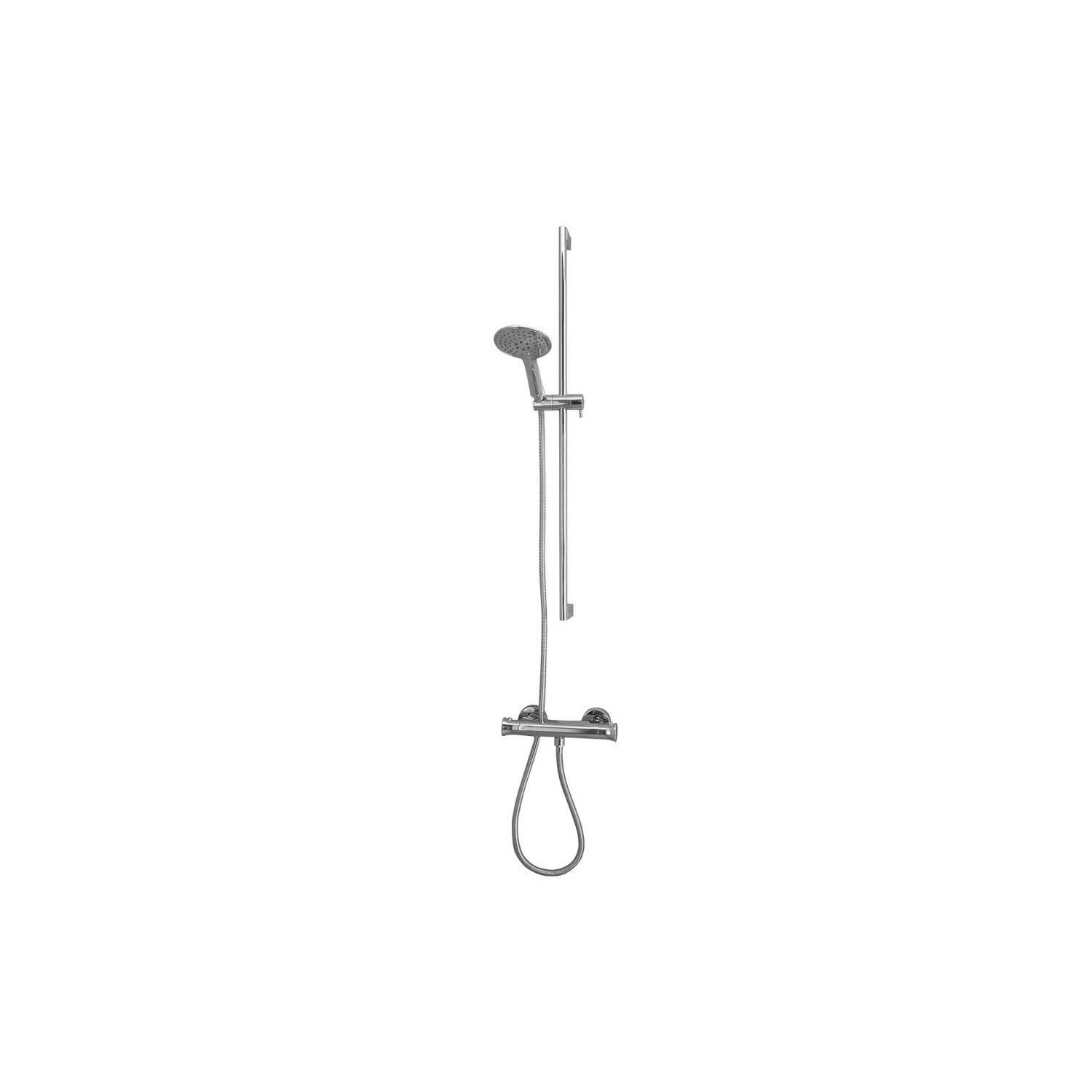

The Minimalist Deluxe Thermostatic Bar Shower Valve and Cima Multi Function Slide Shower Rail Kit
Summary
The Minimalist Deluxe Thermostatic Bar Shower Valve and Cima Slide Rail is a clean cut, pristine and classy Riser Rail Kit adorned in a beautiful Chrome finish. The rail kit is complete with a round Handset to compliment the exterior and paired with rail kit and shower valves will leave you with the perfect kit for your bathroom.The shower valve offers thermostatic showering with two easy to operate controls, one handle operates the on and off flow control whilst the other allows temperature selection
Features

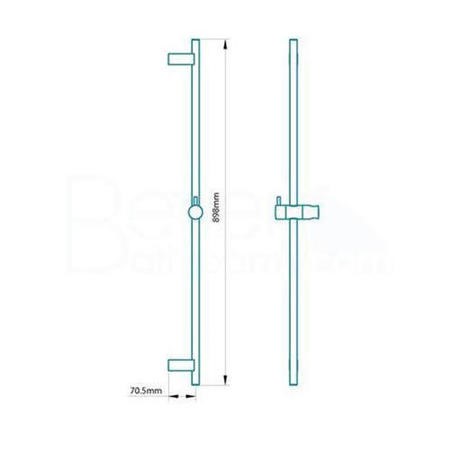

- Length of slide rail kit: 898mm
- Projection: 70.5mm
- Width: TBA
- Hose Length: 1.5m
- Number of functions on handset: 3
- Includes: Wall outlet water bracket
- Total Weight: 1.2kg
- Materials Specification: Solid Brass, Chrome, Stainless Steel Shower Hose
- Accreditations: Meets EN1112 European Standards

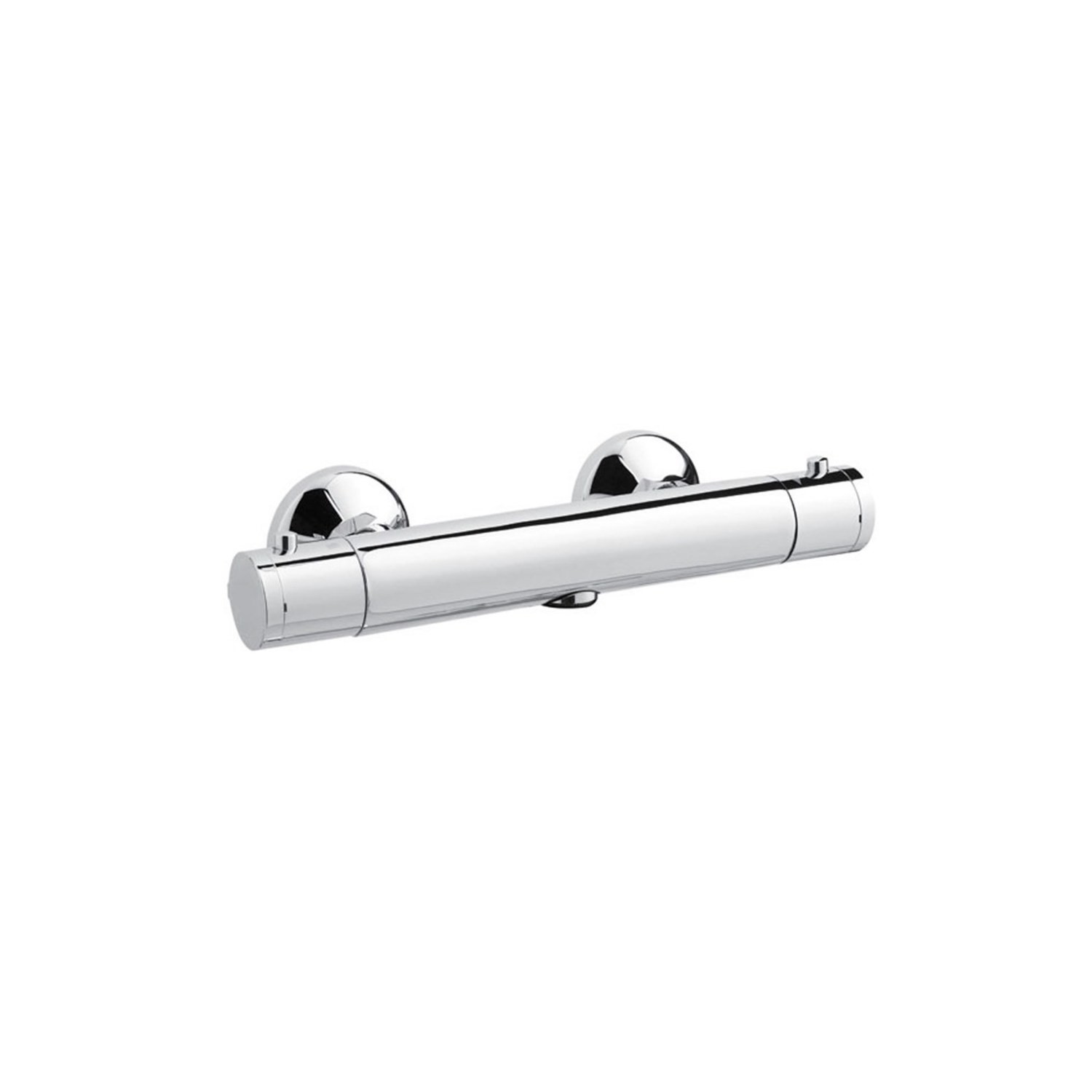

- 1/2" exposed thermostatically controlled shower valve

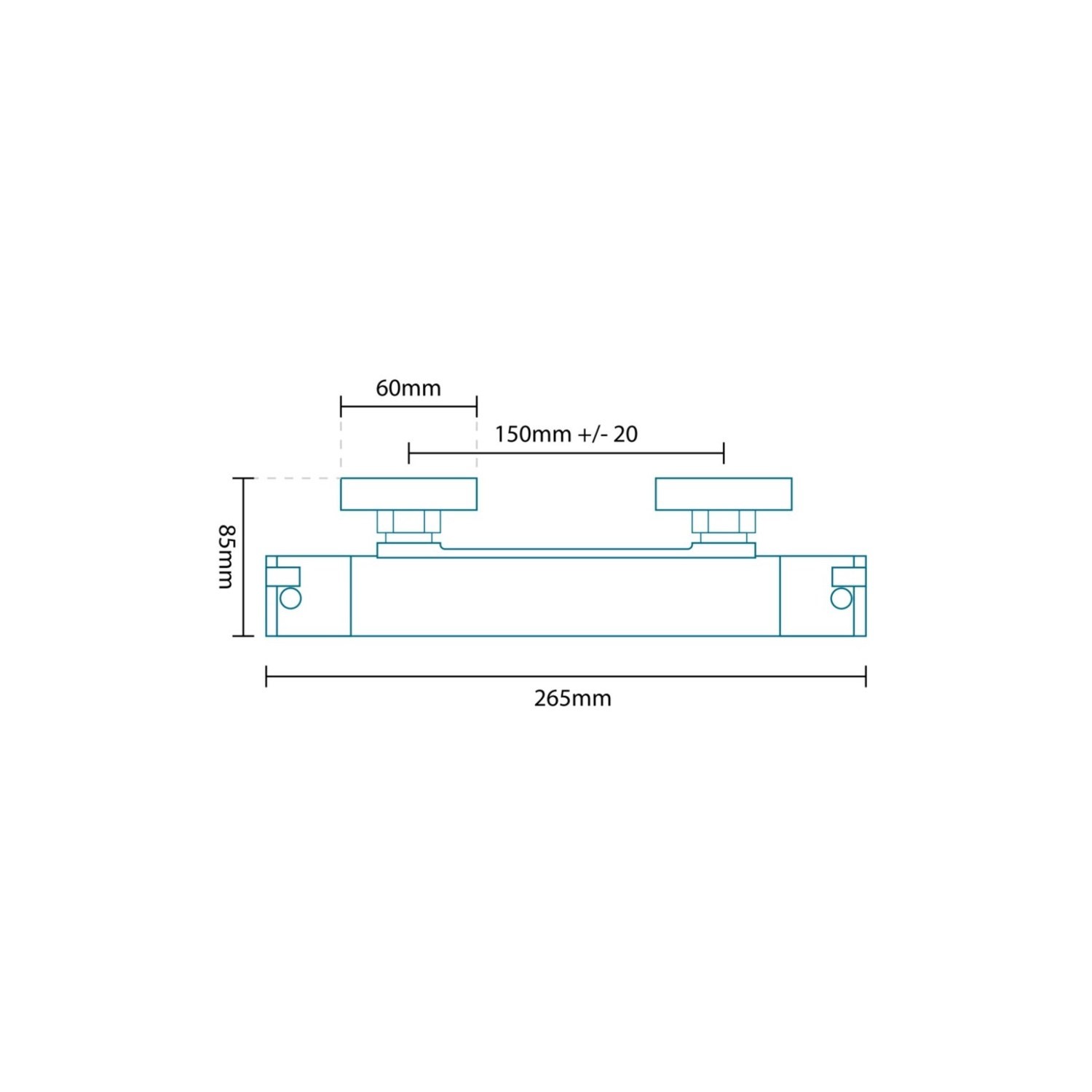

- Pipe fixing centres at 150mm +/- 20mm
- Mixed water bottom outlet
- Hot water feed inlet on the left when water outlet on the bottom of the valve
- Cold water supply temperature 4 - 20°C
- Suitable for water systems between 0.5 and 4 bar pressure
- Hot water supply temperature 55 - 85°C
- Suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
- Built in anti-scald device
- Suitable for combi boiler systems
- Suitable for unvented mains pressures systems
- Suitable for shower pumps
