Vision Riser Slide Shower Rail Kit with Minimalist Deluxe Valve BUN/BeBa_6689/71167

Quickfind code: 1363072
Save £24.2
£99.99
or £4.80 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • 1/2 exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

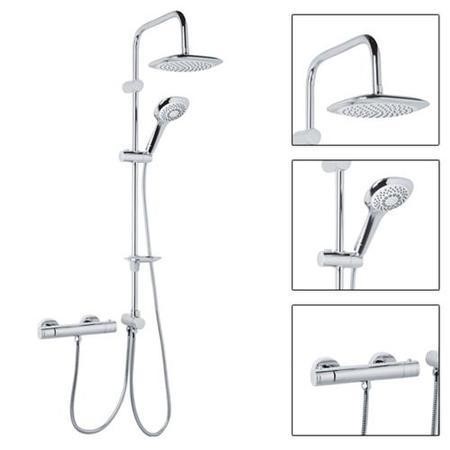

Vision Riser Slide Shower Rail Kit with Minimalist Deluxe Valve

Summary

The Vision riser rail kit with minimalist valve is a stunning shower solution for any modern bathroom. A 200mm shower rose and a 5 function handset offer a range of showering options and it can be used in conjunction with both bar valves and concealed valves

Download PDF View This Product's Installation Instructions

Features

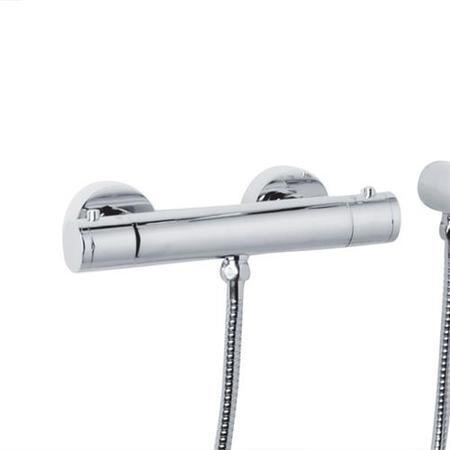

Minimalist Valve

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 29°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti scald device
  • Suitable for gravity fed systems (subject to a minimum 0.5 bar pressure)
  • Suitable for combi boiler systems
  • Suitable for invented mains pressure systems
  • Suitable for shower pumps

Dualex Riser Rail Kit

  • Length of riser rail kit: 1000mm
  • Depth of riser kit: 380mm
  • Tube diameter: 22mm

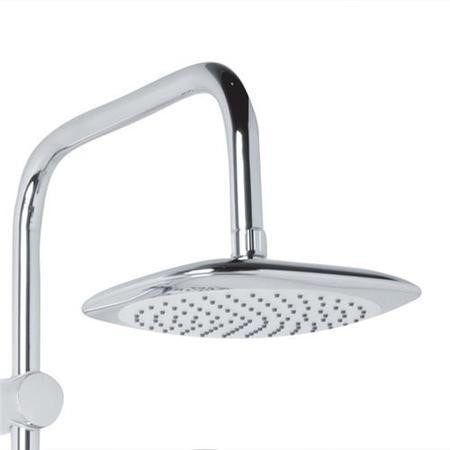

  • Overhead shower rose dimensions: 200mm x 200mm
  • Adjustable wall fixing brackets (Ideal for replacing Existing Slide Rail Kit)
  • 3 way diverter
  • Length of shower hose: 1500mm
  • Length of small hose: 800mm

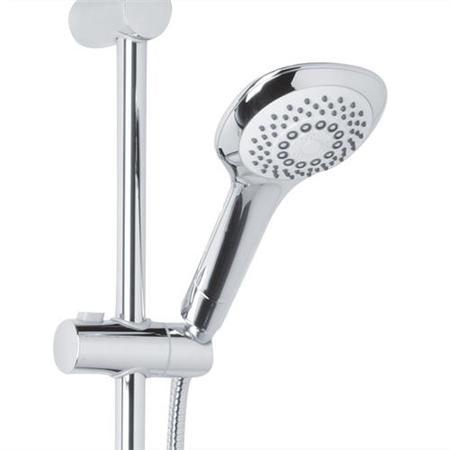

  • Auto Lock sliding shower head holder
  • Hand held shower head diameter: 100mm
  • Easy clean shower head nozzles
  • Round Dish
  • Number of functions on handset: 5
    - Spray
    - Massage
    - Mist
    - ECO Spray
    - Pause
  • Pressure Rquirements
    - Min 1.0 Bar
    - Max 5.0 Bar
    - Suitable for Combi Boiler Systems
    - Suitable for gravity fed systems - shower pump requred
    - Suitable for unvented mains pressure systems
  • Materials Specification: Chrome Finish

Item Code:
BUN/BeBa_6689/71167

Please Note: All sizes are approximate and should be used for guidance only.



Questions & Answers

Question from Lisa Lilley: Asked on 07/08/2017 Is spares available for this item?

Answer from Nathan Donley-McGregor Hello.

Thank you for your question.

Yes we do supply the spares for this item.

If you call 0161 667 6560 we can discuss the spares.

Regards.

Question from Alex: Asked on 05/12/2016 Hi I have purchased this item and the temperature I'm getting from it is tepid at best, how can I alter this to get more heat?

Thanks

Answer from chris thomas Hi,

Thank you for your question.

it could be a number of factors affecting it either installed uncorrectly or possibly a fault on the thermostat its bect you speak with our customer service so they can hopefully pin point the issue 01925 544 861

If you need any more info or wish to place an order please contact me using the details below.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Jason: Asked on 01/05/2016 How do you switch between the two heads?

Answer from Nathan McGregor Hello.

Thank you for your question.

There is a diverter on the bottom of the rail kit which diverts to either shower head.

If you have any more questions please call our sales team on 0161 667 6560.

Regards.
