Vision Riser Slider Shower Rail Kit with Square Valve BeBa_9793

Quickfind: 1353110 SKU: BeBa_9793

Product Information

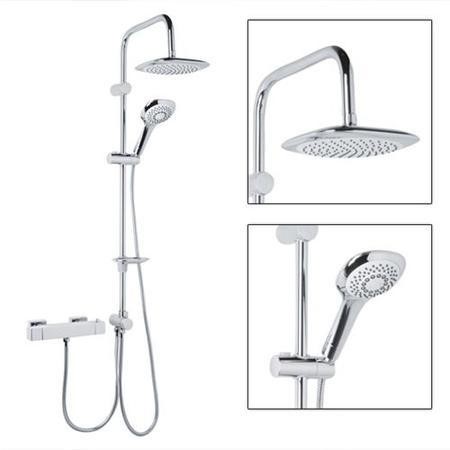

Vision Riser Slider Shower Rail Kit with Square Valve

Summary

The Square bar shower valve offers thermostatic showering with two easy to operate controls. One handle operates the on and off flow control whilst the other allows temperature selection. The Vision riser rail kit is a stunning shower solution for any modern bathroom. A 200mm shower rose and a 5 function handset offer a range of showering options and it can be used in conjunction with both bar valves and concealed valves.

Download PDF View This Product's Installation Instructions

Features

Square Shower Valve

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed watter bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 29°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressure systems
  • Suitable for shower pumps

Vision Slide Rail kit

  • Length of rail kit: 1000mm
  • Depth of riser kit: 380mm
  • Tube diameter: 22mm

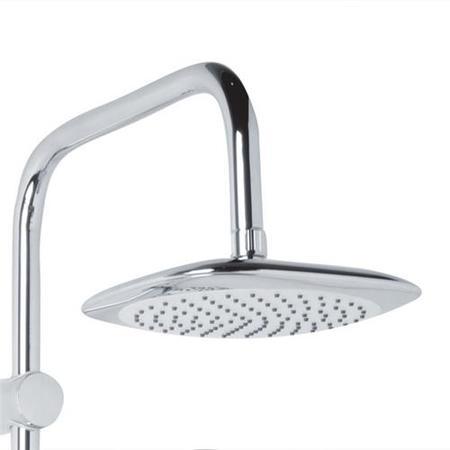

  • Overhead shower rose dimensions: 200mm x 200mm
  • Adjustable wall fixing brackets (ideal for replacing existing slide rail kit)
  • 3 way diverter
  • Length of shower hose: 1500mm
  • Length of small hose: 800mm
  • Auto lock sliding shower head holder

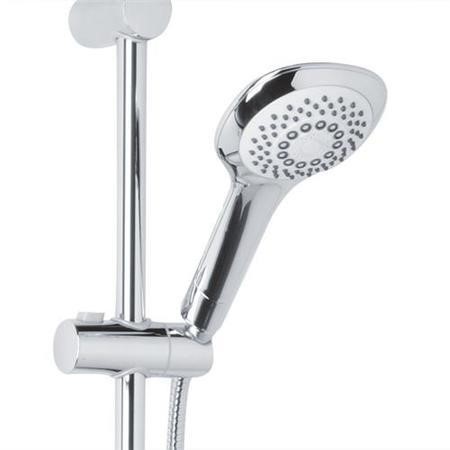

  • Hand held shower head diameter: 100mm
  • Easy clean shower head nozzles
  • Round soap dish
  • Number of functions on handset:5
    • - Spray
    • - Mist
    • - Massage
    • - ECO Spray
    • - Pause
  • Pressure Requirements:
    • - Min 1.0 Bar
    • - Max 5.0 Bar
    • - Suitable for combi boiler systems
    • - Suitable for gravity fed systems – shower pump required
    • - Suitable for unvented mains pressure systems
  • Materials Specification: Chrome Finish
  • Excludes shower elbow

Item Code:
BeBa_9793

Please Note: All sizes are approximate and should be used for guidance only.
