Vision Multi Function Riser Slide Shower Rail Kit BeBa_15645

Quickfind code: 1360000
£73

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Length of riser rail kit: 1000mm
  • Depth of riser rail kit: 380mm
  • Tube Diameter: 22mm
  • Overhead shower rose diameter: 200mm x 200mm
  • Length of shower hose: 1500mm
More Info »
1 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

Vision Multi Function Riser Slide Shower Rail Kit

Summary

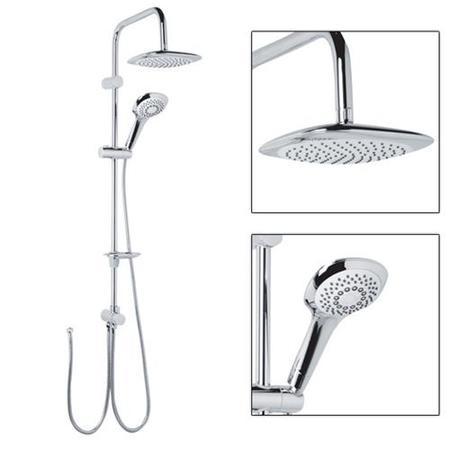

The Vision riser rail kit is a stunning shower solution for any modern bathroom. A 200mm shower rose and a 5 function handset offer a range of showering options and it can be used in conjunction with both bar valves and concealed valves

Download PDF View This Product's Installation Instructions

Features

Slide Rail/Riser Kit

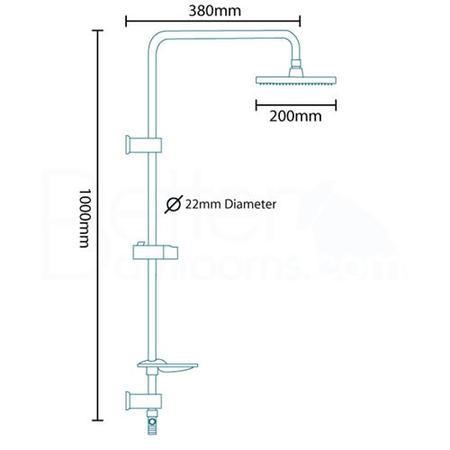

  • Length of riser rail kit: 1000mm
  • Depth of riser rail kit: 380mm
  • Tube Diameter: 22mm

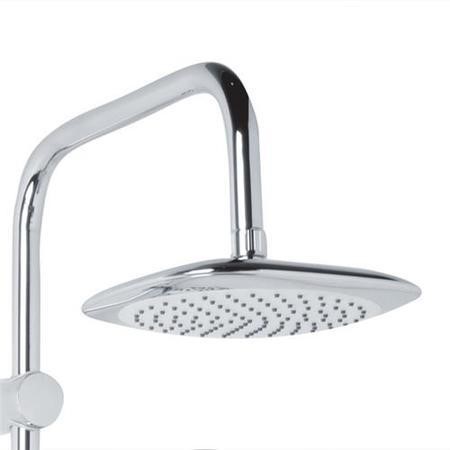

  • Overhead shower rose diameter: 200mm x 200mm
  • Length of shower hose: 1500mm
  • Length of small hose: 800mm

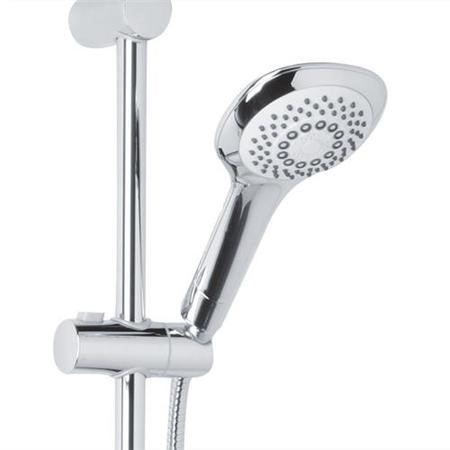

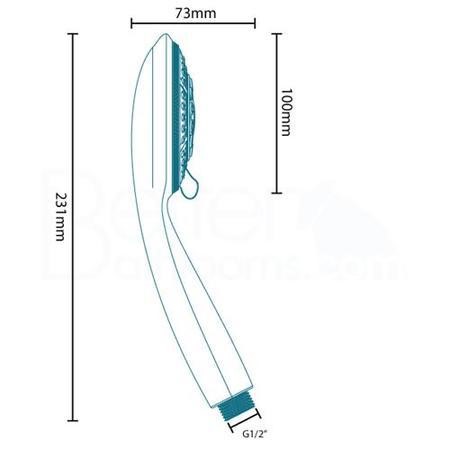

  • Hand held shower head diameter: 100mm
  • Features:

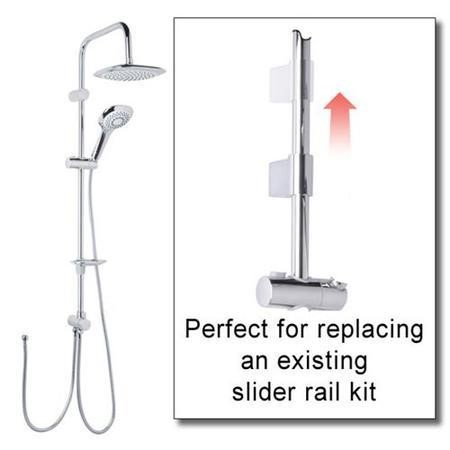

    - Adjustable wall fixing brackets (ideal for replacing existing slide rail kit)

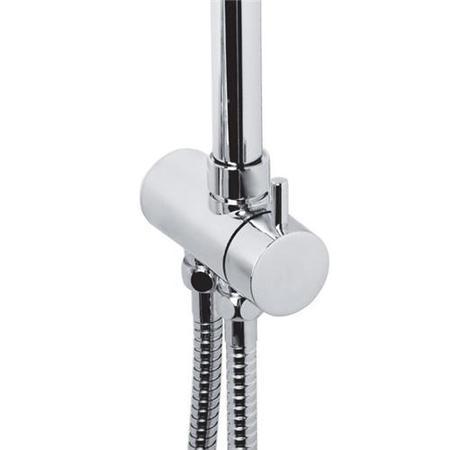

    - 3 way diverter
    - Auto lock sliding shower head holder
    - Easy clean shower head nozzles
    - Round soap dish
  • Finish: Chrome
  • Excludes: Outlet elbow – see additional items, required for use with a concealed valve.
  • Number of functions on handset: 5
    - Spray
    - Mist
    - Massage
    - ECO spray
    - Pause
  • Pressure Requirements
    - Min 1.0 Bar
    - Max 3.0 Bar
    - Suitable for combi boiler systems
    - Suitable for gravity fed systems - shower pump required
    - Suitable for unvented mains pressure systems

Item Code:
BeBa_15645


Questions & Answers

Question from John : Asked on 09/06/2018 Is this product suitable for an electric shower if not do you do a smiler one for an electric shower

Answer from glenn yes that be fine for a electric shower if you would like to order my name is glenn contact number is 0161 667 6560

Question from Clare Young: Asked on 22/05/2018 Does this shower kit come with the diverter?

Answer from chris Hi,

The diverter is built into it

Question from Cass: Asked on 07/05/2018 Hi! is it s thermostatic shower?

Answer from Peter Hi,

this is just a riser kit and doesn't include a valve .

its the valve that would make it thermostatic .

if you wish to order send me a email Nathan.dunstan@betterbathrooms.com or
call 0161 667 6560
many thanks

Question from Naz: Asked on 16/05/2017 Hi
Does the big round shower head tilt back forth left and right?

Answer from nathan Hi,

yes it can be tilted or angled .

if you wish to order please call

0161 667 6560

many thanks

Question from Marcin: Asked on 22/03/2017 Hello
Can it be connected to the electric shower e.g. Mira or Triton?

Answer from chris thomas Hi,

Thank you for your question.

unfortunately these are not compatible

If you need any more info or wish to place an order please contact me using the details below as i can check stock levels and allocate stock faster to you.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Mark Rickard: Asked on 14/11/2016 I want a kit like the vision 9788 to fit to my existing bar valve but I'm extremely limited on headroom.
Is there either another setup or can this head be reduced to the minimum like the square riser 9439?

Answer from chris thomas Hi,

Thank you for your question.

you could essentially reduce it but any modifications to appliances do void your warranty so hard to say

If you need any more info or wish to place an order please contact me using the details below.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from D: Asked on 10/11/2016 Can this be used with an electric shower, Thanks

Answer from chris thomas Hi,

Thank you for your question.

these should only be used with the kit that is provided as it will just blow the heating element in the shower using a different kit.

If you need any more info, delivery dates or would like to place an order, please contact me using the details below.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Roland Caller: Asked on 30/06/2016 Hi, Can this be fitted to an electric shower?

Answer from Anthony Hi,

Thank you for your question.

I am afraid not, this can only be installed on to a bar shower running from your central heating system.

Kind Regards

Question from Gail Freeman-Bell: Asked on 10/05/2016 Do the wall mounting brackets fit with one screw or two?

Answer from Nathan McGregor Hello.

Thank you for your question.

This needs two screws to secure it correctly.

If you have any other questions please call our team on 0161 667 6560.

Regards.

Question from Eugene: Asked on 09/05/2016 Can this product be used with an electric shower?

Thanks

Answer from Nathan McGregor Hello.

Thank you for your question.

Due to the flow rate needed this would not be suitable for an electric shower.

If you have any more questions please call our sales team on 0161 667 6560.

Regards.

Question from Ros Morris: Asked on 09/10/2015 Hi was wondering for £66.00 will I get a shower that works properly. Because the one I received both heads come on together

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

I do apologise for this inconvenience. I can only imagine it was a faulty item, if you give us a call on 0333 777 4777 option 2 and one of our after sales representatives will be able to deal with the issue for you.

Kind regards.

Question from Me: Asked on 17/07/2015 Can this be used on an electric shower?

Answer from Jamie Hi,

Thank you or your question we would not advise using this with an electric shower because although the riser kit would fir the pressure tat the electric shower would produce would not be enough for this to work effectively. If you have any further questions please feel free to give us a call on 0161 667 6560.

Question from John mc caughey: Asked on 11/07/2015 Hi I have a Mira vigour power shower would I be able to fit this shower riser to it

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

Theoretically speaking, you will be able to connect this rail kit to your shower, as it tends to be an industry standard fitting, however I would make sure that your shower system has enough power to be compatible with this item.

Kind regards.

Question from Robyn: Asked on 06/07/2015 Hi, can this be attached to an electric shower?

Answer from Peter Hi, no this should not be attached to an electric shower under any circumstances. This is for suitable for gravity fed systems (which a pump may be required) and also combi boilers.

Question from Chris Cowle: Asked on 27/02/2015 In answer to an earlier question you say just Handset, Rail and Shower Head supplied but your diagrams and text show a diverter, hoses and brackets. Suggest a list of components. Will order I have a reply. Thanks

Answer from Matt Clarke Hi,

There is a diverter to send water from the main head or divert to the rinser (smaller secondary head). Everything You see in the first picture of the product is what's included.

If you need any other help please call us on 0161 667 6560.

Regards

Question from Ed: Asked on 02/02/2015 Is this suitable for electric shower?

Answer from jonathan hi thank you for your question, this wouldn't replace an existing electric shower however you can swap this over if you have the boiler/water pressure to do so however you would need to speak to your installer about whether you can do this. I hope this information was useful however you can get into touch with us on our store number which is 0161-667-6560.

kind regards

Question from Chris: Asked on 01/02/2015 Will this connect to an existing electric shower? If so, are all the connectors included?

Answer from matt clarke Hi,

Yes this will connect to an electric shower. Yes they are included.

Regards

Question from John: Asked on 04/12/2014 Why does this product require a shower pump will it not work off existing water pressure?

Thanks

Question from John : Asked on 22/09/2014 Can you connect this to a power shower if I remove the single shower head

Answer from rob Hi

No we wouldn't recommend doing that with the shower unit

Question from John: Asked on 06/08/2014 Would like similar but need a height of circa 800mm. Any suggestions please?
Thanks

Answer from Matt Clarke Hi and thank you for your question,

Unfortunately we d not do an enclosure of that height.

Regards

Question from paul griffin: Asked on 19/07/2014 Can you cut the main rail , the end which fits into the 3 way divertor. because it says its 1000mm in length, I need it to be 850mm,

Answer from Nathan McGregor Hello.

I am afraid you can not cut them down as they are one whole piece.

Regards.

Question from Neda: Asked on 02/05/2014 How can I have just water from the shower head? Because I have just water from handset or both of them ( handset and shower head together), however i just want to use shower head.

Answer from Peter Hi there,

If you have purchased this product please contact our Customer Care/Technical Team on 0844 484 7678 option 2 and they will be able to advise further.

Kind Regards

Question from Nerinder: Asked on 16/04/2014 Is it possible to cut the riser rail to a smaller size say 900mm as the standard length 1000mm is too large for my cubicle?

Answer from Peter Hi

Its not something we would recommend cutting down we do however have other rial kits that are adjustable

Question from sian: Asked on 15/02/2014 When you say the finish is chrome, is it metal or plastic can you be a bit more specific thanks

Answer from Peter Hello.

The heads are made from high grade plastics and the rail and arm is made from solid brass with a chrome plating. Regards.

Question from Vin: Asked on 28/06/2013

Does this connect to an existing bath tap which has a shower on it?  Is the connector the standard size to replace an existing shower cable and head?

Answer from Mike B

This would be suitable to connect to a Shower Mixer Tap, or alternatively, it can be connected to a Shower Valve.

Question from Ash: Asked on 12/10/2012

Hi



What do I get for £66? Do I get the whole thing, as in will i get the shower, the taps, the shower bar?

Answer from Mike B

Hi there,



This price includes the Handset, Slide Rail and Pivot Shower Head. It doesn't include any form of Valve, which would be necessary for this to work correctly.
