Black Single Outlet Thermostatic Mixer Shower with Hand Shower - Zana

SKU: BUN/BeBa_27180/78067 Quickfind Code: 1542537
Save £17
Why buy me

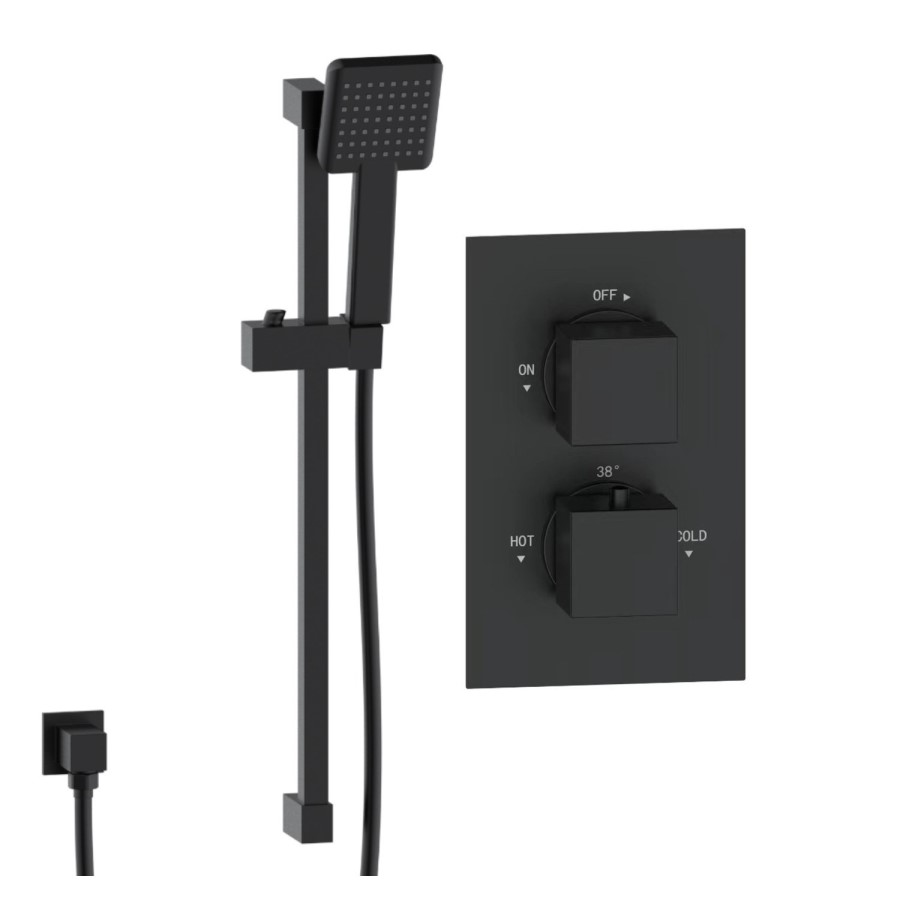

  • Thermostatic 1 outlet mixer shower set with a modern square styling and matt black finish
  • Includes a concealed valve, adjustable slide rail kit and square handset.
  • One handle controls the temperature, while the other controls the water flow.
  • High-quality brass construction ensures durability and long-term beauty.
  • Pressure requirements min 0.5 bar, max 3.0 bar
3 year warranty

Features we love

  • Modern shower rail kit with a matt black finish
  • One outlet concealed valve in the matching finish
  • Comes with matching wall outlet elbow
  • Minimalistic design with modern square shower head
  • Pair with products from our Zana range

All about me

Featuring a contemporary square design, the Zana matt black slide rail kit and matching valve will be perfect for any style of bathroom. For ease of use, the shower head is adjustable in height which allows for more flexible bathing to suit everyone’s needs. Both stylish and practical the Zana matt black slide rail kit is sure to enhance your bathing experience. An elbow is included for the complete kit.

Need to know - valve

  • Number Of Outlets: 1
  • Style: Modern
  • Dimensions: H160.5 x W130 x D134.5 mm
  • Valve Accessibility: Easily accessible check valve
  • Temperature: Pre-set 38°C, with push button override to 48°C
  • Function: Automatic shut-off in the event of hot or cold water supply failure
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 9.9 litres)
  • Max Recommended Pressure: 3 bar (flow rate of 24.6 litres)
  • Weight: 2.25kg
  • Material: Brass, zinc, stainless steel
  • Valve Type: Concealed
  • Outlet Size: G 1/2"
  • Inlet Size: G 3/4"
  • BS or European Standards: EN1111
  • Finish: Matt Black
  • Features: Thermostatic Cartridge
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
  • Warranty: 3 years

Need to know - rail kit

  • Length of riser rail kit: 610mm
  • Depth of riser rail kit: 57.5mm
  • Shower head dimensions: H100 x W95mm
  • Length of shower hose: 1500mm, pvc smooth hose
  • Elbow size: H30 x W30 x D30mm
  • Weight: 0.949kg
  • Material: Brass, stainless steel, ABS
  • Finish: Matt black
  • Recommended minimum pressure: 0.3 bar (flow rate of 3.9 litres)
  • Recommended maximum pressure: 3.0 bar (flow rate of  11.5 litres)
  • Inlet size: G1/2"
  • Suitable for: Combination boiler systems, gravity fed systems (may need to be pumped), unvented mains pressure systems
  • BS or European Standards: EN1111 & EN817
  • Warranty: 3 years
Dimensions and Weight
Depth 134.5mm
Height 160.5mm
Weight 2.25kg
Need To Know
Shower Type Mixer
Installation Type Concealed
Temperature control Thermostatic
Outlet 1 Outlet
Shower Head Mounting Type N/A
Colour Black
Finish Matt
Material Brass
Style Modern
Shower Head shape Square
Warranty 3 years
Adjustable height Slide Rail Kit
Water Pressure
Maximum Water Pressure (Bar) 3.0 bar
Minimum Water Pressure (Bar) 0.5 bar
