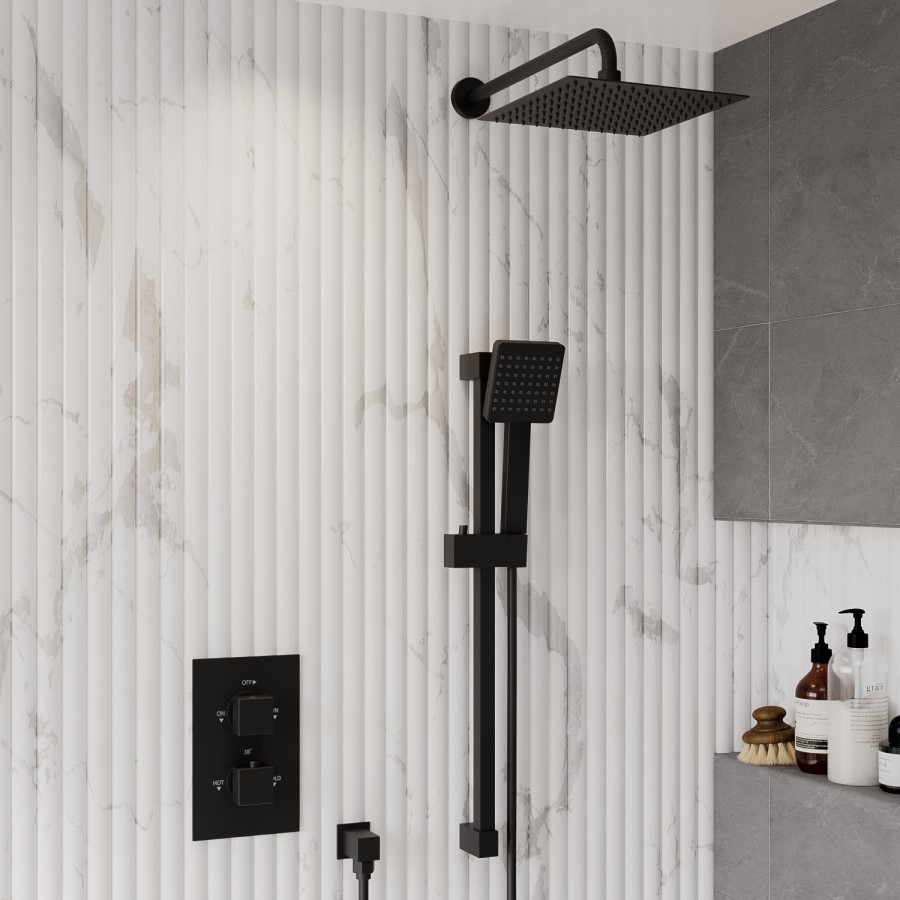

Black Dual Outlet Wall Mounted Thermostatic Mixer Shower with Hand Shower - Zana

SKU: BUN/BeBa_27181/78072 Quickfind Code: 1542543
New
Save £25
£249.97
Product options
Select your shower head arm type:
Why buy me
  • Thermostatic 2 outlet mixer shower set with a modern square styling and matt black finish.

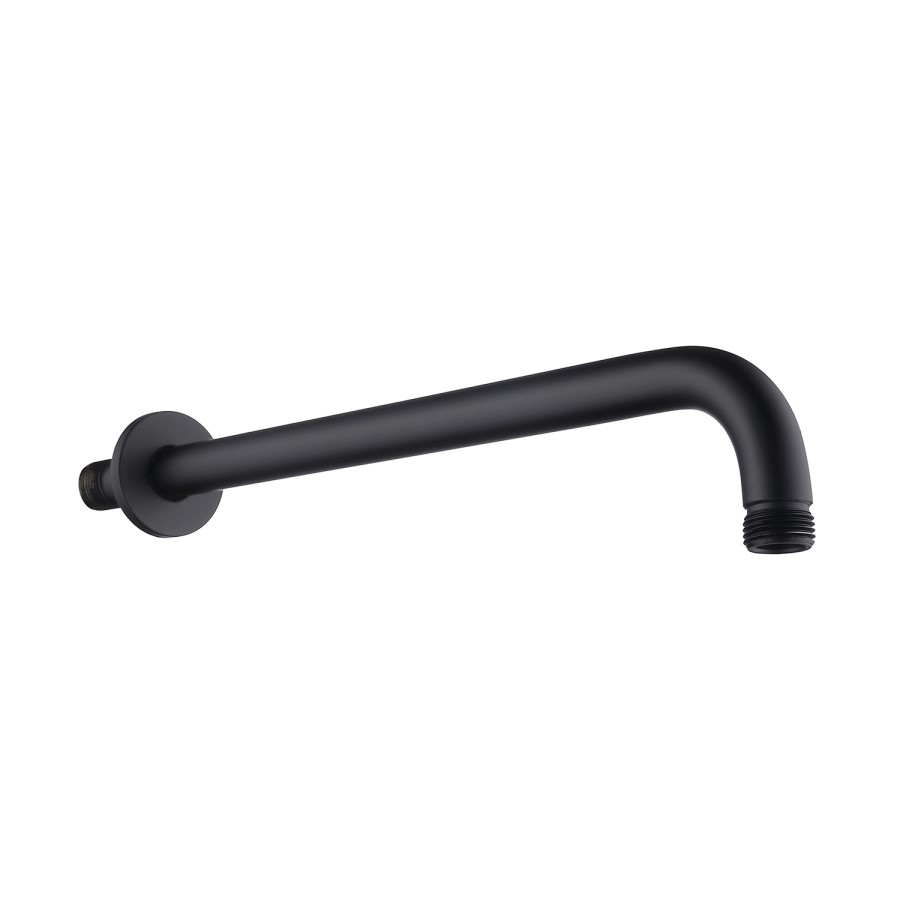

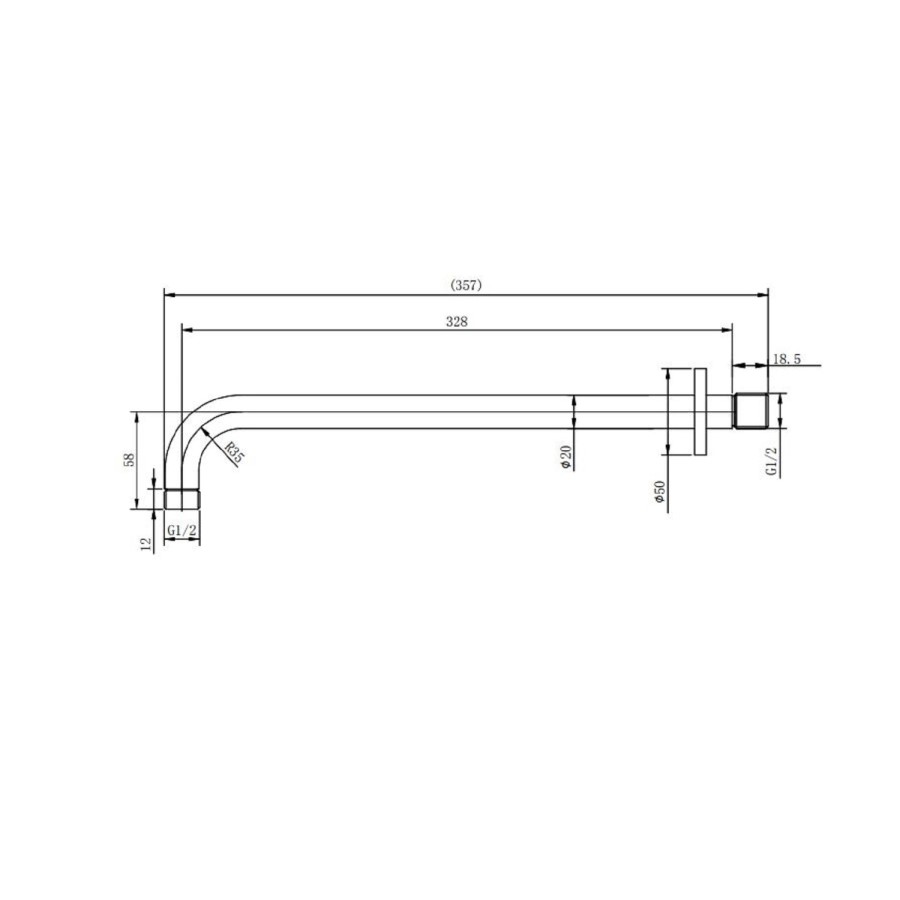

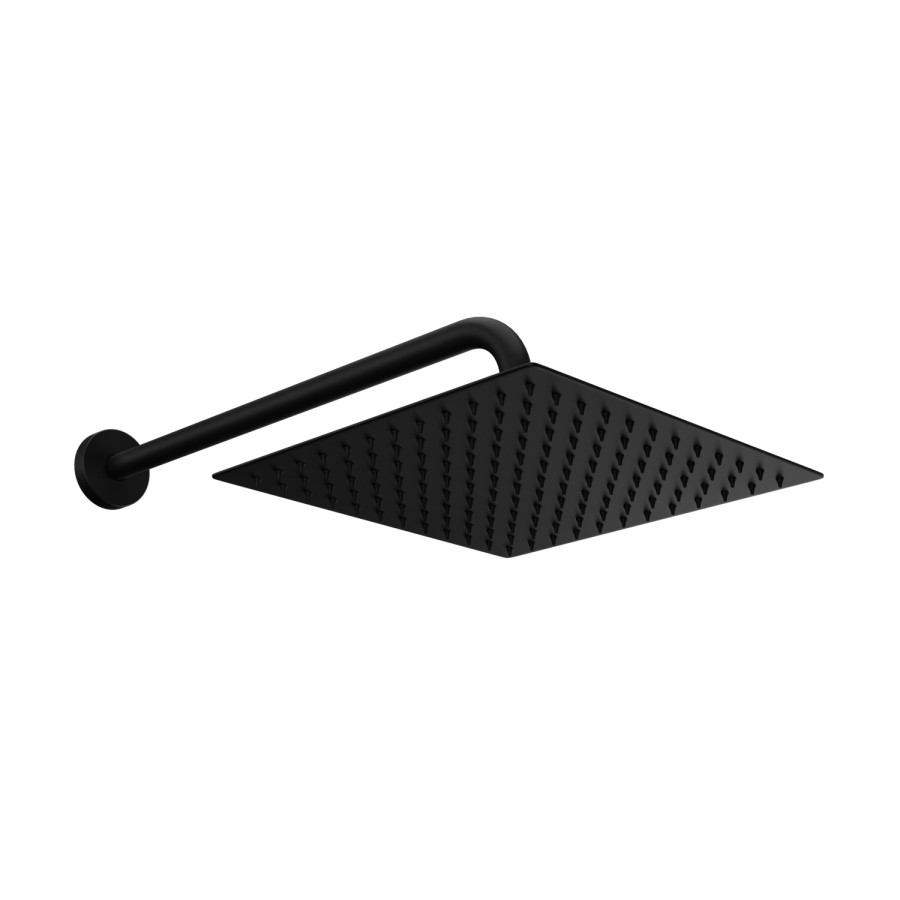

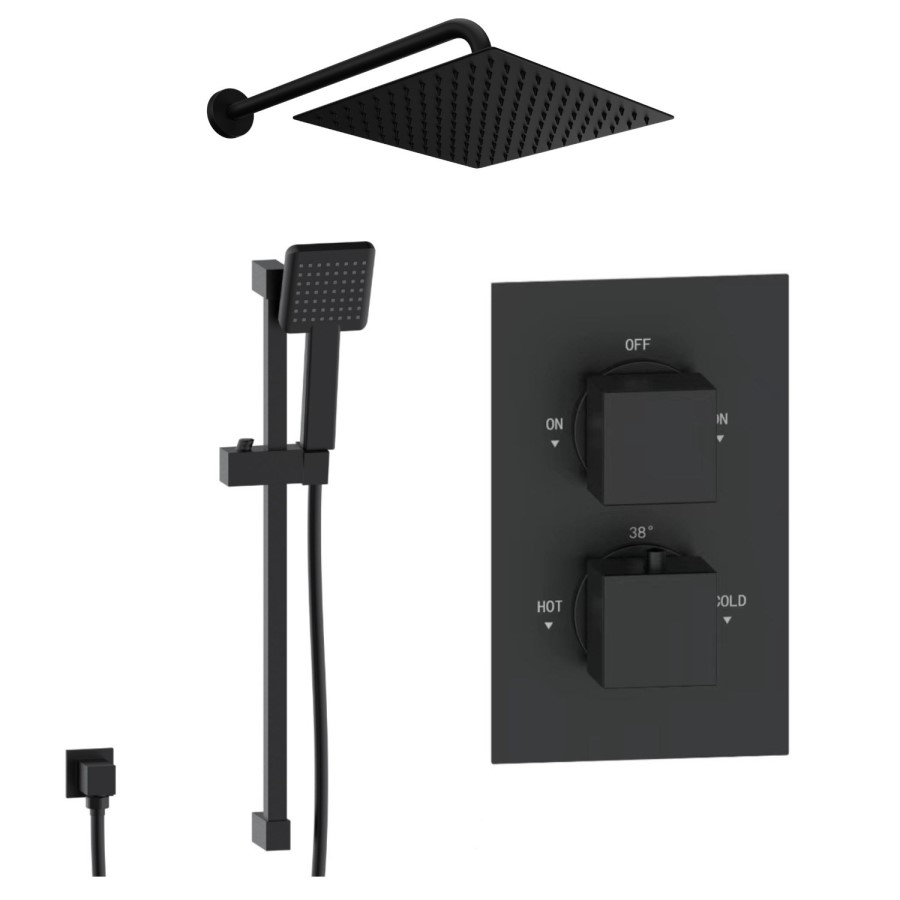

  • Includes a concealed valve, wall arm, 250mm shower head and adjustable slide rail kit with handset.
  • One handle controls the temperature, while the other controls the water flow.
  • High-quality brass construction ensures durability and long-term beauty.
  • Pressure requirements min 0.5 bar, max 5.0 bar
3 year warranty
click

All about me

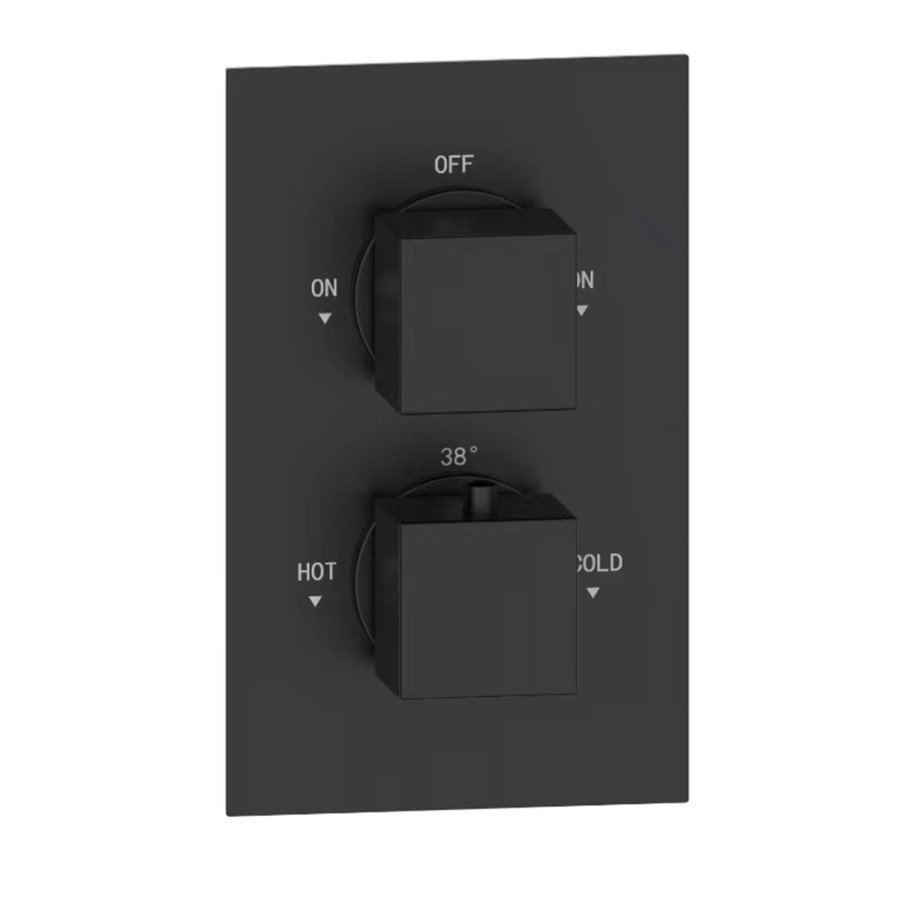

This Zana Matt Black Dual Control bundle adds a sleek minimalistic touch to any shower. With a modern matt black finish, this valve will suit most of our shower sets to help you build your ideal suite. It has an automatic shut-off in the event of either hot or cold water supply failure. The pre-set temperature is 38 degrees, with a push-button override to 48 degrees. This valve is also suitable for combination boilers, pressurized systems, pumped systems, and gravity-fed systems (which may require a pump).

Need to know

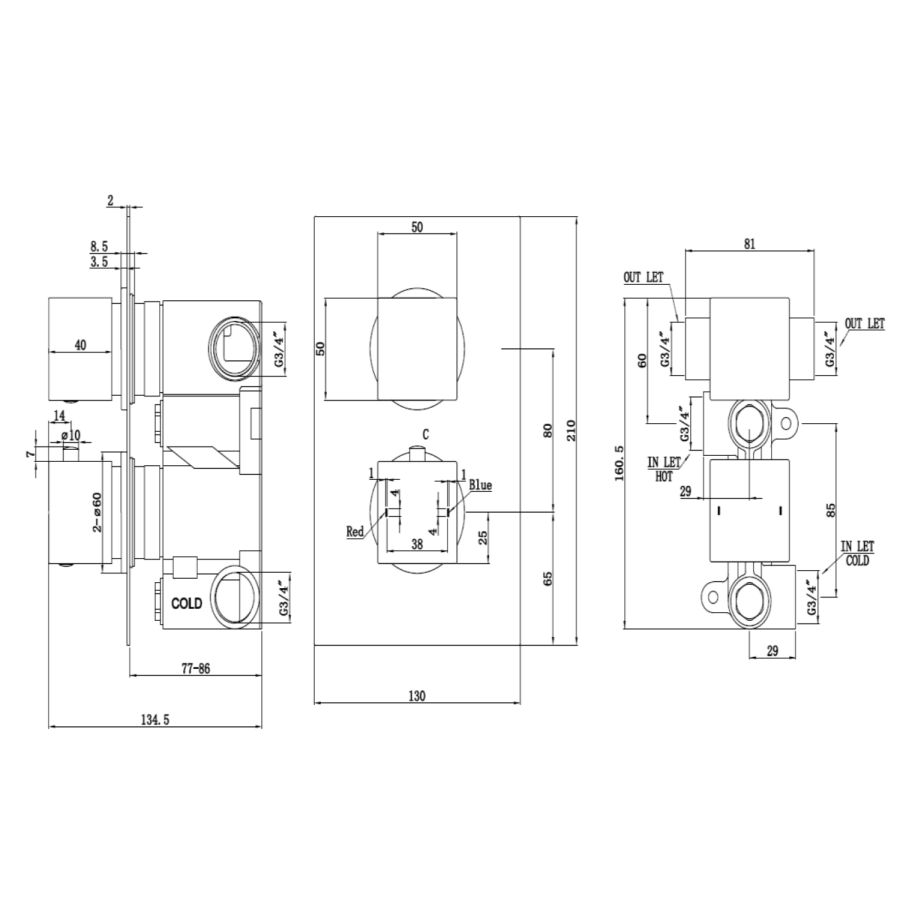

  • Valve Dimensions: H160.5 x W130 x D134.5 mm

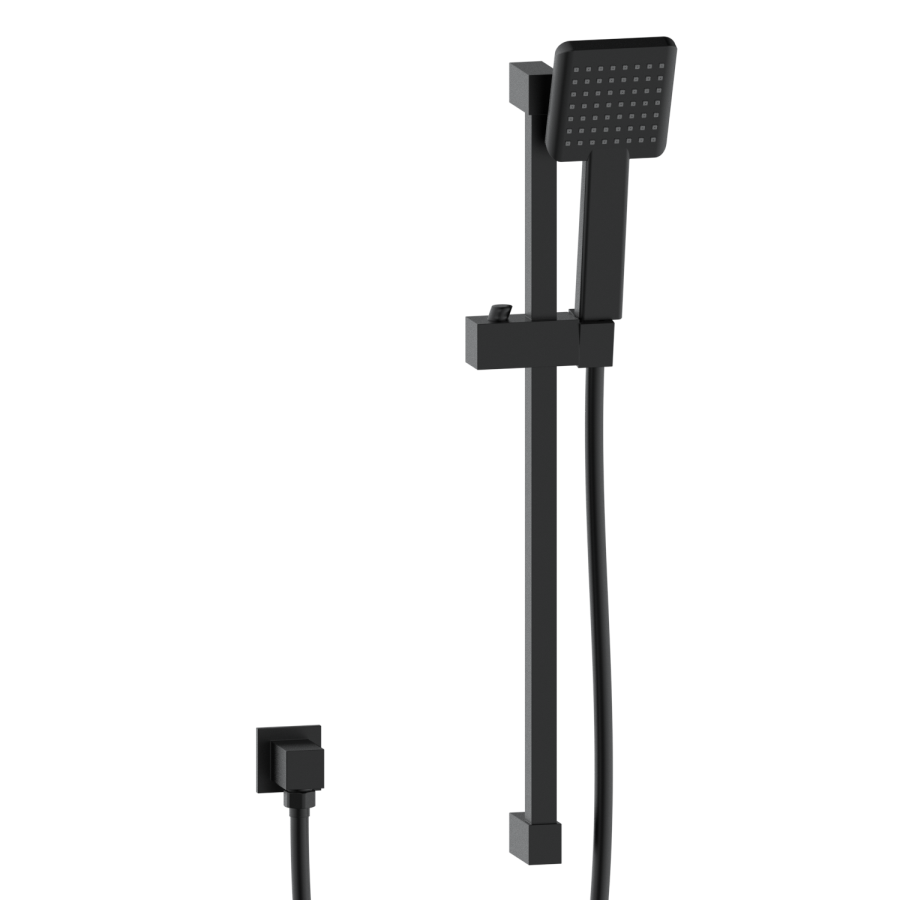

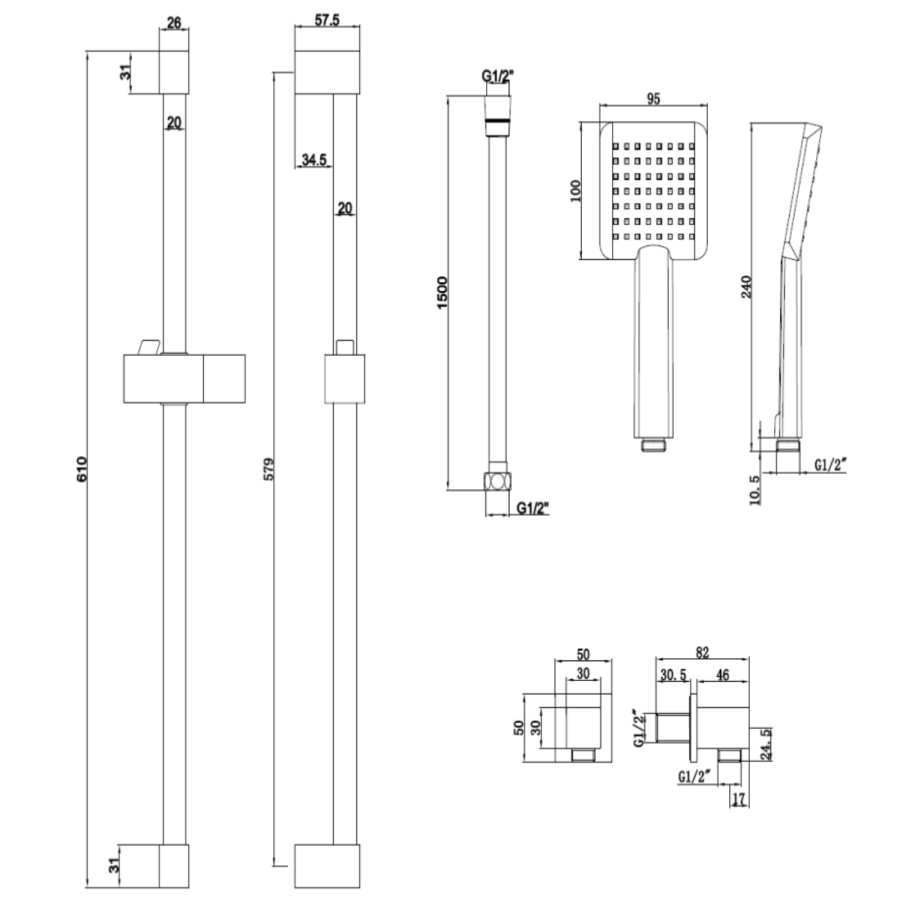

  • Rail Kit Dimensions: H610 x W22 x D132mm

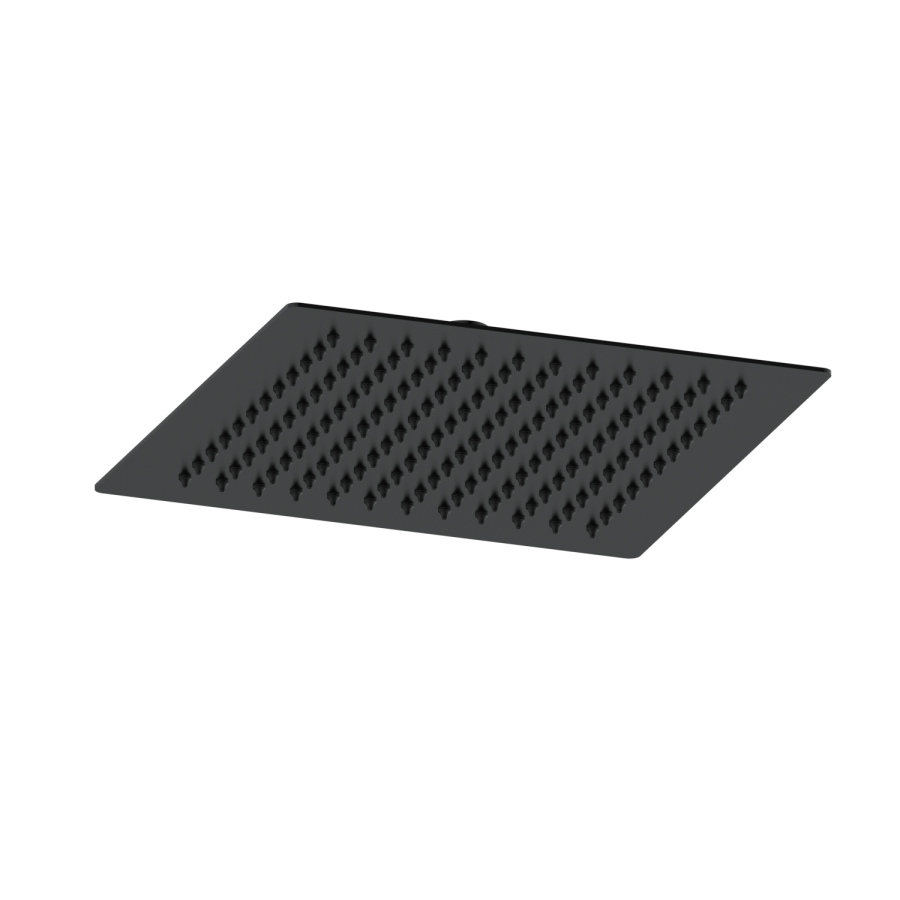

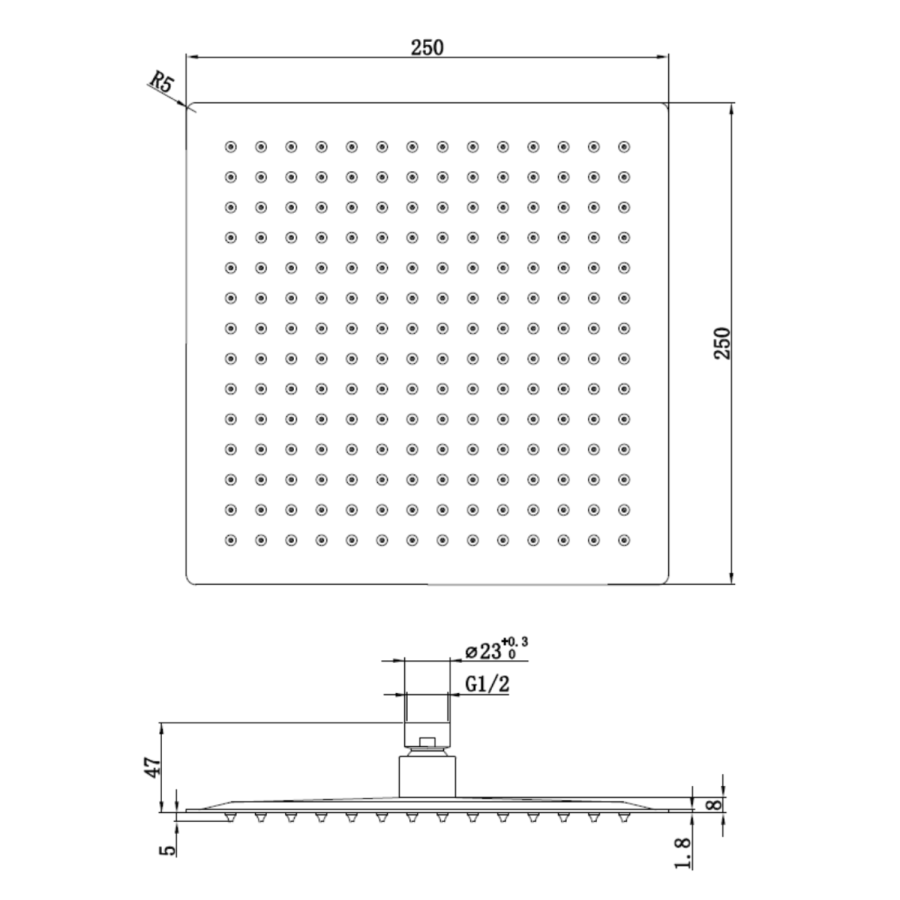

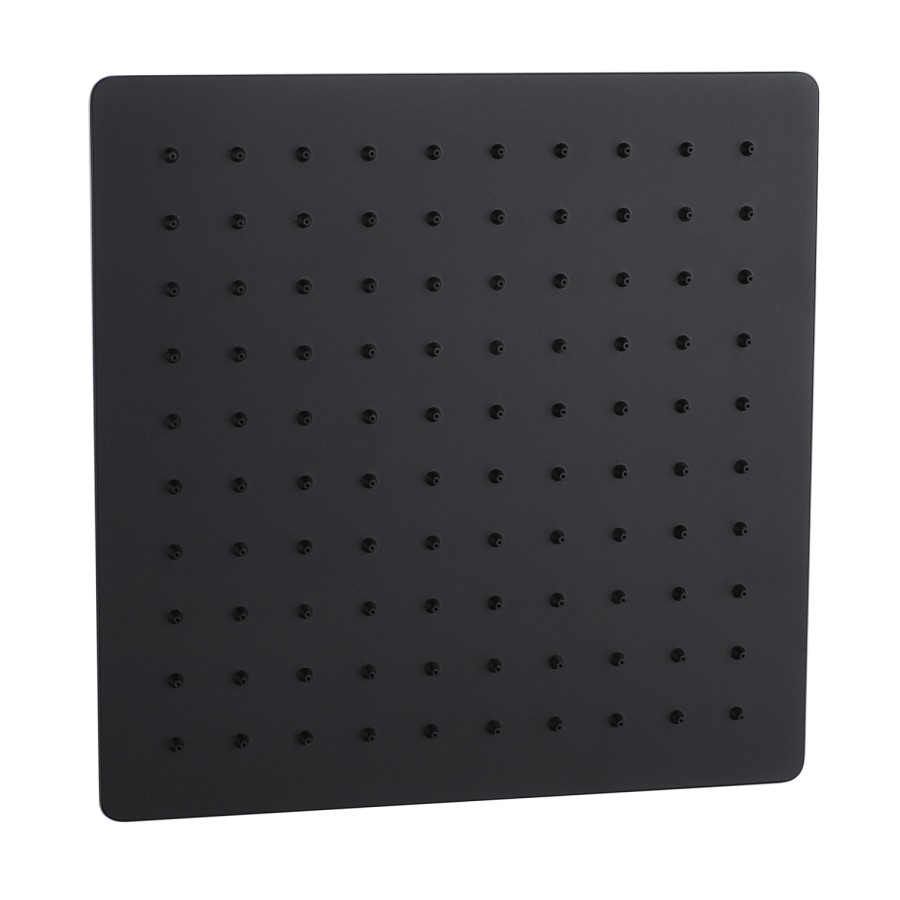

  • Square Head Dimensions: H250 x W250mm
  • Hose Length: 1.5m
  • Valve weight: 2.369kg
  • Material: Brass
  • Shower Finish: Matt Black
  • Shower Shape: Square
  • Shower Head Spray Pattern: Adjustable handset holder and rainfall
  • Valve warranty: 3 years
  • Rail Kit warranty: 1 year
  • Head & Arm warranty: 1 year
  • Valve Min Pressure & Flow Rate: 0.5 bar (flow rate of 9.9 litres)
  • Valve Max Recommended Pressure: 3 bar (flow rate of 24.6 litres)
  • Rail Kit Min pressure requirements: 0.8 bar
  • Rail Kit Max pressure requirements: 3.0 bar

Dimensions and Weight
Depth 134.5mm
Height 210mm
Weight 2.369kg
Need To Know
Shower Type Mixer
Installation Type Concealed
Temperature control Thermostatic
Outlet 2 Outlet
Shower Head Mounting Type Wall Arm
Colour Black
Finish Matt
Material Brass
Style Modern
Shower Head shape Square
Warranty 3 years
Diverter
Adjustable height Slide Rail Kit
Flow Rates (Litres Per Minutes)
0.2 Bar Flow Rate 6.5
0.5 Bar Flow Rate 10
1.0 Bar Flow Rate 14
2.0 Bar Flow Rate 19.8
3.0 Bar Flow Rate 24
Water Pressure
Maximum Water Pressure (Bar) 5.0 bar
Minimum Water Pressure (Bar) 0.3bar
Handset Flow Rates (Litres Per Minutes)
0.2 Bar Flow Rate - Handset 6.7
0.5 Bar Flow Rate - Handset 10
1.0 Bar Flow Rate - Handset 14
2.0 Bar Flow Rate - Handset 19.8
3.0 Bar Flow Rate - Handset 24
Handset Water Pressure
Min pressure - Handset 0.2
