Quatro Rectangular Shower Cabin with Aqua White Back Panels - 1200 x 800mm BUN/BeBa_S8453-120-GLASS/73631

Quickfind code: 1365536
or £11.40 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 1200mm
  • Projection: 800mm
More Info »
10 Year Warranty
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.


Popular Bundles

Product Information

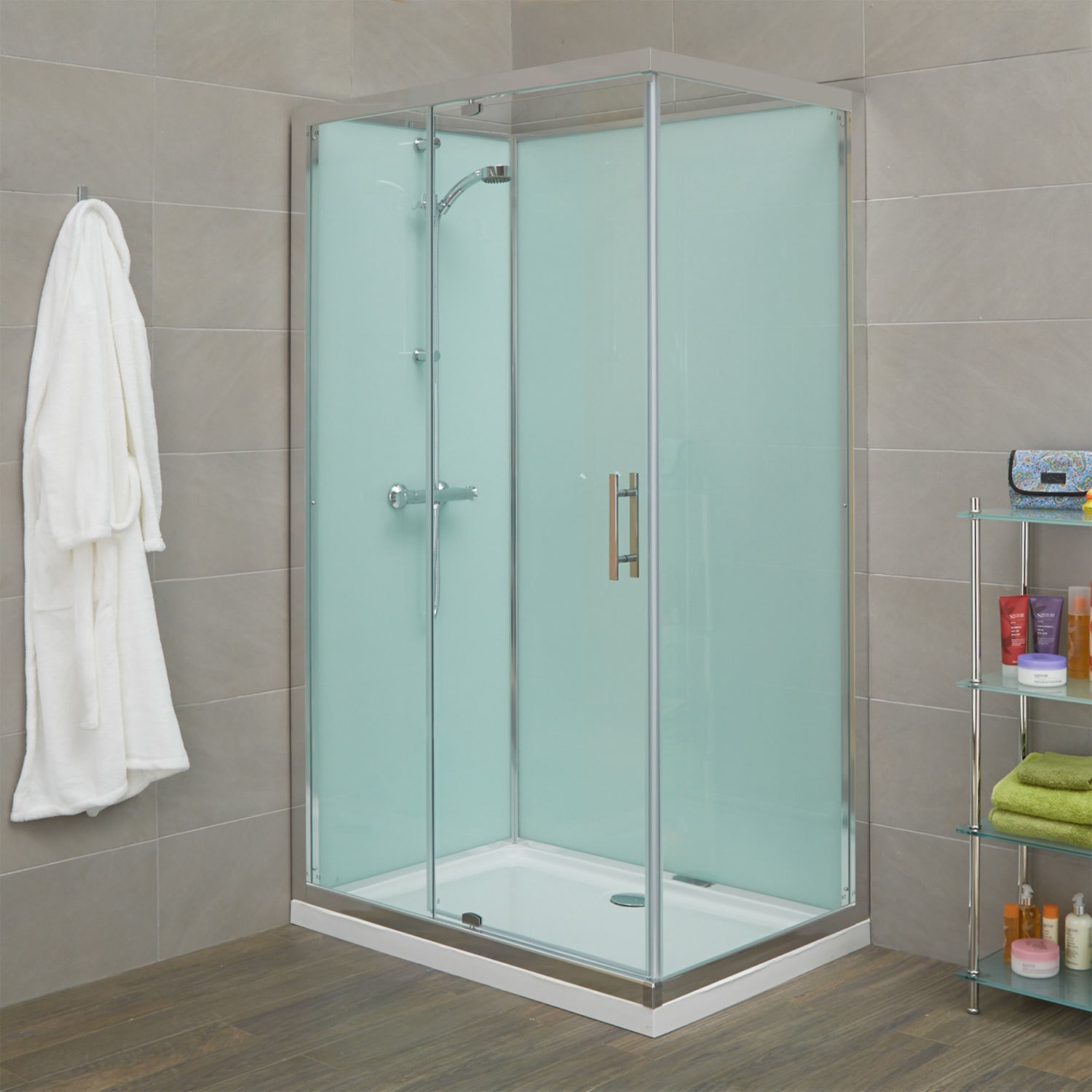

1200 x 800 Quatro Shower Cabin with Aqua White Back Panels


The 1200mm Quatro Shower Cabin is a beautifully designed and expertly crafted showering solution. 2 aqua white back panels eliminate the need for tiling and come pre-drilled for the Fast Fit Bracket and slide kit provided. Assembly and installation can be carried out with ease and the 1200 x 800mm rectangular tray provided is made from high quality acrylic. Other features include CE approved glass and easy clean quick release doors. Also available with black back panels.

Download PDF View This Product's Installation Instructions

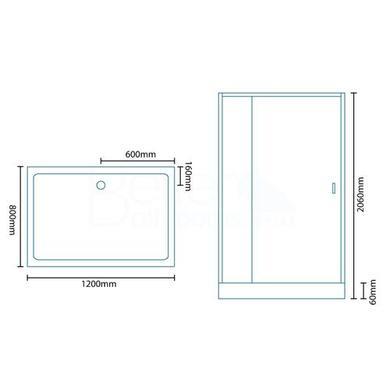

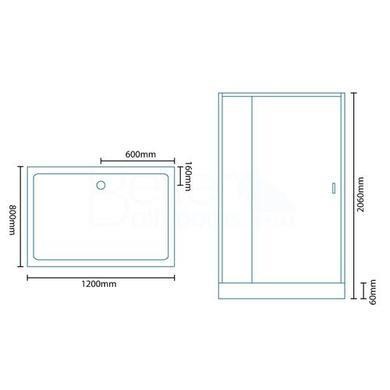

  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 1200mm
  • Projection: 800mm
  • Door Opening Size: 545mm
  • Weight: 109.4kg
  • Fully contained shower cabin creating less chance of leaks

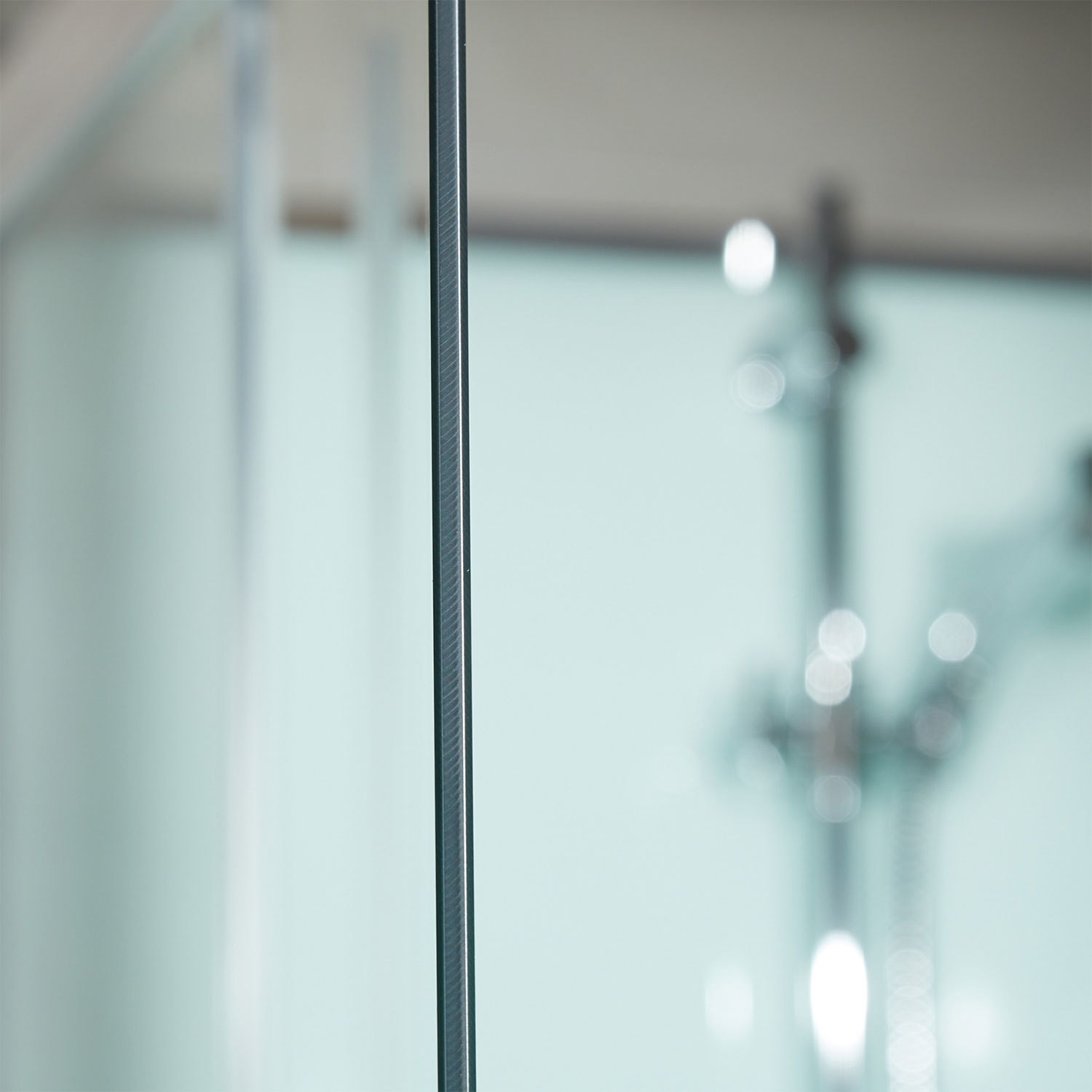

  • Toughened 6mm aqua white glass back panels - eliminate the need for tiling
  • Reduces the need for channeling of walls for pipes
  • Easy to assemble - Easy installation

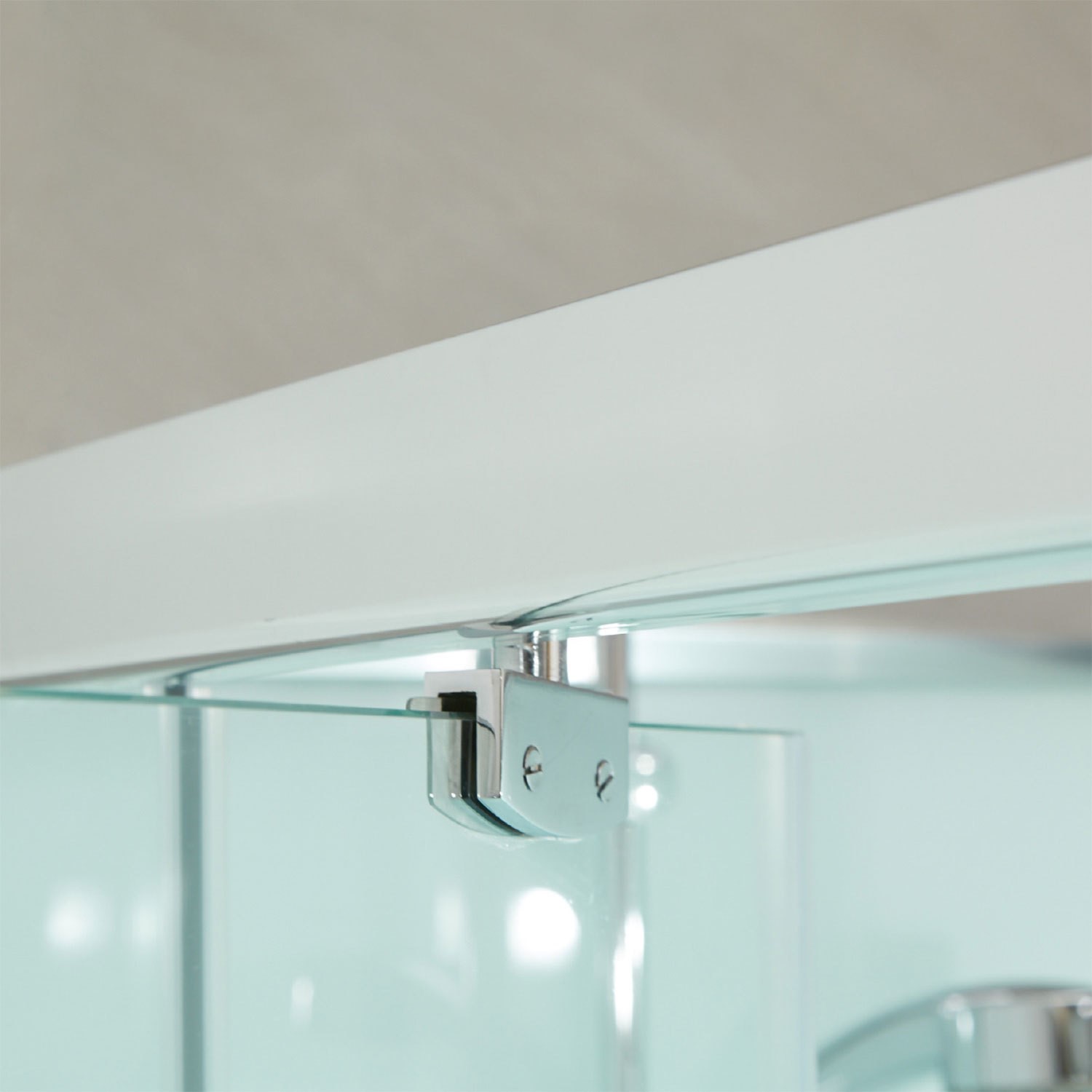

  • Polished chrome profiles and modern chrome handles
  • Cushioned Seals
  • Easy clean quick release doors
  • CE approved
  • Reversible – Product is universal for left or right hand fitting
  • Includes 60mm high quality acrylic tray
  • Comes complete with slide rail kit and standard shower head
  • Minimum operating pressure 1.0bar
  • Includes: slide rail kit and a fast fit bracket for bar valves
  • Please Note: Slide rail cannot be changed for an alternative

Shower Kit Options:

The shower comes as standard with no shower valve, but you can also choose from the Ecobar Valve with Standard Handset, the Minimalist Valve with Space Handset, or the stylish Square Valve with Square Handset. PLEASE NOTE: The standard handset is also included Free of Charge with all optional upgrades.

All Valves

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps


Ecobar Valve and Standard HandsetEcobar Shower

See image on the right.

  • Easy Clean Rubber Inserts on Handset
  • Number of functions on handset: 1
  • Chrome Finish


Square Valve and HandsetSquare Shower

See image on the right.

  • Valve suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Square Shower Head
  • Easy Clean Rubber Nozzles
  • Number of functions on handset: 1
  • Chrome Finish

Item Code:

Please Note: All sizes are approximate and should be used for guidance only.


Finance Options

Enter your order total:

Questions & Answers

Question from Martin Rule: Asked on 18/09/2018 Dies the shower tray require support , or does it just sit on the floor ?

Answer from Peter hello sits on the floor if you like to order please phone on 0161 667 6560

Question from Steve: Asked on 13/05/2018 What is the shower tray made from.

Question from Heather Lindsay: Asked on 16/03/2018 I’m not sure if you have stated wether this shower cabin can be adapted for an electric shower please let me know as this will be a second shower. Thankyou

Answer from chris Hi,

It cant be adapted sorry.

Question from Jo milligan: Asked on 13/01/2018 could grab handles be fitted inside this enclosure?

Answer from Matt Hi,

Thank you for your question.

They couldn't be a attached to the enclosure

If you need any more info or would like to place an order, please contact me using the details below.

Kind Regards,

Matt Clarke
Manchester Showroom Assistant Manager
Better Bathrooms Manchester

Telephone: 0161 667 6560

Question from Mrs S Waite: Asked on 23/11/2017 Is there any fitting instructions for the cabin as there are none in the box ?

Answer from chris Hi,

You can get these from our tech guys please follow the link,

Question from MRS bell: Asked on 22/07/2017 Does this shower cabin have a sealed roof.

Answer from chris thomas Hi,

Thank you for your question.

it doesnt have a roof sorry only the 900 x 900 has a roof

If you need any more info or wish to place an order please contact me using the details below as i can check stock levels and allocate stock faster to you.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560

Question from Jayne: Asked on 27/02/2017 Does this cabin structure still need silicone seal for the panel edges and at the bottom where it meets the shower tray?

Answer from nathan Hi ,

we don't advise to silicone this in as it a water tight unit anyway.

many thanks

Question from Joanne Grey: Asked on 04/10/2016 What is the Valve (extra cost)for?and is there possible of a grab bar being installed for safety?

Answer from Simon Hi,

With this cabin you have to choose one of the options for the shower and valve as the back panels are glass so this would come with pre cut out holes for whatever shower you choose. We wouldn't recommend installing anything else inside this as the back panels are glass.



Question from Alastair: Asked on 03/04/2016 Hi, does the height quoted of 2060 include the height of the shower tray?

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

It does not include the height of the tray the overall dimension for the entire unit is 2120 mm from the base of the tray to the outer edge of the chrome strip.

In regards to the item itself, due to us running our April Showers promotion we are currently running low on stock. To secure the yours and the other items your looking at purchasing today, please feel free to give me a call on 0161 667 6560 - Ben, and we will get it sorted for you.

Kind regards.

Question from Karen beddoes: Asked on 28/02/2016 How do you fit the two back Aqua panels together can it be done whilst installed to the shower tray , is there any further instructions that could be emailed as the ones that came with it don't cover everything , Thankyou

Answer from Simon Kirby Hi,

If you contact our aftersales/technical team on 01925 544 861 and they will be able to assist you with this

Question from Mrs Maggie Casey: Asked on 23/02/2016 Can this cabin be fitted with an electric shower such as you product 735.? I am having a garage conversion and will only have cold water supply. I do not understand the answer to the previous question. Is a shower pump also required. Thank you.

Answer from Anthony Hi there,

Thank you for your question.

I am afraid an electric shower cannot be installed in this cabin as the holes in the glass panels are pre-drilled for the rail kit and bar valve options on the product page.

A pump may be required for a gravity fed system to increase the pressure if needed. The valve will require a hot and cold water feed with a minimum pressure needed of 1.0bar

Kind Regards

Question from Bea Shrewsbury: Asked on 16/02/2016 Can I buy fill in panels that match the back walls of the cubicle? Also, please can you confirm - is the back panel coloured glass that will not show through the wall behind?

Answer from Nathan Dunstan Hi,

No we do not sell fill in panels ,
yes the glass is black and you will not see the wall behind the shower .

Many thanks

Question from Tony Givens: Asked on 03/09/2015 You only give 3 options for bar valves and riser kits. Can I fit a standard bar valve with a dual riser kit in the cabin?

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

We only allow these 3 bars to be fitted as the holes for the riser kit and for the valves are already pre drilled.

Kind regards.

Question from paul: Asked on 22/06/2015 is the 10534 free standing i.e. to fit at the back, and not at the sides

Answer from Anthony Hi,

Thank you for your question.

I am afraid not, the enclosure needs to be installed in to a corner being fitted to 2 sides.

Kind Regards

Question from Lindsey bird: Asked on 30/05/2015 Just received this product and glass colour not as expected from brochure. Not unpacked it completely but glass all looks see through and we thought backs wouldn't be. Will you not see the pipe work behind? Our fitter is coming in 2 days and I've been told its better to paint back walls first but will he need to chisel out for pipes? Do you have a fitting guide? Thanks

Answer from Jamie Hi,

Thank you for your question the glass is not see through and dependent on your wall type you would need to chisel out for the pipework. in regards to fitting instructions f you contact our customer service team on 0161 667 6560 they will be able to send you a copy by email.

Question from Cecilia Strong: Asked on 29/04/2015 Does the shower cabin come in separate panels to make is possible to get upstairs.

Answer from Peter Hi this shower cabin would come in three or four pieces.

If you need anything else just give me a call on 0161 667 6560 and ask for Simon

Question from paul yaxley: Asked on 12/03/2015 Can this unit be fitted to only a rear wall

Answer from Matt Clarke Hi,

this unit need two walls to fix to in a corner.


Question from T Bennett: Asked on 09/10/2014 Can i use a better quality thermostat i.e. Grohtherm 3000
Cosmopolitan. Are the holes etc in the glass panel a universal sizing etc?

Answer from Anthony Hi there,

Thank you for your question.

The holes are pre-drilled at 150mm centres which should be a standard fitting.

Please check you bar shower valve has the same pipe centred measurement.

Kind Regards

Question from Gary thomas: Asked on 15/09/2014 Have just taken delivery, is there an installation guide or instructions?


Answer from Jamie H Hi,

You will need to speak to our customer care team and they will be able to advise in regards to fitting and instructions if there wasn't any with the product.
01925 544 861

Question from jennifer nock: Asked on 23/12/2013 can this be fiited with an electric shower as i only have a cold water supply.

Answer from Peter Hello and thank you for your question.

The panels are pre drilled ready for a bar shower.
