Quatro Quadrant Shower Cabin with Black Back Panels - 900 x 900mm BUN/BeBa_S8454-900-GLASS/73787

Quickfind code: 1367161
30% off showers with any enclosure
or £10.58 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 900mm
  • Projection: 900mm
More Info »
10 Year Warranty
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.


Popular Bundles

Product Information

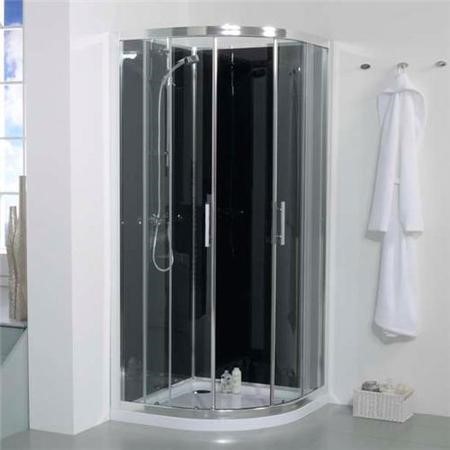

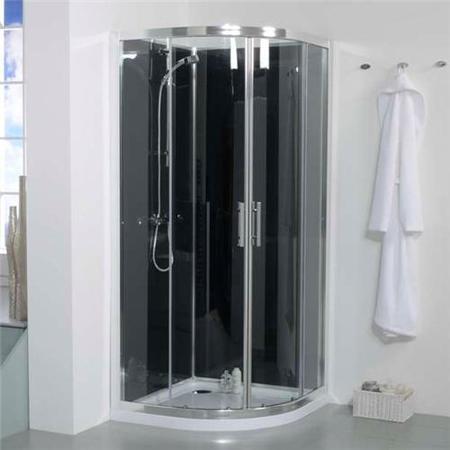

900 Quadrant Shower Cabin with Black Back Panels


The 900mm Quadrant Shower Cabin is a beautifully designed and expertly crafted showering solution. 2 black glass back panels eliminate the need for tiling and come pre-drilled for the Fast Fit Bracket and slide kit provided. Assembly and installation can be carried out with ease and the 900mm quadrant tray provided is made from high quality acrylic. Other features include CE approved glass FIRA testing and easy clean quick release doors. Also available with aqua white back panels.

Download PDF View This Product's Installation Instructions

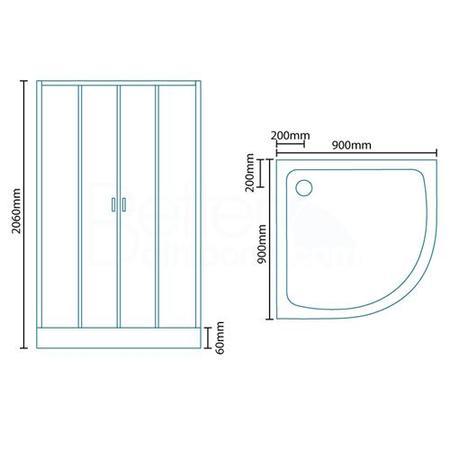

  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 900mm
  • Projection: 900mm
  • Door Opening Size: 470mm
  • Weight: 109.4kg
  • Fully contained shower cabin creating less chance of leaks
  • Toughened 6mm aqua white glass back panels - eliminate the need for tiling
  • Eliminates the need for channelling of walls for pipes
  • Easy to assemble - Easy installation
  • Polished chrome profiles and modern chrome handles
  • Cushioned Seals
  • Easy clean quick release doors
  • CE approved

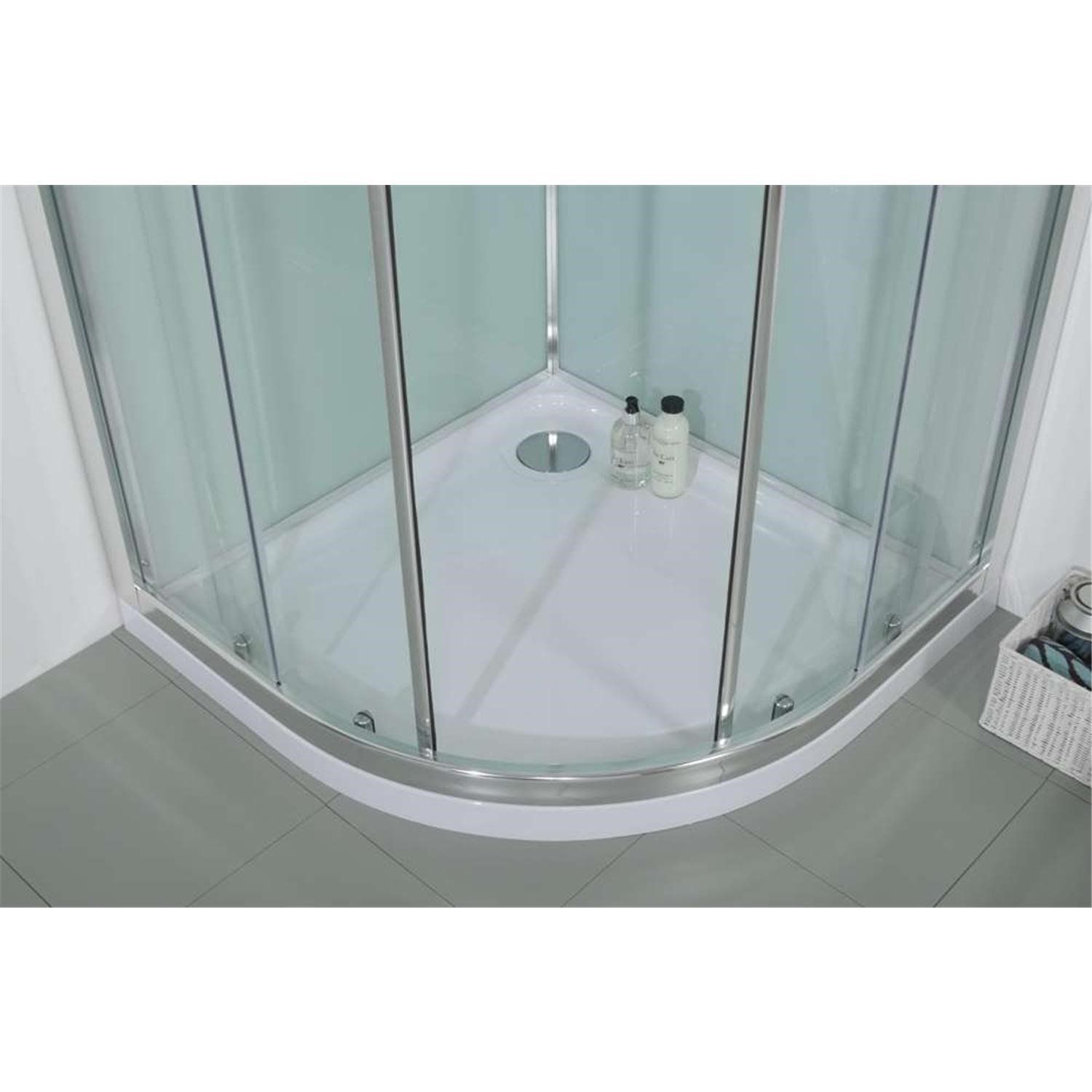

  • Includes 60mm high quality acrylic tray
  • Comes complete with slide rail kit and standard shower head
  • Minimum operating pressure 1.0bar
  • Includes: slide rail kit and a fast fit bracket for bar valves

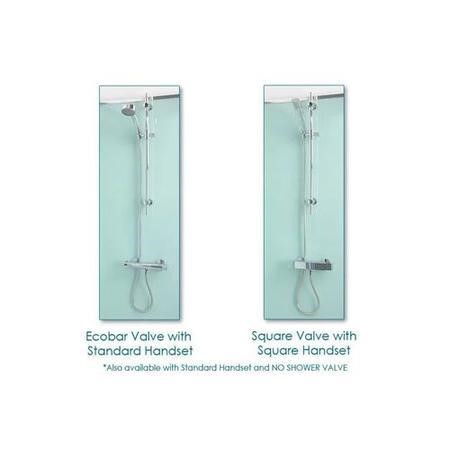

Shower Kit Options:

The shower comes as standard with no shower valve[com] but you can also choose from the Ecobar Valve with Standard Handset or the stylish Square Valve with Square Handset. PLEASE NOTE: The standard handset is also included Free of Charge with all optional upgrades.

All Valves

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps


Ecobar Valve and Standard HandsetEcobar Shower

See image on the right.

  • Easy Clean Rubber Inserts on Handset
  • Number of functions on handset: 1
  • Chrome Finish


Square Valve and HandsetSquare Shower

See image on the right.

  • Valve suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Square Shower Head
  • Easy Clean Rubber Nozzles
  • Number of functions on handset: 1
  • Chrome Finish

Item Code:

Please Note: All sizes are approximate and should be used for guidance only.


Questions & Answers

Question from Peter Scott: Asked on 19/11/2017 Is this product suitable for an electric shower, instead of the mixer.

Answer from Nathan Donley-McGregor Hello.

Thank you for your question.

I am afraid this would not be suitable as the holes for a mixer are already cut in the shower.


Question from Lyndsey bath: Asked on 14/01/2017 Hi can you tell me if the glass shower panels sit inside the shower tray? Also do you need to use silicone inside the cabin? We are trying to avoid having to. Thanks

Answer from Nathan McGregor Hello.

Thank you for your question.

Yes the glass does sit inside and you would just need to silicone it on to the tray.


Question from K Jones: Asked on 28/09/2016 Can these be used with electric showers?

Answer from Simon Hi,

I am afraid not, this can only be used when running off a main combination boiler.


Question from Kevin carroll: Asked on 30/04/2016 Can electrics shower befitted in shower cabin

Answer from Benjamin Linnert Good Morning,

Thank you for you question.

Electrics showers cannot be fitted inside the shower cabins, this is because the shower cabins back panels come pre-drilled and they cannot accommodate an electric shower fitting.

In regards to the item itself, due to us running our Bank Holiday Sale promotion we are currently running low on stock. To secure the yours and the other items your looking at purchasing today, please feel free to give me a call on 0161 667 6560 - Ben, and we will get it sorted for you.

Kind regards.

Question from Chris Wells: Asked on 13/02/2016 Can you fit your own shower unit in this. I need and instant electric shower as I do not have access to a hot water tank.

Answer from Nathan Dunstan HI,

Thank you for the question ,

The glass comes pre drilled so you would not be able fit your own shower .

Many thanks

Question from Beryl: Asked on 05/02/2016 Can Shower accessories eg Soap holder, Shampoo Basket be fitted inside the cabinet? Thanks

Answer from Anthony Hi,

Thank you for your question

This is not something we would advise as the panels at the back of the cabin are glass.

Kind Regards

Question from David Hennessy: Asked on 31/01/2016 Quadrant 900 shower cabin, I would like to use a shower valve which matches my existing taps, am able to put a standard valve (150 mm from valve centre to centre) through the pre drilled holes?

Answer from Matt Clarke Hi,

Thank you for your question.

Hi sorry you can not do this.

If you need any more info or would like to place an order, please contact me using the details below.

Kind Regards,

Matt Clarke
Manchester Showroom Assistant Manager
Better Bathrooms Manchester

Telephone: 0161 667 6560

Question from steve sallis: Asked on 28/11/2015 can back panels be swapped round as water supply is on other side to the right

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

This shouldn't be an issue as the unit comes in several parts it would just be a case of securing the panels in the places you require.

Kind regards.

Question from Mark James: Asked on 04/08/2015 the instruction says line the enclosure up with the back of the tray, but the tray has a raised lip around the edge preventing this, do I have the right tray or was the wrong one shipped. Please advise.

Answer from Peter You would line the enclosure up with the raised part of the tray at the back if you need anything else just call our technical team on 01925 544 861 and they will be happy to help.

Question from Aga: Asked on 03/08/2015 How difficult is to make holes for valves in a back black panels?

Answer from Nathan McGregor hello

Thank you for your question

Holes for a bar shower are already cut in the panels.

If you try to cut this glass it might shatter and it is safety glass.


Question from mark james: Asked on 01/08/2015 the instruction says line up the cabin with the back of the tray. How is this done as the tray as a raised lip running all round it? or have I been shipped the wrong tray?

Answer from Nathan McGregor Hello.

thank you for your question.

You need to put the glass up to the lip on the tray.

If you have any more issues please call our tech team on 01925 544 861.


Question from John mc Connell: Asked on 15/04/2015 would 1.5 bar run the jets at a good pressure ? Thanks.

Answer from Nathan McGregor Hello.

Thank you for your question.

Yes it would run the system perfectly.

If you have any more questions please call our sales team on 0161 667 6560.


Question from Mark James: Asked on 11/03/2015 I have looked at the instalation manual, but do you have a dimensions of the glass panel showing the holes, so I can place and position the water supply pipes in the wall beforehand?
I could then plasterboard and plaster ahead of delivery.

Answer from Matt Clarke Hi,

The best advice I could give you is to call our technical team on 01925 544 861 option 2. They will be able to help you with this.


Question from Mark: Asked on 10/03/2015 are the mixer valves aupplied with the shower thermostatic mixer valves or hot and cold water manul mixer valves (like a mixer tap)?

Answer from Anthony Hi there,

Thank you for your question.

If you include one of the valves on your order with this shower cabin then yes it will be thermostatically controlled.

Kind Regards

Question from Mark James: Asked on 10/03/2015 are the ecobar and minimalist valves, thermostatic mixer valves?


Answer from jonathan hi thank you for your question but you can please resubmit the question as i dont quite understand what you mean by this question.

kind regards

Question from kim: Asked on 11/01/2015 Hello do you make a shower cabin the same as this one with a total height of 1950mm or 2000mm this includes the tray thank you

Answer from Jamie H Hi,

Thank you for your question no we don't they are all around that size if you have any further questions please feel free to give us a call on 0161 667 6560.

Question from Joanna sparrow : Asked on 12/12/2014 Hi, I had my order delivered on Wednesday and as I was on my own I couldn't take all the items out of the boxes to check for missing parts or damages. Me and my husband are going to check them when he is home from work for the weekend. What do we do if there are any problems ? I would also like to ask I have purchased an Arc900 quadrant shower cabin but also ordered an easy plumb shower tray. Is this tray suitable for use with the shower cubicle ? Thanks

Answer from Benjamin Linnert Hi, thank you for your question.

If any parts are missing to your products or damaged you can call our customer care team on 0844 484 7678 option 2, and you can report these damages and we can replace for you as long as its within the 7 day from delivery time scale.

This shower cubicle is also suitable for the easy plumb shower tray.


Question from Wolf: Asked on 21/07/2014 Hi,
Is it possible to fit an electric shower or does the glass has pre drilled holes for a valve?

Answer from Peter Hi,

Thank you for your question.

Unfortunately you can only fit the showers in the option section on the website this is because the glass is already predrilled for these showers.

I hope this information helps but if you have any further questions please contact the sales team on 0844 484 7678 option 1.

Question from Russ Guest: Asked on 08/07/2014 2 questions:

What is the thickness of the enclosure glass? I can see it says 6mm for back panels but cannot see glass thickness.

Are the back panels pre-drilled for a mixer valve and riser rail? I was looking at purchasing one of these enclosures (as I like the idea of the back panels) but would ideally like to fit a shower panel such as the Aspire unit. Is this possible?

Answer from Darren Yes the glass is 6mm and the panels are pre drilled for the three different shower options available

Question from jen brice: Asked on 02/06/2014 Would you be a able to use a riser rail kit with this enclosure?

Answer from Peter Hi,

Thanks for your question. If you have a look at the drop down menu on the product page for this item you will be able to select 1 of 3 showers. This is because the back panel on the shower already has predrilled holes and these are the only showers that will fit.

Question from Chris Bredenkamp: Asked on 23/04/2014 Can the back panels be drilled for other fixtures? Can a Saturday delivery be specified

Answer from Peter Hi there,

We would not recommend the back panels being drilled.

Please contact our sales line for Saturday delivery availability on 0844 484 7678 option 2.

Kind Regards

Question from Ian Smith: Asked on 07/01/2014 I will be using a macerator therefore I think the tray needs to be raised, do you have a suitable product?

Will a square valve and handset be suitable for a combi boiler ?

Answer from Nathan McGregor Hello and thank you for your question.

We do not do a tray that you could use to put this directly underneath.
