900mm Quadrant Shower Cabin with Aqua White Back Panels BUN/BeBa_S8454-900-GLASS/73786

Quickfind code: 1367160
£398.04
or £10.58 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 900mm
  • Projection: 900mm
More Info »
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

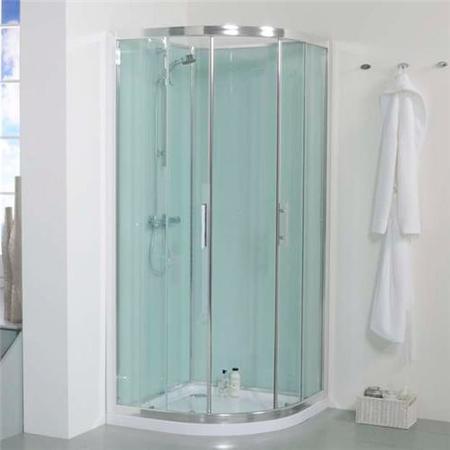

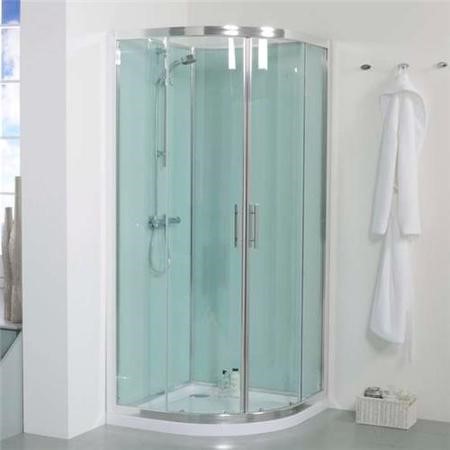

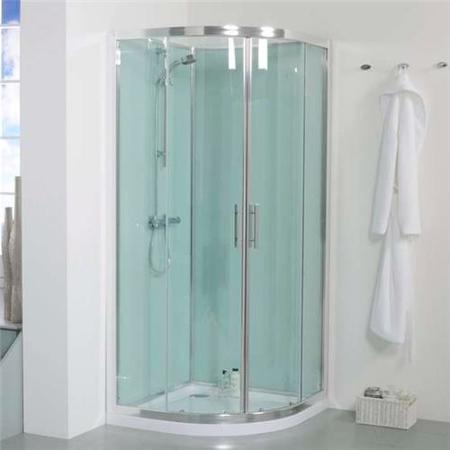

900 Quadrant Shower Cabin with Aqua White Back Panels

Summary

The 900mm Quadrant Shower Cabin is a beautifully designed and expertly crafted showering solution. 2 aqua white back panels eliminate the need for tiling and come pre-drilled for the Fast Fit Bracket and slide kit provided. Assembly and installation can be carried out with ease and the 900mm quadrant tray provided is made from high quality acrylic. Other features include CE approved glass FIRA testing and easy clean quick release doors. Also available with black back panels.

Download PDF View This Product's Installation Instructions

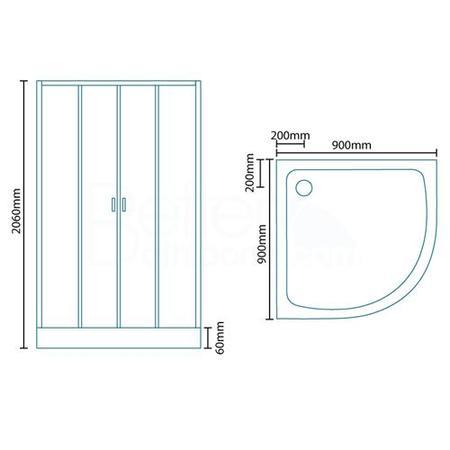

Features

  • Cabin Type: Shower Cabin
  • Materials Specification: 6mm thick toughened glass
  • Height: 2060mm
  • Width: 900mm
  • Projection: 900mm
  • Door Opening Size: 470mm
  • Weight: 109.4kg
  • Fully contained shower cabin creating less chance of leaks
  • Toughened 6mm aqua white glass back panels - eliminate the need for tiling
  • Eliminates the need for channelling of walls for pipes
  • Easy to assemble - Easy installation
  • Polished chrome profiles and modern chrome handles
  • Cushioned Seals
  • Easy clean quick release doors
  • CE approved

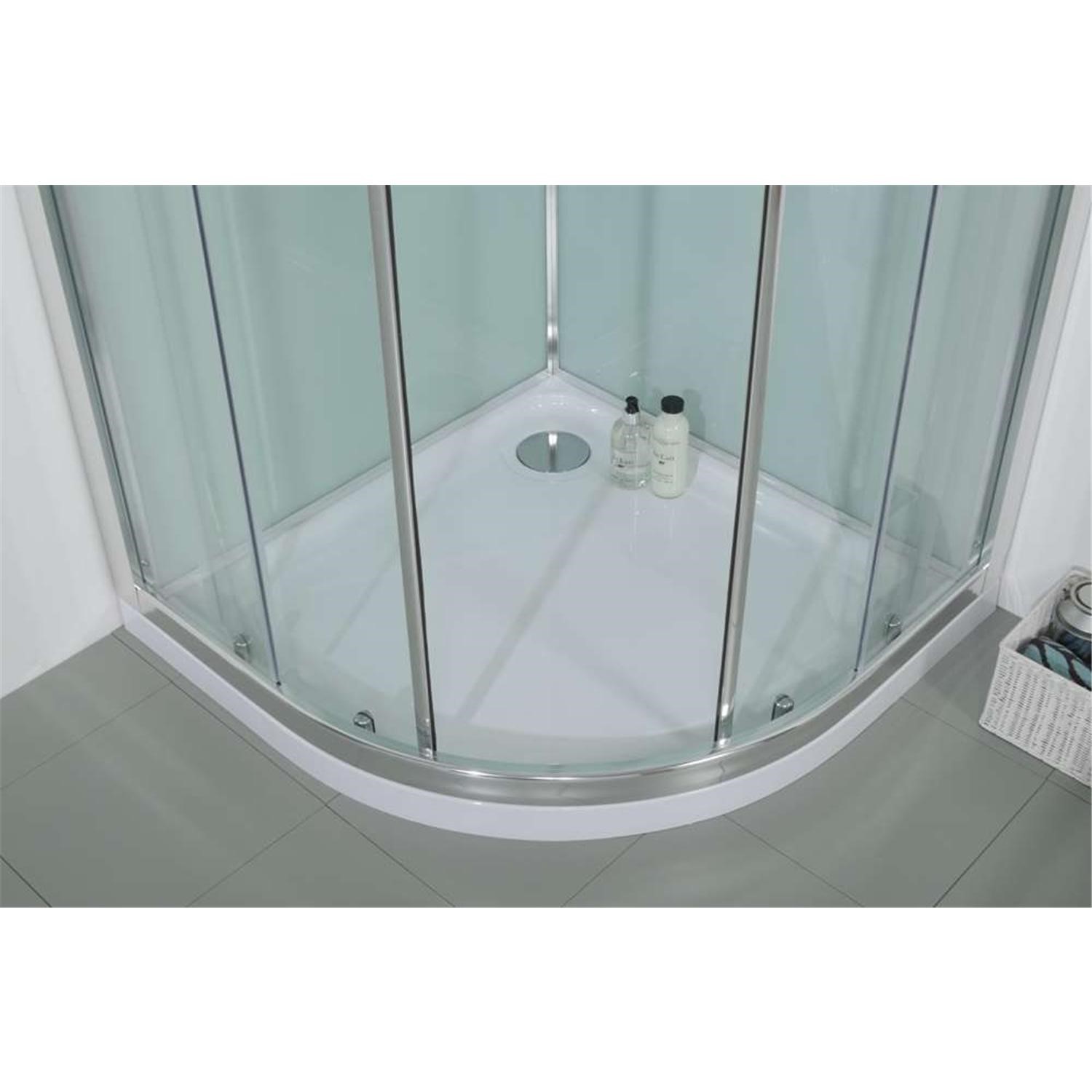

  • Includes 60mm high quality acrylic tray
  • Comes complete with slide rail kit and standard shower head
  • Minimum operating pressure 1.0bar
  • Includes: slide rail kit and a fast fit bracket for bar valves

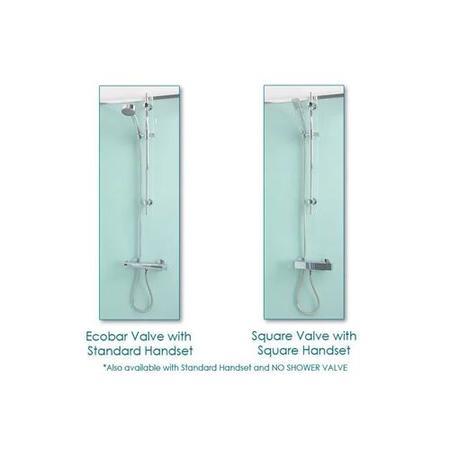

Shower Kit Options:

The shower comes as standard with no shower valve[com] but you can also choose from the Ecobar Valve with Standard Handset or the stylish Square Valve with Square Handset. PLEASE NOTE: The standard handset is also included Free of Charge with all optional upgrades.

All Valves

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 20°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps

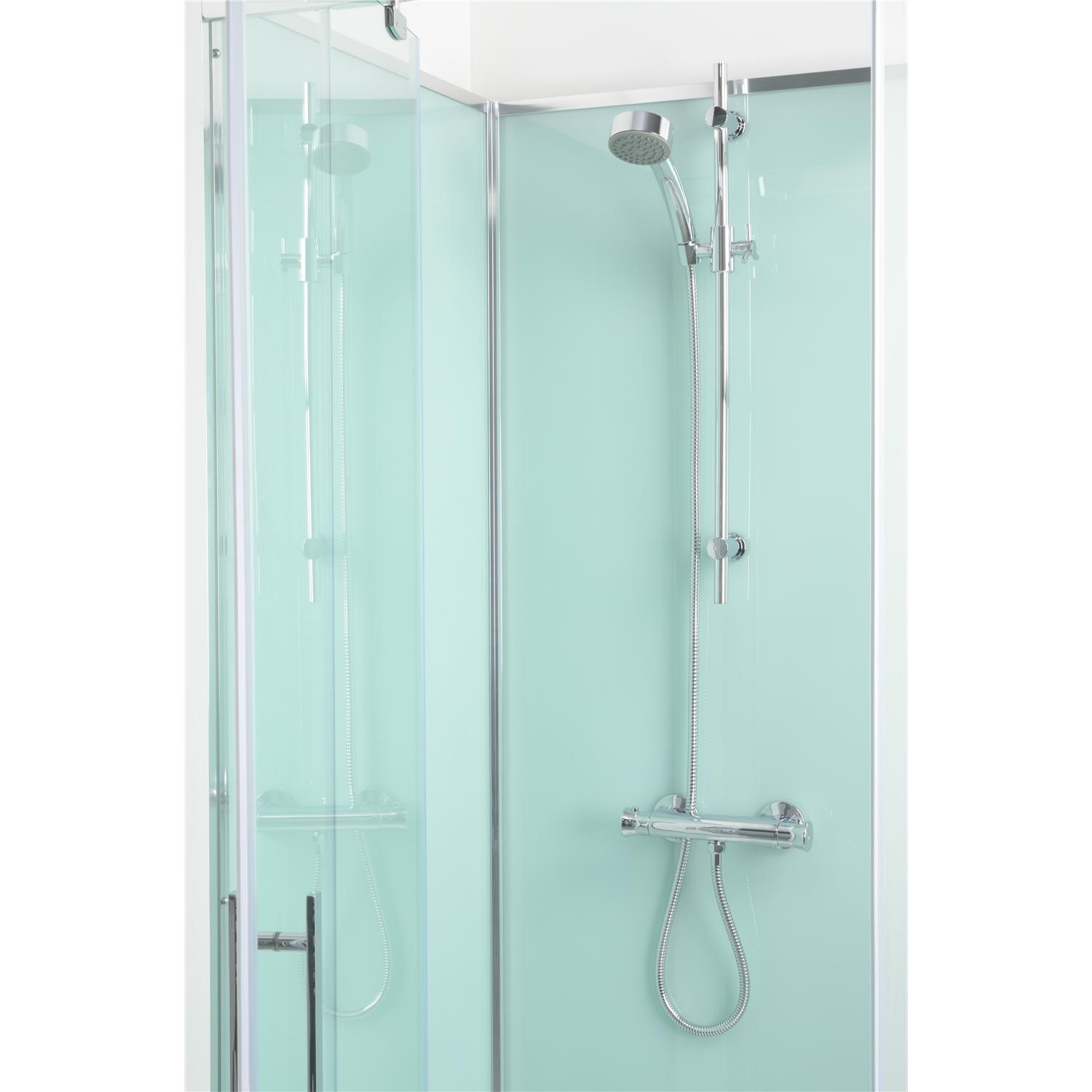

Ecobar Valve and Standard HandsetEcobar Shower

See image on the right.

  • Easy Clean Rubber Inserts on Handset
  • Number of functions on handset: 1
  • Chrome Finish



Square Valve and HandsetSquare Shower

See image on the right.

  • Valve suitable for gravity fed systems (subject to minimum 0.5 bar pressure)
  • Square Shower Head
  • Easy Clean Rubber Nozzles
  • Number of functions on handset: 1
  • Chrome Finish

Item Code:
BUN/BeBa_S8454-900-GLASS/73786

Please Note: All sizes are approximate and should be used for guidance only.



Questions & Answers

Question from James Simporis: Asked on 14/03/2017 Is there a pod available that can take an electric shower?

Answer from chris thomas Hi,

Thank you for your question.

Unfortunately none of the ones we sell can take an electric shower

If you need any more info or wish to place an order please contact me using the details below as i can check stock levels and allocate stock faster to you.

Kind Regards,

Chris Thomas
Manchester Showroom Sales Assistant
Better Bathrooms Manchester

Telephone: 0161 667 6560
Email: chris.thomas@betterbathrooms.com
Website: www.betterbathrooms.com

Question from Phil D: Asked on 06/01/2017 Is the flexible waste pipe referred to in the installation instructions included.

Answer from Simon Hi,

Thank you for your question.

If you contact our aftersales team on 01925 544 861 they will be able to have a look at this for you.

Question from Keith Johnston: Asked on 22/03/2016 why have you not answered my question I asked last Thursday 17/3/2015

Answer from Benjamin Linnert Good Morning,

Thank you for your question. I apologise for this, I have looked for your question in our records and have not been able to locate it. Would you be able to resubmit your question.

Kind regards.

Question from Keith Johnston: Asked on 18/03/2016 the wall bracket (P617) does it have to be fitted to the wall or can it be connected directly to the glass panel with the valve, the instruction said to refer to bracket instructions no instructions in box

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

If you give us a call on 0333 777 4777 and ask to speak to a technical advisor, we can give you a full rundown of installation.

Kind regards.

Question from Robert Pulman: Asked on 29/02/2016 Can this shower enclosure be used with Easy Plumb Shower Trays, or is it only compatible with the Tray that comes with it ?

Answer from Benjamin Linnert Good afternoon,

Thank you for your question.

Im afraid that this enclosure is only suitable with the shower tray provided due to the nature of its matierial it would also not be suitable for a leg set.

Kind regards.

Question from Gerry Mcginlay: Asked on 26/01/2016 Is waste included with this . If not , what item do I need

Answer from Simon Kirby Hi,

The waste is included in this so no need to purchase seperatly.

Question from Mr M Arif: Asked on 01/12/2015 Does the trays you offer give right/left/corner waste hole options?

Answer from Nathan McGregor Hello.

Thank you for your question.

I am afraid we only supply this unit with a Centre rear waste.

Regards.

Question from louise: Asked on 18/08/2015 can the standard cabin with no valve be installed with an electric shower?

Answer from Simon kirby Hi,

An electric shower would not be able to be fitted to this rail kit that you get as standard with this cabin I am afraid.

Simon

Manchester Showroom

Question from Patrick Budden: Asked on 13/08/2015 Can I use a different shower tray ie A stone one, Slim line 900x900 Quadrant shower tray.

Answer from Benjamin Linnert Good Morning,

Thank you for your question.

Unfortunately this will not be possible as the dimensions for the enclosure are suited to this tray and not our slim line trays

Kind regards.

Question from Jo : Asked on 06/08/2015 Will this system will work with our existing shower valve or do we need to order a new one?

Answer from Simon Kirby Hi, with this cabin as standard you get the choice of 3 shower heads and rail kits generally these would all come with their own valves, however you can get this cabin with just the standard head and rail kit and use your own valve.

If you need any further assistance with this just contact me on 0161 667 6560 and ask for Simon and I will be happy to assist

Simon

Manchester Showroom

0161 667 6560

Question from stuart: Asked on 16/06/2015 would love a cabin of this design but need to be able to fit an electric shower and raise the unit by at least 100mm for waste.
is there anything you do like this.
thanks

Answer from Peter Hi,

Thank you for your question.

Unfortunately we do not have any cabins that can take an electric shower this is because the glass is predrilled and then toughen.

I hope this information helps but of you have any further questions please call us direct on 0161 667 6560

Question from Peter McLaughlan: Asked on 22/05/2015 Is the waste hose included or does it need to be ordered separately ?

Answer from Peter Hi all the waste for this cabin would need to be bought seperatly it would not come included.

If you need anything else or wish to place the order just give me a call direct on 0161 667 6560 and ask for Simon and I will be happy to help.

Question from lisa Sanderson: Asked on 17/05/2015 Hi there, couple of questions please? Is the aqua white glass panel translucent and if I opted for the cabin standard without valves, will there be standard holes pre-cut in the glass? Many thanks, lisa

Answer from Jamie Hi,

Thank you for you question the glass panels do have a green tint to the glass and if you select the option for no valve the glass is pre drilled for the water feed and rail kit, I foy u have any further questions please feel free to give us a call on 0161 667 6560.

Question from Phil: Asked on 05/05/2015 Hi, what is the lowest height the shower head can go down to on its pole?

Thanks

Phil

Answer from Benjamin Linnert Good afternoon,

Thank you for your question.

The highest point that the shower head can be raised at is approximately 194 cm from the shower tray.

Kind regards.

Question from Amanda Harris: Asked on 28/10/2014 Can the panels be fitted over existing tiles?

Answer from Jamie H Hi,

Thank you for your question you can use this enclosure and keep your existing tiles and it just secures to the wall using brackets you don't have to secure the full panel to the wall. If you have any further questions please feel free to give us a call on 0161 667 6560

Question from Brian fielder: Asked on 08/08/2014 I am interested in a shower cubicle but notice it says acrylic tray.Is there any chance of swapping the acrylic tray for a stone resin version and paying the difference.
Failing this would the cubicle fit the stone resin tray if I decided to but it's well.
I previously have used acrylic trays and not been happy with them

Answer from Nathan McGregor Hello.

I am afraid not with this enclosure.

Regards.

Question from mr kevin house: Asked on 01/06/2014 Hi
is it possable to use the easyfit tray instead of the standard tray supplied with the above item.

Many thanks.

Kevin.

Answer from Nathan McGregor Hello.

As the enclosure is made from glass we do not supply and easy plumb tray with this due to its weight.

Regards.

Question from Tina Rothery: Asked on 27/05/2014 We are very interested in this shower cabin and wondered if you provide any installation service. Thank you

Answer from Peter Hi there,

I am afraid we do not have an installation service, we only supply the products unfortunately.

Kind Regards

Question from karen camara: Asked on 02/04/2014 i had this shower fitted last November - since then it has been leak after leak after leak. the bathroom fitter has been out on a nearly weekly basis. i am just about at the end of my tether with it. i love the cubicle but have had enough of the leaks. any suggestions please.

thank you

Answer from Peter Hi there,

Please contact our Customer Care/Technical Team on 0844 484 7678 option 2 and they will be able to advise further on this issue.

Kind Regards

Question from Michael Clark: Asked on 16/01/2014 Can the control be fitted to either panel (are they compatible ) to either side.
Are all of the valves shown suitable for a high pressure system
I are the white panels actual glass

Answer from Peter Hi there.

The panel are interchangeable so you can have the shower on any side.
The bar showers do have a maximum bar pressure. Please see in the description.
Yes all the panels are made from 6mm toughened safety glass.

Regards.

Question from Isabelle Connolly: Asked on 13/07/2013

1. Are the back panels interchangeable, (can the shower attachment be conected to the other back panel)? 2.Can an electric shower be used instead?

Answer from Mike B

The shower is interchangeable, but it can't be used with an electirc shower. It can only be the shower included in the package
