Eco Slide Shower Rail Kit with Ecobar Valve BUN/BeBa_7893/71159

Quickfind: 1363064 SKU: BUN/BeBa_7893/71159

Product Information

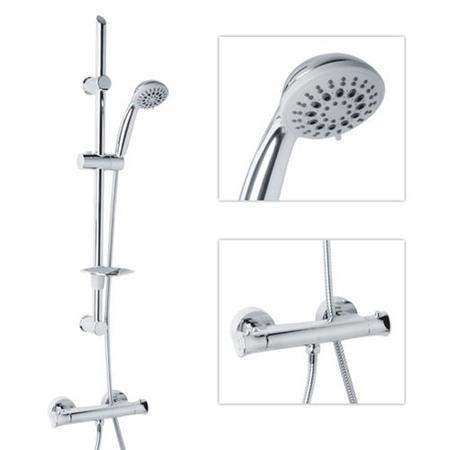

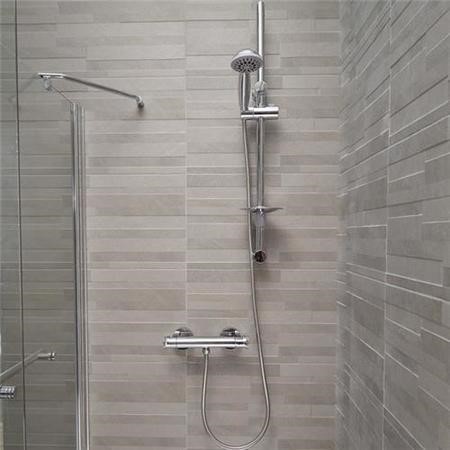

Eco Slide Shower Rail Kit with Ecobar Valve

Summary

Ecobar Slide Rail Pack. The Eco bar shower valve offers thermostatic showering with two easy to operate controls. One handle operates the on and off flow control whilst the other allows temperature selection.

Features

Shower Valve

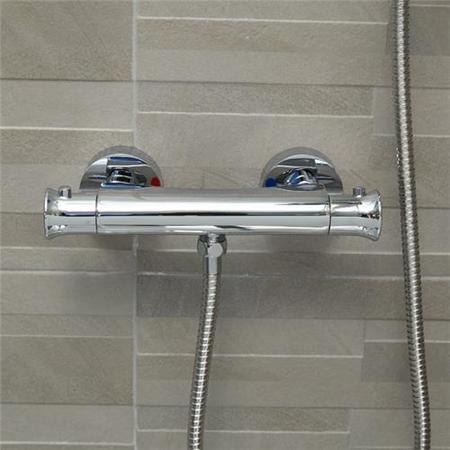

  • 1/2" exposed thermostatically controlled shower valve
  • Mixed water bottom outlet
  • Pipe fixing centres at 150mm +/- 20mm
  • Hot water feed inlet on the left when water outlet on the bottom of the valve
  • Suitable for water systems between 0.5 and 4 bar pressure
  • Cold water supply temperature 4 - 29°C
  • Hot water supply temperature 55 - 85°C
  • Built in anti-scald device
  • Suitable for gravity fed systems
  • Suitable for combi boiler systems
  • Suitable for unvented mains pressures systems
  • Suitable for shower pumps

Eco Slide Rail kit

  • Length of shower hose: 1500mm
  • Length of slide: 760mm
  • Tube Diameter: 25mm
  • Adjustable wall fixing brackets (Ideal for replacing existing slide rail kit)

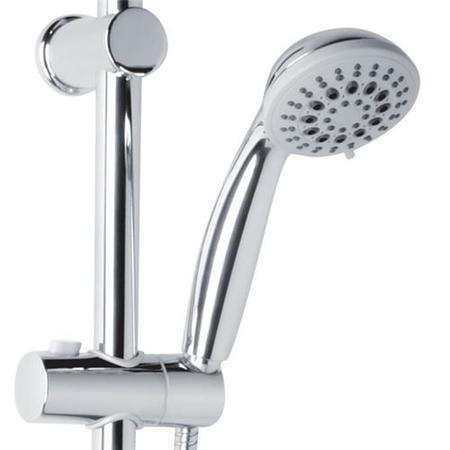

  • Auto lock sliding shower head holder

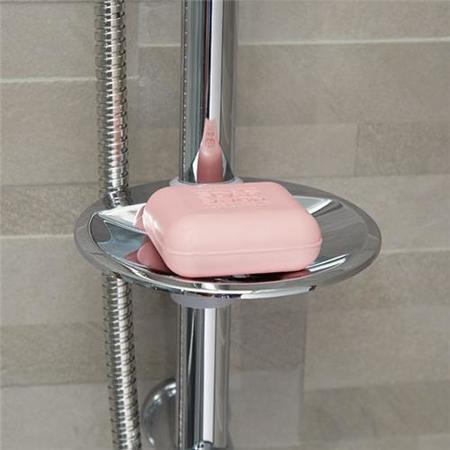

  • Round soap dish

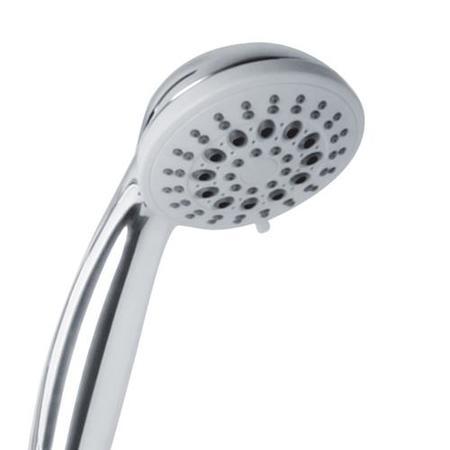

  • Number of functions on handset: 5
    • - Spray
    • - Mist
    • - Massage
    • - ECO Spray
    • - Pause
  • Pressure Requirements:
    • - Min 1.0 Bar
    • - Max 5.0 Bar
    • - Suitable for combi boiler systems
    • - Suitable for gravity fed systems - shower pump required
    • - Suitable for unvented mains pressure systems

  • Materials Specification: Chrome Finish

Item Code:
BUN/BeBa_7893/71159

Please Note: All sizes are approximate and should be used for guidance only.
