EcoS9 Concealed Dual Control Shower Valve with Diverter and Overflow and Handset BUN/BeBa_10644/73847

Quickfind: 1367221 SKU: BUN/BeBa_10644/73847

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 0871 244 0935, we can email you if it comes back into stock »

Other customers search for...

Product Information

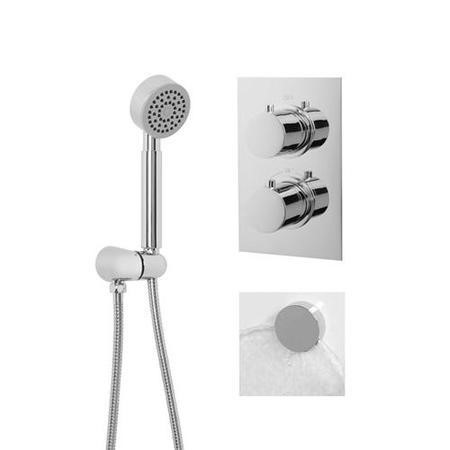

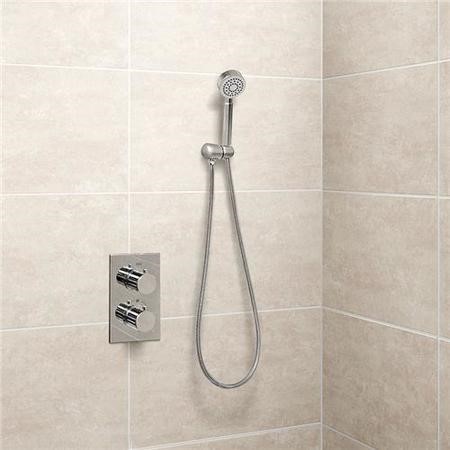

EcoS9 Concealed Dual Control Shower Valve with Diverter, Overflow and Handset

Summary

The designer EcoS9 Concealed Dual Control Valve is a modern chic round design that will suite a wide range of our shower heads. This exclusive bundle comes complete with a curved handset and overflow.

Features

    Shower Valve

  • Valve Type: Concealed Shower Mixer
  • Product Style: Round
  • Min Pressure & Flow Rate: 0.5 bar (flow rate of 8.1 litres per minute)
  • Max Pressure & Flow Rate: 5 bar (flow rate of 11 litres per minute)
  • Recommended Pressure: 1 bar
  • Height: 200mm
  • Width: 130mm
  • Depth: 117mm
  • Net Weight: 2.25kg
  • Controls: Dual Control[com] one for flow rate[com] one for temperature
  • Safety Features: Built in anti-scald device
  • Materials Specification: Solid Brass with Copper
  • Finish: Chrome
  • Suitable for:
    - Combination Boilers
    - Pressurised Systems
    - Pumped Systems
    - Gravity Fed Systems (which may require a pump)
    - Subject to a minimum pressure of 0.5 bar
Please Note: When installing with our bath filler overflow[com] a minimum of 1.0 bar pressure is required.

    Overflow

  • Combined bath filler with
  • Push button waste & overflow
  • Chrome finish

    Outlet Elbow

  • Min Pressure & Flow Rate: 0.8 bar (min flow rate 9.52L)
  • Max Pressure & Flow Rate: 3.0 bar (max flow rate 29.85L)
  • Inlet Size: M1/2"
  • Outlet Size: M1/2"
  • Finish: Chrome

    Shower Hose

  • Accessory Type: Shower Hose
  • Style: Modern
  • Manufactured From: Stainless Steel. and EPDM Rubber
  • Finish: Steel
  • Length: 150cm
  • Width: 14mm

    Shower Handset

  • Chrome Finish
  • Single Function

Item Code:
BUN/BeBa_10644/73847

Please Note: All sizes are approximate and should be used for guidance only.
