Minimalist Deluxe Star Riser Slide Shower Rail Kit With Valve
Summary

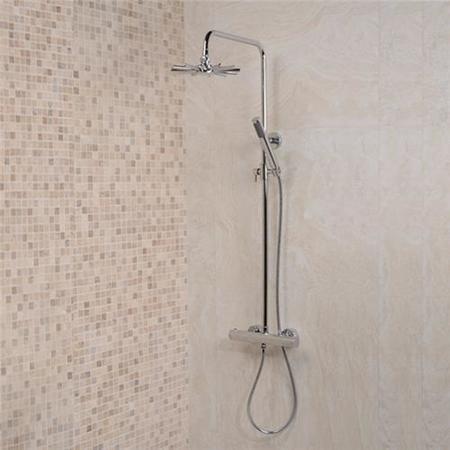

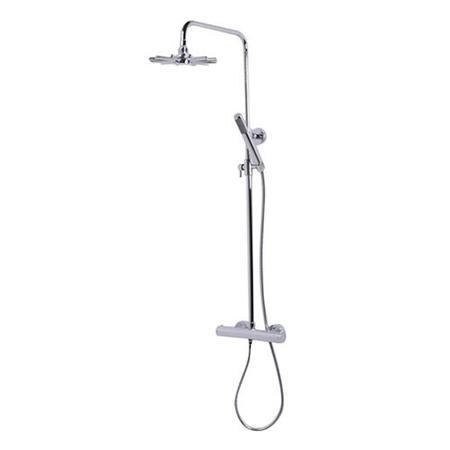

The minimalist Star dual kit riser pack includes a stylish round riser kit and the unique star shower head. The dual flow thermostatic bar valve operates both the stunning star shower head and the fashionably slim riser rail handset.
Instructions 1:
View This Product's Installation Instructions
Instructions 2: View This Product's Installation Instructions
Features
Shower Valve
- Valve Type: Exposed thermostatic dual bar valve
- Min Pressure & Flow Rate: 1.0 bar
- Max Pressure & Flow Rate: 3.0 bar
- Height: 70mm - measured from outlet to outlet
- Width: 275mm
- Depth: 80mm
- Controls: Dual Control
- Safety Features: Built in anti-scald device
- Materials Specification: Solid Brass
- Finish: Chrome
- Suitable for:
- - Combination Boilers
- - Pressurised Systems
- - Pumped Systems
- - Gravity Fed Systems (which may require a pump)
- - Subject to a minimum pressure of 1.0 bar
Slide Rail/Riser Kit
- Length of shower hose: 1.5 metres
- Length of slide rail kit: 1250mm Max - 785mm Min
- Adjustable Shower Handset holder
- Easy clean rubber nozzles on shower handset
- Number of functions on handset: 1
- Pressure Requirements: 1.0 bar
- Materials Specification: Steel with chrome finish
Shower Head:
- Diameter of Head: 230mm
- Material of Head: Solid Brass
- Thickness of Head: 25mm
- Chrome Finish
- Complete with swivel to allow shower head adjustment
- Easy Clean Rubber nozzles
- Pressure Requirements: 1.0bar
